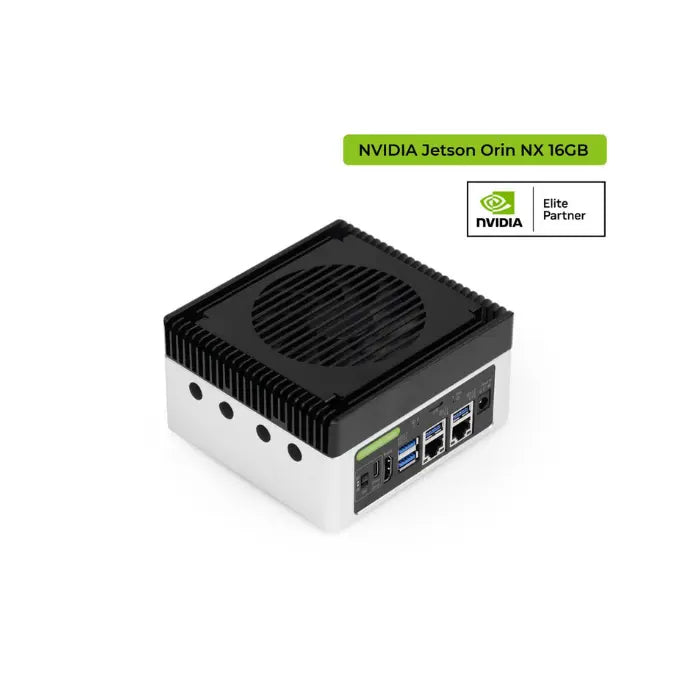

Seeed Studio reComputer Super J4012 - Advanced Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB
Seeed Studio reComputer Super J4012 - Advanced Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB
Description
Seeed Studio reComputer Super J4012 is a compact edge AI computer built on the NVIDIA Jetson Orin NX 16GB platform. In Super MAXN mode, it delivers up to 157 TOPS, making it a strong fit for advanced vision AI, robotics, multimodal perception, and fast-moving edge inference workloads.
Compared with the classic reComputer line, the reComputer Super series pushes performance further while keeping a practical deployment-ready form factor. The J4012 combines JetPack 6.2, 128GB NVMe SSD, 4 x CSI, dual Gigabit Ethernet, Mini-PCIe for LTE, M.2 Key E/M, CAN, and 4 x USB 3.2 in one platform, so it works well for both development and production integration.
If you need more than a standard Orin NX box and want a platform prepared for Super Mode, robotics, edge AI, and camera-rich systems, reComputer Super J4012 is one of the strongest options in the current reComputer family.
Features
- Jetson Orin NX 16GB based edge AI computer with up to 157 TOPS in Super MAXN mode.
- JetPack 6.2 and 128GB NVMe SSD pre-installed for faster deployment.
- 4 x CSI support for camera-heavy edge AI and perception workloads.
- 2 x RJ45 Gigabit Ethernet for reliable wired networking.
- M.2 Key E, M.2 Key M, and Mini-PCIe for Wi-Fi, storage, and LTE expansion.
- 4 x USB 3.2 Type-A, HDMI 2.1, CAN, 40-pin header, and 12-pin control/UART header.
- Supports wireless expansion including Wi-Fi, Bluetooth, and LTE.
- Well suited to ROS 2, NVIDIA Isaac, Hugging Face, and high-performance edge AI workflows.
Specifications
| Item | reComputer Super J4012 |
|---|---|
| Module | NVIDIA Jetson Orin NX 16GB |
| AI Performance | 157 TOPS (MAXN) |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit |
| CPU Max Frequency | 2.0 GHz |
| DL Accelerator | 2 x NVDLA v2.0 |
| Vision Accelerator | 1 x PVA v2.0 |
| Memory | 16GB 128-bit LPDDR5, 102.4GB/s |
| Power Modes | 10W / 15W / 25W / 40W |
| Video Encode | 1 x 4K60, 3 x 4K30, 6 x 1080p60, 12 x 1080p30 (H.265) |
| Video Decode | 1 x 8K30, 2 x 4K60, 4 x 4K30, 9 x 1080p60, 18 x 1080p30 (H.265) |
| CSI | Up to 4 cameras, 8 via virtual channels, 8 lanes MIPI CSI-2 |
| Storage | 1 x M.2 Key M PCIe, 128GB NVMe SSD included |

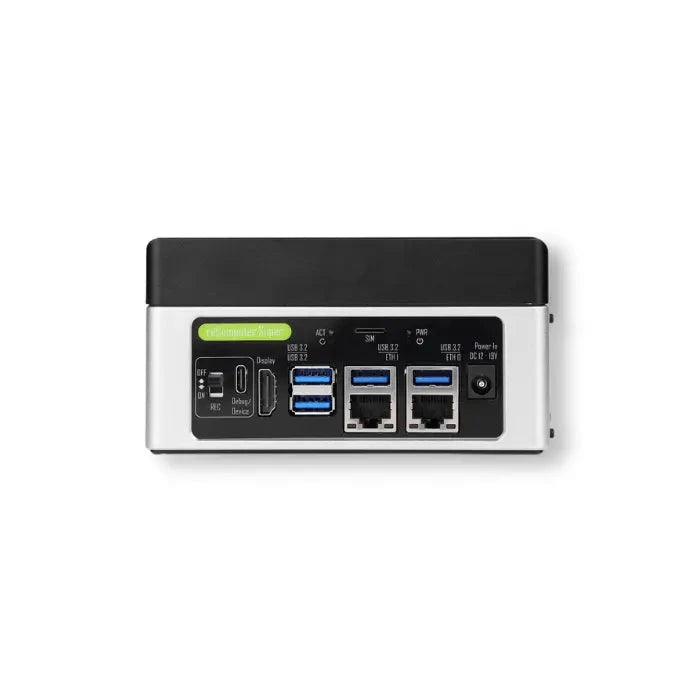

| Networking | 2 x RJ45 Gigabit Ethernet, 1 x M.2 Key E, 1 x Mini-PCIe |
| USB | 4 x USB 3.2 Type-A, 1 x USB 2.0 Type-C device/debug |
| Camera | 4 x MIPI CSI, 2-lane 15-pin |
| CAN | 1 x CAN, 4-pin header |
| Display | 1 x HDMI 2.1 |
| Fan | 1 x 5V PWM fan connector, 1 x 12V PWM fan connector |
| Extension | 1 x 40-pin header, 1 x 12-pin control and UART header |
| RTC | 1 x RTC 2-pin, 1 x RTC socket |
| LED | 2 x LED, PWR and ACT |
| Buttons | 1 x PWR, 1 x RESET, 1 x REC DIP switch |
| Power Input | 12V to 19V, 5525 barrel DC jack |
| JetPack Version | JetPack 6.2 |

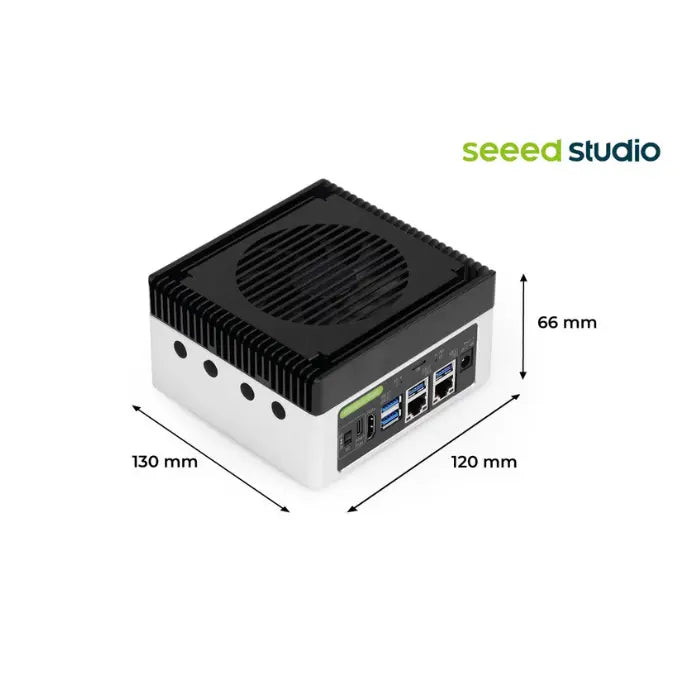

| Dimensions | 130mm x 120mm x 66mm |
| Installation | Desk, wall-mounting |
| Operating Temperature | -10℃ to 60℃ |
| Certification | CE, FCC, RoHS, REACH, Telec, KC, vibration test |
Applications
- Vision AI and high-throughput multi-camera inference.
- Robotics, ROS 2, and autonomous system control.
- Multimodal perception and edge analytics.
- Generative AI at the edge where higher TOPS and better throughput matter.
- Industrial AI gateways and smart system deployment with LTE, Ethernet, and CAN.
- Rapid production development where you need ready-to-use JetPack, SSD, and expansion interfaces.

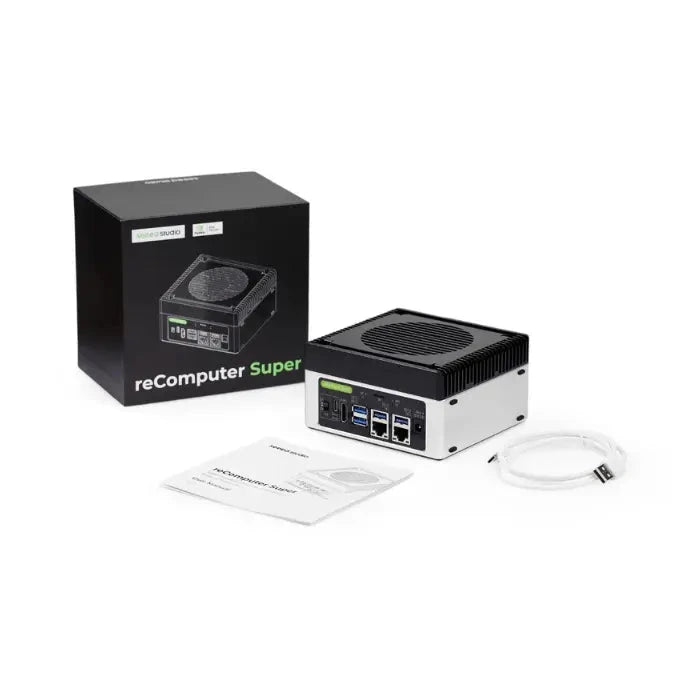

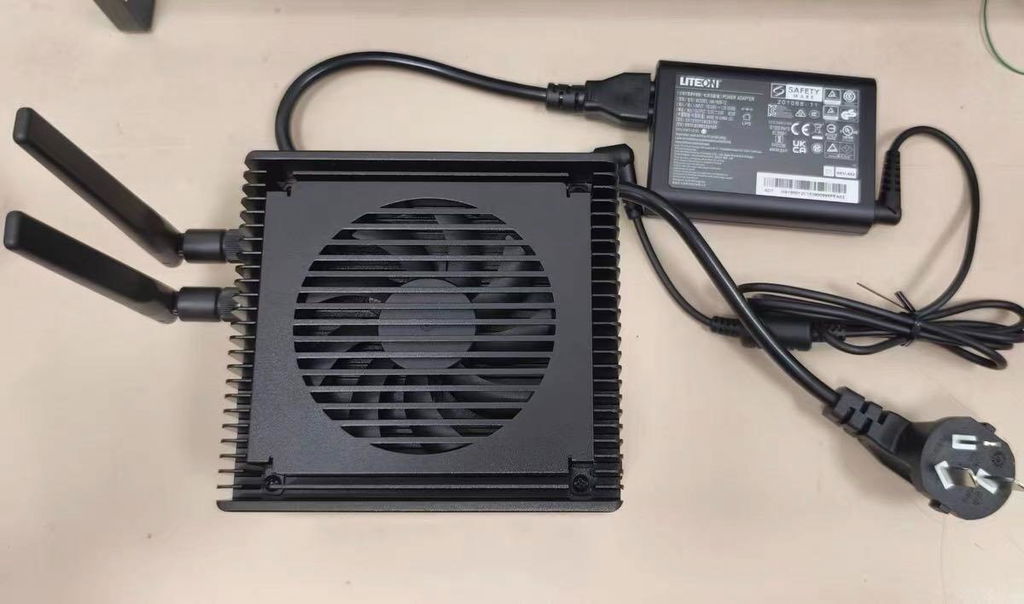

Product List
- 1 x reComputer Super J4012
- 1 x power adapter
- 1 x regional AC power cord
- 1 x user manual
Other Content
Super vs Classic: The biggest reason to choose reComputer Super J4012 over a standard J4012B is the move to Super Mode, which raises usable performance headroom for more demanding edge AI, robotics, and multi-stream vision workloads.
Interface Strength: This model is especially attractive when you need a compact Jetson system but still want 4 x CSI, dual Ethernet, Mini-PCIe LTE, M.2 storage, CAN, and usable extension headers. That mix gives the J4012 more flexibility than many generic Jetson mini PCs.
Deployment Direction: Because it ships with JetPack 6.2 and storage already installed, it is a practical choice for teams that want to reduce bring-up time and move faster from evaluation to deployment.
Resources
- Getting started with reComputer Super
- reComputer Super hardware and interfaces usage
- reComputer Super user manual
- reComputer Super J401 schematic PDF
- reComputer Super J401 STEP file
- Seeed Jetson one-pager
- Jetson devices and carrier boards comparison
- OpenELAB reComputer collection
FAQ
What is the difference between reComputer Super J4012 and Super J4011?
reComputer Super J4011 uses Jetson Orin NX 8GB and reaches up to 117 TOPS, while reComputer Super J4012 uses Jetson Orin NX 16GB and reaches up to 157 TOPS. If your workload is heavier, more camera-rich, or more demanding on model size and throughput, J4012 is the stronger choice.
What is the difference between reComputer Super J4012 and J4012B?
reComputer J4012B is a strong standard Orin NX 16GB system, but reComputer Super J4012 is designed around Super Mode and higher performance tuning. If your priority is maximum next-gen edge inference headroom in this size class, the Super version is the better fit.
What is the difference between reComputer Super J4012 and Robotics J4012?
reComputer Robotics J4012 is more explicitly positioned for robotics integration, sensor fusion, and robotics I/O structure. reComputer Super J4012 is broader as a high-performance edge AI computer and is a strong option when you want more general high-end deployment flexibility.
What is the difference between reComputer Super J4012 and Industrial J4012?
reComputer Industrial J4012 focuses more on industrial deployment characteristics such as industrial interfaces, rugged mounting, and factory-floor integration priorities. Super J4012 focuses first on pushing AI performance higher while still staying deployment friendly.
Is reComputer Super J4012 a good choice for multi-camera edge AI?
Yes. With 4 x CSI, 157 TOPS, JetPack 6.2, and strong networking and expansion, it is a very capable platform for multi-camera vision AI, robotics, and perception-heavy edge applications.
