Seeed Studio NVIDIA® Jetson Orin™ Nano Super Developer Kit
The NVIDIA® Jetson Orin™ Nano Super Developer Kit is a high-performance, production-ready Edge AI computing platform that delivers a massive 67 TOPS of AI performance. Built on the cutting-edge NVIDIA Ampere GPU architecture with 1,024 CUDA cores and 32 Tensor Cores, it is engineered for high-performance inference, multi-sensor fusion, and concurrent AI pipelines. Whether you are developing for robotics, vision AI, or generative AI, this compact 100 × 79 × 21 mm kit provides the power of a workstation in a hand-sized form factor. The kit includes the Jetson Orin Nano 8GB module, an active-cooled heatsink, and a feature-rich carrier board, making it the ideal bridge from rapid prototyping to scalable production hardware.
Key Features
Important Note
- The reComputer J3011 (currently in stock) utilizes the NVIDIA Jetson Orin Nano 8GB module. By upgrading to JetPack 6.2, you can boost performance from 40 TOPS to 67 TOPS—fully matching the capabilities of the Orin Nano Super Developer Kit for immediate production-ready AI.
- Initial Jetson Orin Nano Developer Kits may ship with older factory firmware that is NOT compatible with JetPack 6.x. You must upgrade the firmware before using a JetPack 6.x SD card image. Download the latest software updates here.
- Superior AI Performance for Production: Experience low-latency execution with 67 TOPS of AI power. The Ampere GPU and 6-core ARM CPU enable complex concurrent AI applications and real-time inference.
- Hand-Sized Edge AI Powerhouse: Measuring just 100mm x 79mm x 21mm, the kit arrives fully assembled with the Orin Nano 8GB module, a fan-cooled heatsink, and a power adapter.
- Industrial Expansion & Rich I/O: Features 4x USB 3.2 Gen 2 ports, DisplayPort 1.2, M.2 Key E (with Wi-Fi/BT pre-installed), dual M.2 Key M slots for NVMe SSDs, dual MIPI CSI-2 camera connectors, Gigabit Ethernet, and a 40-pin GPIO header.
| Jetson Orin Nano Super Developer Kit Configuration | ||
| NVIDIA Jetson Orin Nano Developer Kit (Original) | NVIDIA Jetson Orin Nano Super Developer Kit | |
|
GPU |
NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 635 MHz |
NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 1,020 MHz |
|
AI Performance |
40 INT8 TOPS (Sparse) 20 INT8 TOPS (Dense) 10 FP16 TFLOPs |
67 TOPS (Sparse) 33 TOPS (Dense) 17 FP16 TFLOPs |
|
CPU |
6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5 GHz |
6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.7 GHz |
|
Memory Bandwidth |
8GB 128-bit LPDDR5 68GB/s |
8GB 128-bit LPDDR5 102GB/s |
| Module Power | 7W | 15W | 7W | 15W | 25W |
Detailed Specifications
|
NVIDIA Jetson Orin Nano System on Module |
||
|
AI Performance |
Jetson Orin Nano 8GB (SD Slot on Module) — 67 TOPS |
|
|
GPU |
NVIDIA Ampere architecture with 1,024 CUDA cores and 32 Tensor cores |
|
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3) |
|
|
Memory |
8GB 128-bit LPDDR5 @ 102 GB/s |
|
|
Video Processing |
Decode: 1x 4K60 (H.265), 5x 1080p60 | Encode: 1080p30 (CPU assisted) |
|
|
Power |
Configurable 7W to 25W |
|
|
Reference Carrier Board |
||
|
Storage Expansion |
1x microSD slot (UHS-1); 2x M.2 Key M for NVMe SSD |
|
|
Networking |
Ethernet / Wireless |
1x Gigabit Ethernet; Pre-installed Wi-Fi/Bluetooth Combo module |
|
PCIe Connectivity |
M.2 KEY M |
1x PCIe Gen3 x4; 1x PCIe Gen3 x2 |
|
M.2 KEY E |
Occupied (Wi-Fi/BT); Supports PCIe (x1), USB 2.0, UART, I2C |
|
|
Interfaces / I/O |
USB Ports |
4x USB 3.2 Gen2 Type-A; 1x USB Type-C (Device Mode) |
|
Camera / Display |
2x MIPI CSI-2 (22-pin); 1x DisplayPort 1.2 (+MST) |
|
|
GPIO / Control |
40-pin Expansion header; 12-pin Control/UART header; 1x CAN |
|
|
RTC |
2-pin Header (Supports CR1220 battery) |
|
|
Power Input |
9V-19V DC via Barrel Jack |
|
|
Dimensions |
100mm x 79mm x 21mm |
|
Applications
Primary Application Fields:
AI Video Analytics & Smart Surveillance
Machine Vision & Industrial Quality Control
Autonomous Mobile Robots (AMR) & Unmanned Systems
Generative AI & Large Language Model (LLM) Edge Deployment
Documentation & Downloads

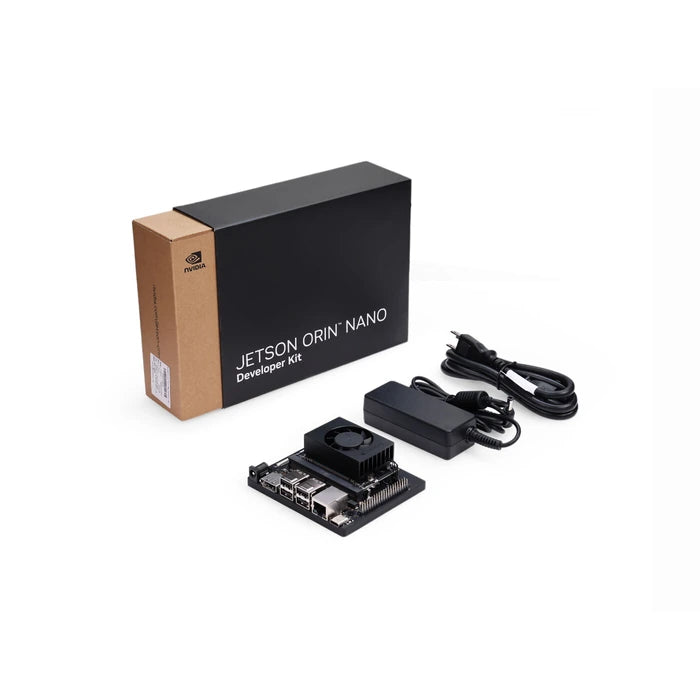

Part List
| Item | Quantity |
|---|---|
| NVIDIA Jetson Orin™ Nano Super Developer Kit | x1 |
| 19V Power Adapter | x1 |
| Type B (US, JP, CA, PH) Power Cable | x1 |
| Type I (CN) Power Cable | x1 |
| UPC Label | x1 |
| Quick Start and Support Guide | x1 |
Note: Items not included
- microSD card (64GB+ recommended)
- NVMe SSD
- Peripherals (Keyboard, Mouse, Display)
- AC Cloverleaf Power Cord (EU)
