Seeed Studio Industrial pH Sensor MODBUS-RTU RS485 & 0~2V Analog Voltage (S-pH-01A) V2.0

Seeed Studio Industrial pH Sensor MODBUS-RTU RS485 & 0~2V Analog Voltage (S-pH-01A) V2.0

169,00 €

The IP68 RS485 pH Sensor provides accurate measurement across the full 0–14 pH range, making it ideal for both soil and water applications, including precision gardening, aquaculture, and swimming pool maintenance. Its rugged, fully waterproof construction ensures dependable performance in harsh outdoor conditions or continuous submersion. When integrated with a SenseCAP Data Logger, the sensor supports seamless, real‑time pH monitoring with efficient remote data collection and management.



Features

It measures pH levels in soil and water applications ranging from 0 to 14 pH, making it widely applicable in industrial environmental sensing scenarios.

Note:

We have two versions of the Industrial pH Sensor. The main difference is the cable connector. Please choose the version that best suits your needs:
  • This version features hook-up wires. It is compatible with the SenseCAP LoRaWAN® Data Logger to connect with the LoRaWAN® network, offering low-power and long-range communication.
  • The other version comes with a waterproof aviation connector. It is compatible with the SenseCAP Sensor Hub 4G Data Logger, which can collect various sensor data simultaneously and transmit via 3G/4G LTE.
  • High Performance: High accuracy, fast response time, and excellent repeatability.
  • Universal Protocol: Supports MODBUS-RTU RS485 and 0~2V Analog Voltage output.
  • Wide-range Power Supply: Compatible with supply voltages ranging from 3.6V to 30V.
  • Extreme Robustness: Suitable for long-term immersion in soil or water; features anti-corrosion properties.
  • Maintenance-Free: A unique junction design effectively prevents junction clogging.

This pH Sensor with hook-up wires measures hydrogen-ion activity in water-based solutions, indicating acidity or basicity. pH level is a critical indicator for monitoring soil conditions and water quality.

Designed to industry standards, it utilizes an advanced solid dielectric and a large-area PTFE liquid junction to prevent blockage and simplify maintenance. The electrode is IP68 rated and the transmitter is IP65 rated, ensuring a waterproof seal for long-term use in professional environments. With RS485 Modbus and analog output, it integrates easily with data loggers and controllers. This cost-effective sensor features low power consumption and a compact size for high portability.



Seeed also provides the SenseCAP Portal and SenseCAP Mate for remote data management.

Note:

  • White solid crystals around the probe shroud are normal due to temperature changes or redox during delivery. They do not affect the sensor's internal solution or operation.
  • Gently wipe crystals with a wet paper towel and keep away from children to avoid ingestion.

Specifications

pH Parameters
Range 0 ~ 14 pH
Accuracy ± 0.1 pH
Resolution 0.01 pH
General Parameters
Product Model S-pH-01A
Output Interface Analog Voltage 0-2V RS-485 MODBUS-RTU
Power Supply 3.9-30V/DC 3.9-30V/DC
Power Consumption 35mA@24V DC 35mA@24V DC
Start-up time  < 2 seconds
pH Measurement
High impedance isolated input;
Range: 0 - 14 PH,
Resolution: 0.01 PH,
Accuracy: +/- 0.1 PH;
Suitable for solutions or semi-solid substrates
Temperature Measurement
Range: -40~80°C,
Resolution: 0.1°C,
Accuracy: +/-0.5°C
IP Rating

Electrode: IP68;

Transmitter: IP65
Operating Temperature -40℃ ~ 85℃
Installation

Electrode: 3/4" NPT threads;

Transmitter: Mounting hole
Cable Length
Power/Signal Cable: 2m (Customizable)
Electrode Cable: 5m
Dimension
Electrode: 160*30mm (3/4"NPT); Transmitter: 140*65*50mm




Hardware Overview

Wiring Diagram

pH Sensor Wiring Diagram


Note

Version 1 (RS485 and 4~20mA) is retired. It is replaced by Version 2, which supports RS485 protocol and 0~2V analog voltage output.

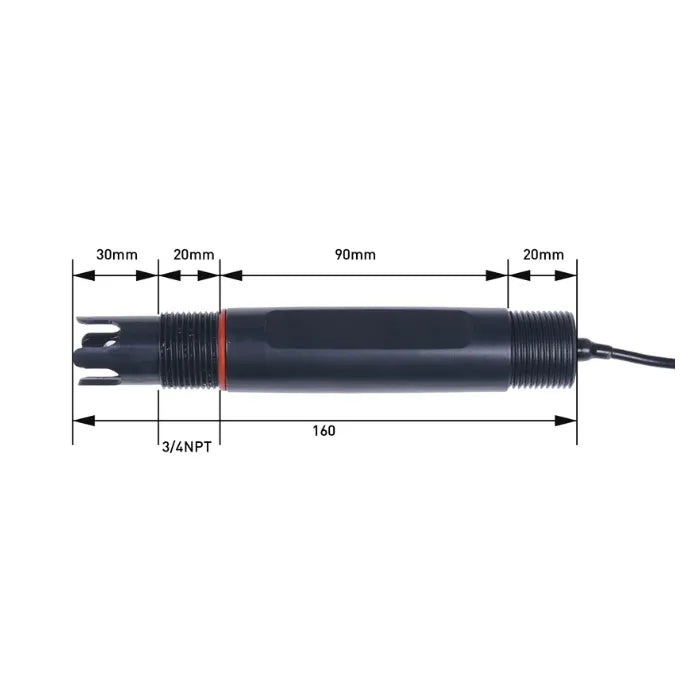

Probe Dimensions


Applications

  • Smart Agriculture and Irrigation
  • Animal Husbandry Monitoring
  • Forestry and Horticulture
  • Industrial Sewage Treatment
  • Swimming Pools and Spas
  • Scientific and Educational Projects
  • Environmental Water Quality Monitoring

Certification

HSCODE 9031809090
COO CHINA

FAQ

Q: Is it factory calibrated? How do I calibrate it?
A:

Yes, the device is fully calibrated at the factory prior to shipment.

For manual calibration steps, please refer to the Calibration Document.
Q: Why is the temperature output inaccurate?
A: The pH electrode itself does not have a built-in temperature sensor; the output reflects the internal plate temperature. If precise liquid temperature is needed, use an external NTC (10K, 3950) thermistor.
Q: Can it be used in soil? How should it be installed?
A: Yes, it measures soil moisture pH. Error increases in dry soil. Installation: Dig a pit, fill with water to create a slurry, then insert the glass probe carefully, avoiding hard objects like stones.



Part List

Industrial pH Sensor (Hook-up wires) x1
