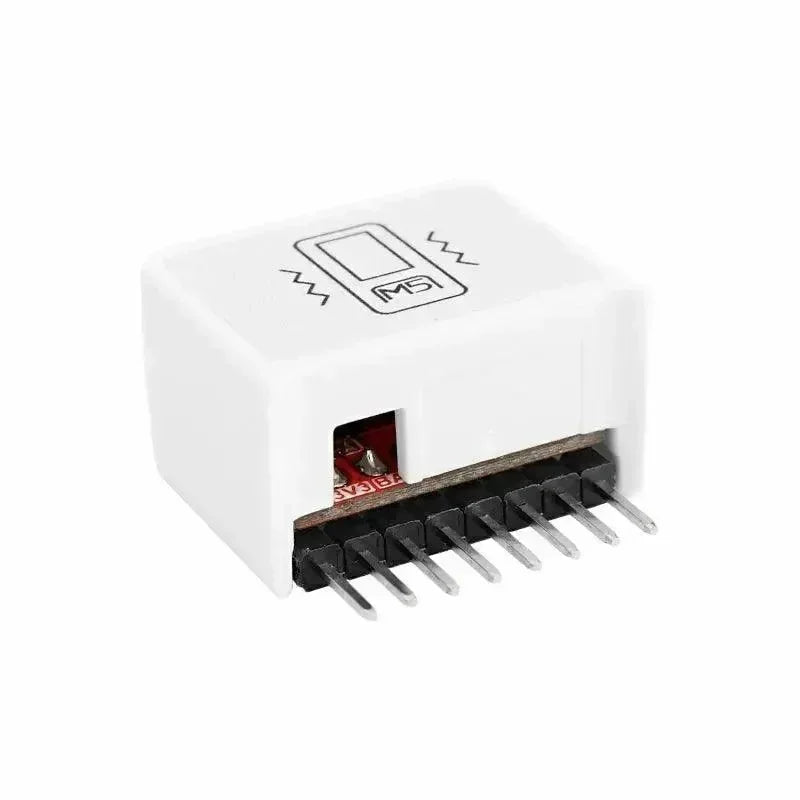

The M5StickC Vibration HAT is a special vibration motor designed for the M5StickC and M5StickC-Plus series. It features a cylindrical iron core patch motor (Z3OC1T8219731) that operates at 12,000 RPM. This versatile accessory offers a wide range of vibration effects, including adjustable vibration levels, "click" effects, various buzzer effects, and synchronization with music or audio input.
The M5StickC Vibration HAT enhances user interaction and engagement by providing tactile feedback and effective information prompts. It's perfect for integration into various electronic devices to convey important information, alerts or reminders.
| Resources | Parameters |
|---|---|
| Vibrator | Z3OC1T8219731 motor |
| Motor construction | 4mm×3mm cylindrical core SMT motor |
| Motor Number of magnet poles | 2-poles（inner magnet type） |
| Quota voltage | 3.0V |
| Rated current | 85mA |
| Rated speed | 12000RPM |
| Using voltage | 2.3V-4.5V |
| Operating conditions | 0~95%RH , 0-40℃ |
| Vibration Frequency | 10 to 55Hz |
| Product Size | 24mm × 21mm × 14mm |
| Package Size | 136mm × 92mm × 14mm |
| Product Weight | 4.7g |
| Package Weight | 7.1g |
