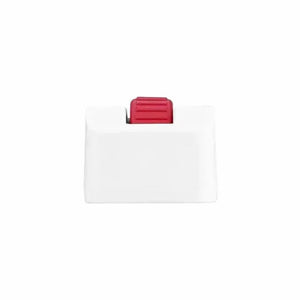

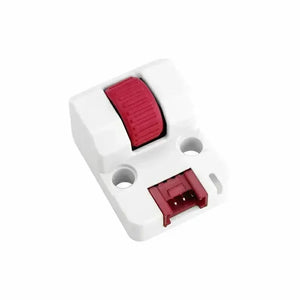

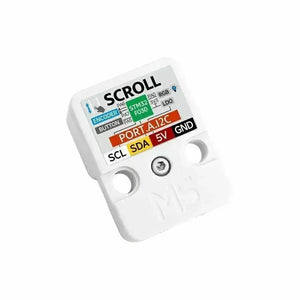

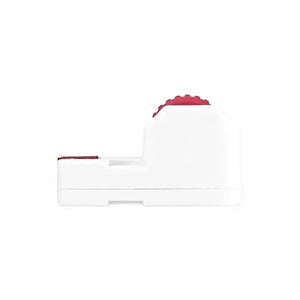

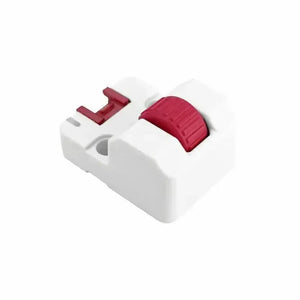

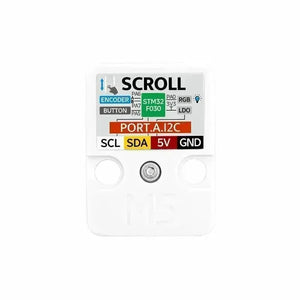

M5Stack Scroll Unit with Hollow Shaft Encoder

M5Stack Scroll Unit with Hollow Shaft Encoder

€5,30

The M5Stack Scroll Unit with Hollow Shaft Encoder is a compact, versatile rotary encoder module designed to simplify control interfaces. It features a 12-pulse through-shaft rotary encoder, tactile push-button, and a WS2812C programmable RGB LED, all packed into a scroll wheel format.

Powered by a STM32F030 microcontroller, it comes with built-in encoder pulse acquisition firmware, enabling direct I2C readout—no complex coding required. Ideal for scenarios such as volume control, scale adjustment, or interactive UI navigation.

Product Features

  • Based on the STM32F030 microcontroller
  • AB phase output (12 pulses per revolution)
  • Built-in button for intuitive press actions
  • Multi-color WS2812C RGB LED indicator
  • I2C communication interface
  • Compatibility: M5Stack Core, Core2, CoreS3, etc.

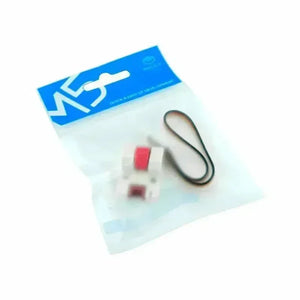

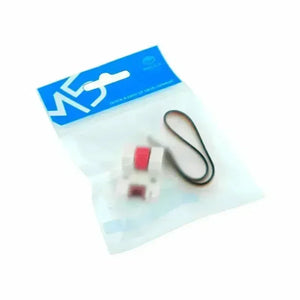

Includes

  • 1x Scroll Unit
  • 1x HY2.0-4P Grove cable (20cm)

Applications

  • Volume or brightness control
  • Scale value adjustments
  • Menu navigation or smart selector knobs
  • Custom control panels for robotics or home automation

Specifications

Specification Parameter
MCU STM32F030F4P6@32-bit ARM Cortex-M0 processor
Rotary Encoder EC10E
Rotary Encoder Output AB two-phase quadrature output
Rotary Encoder Pulses 12 pulses/revolution
RGB LED 1x WS2812C
Button 1x Button
I2C Communication Address 0x40
Operating Temperature 0-40°C
Product Size 32*24*18.9mm
Package Size 136*92*20mm
Product Weight 7.3g
Package Weight 12.7g
