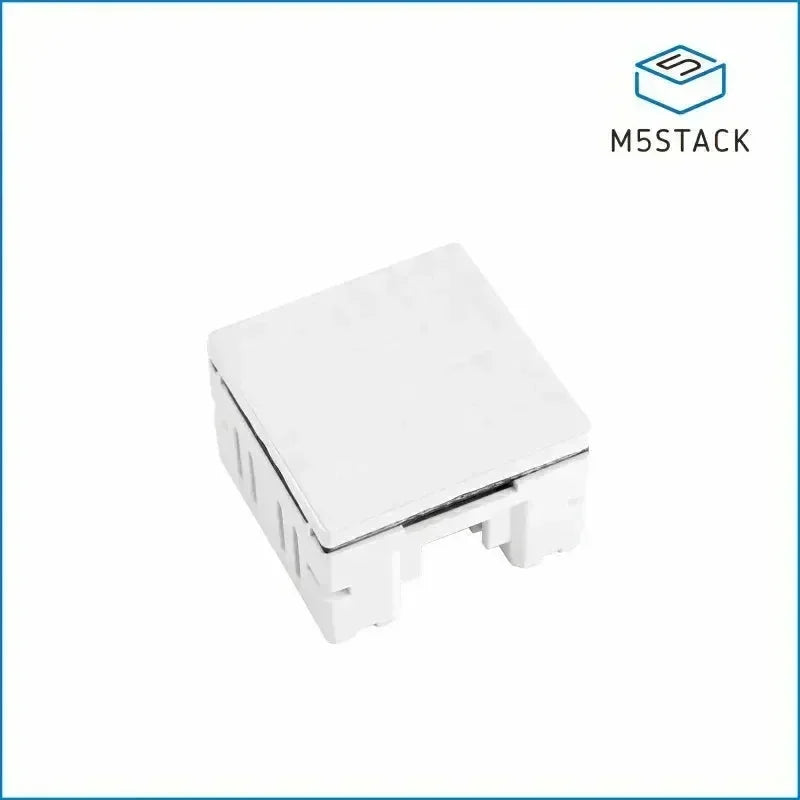

M5Stack Puzzle Unit 8x8 LED Matrix (WS2812E)

M5Stack Puzzle Unit 8x8 LED Matrix (WS2812E)

9,95 €

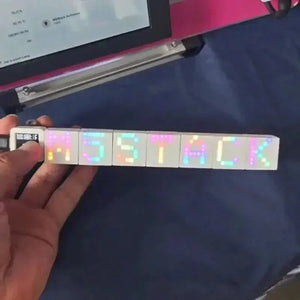

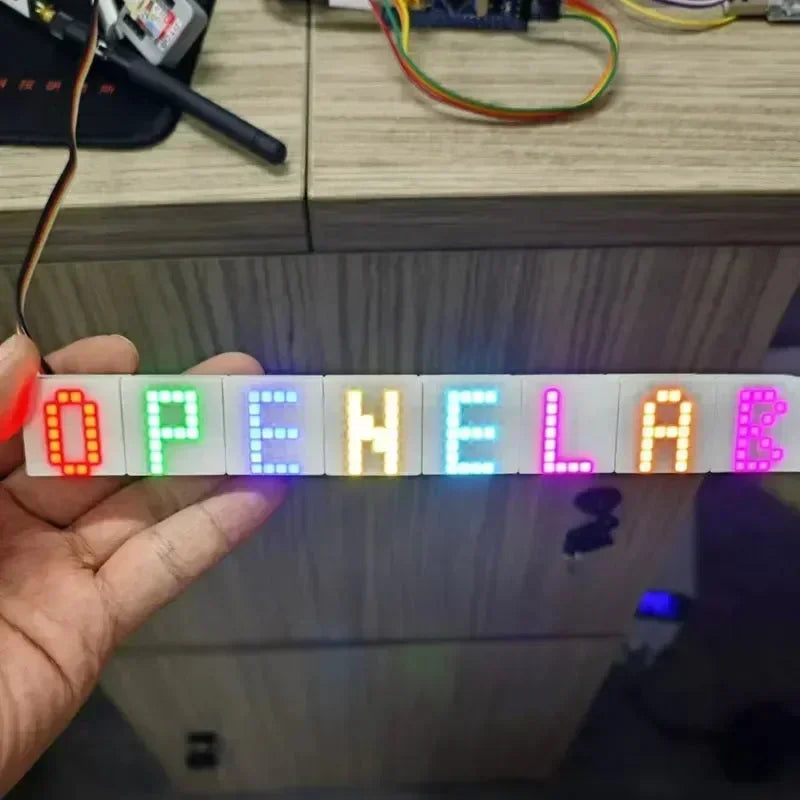

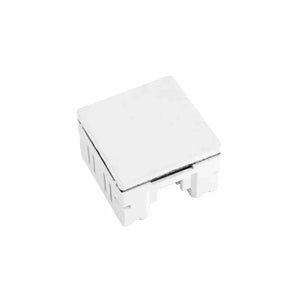

Unit-Puzzle is a compact multi-color light control unit featuring an 8x8 RGB LED array (WS2812E LEDs) with an isolation structure for clear and pure light output. It includes two Grove connectors for input and output signals, a connecting component for linking multiple units to expand displays, and a Grove IO port supporting additional M5 devices like potentiometers for interactive control. Designed for easy installation with an M2 mounting hole, its 24x24x15 mm size makes it ideal for smart lighting, decorative displays, and interactive installations.


LED Brightness Recommendation
Continuous high brightness may cause damage; it is recommended to use 10% brightness to reduce heat and power consumption.




Features

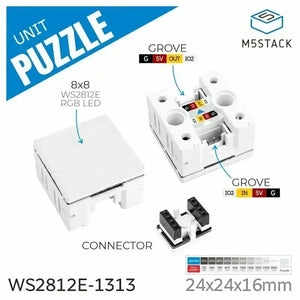

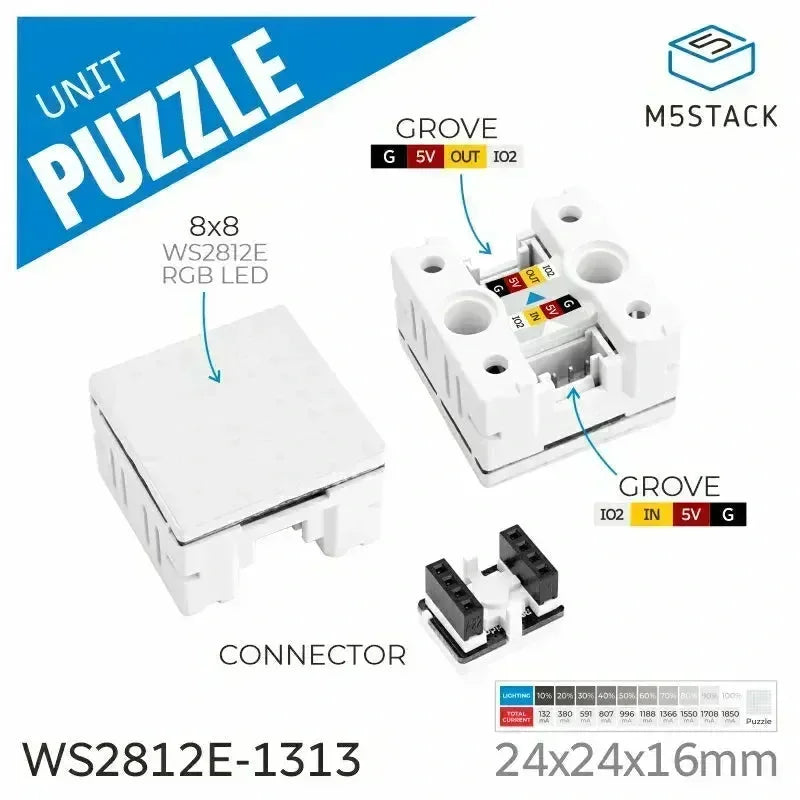

  • 8x8 WS2812 RGB LED matrix
  • Grid isolation design

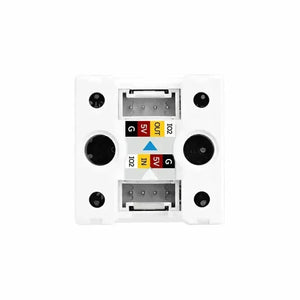

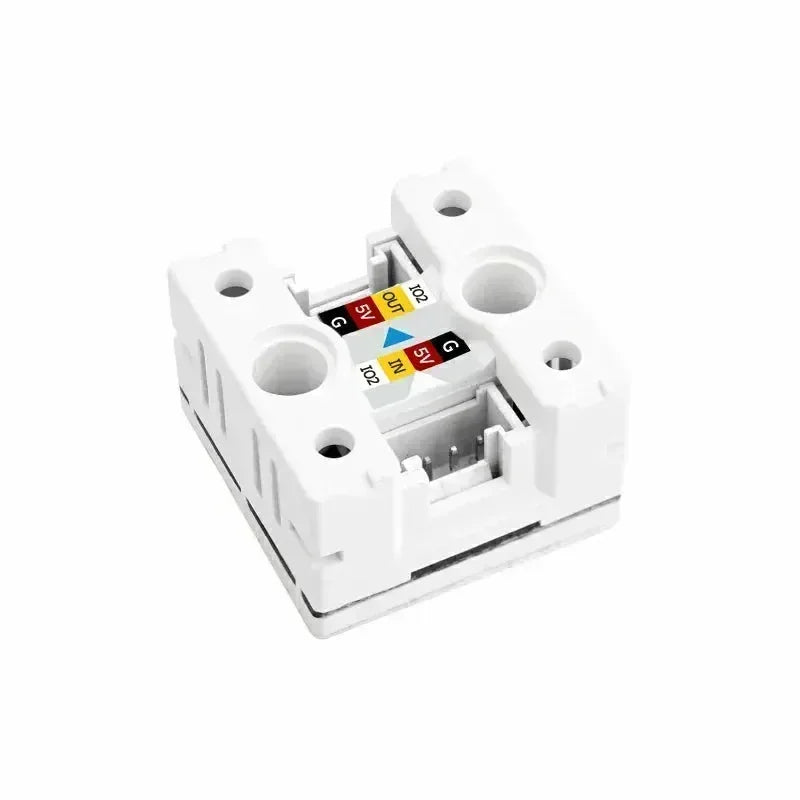

  • Dual Grove connectors
  • 2x LEGO-compatible holes
  • Programming platforms: Arduino, UIFlow, ESP-IDF, etc.



Recommended Articles

How to Use M5Stack Unit Puzzle?

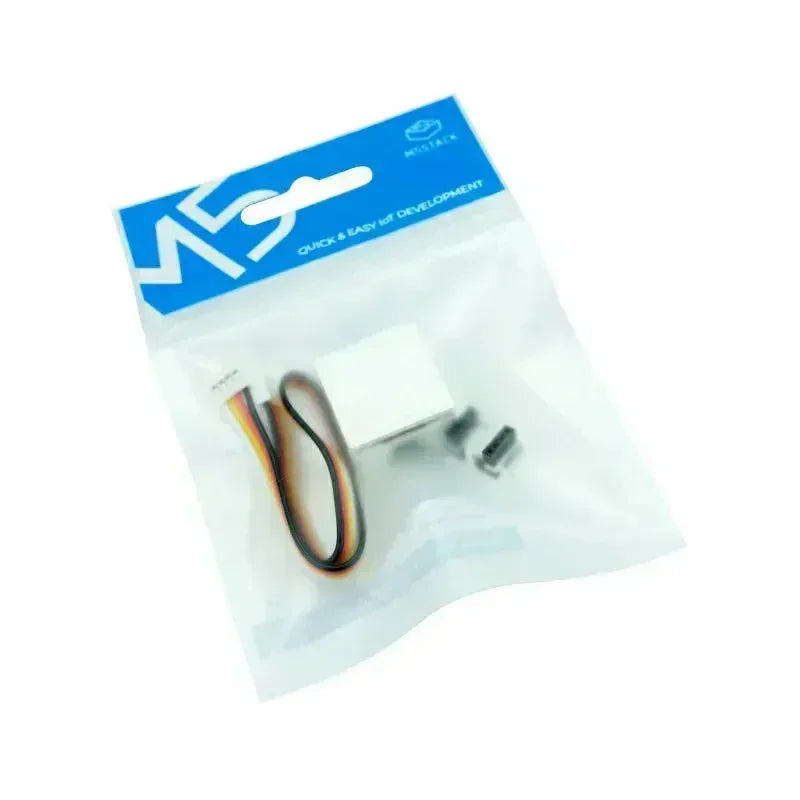

Includes

  • 1x Unit-Puzzle
  • 1x HY2.0-4P Cable (20CM)

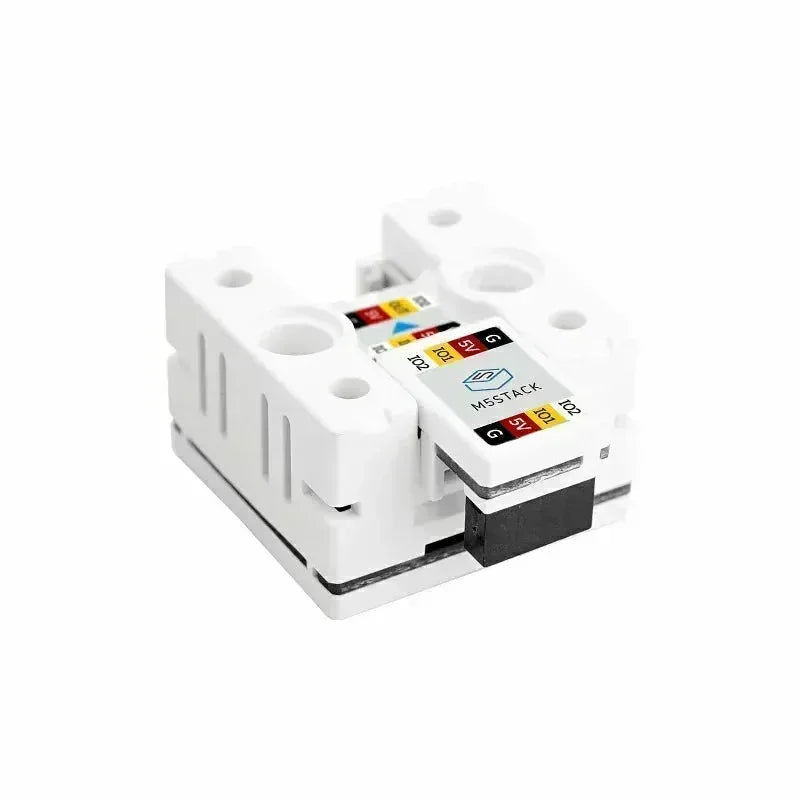

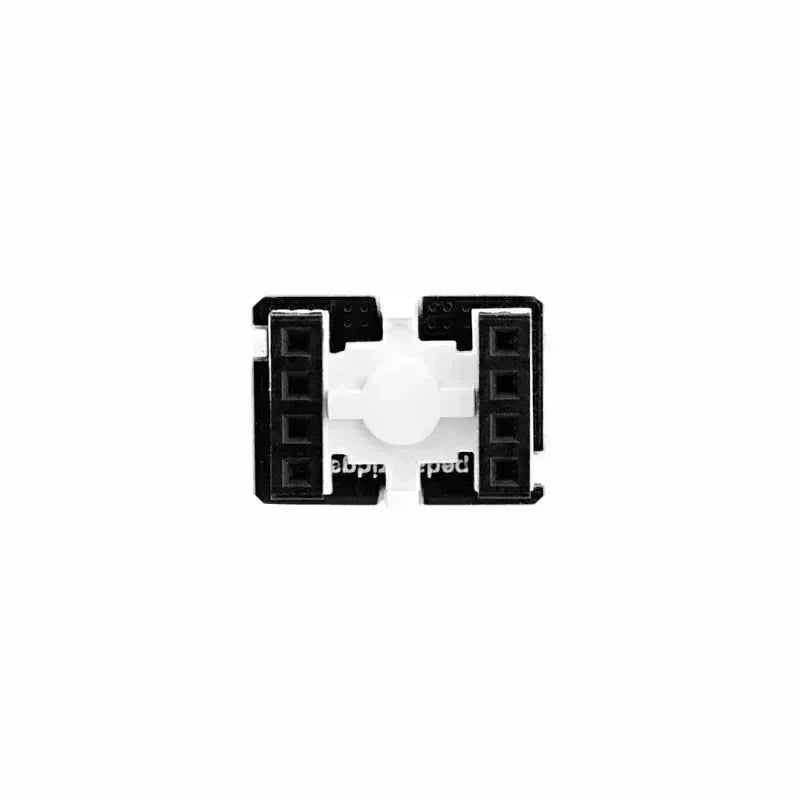

  • 1x Expansion connector
  • 1x Parameter sticker



Applications

  • Smart lighting

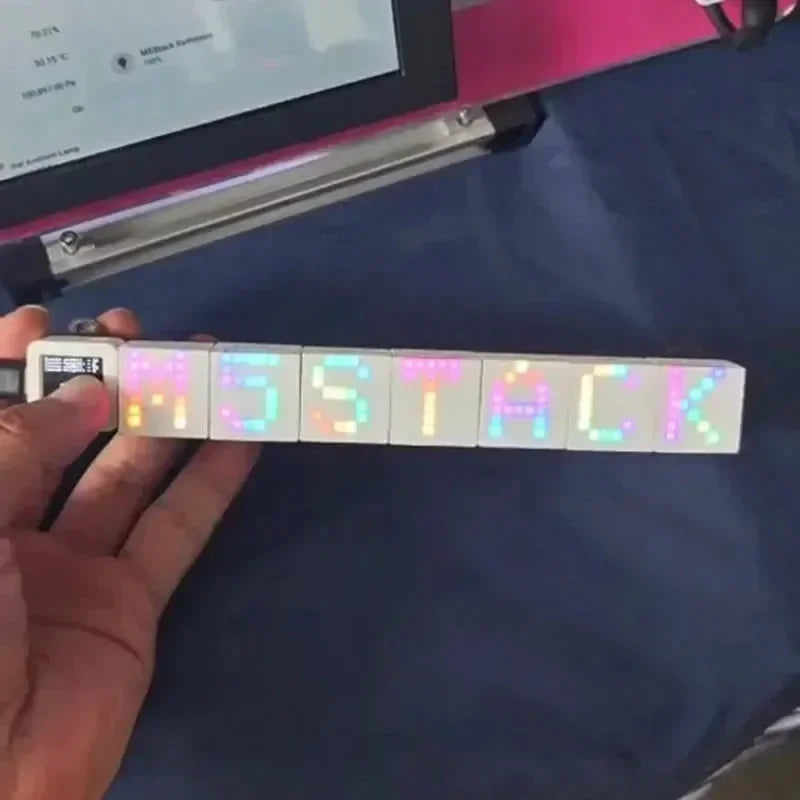

  • Decorative displays
  • Interactive installations



Specifications

Specification Parameter
RGB LED Type WS2812E-1313 @ 8x8 matrix
LED Quantity 64 LEDs (8x8 matrix)
Single LED Power Approx. 6mW (brightness 8%, white)
Standby Current DC 5V @ 14.27mA
Operating Current DC 5V @ 93.99mA (brightness 8%, white)
Supply Voltage DC 5V

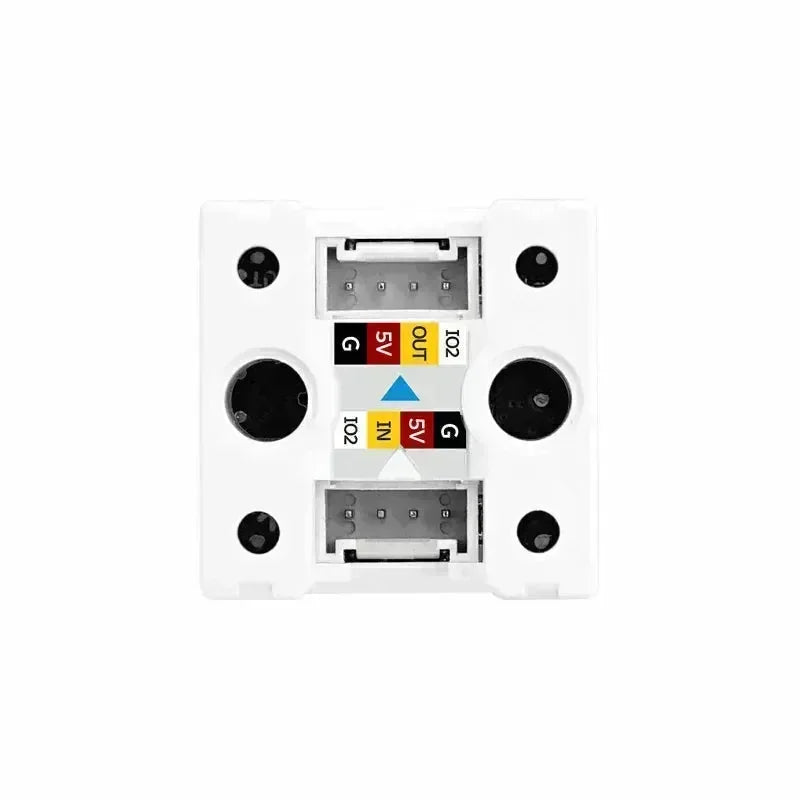

Interface Type 2 Grove connectors (for data and expansion)
Supported Colors 16.7 million colors
Control Method Supports serial data control (single wire control)
Product Dimensions 24*24*15mm
Packaging Dimensions 136*92*17mm
Product Weight 6.3g
Packaging Weight 12.5g
