M5Stack JoyC (W/O M5StickC) Omni-directional Controller

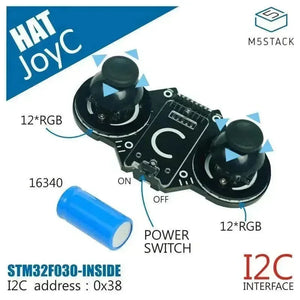

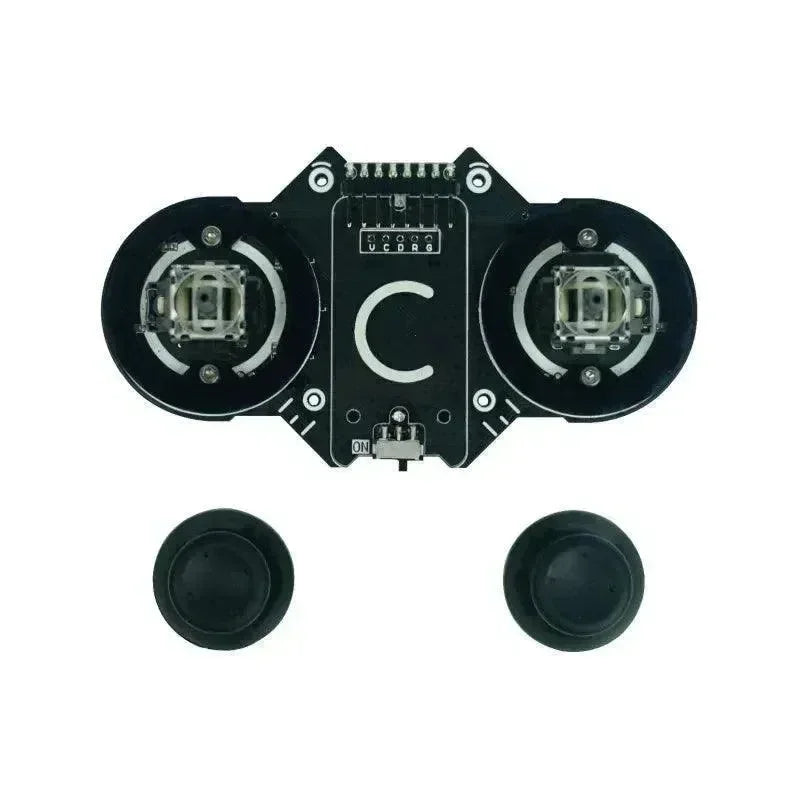

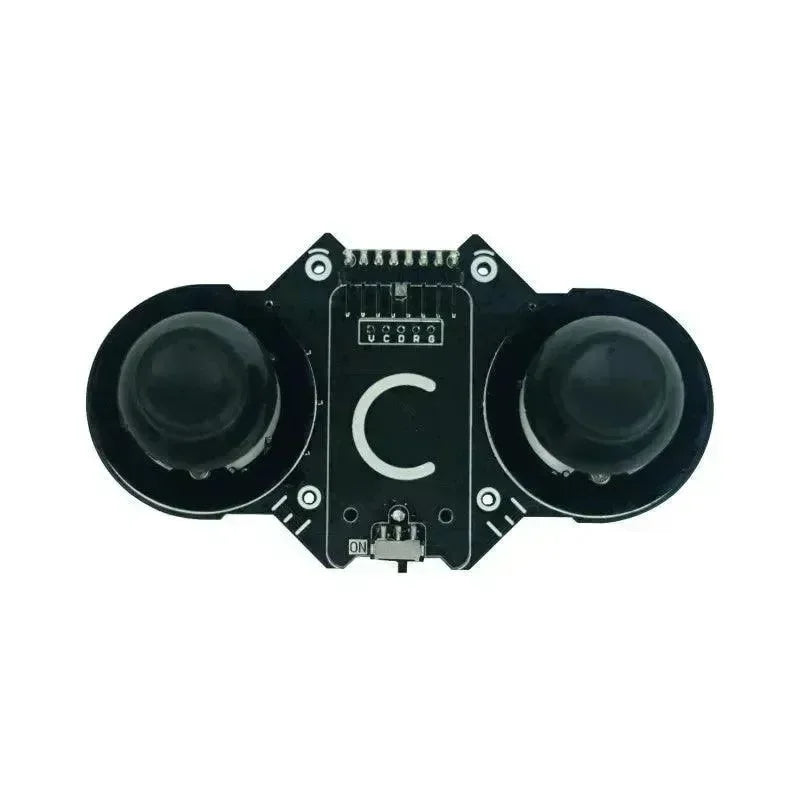

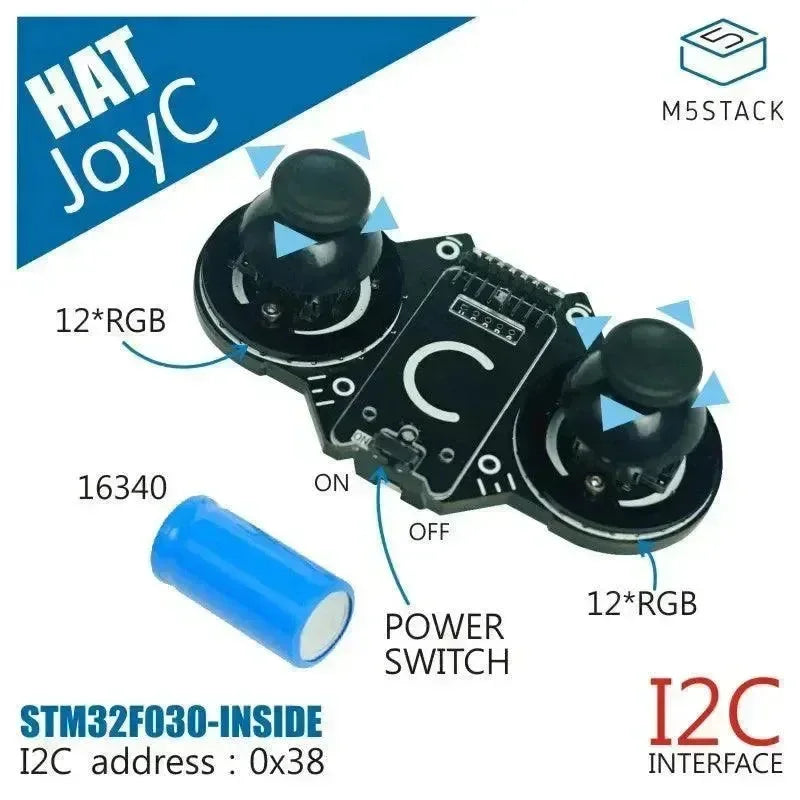

JoyC is a joystick module designed specifically for the M5StickC, allowing for dual-handed operation. It is embedded with an STM32F030F4 microcontroller chip and communicates with M5StickC via the I2C communication protocol. The joystick has a range of 0 to 200, and each side of the joystick is equipped with 12 RGB LEDs.

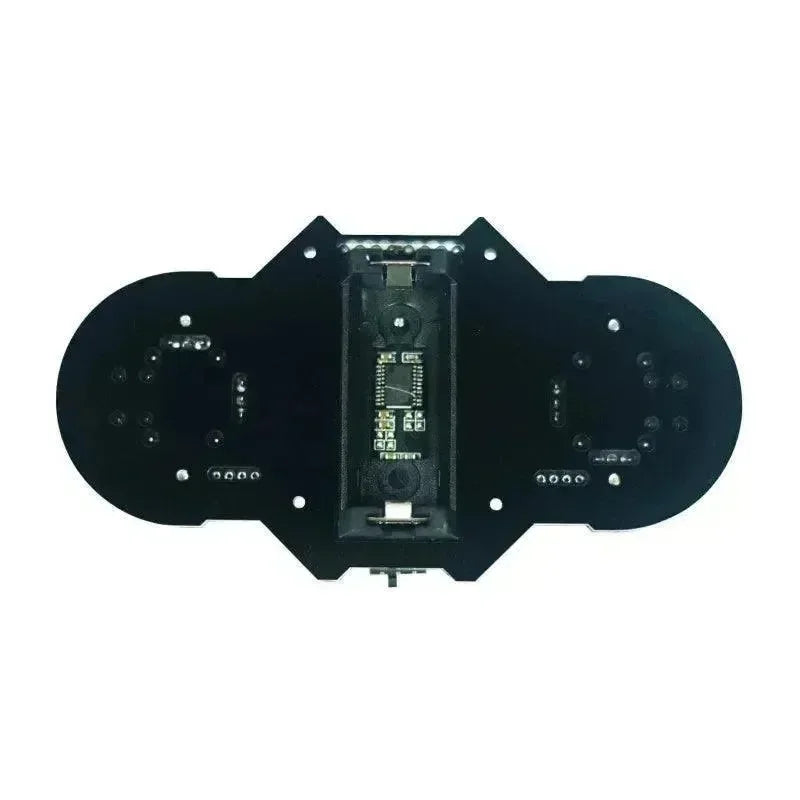

At the bottom of the joystick, there is a 16340 battery base, providing long-lasting battery life. This joystick supports full-angle offset and center pressing, allowing for the output of angle offset data and switch digital signals.
Product Features
-
STM32F030F4 inside
-
communication protocol: I2C (address: 0x38)
-
support omnidirectional movement/button press
Include
-
1x JoyC
-
1x 16340 700mAh Battery
Applications
-
Game Handle
-
Wireless Joystick Device
Specification
| Resources | Parameter |
|---|---|
| Communication protocol | I2C:0x38 |
| Net weight | 81g |
| Gross weight | 117g |
| Product Size | 200*55*50mm |
| Package Size | 119*89*65mm |
