M5Stack IoT Base with CAT-M Module Communication Base

55,44 €

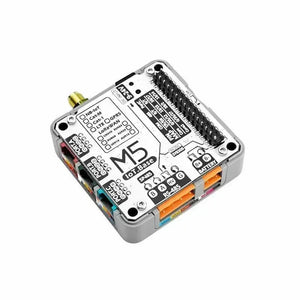

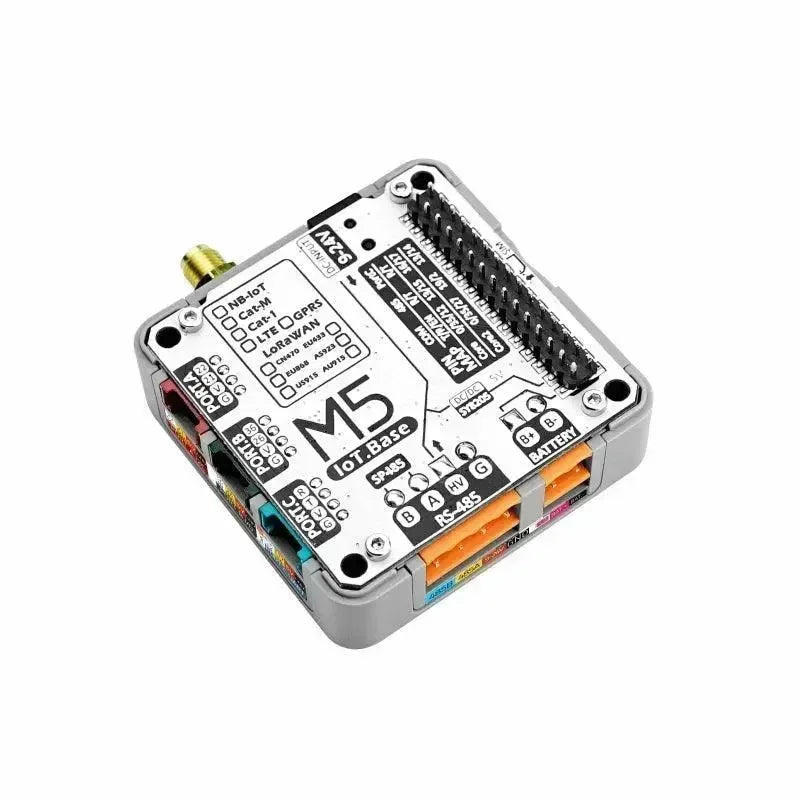

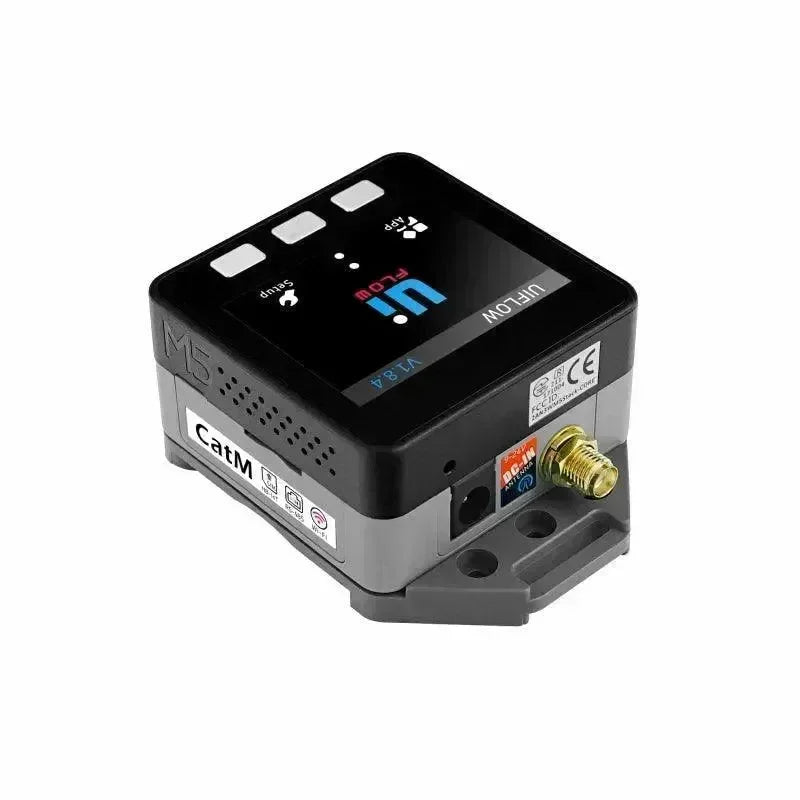

🌐 IoT Base CatM – Dual‑Mode CatM & NB‑IoT Communication Base

The IoT Base CatM is a functional IoT communication base designed for data transmission scenarios requiring low‑latency, low‑throughput, and long‑term operation. Powered by the SIM7080G communication module, it supports CatM & NB‑IoT dual modes, covering most global frequency bands to meet diverse regional requirements.

With UART AT command control, SMA external antenna, and MicroSIM card slot, the IoT Base CatM ensures reliable connectivity. It integrates rich expansion interfaces (I2C, UART, GPIO, RS485, battery power interface) and supports ModBus industrial protocols, making it ideal for remote control, monitoring, telemedicine, and cloud data applications.



🔧 Features

  • ✅ SIM7080G communication module

  • ✅ CatM & NB‑IoT dual‑mode support (global multi‑band)

  • ✅ UART interface with AT command control

  • ✅ MicroSIM card slot

  • ✅ SMA external antenna interface

  • ✅ Expansion interfaces: RS485, I2C, GPIO, UART, battery power

  • ✅ Supports industrial protocols (ModBus)

  • ✅ Certified globally: Softbank, Telec, Docomo, KDDI, RCM, CE‑RED, GCF, FCC, PTCRB, AT&T, Verizon, T‑Mobile, US Cellular, Deutsche Telekom, RoHS, REACH

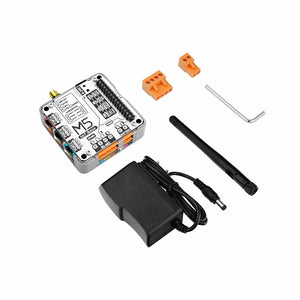

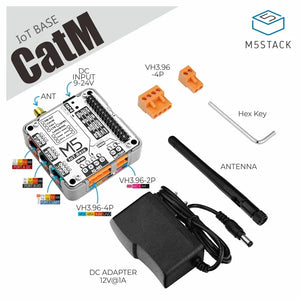

📦 Package Contents

  • 1 × IoT Base CatM

  • 1 × SMA Antenna

  • 1 × 12 V DC Power Adapter (US standard)

  • 1 × VH‑3.96‑2P Terminal

  • 1 × VH‑3.96‑4P Terminal

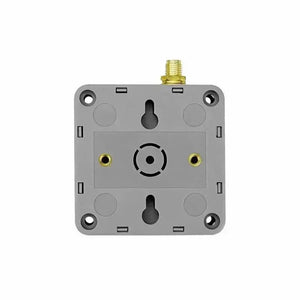

  • 1 × DIN‑mount rail base plate

  • 2 × M3×28 screws

  • 1 × M3 hex key


🔧 Applications

  • 📡 Remote control & monitoring

  • ☁️ Cloud data applications

  • 🩺 Telemedicine & healthcare IoT

  • 🚲 Bike sharing systems

  • 📊 Data acquisition & industrial IoT


📊 Technical Specifications

Specification Parameters
Communication Module SIM7080G (UART 115200 8N1)
Supported Cat‑M Bands B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
Supported Cat‑NB Bands B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat‑M Speed UL: 1119 kbps / DL: 589 kbps
NB‑IoT Speed UL: 150 kbps / DL: 136 kbps
RF Power Class Class 5 (Typ. 21 dBm)
Protocols Supported TCP, UDP, HTTP, HTTPS, TLS, DTLS, PING, LWM2M, COAP, MQTT, SSL
Operating Current 42 mA (DC 12 V input, connected)
Interfaces I2C, GPIO, UART (HY2.0‑4P), RS485 (VH‑3.96‑4P), DC power, lithium battery
Product Size 80 × 54 × 33 mm
Product Weight 29.4 g
Package Size 104 × 99 × 60 mm
Gross Weight 153.6 g



Certifications

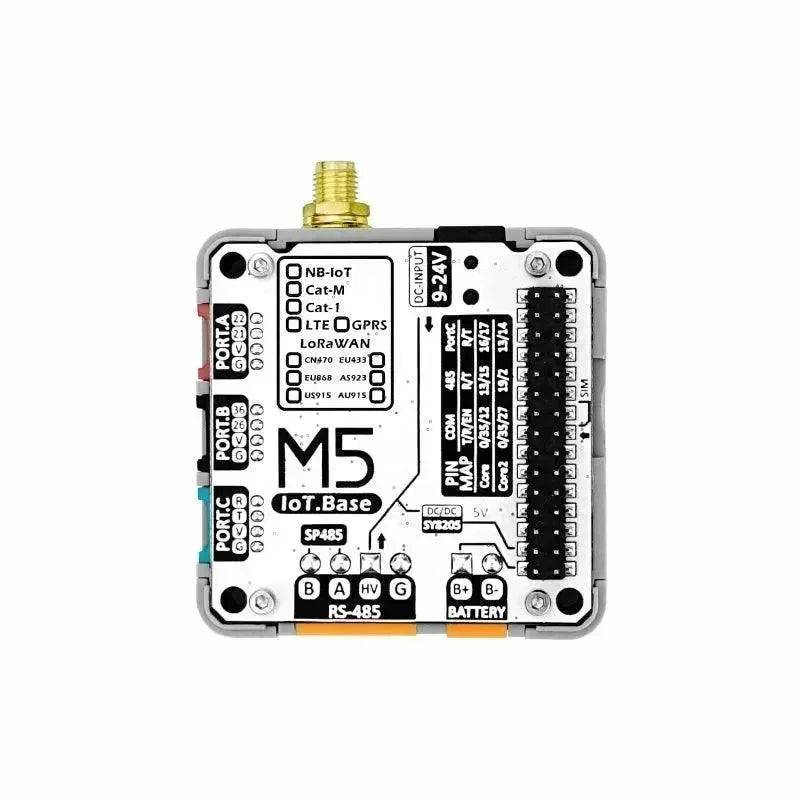

Schematics

PinMap

  • SIM7080G
M5Core G0 G35 G12 5V GND
SIM7080G RX TX PWR VCC GND
  • RS485
CORE G15 G13 5V GND
RS485 TX RX VIN GND
  • HY2.0-4P
M5Core G21 G22 5V GND
I2C PORT SDA SCL VCC GND
M5Core G36 G26 5V GND
GPIO PORT ADC DAC VCC GND
M5Core G17 G16 5V GND
UART PORT TX RX VCC GND

M5-Bus

PIN LEFT RIGHT PIN
GND 1 2 SIM7080G_TX
GND 3 4 PORT.B
GND 5 6 NC
NC 7 8 NC
NC 9 10 PORT.B
NC 11 12 NC
NC 13 14 NC
UART_RX 15 16 UART_TX
I2C_SDA 17 18 I2C_SCL
NC 19 20 NC
MOD PWR 21 22 RS485_TX
RS485_RX 23 24 SIM7080_RX
NC 25 26 NC
NC 27 28 5V
NC 29 30 BAT

Model Size



Datasheets



Softwares

Arduino

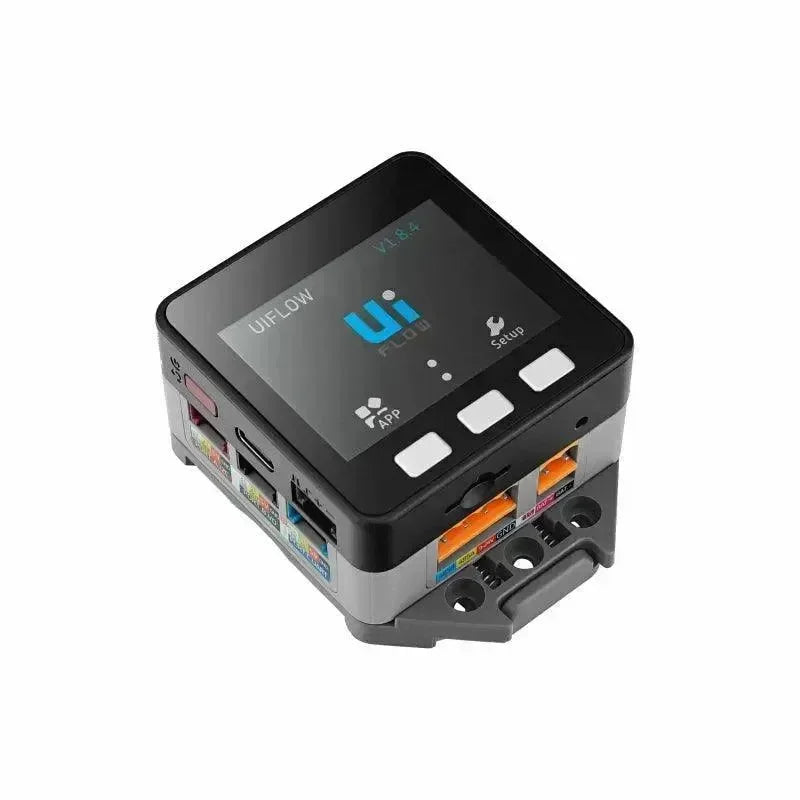

UiFlow1



Protocol
