M5Stack Atom Matrix ESP32 Dev Kit v1.1

M5Stack Atom Matrix ESP32 Dev Kit v1.1 is an ultra-compact ESP32 development board built for IoT nodes, miniature controllers, interactive indicators, smart device prototypes, and embedded automation projects. It combines the ESP32-PICO-D4 controller, a 5 x 5 RGB LED matrix, a programmable button, infrared transmission, and a 6-axis BMI270 IMU inside a tiny 24 x 24mm cube-style enclosure.

This v1.1 version upgrades the motion sensor from MPU6886 to BMI270, improving motion detection accuracy and response speed for applications like gesture sensing, motion-triggered interaction, orientation feedback, robotics, wearable prototypes, and compact wireless controllers. It also supports Arduino IDE, UiFlow1, UiFlow2, ESP-IDF, and PlatformIO, making it easy to use for both beginners and experienced developers.

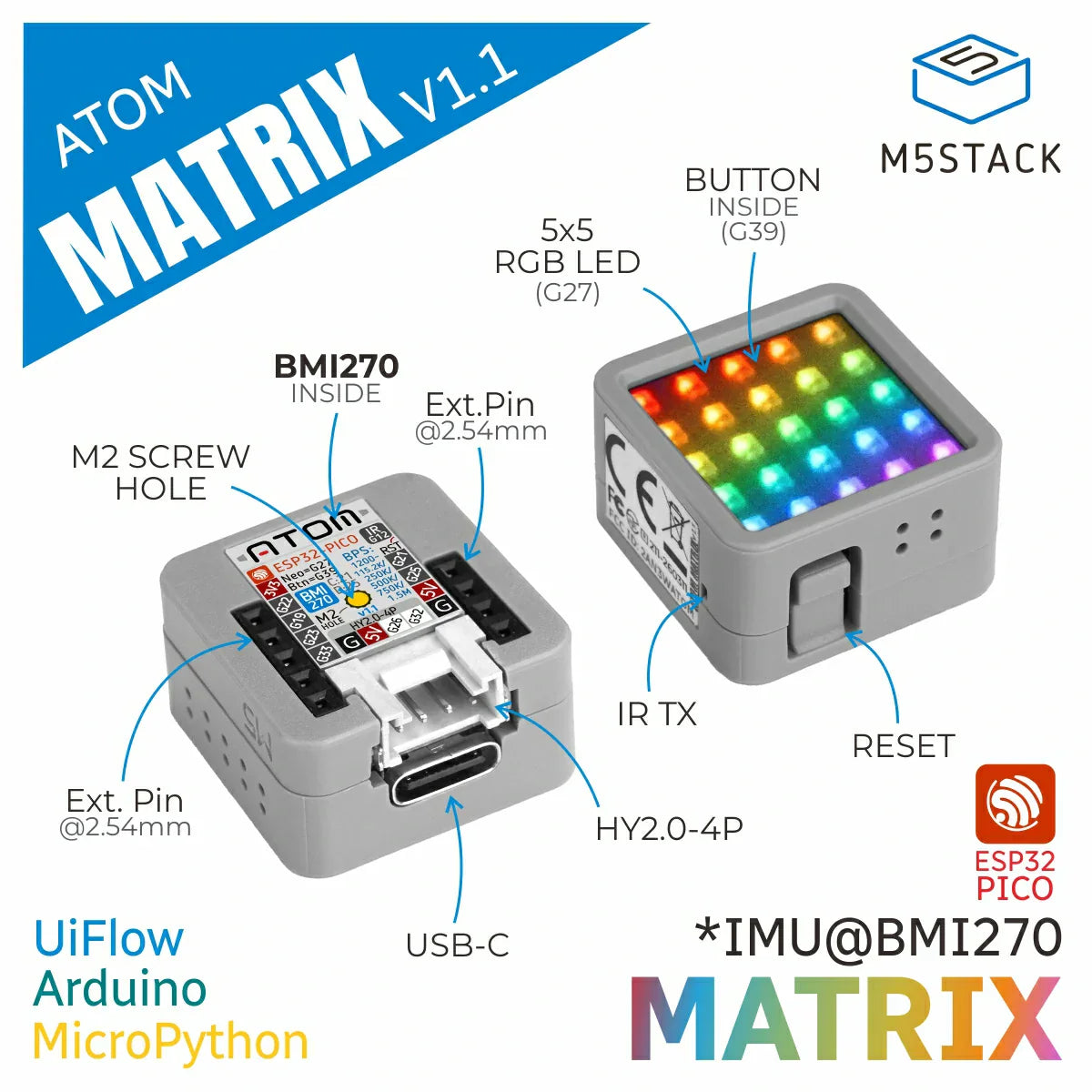

Features

ESP32-PICO-D4 dual-core controller with built-in 2.4GHz Wi-Fi.

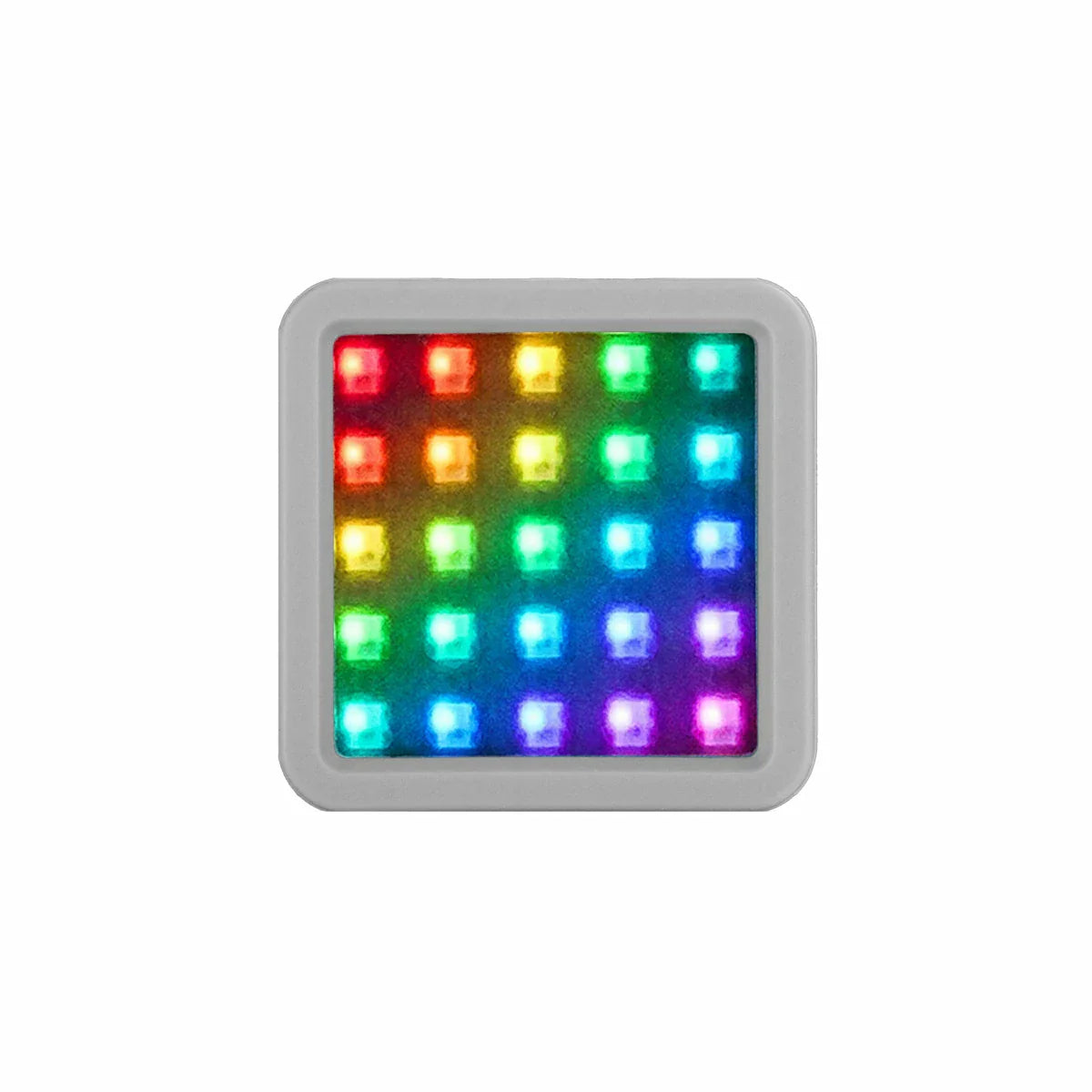

5 x 5 RGB LED matrix using WS2812C 2020 x25 for status display and interaction.
BMI270 6-axis IMU for more accurate motion and attitude sensing in the v1.1 revision.
Programmable button hidden below the RGB matrix for custom trigger logic.
Infrared transmission for compact IR control and smart device interaction.
HY2.0-4P expansion port for external modules and peripheral integration.

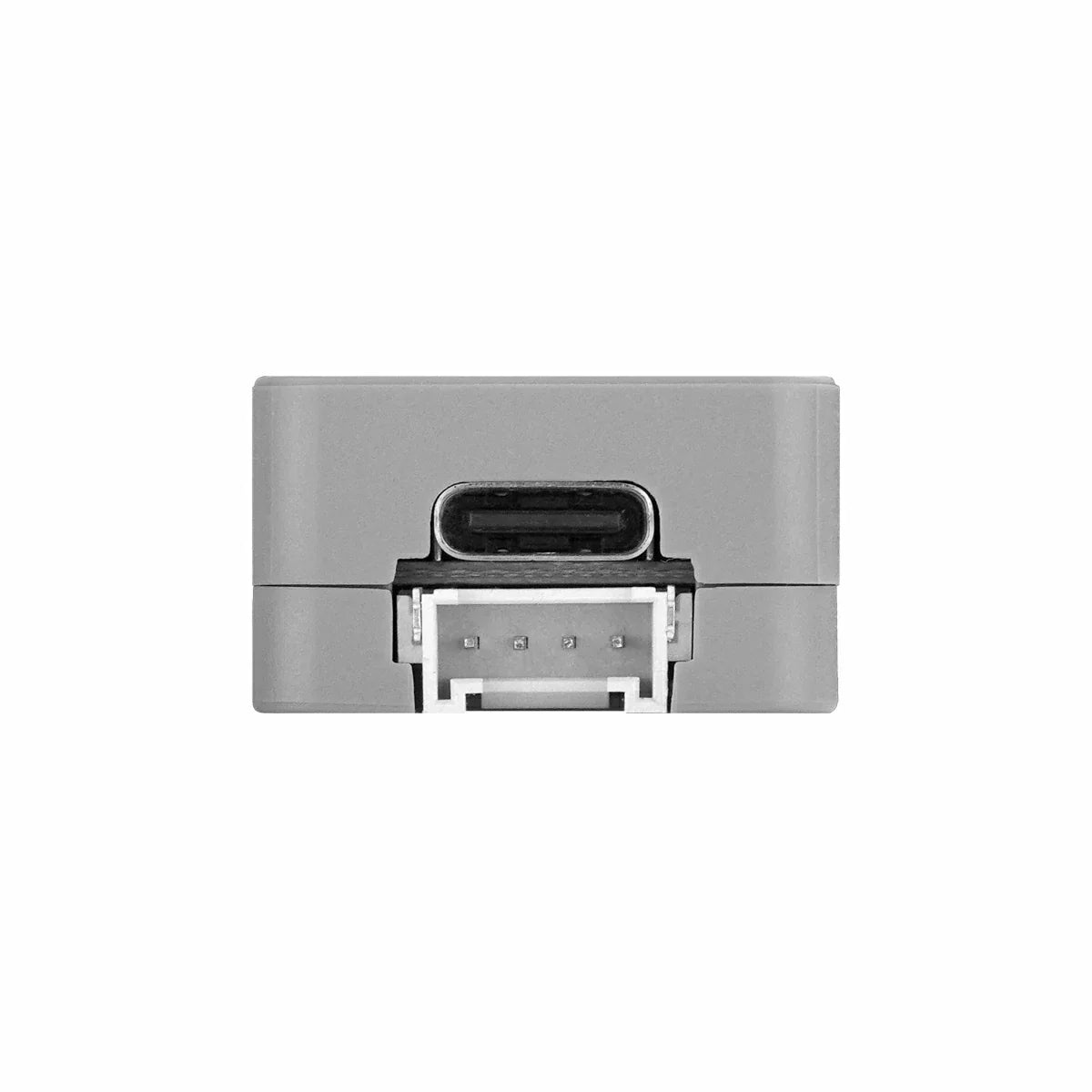

USB Type-C for power, programming, and fast development workflow.
M2 mounting hole for easy fixed installation.

Specifications

SoC	ESP32-PICO-D4 dual-core, 240MHz
DMIPS	600
SRAM	520KB
Flash	4MB SPI Flash
Wireless	2.4GHz Wi-Fi
Input Voltage	5V @ 500mA
Host Interface	USB Type-C x1, Grove (I2C + I/O + UART) x1

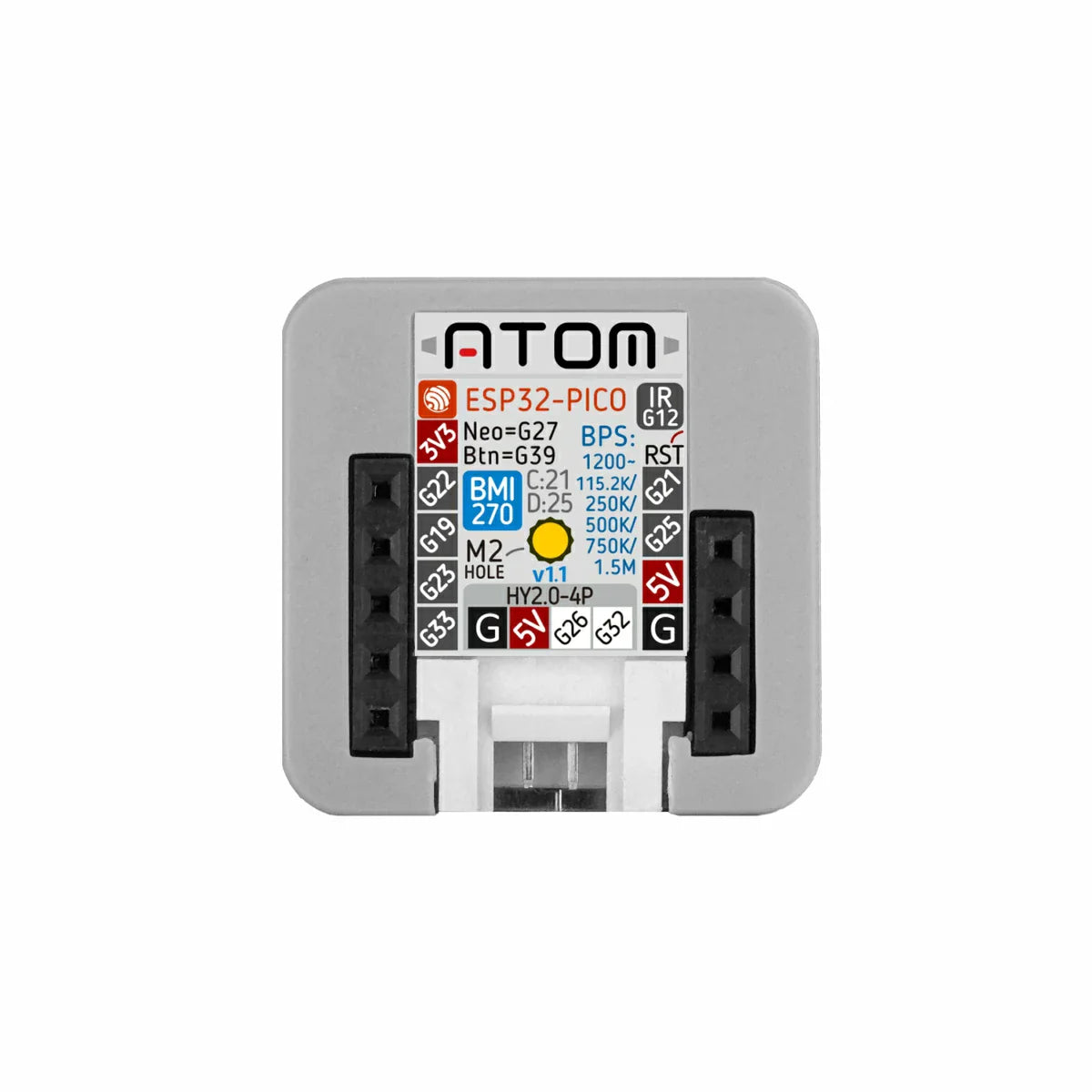

GPIO	G19, G21, G22, G23, G25, G33
RGB LED	WS2812C 2020 x25
MEMS	BMI270, I2C address 0x68
IR	Infrared transmission
Button	Programmable button x1
Antenna	2.4G 3D antenna
Working Temperature	0 to 60 C
Enclosure	Plastic (PC)
Product Size	24.0 x 24.0 x 13.8mm
Product Weight	7.3g

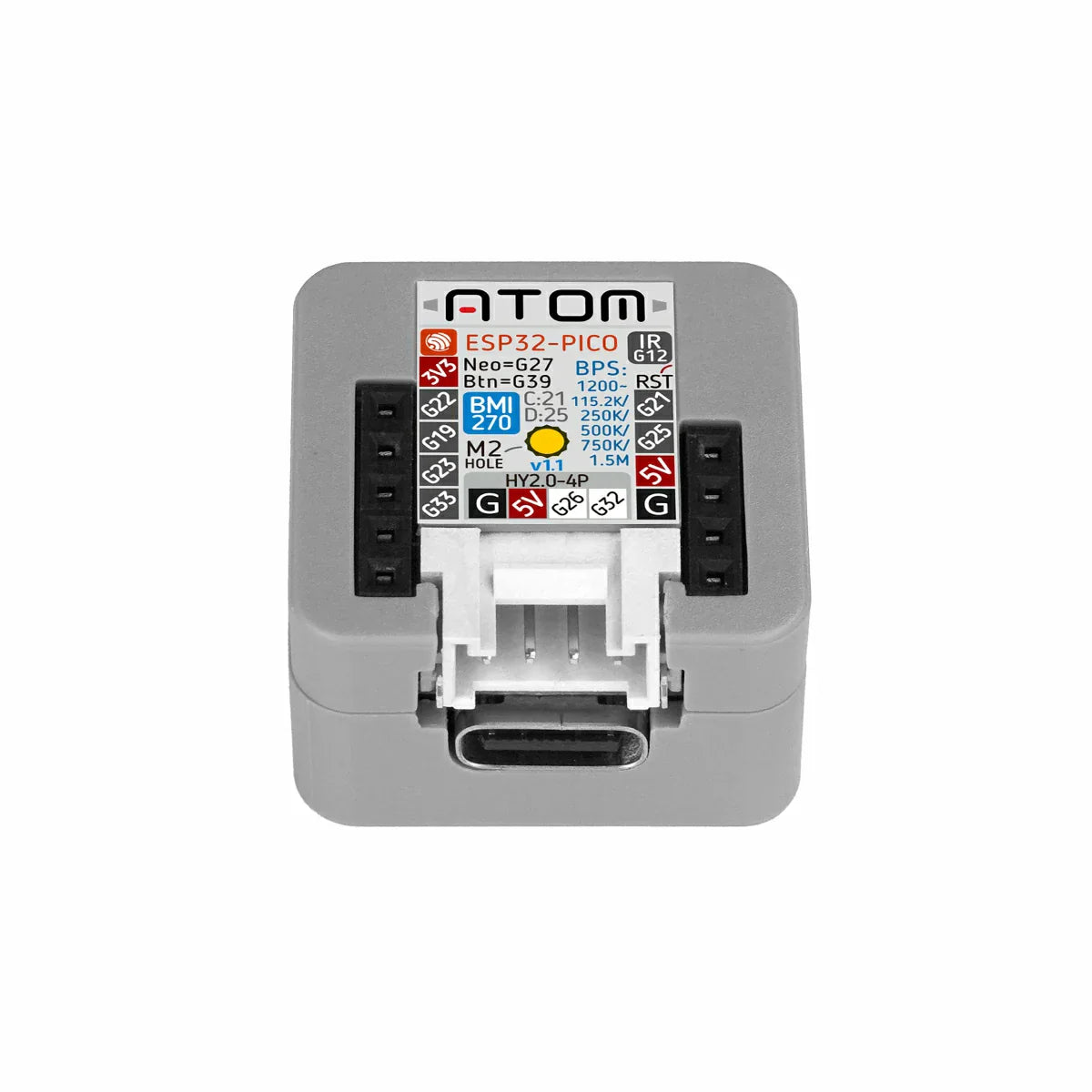

M5Stack Atom Matrix official product photo

Applications

Compact IoT nodes and wireless endpoint devices.
Miniature status indicators and visual feedback controllers.
Motion-aware prototypes using the BMI270 IMU.
Infrared smart control and trigger devices.
Wearable and portable embedded projects.
Educational ESP32 development for Arduino, UiFlow, and PlatformIO users.

Packing List

Atom-Matrix v1.1 x1

Resources

FAQ

What is the main difference between Atom Matrix v1.1 and the earlier version?

The biggest hardware change is the BMI270 IMU, which replaces the older MPU6886 and improves motion sensing performance.

What is it best used for?

It is ideal for IoT nodes, compact controllers, LED-based interaction, motion-aware prototypes, wearable projects, and embedded ESP32 development.

Does it support Arduino and visual programming?

Yes. It supports Arduino IDE, UiFlow1, UiFlow2, ESP-IDF, and PlatformIO.

Does it have expansion capability?

Yes. It includes a HY2.0-4P Grove-compatible interface and expandable GPIO for external peripherals.
