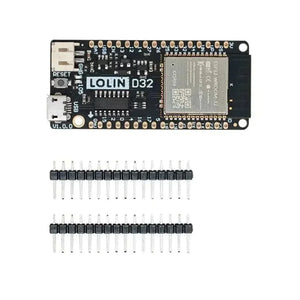

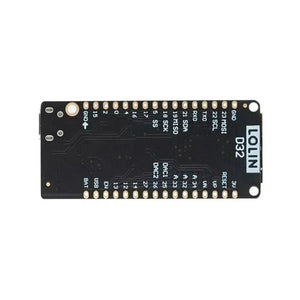

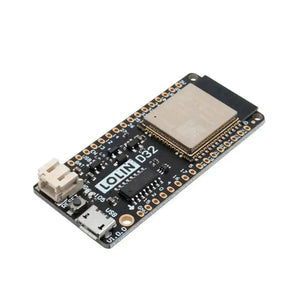

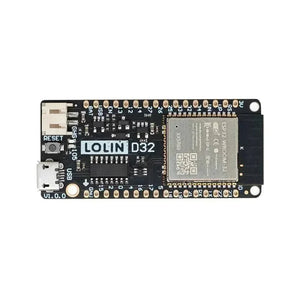

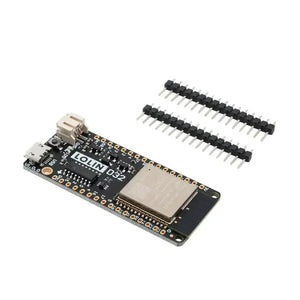

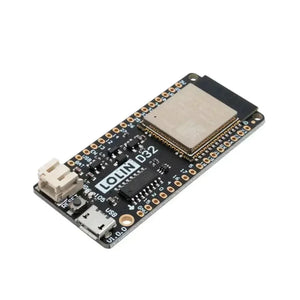

WisdPi WEMOS LOLIN D32 ESP32-WROOM-32

Features

• Espressif official ESP32-WROOM-32module
• Lastest ESP32 Version: REV1
• 4MB FLASH
• Lithium battery interface,500mA Max charging current
• Compatible with Arduino,MicroPython
• Defaultfirmware: lastest MicroPython

Tutorials

• GetstartedwithMicroPython[D32series]
• GetstartedwithArduino[D32series]

Documentation

• SchematicV1.0.0[PDF]
• DimensionV1.0.0[PDF]
• CH340Driver

Technicalspecs

• OperatingVoltage    3.3V
• SupportedBattery    Lipo3.7V
• BatteryConnector    PH-22.0mm
• DigitalI/OPins    22
• AnalogInputPins    6(VP,VN,32,33,34,35)
• AnalogOutputPins    2(25,26)
• LED_BUILTIN    GPIO5
• ClockSpeed(Max)    240MHz
• Flash    4MBytes
• Size    57*25.4mm
• Weight    6.1g

Pin Note

• AlloftheIOpinsrunat3.3V.
