KST FZ589 Digital Metal Gear HV Mini Servo 8Kgf.cm 0.10sec
Shipping within 72 hours
*Excluding pre-order items
KST FZ589 Digital Metal Gear HV Mini Servo 8Kgf.cm 0.10sec

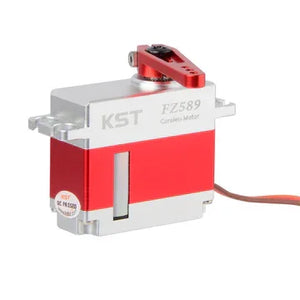

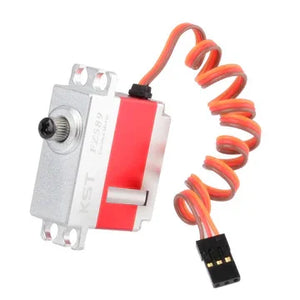

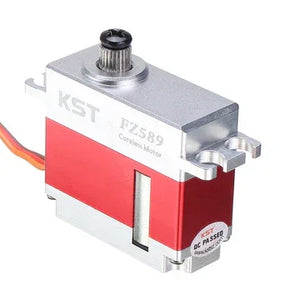

The KST FZ589 Digital Metal Gear HV Mini Servo is a mini HV servo for RC gliders and helicopters. KST positions FZ589 as a smooth, high-torque mini servo for applications that need accurate control in a compact 35.5mm case.
Verified KST data lists a DC 6.0V-8.4V voltage range, up to 8Kgf.cm torque at 8.4V, and 0.10sec/60deg speed at 8.4V. It uses a coreless DC motor, metal/hardened steel gear construction, potentiometer feedback, and 2 ball bearings.
The 35.5 x 15 x 32.5mm case, about 40g weight, and +/-45deg travel setup make FZ589 a practical HV mini-servo option for glider, helicopter, and compact RC mechanisms.
Product Images
Features
- 8Kgf.cm peak torque - Listed torque reaches 8Kgf.cm at 8.4V.
- 0.10sec response - Listed speed reaches 0.10sec/60deg at 8.4V.
- HV mini-servo package - Compact 35.5 x 15 x 32.5mm dimensions fit many small RC installations.
- RC glider and helicopter focus - KST positions it for both categories.
- Coreless DC motor - Supports smooth mini-servo response.
- Metal gear train - KST page lists metal gear construction; PDF lists hardened steel gear material.
- Aluminum alloy case - Provides a rigid mini-servo housing.
- 2BB construction - Dual ball bearings support the output train.
- 1520us/333Hz command format - Listed working frequency for standard PWM control.
- 90deg total travel - Travel angle is listed as +/-45deg.
Specifications
| Parameter | Value |
|---|---|
| Model | KST FZ589 |
| Shopify SKU | KST-FZ589 |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 6.0V-8.4V |
| Torque | 6Kgf.cm @ 6.0V; 7Kgf.cm @ 7.4V; 8Kgf.cm @ 8.4V |
| Speed | 0.12sec/60deg @ 6.0V; 0.11sec/60deg @ 7.4V; 0.10sec/60deg @ 8.4V |
| Working Frequency | 1520us / 333Hz |
| Travel Angle | +/-45deg when 1000us-2000us |
| Command Interface | PWM command; pulse length 1000us-2000us |
| Case Material | Aluminum alloy |
| Motor Type | Coreless DC motor |
| Gear Set Material | Metal gear / hardened steel |
| Position Sensor | Potentiometer |
| Ball Bearing | 2BB |

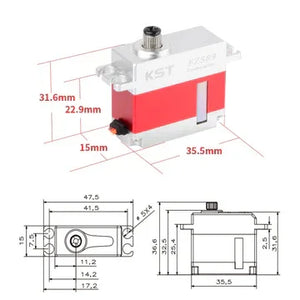

| Case Dimensions | 35.5 x 15 x 32.5mm +/-0.2mm |
| Weight | 40g +/-10% |
| Temperature Range | -20C to +65C |
Reference Documents
Application
- RC glider control - KST positions FZ589 for glider applications.
- RC helicopter control - Suitable for compatible helicopter servo positions after checking load and size.
- Mini servo upgrades - Fits compact spaces that match the 35.5 x 15 x 32.5mm case.
- HV receiver systems - Works within the listed DC 6.0V-8.4V range when powered correctly.
- Standard PWM mechanisms - Suitable for applications using 1520us/333Hz style PWM control.
- Custom compact mechanisms - Can be used outside RC aircraft after confirming load, signal, and travel.

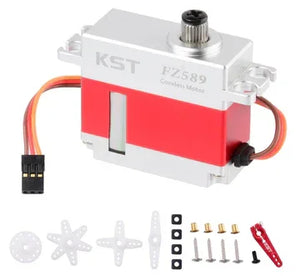

Packing List
| Description | Quantity |
|---|---|
| KST FZ589 servo | 1 |
| Accessory pack | 1 |
FAQ
How does FZ589 compare with DS565X?
FZ589 is a 1520us/333Hz mini servo for gliders and helicopters with 8Kgf.cm at 8.4V. DS565X is a 760us/560Hz tail servo with 6Kgf.cm at 8.4V.
Does OpenELAB list multiple Shopify variants for this product?
No. The current Shopify product is a single variant with SKU KST-FZ589.
What is the maximum listed torque?
The technical specification lists 8Kgf.cm at 8.4V.
What is the fastest listed speed?
The fastest listed speed is 0.10sec/60deg at 8.4V.
What voltage range does it support?
The listed voltage range is DC 6.0V-8.4V.
What is included in the package?
KST's package section confirms one FZ589 servo and one accessory pack.
Is the output spline listed?
The public specification used here did not clearly list an output spline, so it is not included in the specification table.
What should I check before installation?
Confirm the 35.5 x 15 x 32.5mm case, voltage range, 1000us-2000us travel setup, and linkage geometry.
