Gravity: I2C High Temperature Sensor K-Type Thermocouple Arduino

26,15 €

PT100 sensors are common for temperatures below 400℃, but many industrial applications—such as gas stoves, pottery kilns, and electric furnaces—can exceed 800℃ or even 1000℃. In such high-heat scenarios, the K-type thermocouple high temperature sensor is the preferred industrial solution.

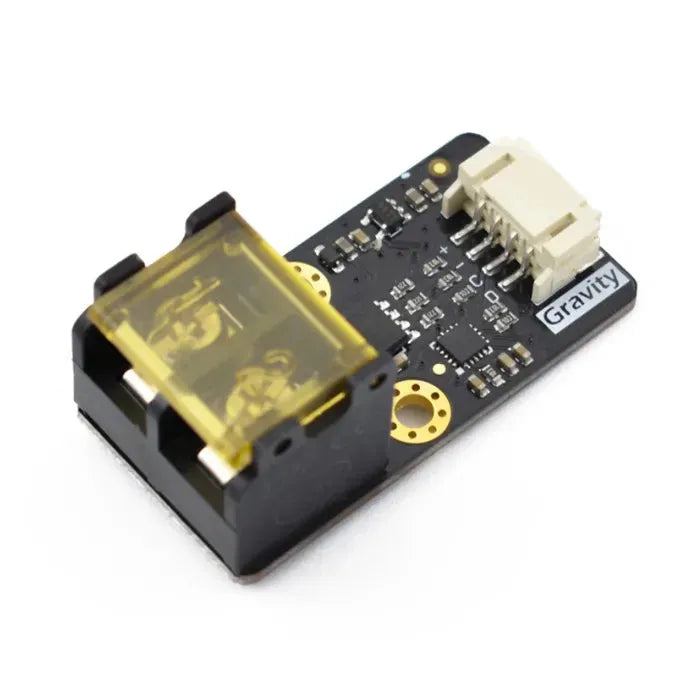

The Gravity: I2C High Temperature Sensor integrates a MAX31855K digital converter and stainless steel K-type probe to deliver precise temperature readings via I2C. This MAX31855 I2C temperature sensor supports a wide range from -270℃ to 1372℃, with exceptional accuracy across the range. The included thermocouple probe can measure up to 800℃ with an error of only ±2.5℃.

Compatible with Arduino, Raspberry Pi, and other 3.3V/5V systems, this I2C high temperature sensor module is ideal for extreme condition monitoring.

Key Features

  • 14-bit, high-resolution digital output (0.25℃ resolution)

  • Extra-wide measurement range: -270℃ ~ 1372℃

  • Accurate high-temperature readings up to 800℃

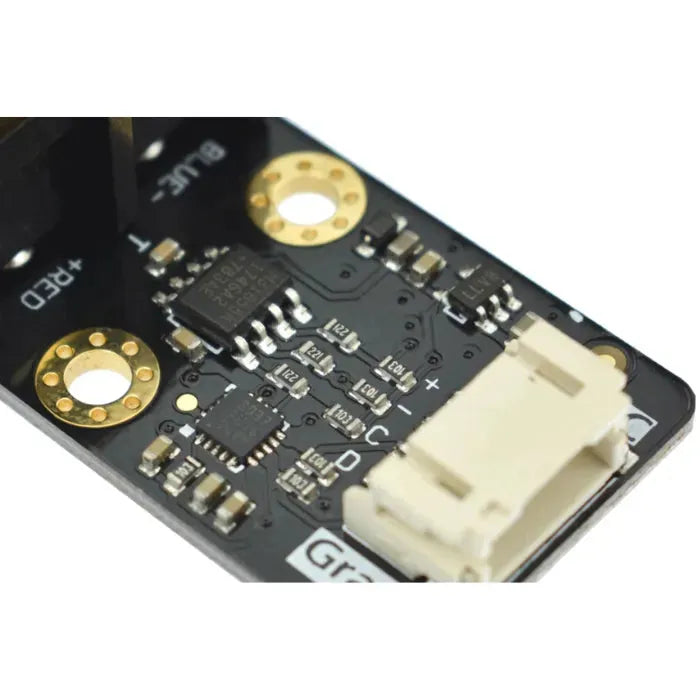

  • Built-in MAX31855K chip for signal conversion

  • Gravity I2C interface – plug-and-play convenience

  • Compatible with 3.3V and 5V controllers

  • Works with any K-Type thermocouple probe

Example Diagrams

  • Arduino UNO Setup:

  • Raspberry Pi 3B Setup:

  • Flame Measurement Demo:

Applications

  • Industrial furnace and oven monitoring

  • Natural gas stove testing

  • Pottery kilns

  • Combustion and flame temperature measurement

  • Scientific lab experiments

Specifications

Signal Amplification Conversion Module

  • Input Voltage (VCC): 3.3V – 5.5V

  • Chipset: MAX31855K

  • Temperature Range: -270℃ to 1372℃

  • Resolution: 0.25 ℃

  • Error: ±2℃ (-200℃ to 700℃), ±4℃ (700℃ to 1350℃)

  • Interface: Gravity I2C (Logic level 0–3.3V)

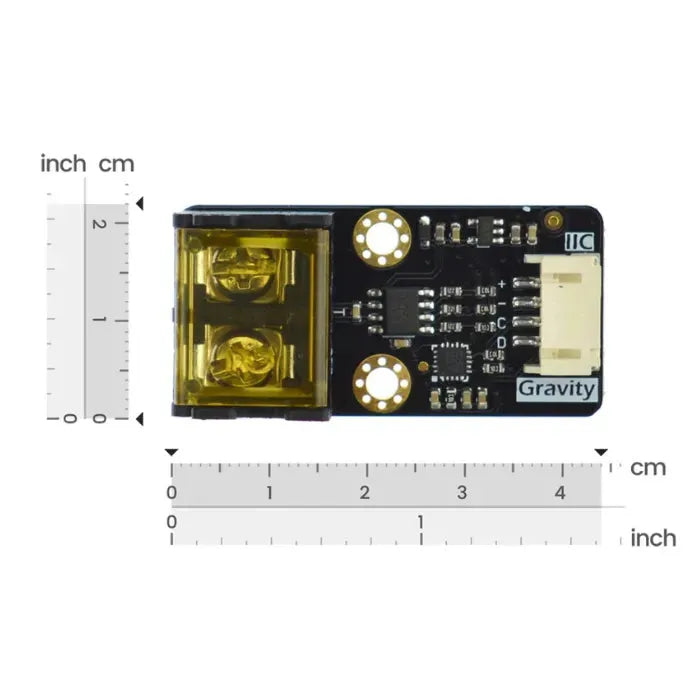

  • Dimensions: 44.0 mm × 22.0 mm

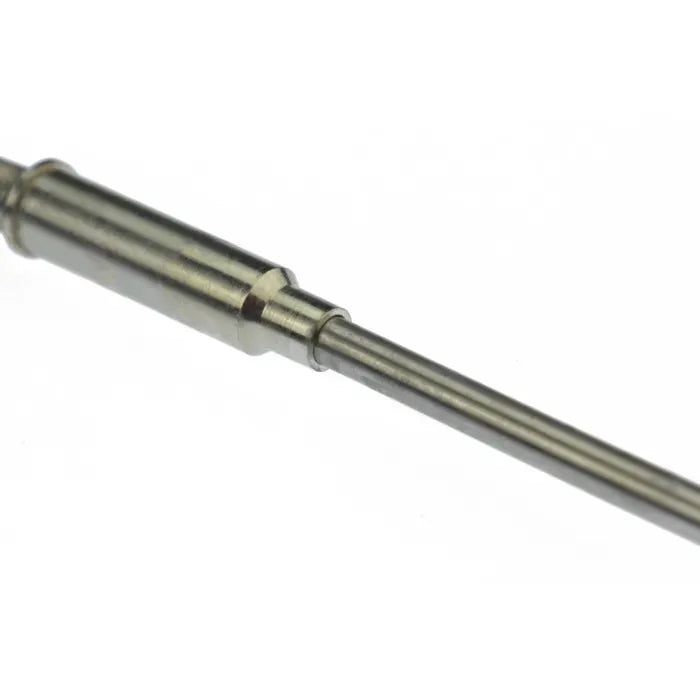

Armored K-Type Thermocouple Probe

  • Max Temperature: 800 ℃

  • Accuracy: ±2.5 ℃

  • Probe Length: 50 mm

  • Cable Length: 1.5 m

  • Probe Diameter: 4 mm

  • Features: Waterproof, corrosion-resistant, high-temp resistant, rustproof

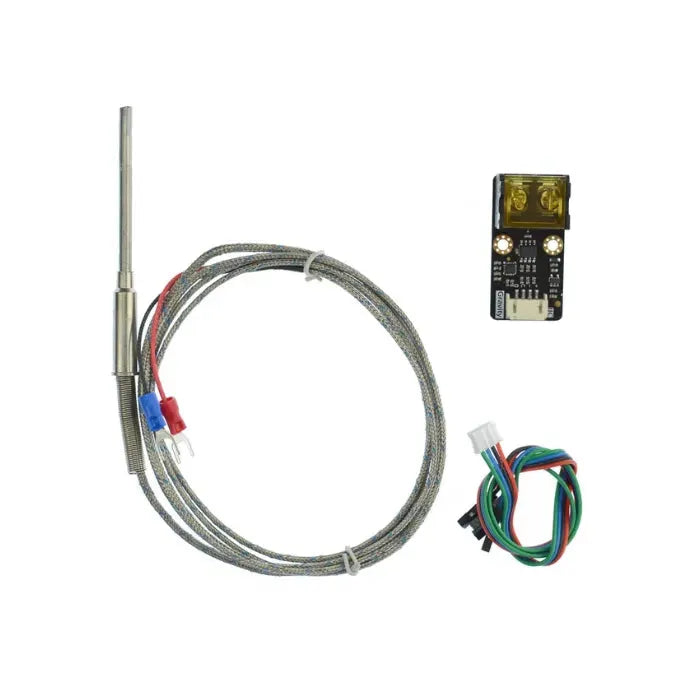

Shipping List

  • Signal Amplification Conversion Module ×1

  • Armored K-Type Thermocouple Probe ×1

  • Gravity-4P I2C/UART Sensor Wire ×1

Reference

Product wiki
