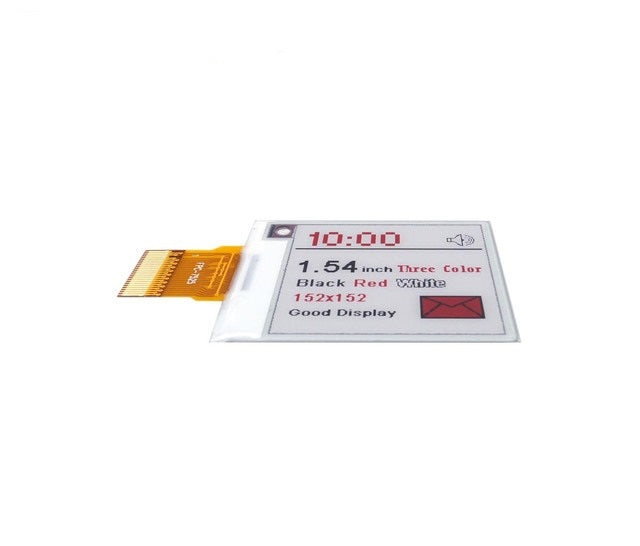

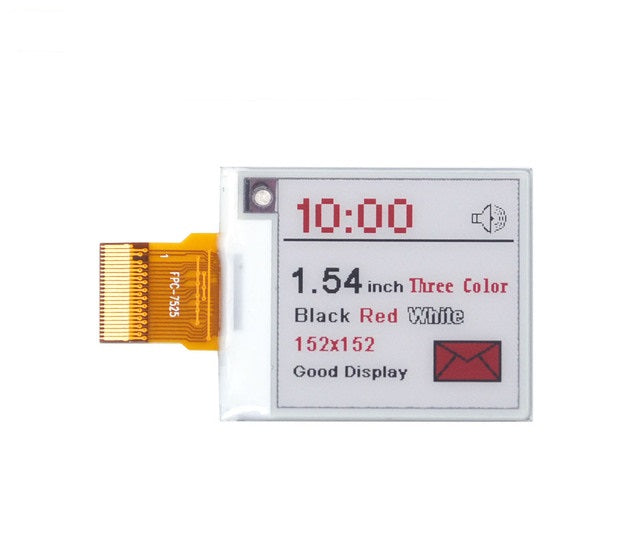

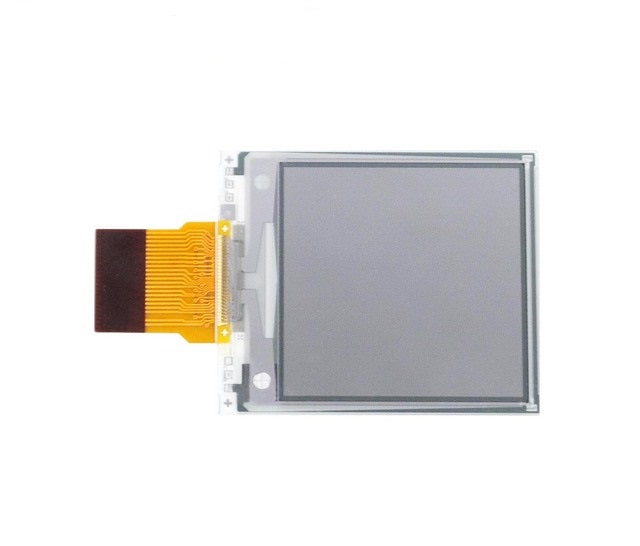

E-paper Screen 1.54-inch Tri-Color E-Ink Display Black White Red

ePaper Display's Basic function

• Refresh Method: Full refresh for 14s
• Display direction: Horizontal or vertical

ePaper Display's Basic parameters

• Product size: 1.54 inch
• Resolution: 152x152
• Color: Red, Black and White
• Driver IC: SSD1680
• Interface: SPI
• Operating voltage: 3.3V
• Operating temperature: 0-40 ℃

ePaper Display's Main features

• Display feature: Bistable display (retains the current content after a power outage)
• Display mode: Pure reflection
• Viewing angle: Wide viewing angle exceeding 170 degrees
• Surface Treatment: Hard-coated for anti-glare effects
• Energy conservation: No power consumption when not refreshing the screen
• Eye Protection: No blue light emission, zero radiation
