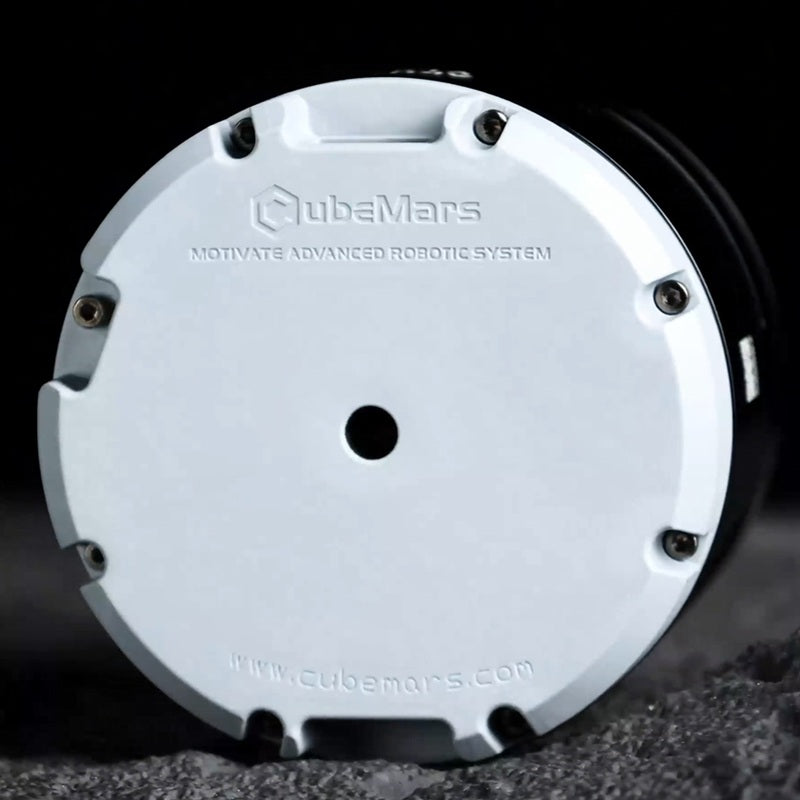

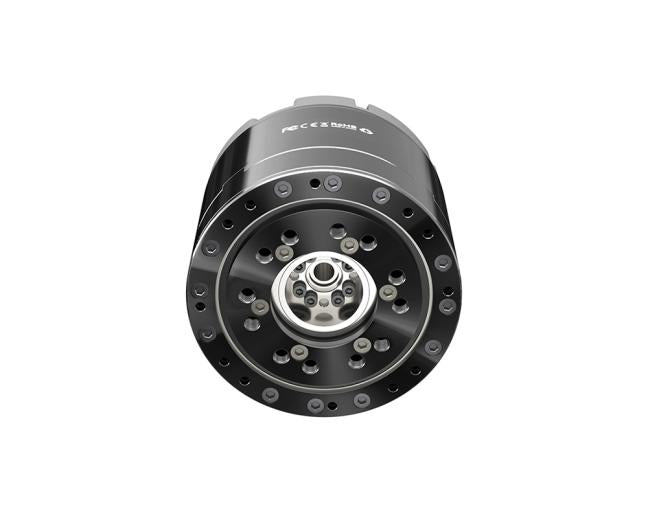

CubeMars AKH70-48 KV41 High‑Torque Smart Drive Module

CubeMars AKH70-48 KV41 High‑Torque Smart Drive Module

839,00 €

AKH70‑48 is a next‑generation drive module engineered for dynamic robotics, wearable exoskeletons, and automated guided vehicles (AGVs). Featuring FOC (Field‑Oriented Control) and a powerful 48:1 gear reduction, it delivers up to 222 Nm rated torque and 159 Nm peak output, making it ideal for high‑load, precision‑driven applications.

Equipped with dual 21‑bit magnetic encoders, CAN/UART communication, and NTC thermal monitoring, the AKH70‑48 ensures real‑time feedback, stable control, and seamless system integration. Its ultra‑low backlash (2.22 arcmin) and high rotor inertia provide exceptional stability under dynamic conditions, while the compact form factor supports embedded deployment.


Key Features

  • FOC vector control for smooth, accurate torque response

  • 48:1 gear ratio with up to 222 Nm rated torque

  • Dual 21‑bit magnetic encoders for high‑resolution feedback

  • NTC MF51B temperature sensor for real‑time thermal protection

  • CAN & UART interfaces for flexible integration

  • 2.22 arcmin backlash for precision motion control

  • High rotor inertia (1170 g·cm²) for dynamic load stability

  • Compact size with optimized packaging (132 × 132 × 90 mm)


Technical Specifications

Parameter Value
Application Motion robotics, exoskeletons, AGVs
Control Method FOC
Operating Temperature −20°C to 50°C
Motor Poles 41
Encoder Type Delta / Type F
Encoder Resolution 21bit
Encoder Precision 65 (single turn)
Encoder Count 2
Motor Resistance 0.56 Ω
Motor Inductance 0.6 mH
Rotor Inertia 1170 g·cm²
Motor Constant 0.31 Nm/√W
Time Constant 2.28 ms
Back EMF Constant 0.6 V/krpm
Insulation Voltage 500V 5mA/2s
Insulation Resistance 500V 10MΩ
Gear Ratio 48:1
Backlash 2.22 arcmin
Rated Voltage 48 V
Rated Current 6 ADC / 0.23 A (configurable)
Peak Current 21 ADC
Rated Torque 222 Nm
Max Output Torque 159 Nm
Rated Speed 28 rpm
Controller Model Power: 5680 / CAN Controller: 6680
Communication Interfaces CAN: XT30PW (2+2)‑M / UART: A1257WR‑S‑3P
Power Interface XT30PW (2+2)‑M
Package Dimensions 132 × 132 × 90 mm



Motor operation analysis diagram (or graph)



Application Scenarios

  • Joint actuation for high‑load robotics

  • Power modules for wearable exoskeletons

  • Wheel hub drive for AGVs

  • Precision control in industrial manipulators

  • Research platforms for motion and torque experiments



Related Accessories

  • R-LINK V3.0

  • Wiring Package V3.0

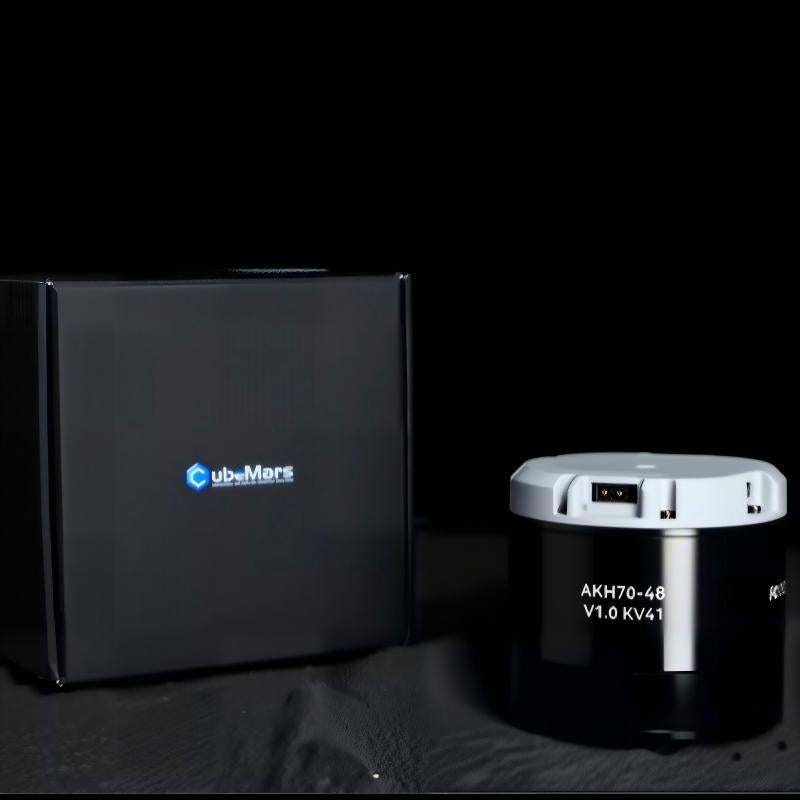

Package List

  • AKH70-48 KV41 actuator ( with driver board)*1

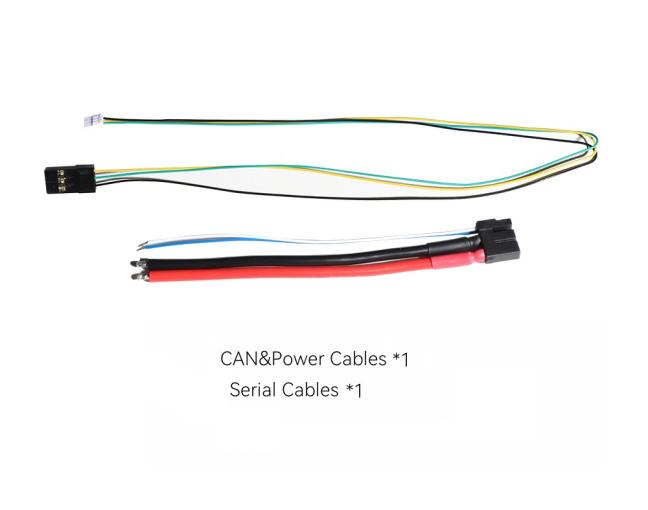

  • Power+CAN cables *1

  • Serial cables *1

  • Certification *1
