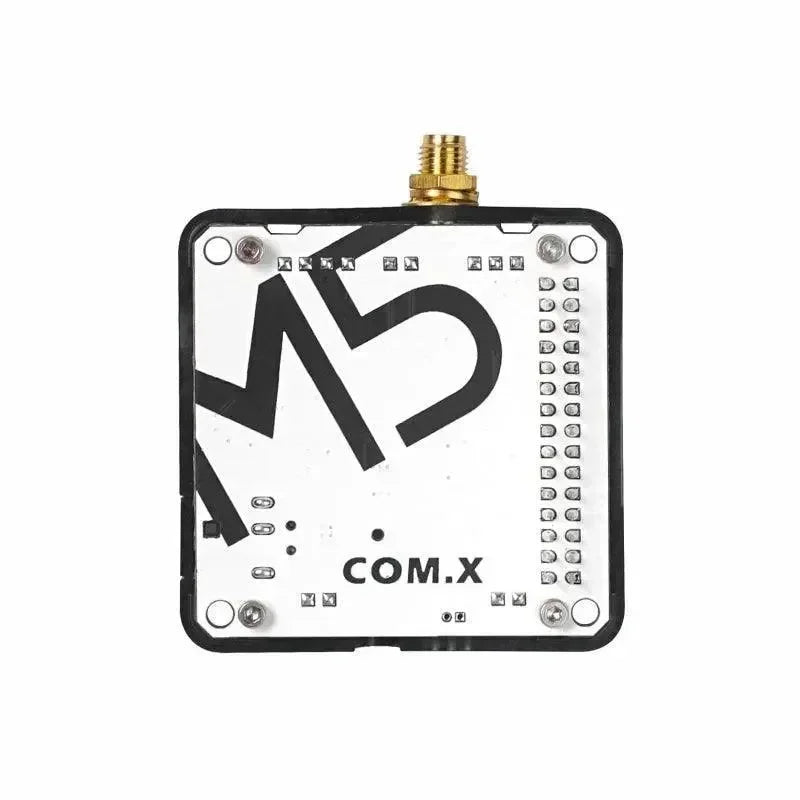

COM.Zigbee module with Antenna

Note: All products are tax-inclusive.

COM. Zigbee is a Zigbee self-organizing network communication module launched by M5Stack. The module adopts the CC2630F128 solution, internally integrates the Zigbee protocol stack, and opens the serial communication interface. With an integrated external antenna, single node stable communication distance up to 1km, and 200-level router depth, through the MESH networking mode, you can extend your IoT application in a wide range, with both ultra-low power consumption and high sensitivity. The Zigbee network can support hundreds of nodes and has enhanced security features. It can provide complete and interoperable IoT solutions for home and building automation.

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), and RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

• CC2630F128
• Quick access to the network without setting
  • initialize the coordinator and configure the router preset, which can realize automatic access to the network by pressing the button three times
• Serial communication
• Low power consumption (module working current: 25mA, sleep 5uA)
• Dynamic routing maintenance, supporting 200-level routing depth
• Transmission speed 250Kbps
• Node communication distance 1km
• UART transparent transmission/broadcasting/P2P

Include

• 1x Zigbee Unit
• 1x SMA antenna

Applications

• Smart Home
• IoT collection node
• Building Automation
