Ai-Thinker Ai-WB2-12F-BLOFN4 WIFI6+BLE5.3+Thread
Ai-Thinker Ai-WB2-12F-BLOFN4 WIFI6+BLE5.3+Thread

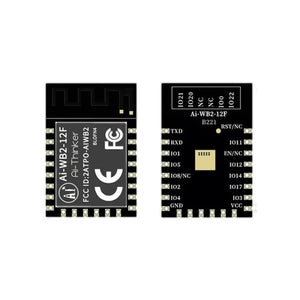

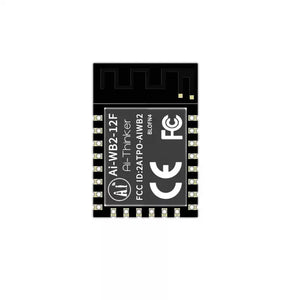

Ai-Thinker Ai-WB2-12F is a compact Wi-Fi and BLE module built around the BL602 processor. Based on the official Ai-Thinker specification, this Ai-Thinker wireless module supports Wi-Fi 802.11 b/g/n, BLE 5.0, a low-power 32-bit RISC CPU, and rich interfaces including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, and GPIO.
Ai-WB2-12F is suitable for IoT devices, smart home products, wearable electronics, wireless controllers, sensor nodes, and low-power embedded communication projects. With its SMD-22 package, on-board PCB antenna, default 4MByte flash, support for WPA3, and support for AT commands and secondary development, this Ai-Thinker Wi-Fi BLE module is practical for compact product integration and embedded wireless development.
Features
- BL602 based Wi-Fi + BLE module for compact embedded wireless products.
- Wi-Fi 802.11 b/g/n and BLE 5.0 support with Bluetooth Mesh capability.
- SMD-22 package with on-board PCB antenna for straightforward hardware integration.
- Default 4MByte flash with support for expansion.
- WPA3 security, secure startup, AES engine, SHA support, TRNG, and PKA features in the official module materials.
- AT command support and secondary development support for faster product deployment.
Specifications
| Parameter | Specification |
|---|---|
| Model | Ai-WB2-12F |
| Core Processor | BL602 |
| CPU | 32-bit RISC |
| RAM | 276KB |
| Wireless | Wi-Fi 802.11 b/g/n, BLE 5.0, Bluetooth Mesh |
| Package | SMD-22 |

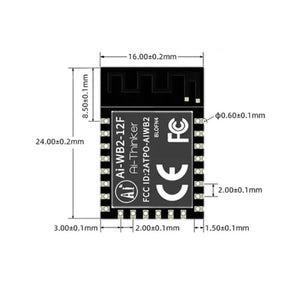

| Size | 24.0 x 16.0 x 3.1 (±0.2) mm |
| Antenna | On-board PCB antenna |
| Frequency | 2400 ~ 2483.5MHz |
| Power Supply | 2.7V ~ 3.6V, supply current ≥500mA |

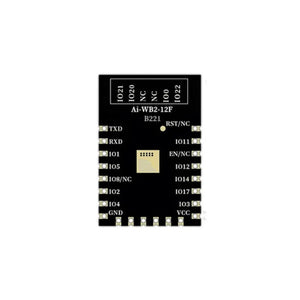

| Interfaces | UART / GPIO / ADC / PWM / I2C / SPI / SDIO / IR Remote / DAC / PIR |
| IO | 15 |
| UART Rate | Default 115200 bps |
| Security | WPS / WEP / WPA / WPA2 Personal / WPA2 Enterprise / WPA3 |
| Flash | Default 4MByte, support expansion |
| Operating Temperature | -40°C ~ 85°C |
| Storage Temperature | -40°C ~ 125°C, ≤ 90% RH |
Applications
- IoT device connectivity and low-power wireless communication nodes.
- Smart home products and connected household electronics.
- Wearable electronics and mobile embedded wireless designs.
- Ai-Thinker Wi-Fi BLE development for AT command integration and secondary development workflows.
Other Content
Ai-WB2-12F is a good choice when you need a compact Ai-Thinker module with mature wireless support, practical peripheral access, and more IO capacity for embedded product development. It is especially useful for projects that need both Wi-Fi and BLE in a compact package with a board antenna design.
Resources
Ai-WB2 Series Official Documentation
FAQ
What is Ai-WB2-12F used for?
It is used for Ai-Thinker wireless IoT development, smart home nodes, wearable electronics, low-power wireless controllers, and compact connected products.
Does Ai-WB2-12F support both Wi-Fi and BLE?
Yes. Official specifications list Wi-Fi 802.11 b/g/n and BLE 5.0 support.
Why choose Ai-WB2-12F?
It combines an SMD-22 package, on-board PCB antenna, practical security features, higher IO count, and the Ai-Thinker documentation ecosystem for easier integration and development.
