Description

Note: All products are tax-inclusive.

Introducing the AC Measure Unit, a high-performance single-phase AC measurement module with advanced isolation capabilities. This module utilizes the powerful STM32+HLW8032 scheme to provide real-time monitoring of high-precision current, voltage, power, and other crucial data.

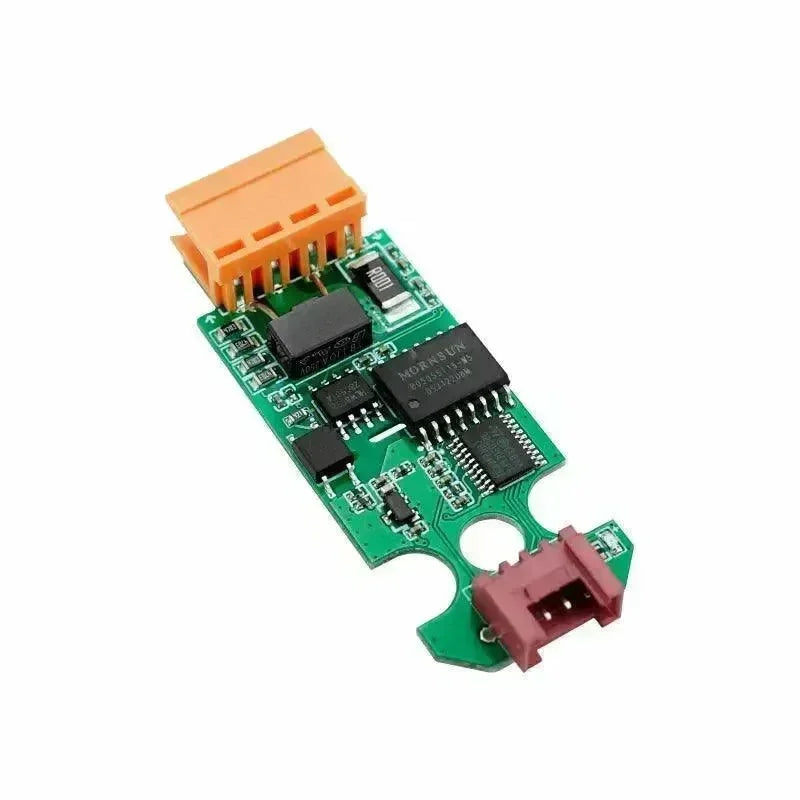

Equipped with a built-in AC isolation chip, the B0505ST16-W5, and leveraging the EL357 optocoupler isolation chip for seamless communication with the STM32, this module ensures reliable and secure operation. The AC Measure Unit enables users to easily access the measured data through efficient I2C communication.

Designed for a wide range of applications, this versatile product is perfect for power supply information collection, remote smart home appliances, and other related fields. Experience the convenience and accuracy of real-time AC measurement with the AC Measure Unit.

Features

  • STM32G030@M0+ 32-bit MCU,64 KB Flash, 8 KB RAM
  • Single-phase alternating current 100-240V/10A measurement
  • I2C Communication (0x42)
  • Programming platforms: UIFlow, Arduino

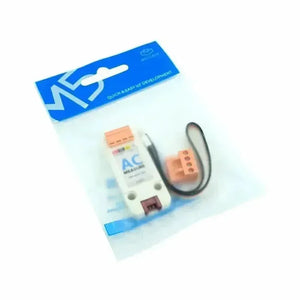

Includes

  • 1*AC Measure Unit
  • 1*HY2.0 Cable(20CM)
  • 1*3.96-4P terminal

Applications

  • Smart home appliances
  • Metering sockets
  • Smart WIFI socket
  • Electric vehicle charging pile
  • Street lamp control system

Specification

Resources Parameters
MCU STM32G030@M0+ 32-bit MCU,64 KB Flash, 8 KB RAM
AC current acquisition chip HLW8032
Isolation chip B0505ST16-W5
Optocoupler communication chip EL357NB
I2C address 0x42
Measure voltage/current 100-240VAC/10A

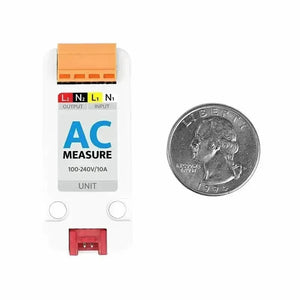

Product Size 56*24*10.3mm
Package Size 136mm*92mm*13mm
Product Weight 8.8g
Package Weight 11.2g
