Features At A Glance
-
240×240 resolution, 65K RGB colors, clear and colorful displaying effect
-
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
-
Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
|
OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
240 × 240 pixels |
|
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
Φ32.4mm |
|
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.135 × 0.135mm |
|
DRIVER |
GC9A01 |
DIMENSIONS |
40.4 × 37.5mm Φ37.5mm |

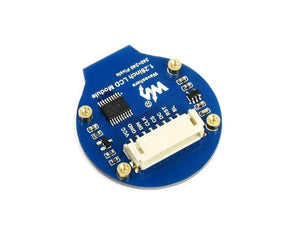

Controlled Via SPI Bus

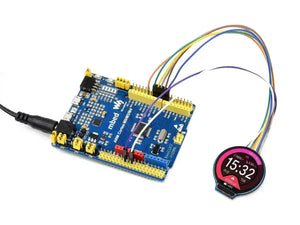

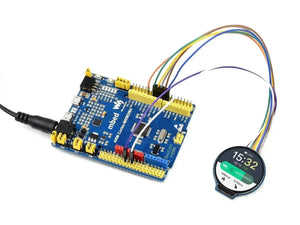

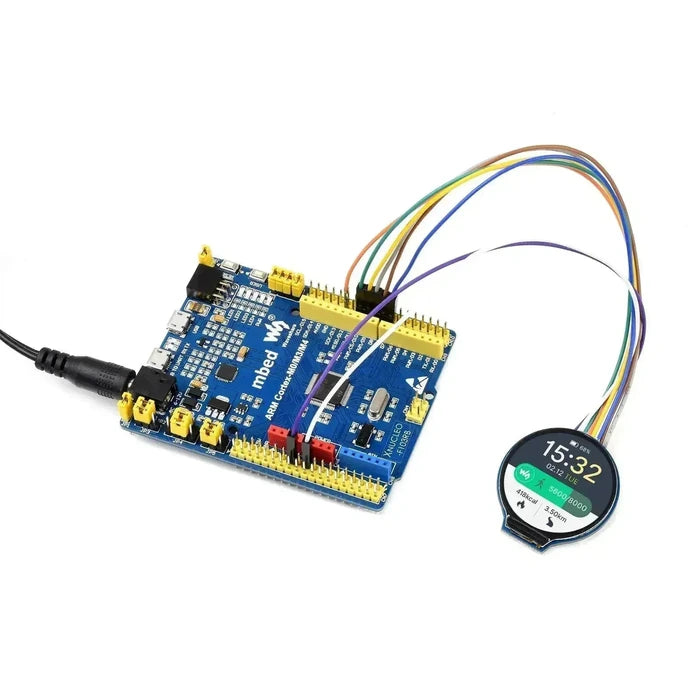

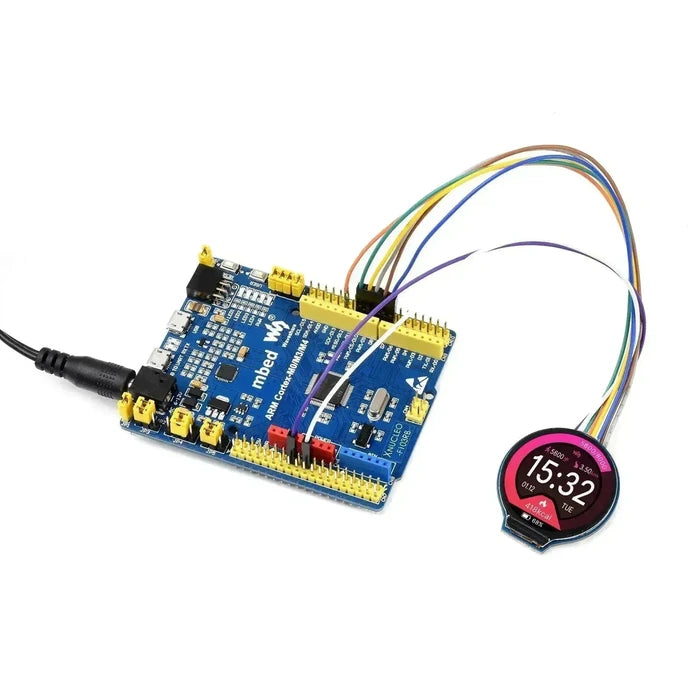

Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32
|

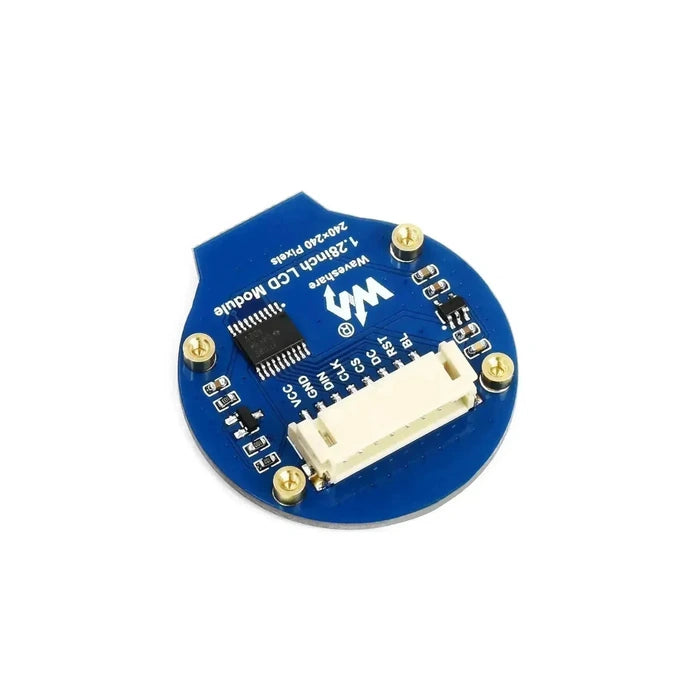

VCC |
Power (3.3V / 5V input) |
|
GND |
Ground |
|
DIN |
SPI data input |
|
CLK |
SPI clock input |
|
CS |
Chip selection, low active |
|
DC |
Data/Command selection (high for data, low for command) |
|
RST |
Reset, low active |
|
BL |
Backlight |
Selection Guide
|
PART NUMBER |
TYPE |
COLOR |
RESOLUTION |
DISPLAY SIZE (MM×MM) |
INTERFACES |
DRIVER |
DIMENSION (MM×MM) |
PINHEADER |
|
0.91inch OLED Module |
OLED |
White |
128×32 |
22.38×5.58 |
I2C |
SSD1306 |
36.0×12.5 |
PH2.0 connector |
|
0.95inch RGB OLED (A) |
OLED |
65K colorful |
96×64 |
20.14×13.42 |
SPI(4-wire SPI) |
SSD1331 |
31.7×37.0 |
angled/horizontal |
|
0.95inch RGB OLED (B) |
OLED |
65K colorful |
96×64 |
20.14×13.42 |
SPI(4-wire SPI) |
SSD1331 |
31.7×37.0 |
straight/vertical |
|
0.96inch LCD Module |
IPS |
65K colorful |
160×80 |
21.70×10.80 |
4-wire SPI |
ST7735S |
32.5×26.0 |
PH2.0 connector |
|
0.96inch OLED (A) |
OLED |
1/4 yellow section, 3/4 blue section |
128×64 |
21.7×11.2 |
3-wire SPI, 4-wire SPI, I2C |
SSD1306 |
33.0×33.5 |
angled/horizontal |
|
0.96inch OLED (B) |
OLED |
1/4 yellow section, 3/4 blue section |
128×64 |
21.7×11.2 |
3-wire SPI, 4-wire SPI, I2C |
SSD1306 |
33.0×33.5 |
straight/vertical |
|
1.14inch LCD Module |
IPS |
65K colorful |
240×135 |
24.91×14.86 |
4-wire SPI |
ST7789 |
35.0×32.0 |
PH2.0 connector |
|
1.28inch LCD Module |
IPS |
65K colorful |
240×240 |
Φ32.4mm |
4-wire SPI |
GC9A01 |
40.4×37.5 |
PH2.0 connector |
|
1.3inch LCD Module |
IPS |
65K colorful |
240×240 |
23.40×23.40 |
4-wire SPI |
ST7789 |
45.0×31.0 |
PH2.0 connector |
|
1.3inch OLED (A) |
OLED |
Blue |
128×64 |
29.42×14.7 |
3-wire SPI, 4-wire SPI, I2C |
SH1106 |
40.5×37.5 |
angled/horizontal |
|
1.3inch OLED (B) |
OLED |
Blue |
128×64 |
29.42×14.7 |
3-wire SPI, 4-wire SPI, I2C |
SH1106 |
40.5×37.5 |
straight/vertical |
|
1.3inch OLED Module (C) |
OLED |
White |
64×128 |
14.70×29.42 |
4-wire SPI, I2C |
SH1107 |
30.0×39.5 |
PH2.0 connector |
|
1.5inch OLED Module |
OLED |
White (16 gray scale) |
128×128 |
26.86×26.86 |
4-wire SPI, I2C |
SSD1327 |
44.5×37.0 |
PH2.0 connector |
|
1.5inch RGB OLED Module |
OLED |
65K colorful |
128×128 |
26.86×26.86 |
3-wire SPI, 4-wire SPI |
SSD1351 |
44.5×37.0 |
PH2.0 connector |
|
1.54inch LCD Module |
IPS |
65K colorful |
240×240 |
27.72×27.72 |
4-wire SPI |
ST7789 |
50.0×35.0 |
PH2.0 connector |
|
1.8inch LCD Module |
TFT |
65K colorful |
128×160 |
34.50×28.30 |
4-wire SPI |
ST7735S |
56.5×34.0 |
PH2.0 connector |
|
2inch LCD Module |
IPS |
262K colorful |
240×320 |
30.60×40.80 |
4-wire SPI |
ST7789 |
58.0×35.0 |
PH2.0 connector |
|
2.4inch LCD Module |
TFT |
65K colorful |
240×320 |
36.72×48.96 |
4-wire SPI |
ILI9341 |
70.5×43.3 |
PH2.0 connector |
Note: the 0.96inch OLED consists of a 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
PACKAGE CONTENT
Weight:0.015 kg
- 1.28inch LCD Module x1
- PH2.0 8PIN 20cm cable x1
