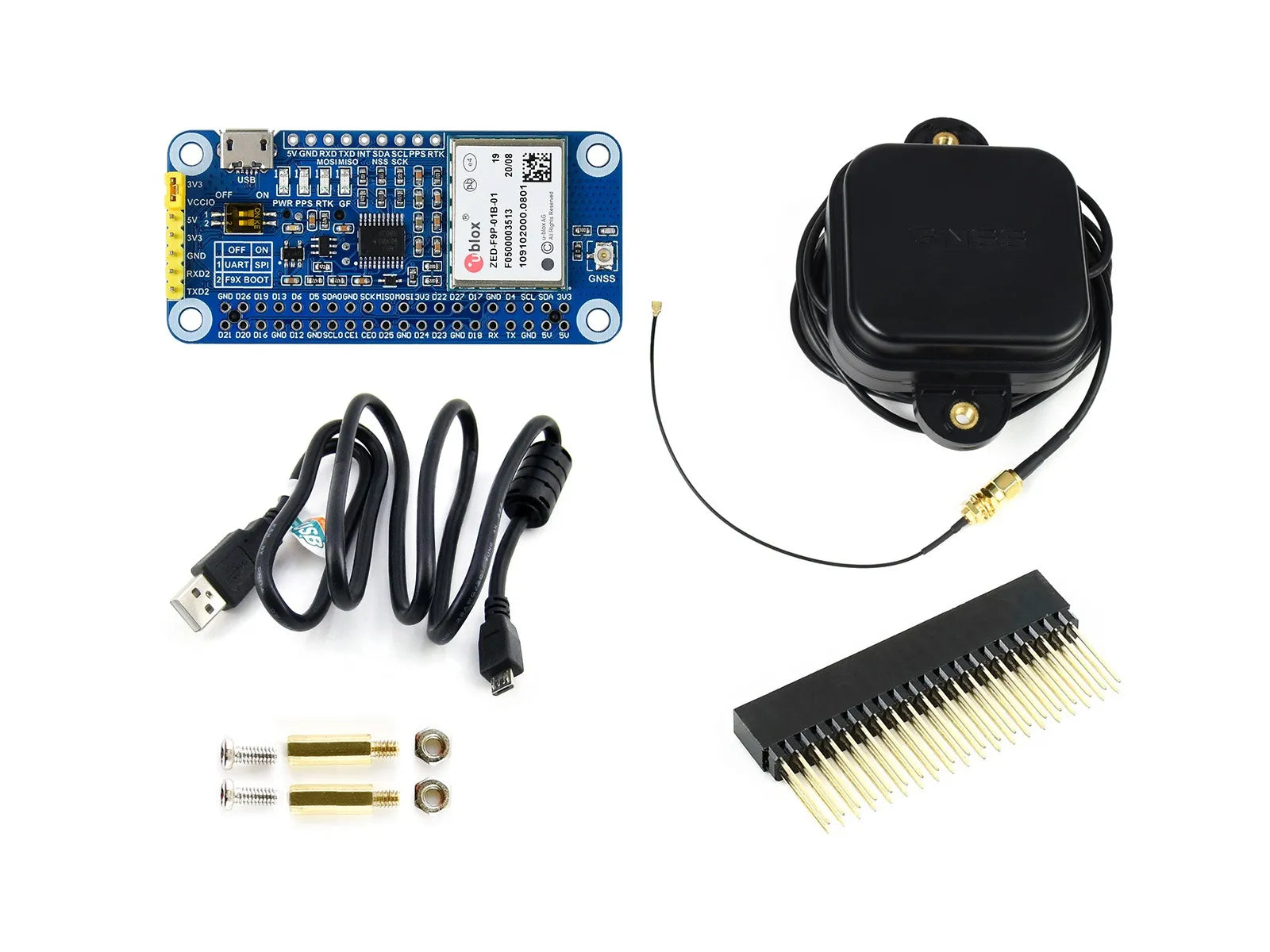

Waveshare ZED-F9P GPS-RTK HAT for Raspberry Pi Centimeter Level Accuracy

Unlock unparalleled positioning accuracy with the ZED-F9P GPS-RTK HAT, a centimeter-level GNSS module designed for Raspberry Pi. Based on the advanced ZED-F9P, this HAT delivers multi-band RTK capabilities with rapid convergence times and a high update rate, making it ideal for demanding applications.

Prohibited by the module manufacturer, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

Key Features at a Glance

This precise centimeter-level Raspberry Pi GNSS HAT, powered by ZED-F9P, offers a robust set of features:

Standard Raspberry Pi 40PIN GPIO extension header, ensuring compatibility with Raspberry Pi series boards and Jetson Nano.
Multi-band RTK with fast convergence times, providing centimeter-level accuracy and a high update rate.
Supports Moving Base RTK mode for precise navigation and centimeter-level accuracy in dynamic scenarios.
Concurrent reception of 4 GNSS constellations (GPS, BeiDou, Galileo and GLONASS) while maintaining low power consumption.
Augment positioning systems support, including SBAS, QZSS, IMES, and D-GPS, to enhance location performance.
A-GNSS (Assisted GNSS) support, reducing initial positioning time and improving acquisition sensitivity.
Features -167dBm navigating sensitivity and exceptional anti-spoofing & anti-jamming capabilities, alongside geo-fencing support.
Compatible with U-Center software for easy module configuration.
Onboard battery holder for an ML1220 rechargeable cell, preserving ephemeris information for hot starts.
Four LEDs indicate the module's operating status.
Comprehensive development resources and manuals provided (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).

Technical Specifications

GNSS Specifications
ZED-F9P		Concurrent Receiving
ZED-F9P		GPS GLONASS Galileo BeiDou	GPS GLONASS Galileo	GPS Galileo	GPS GLONASS	GPS BeiDou	GPS
Frequency band		u-blox F9 platform GPS L1C/A L2C, SBAS, QZSS, GLONASS L1OF L2OF, BeiDou B1I B2I, Galileo E1B/C E5b
Max navigation update rate	RTK	8Hz	10Hz	15Hz	15Hz	15Hz	20Hz
	PVT	10Hz	12Hz	20Hz	25Hz	25Hz	25Hz
	RAW	20Hz	20Hz	25Hz	25Hz	25Hz	25Hz
RTK convergence time		<10s	<10s	<10s	<10s	<10s	<30s
Time-To-First-Fix	Cold starts	24s	25s	29s	26s	28s	29s
	Hot starts	2s	2s	2s	2s	2s	2s
	Aided starts	2s	2s	2s	2s	2s	2s
Positioning accuracy	PVT	1.5m CEP
Positioning accuracy	RTK (horizontal and vertical)	0.01m+1ppm CEP
Sensitivity	Tracking and navigating	-167 dBm
	Re-acquisition	-160 dBm
	Cold starts	-148 dBm
	Hot starts	-157 dBm
Velocity accuracy		0.05 m/s
Heading accuracy		0.3 degree
PPS accuracy	RMS	30ns
	99%	60ns
	Jamming	±11ns
PPS frequency		0.25Hz ~ 10MHz (configurable)
Operational limits		Acceleration (max): 4g
		Altitude (max): 50000m
		Velocity (max): 500m/s
Other Specifications
Communication interface		USB, UART (4800~921600bps, 9600bps by default), I2C (max 400KHz), SPI (5MHz)
Protocol		NMEA 0183 Version 4.10, UBX, RTCM 3.3
Power supply		5V
Overall current		< 120mA@5V (continue mode)
Module current		130mA@3V max (tracking status)
Operating temperature		-40℃ ~ 85℃
Dimensions		65mm × 30.5mm

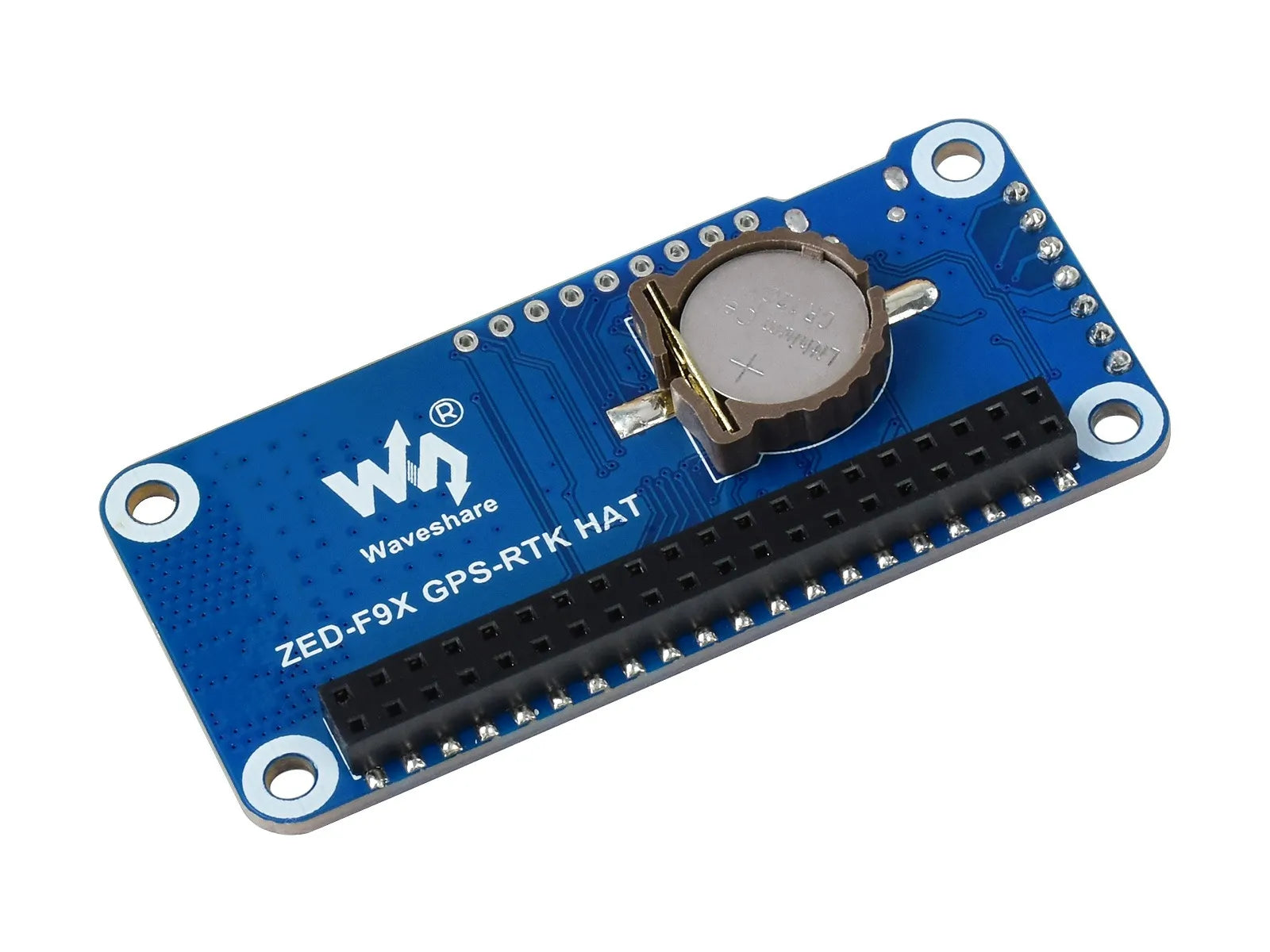

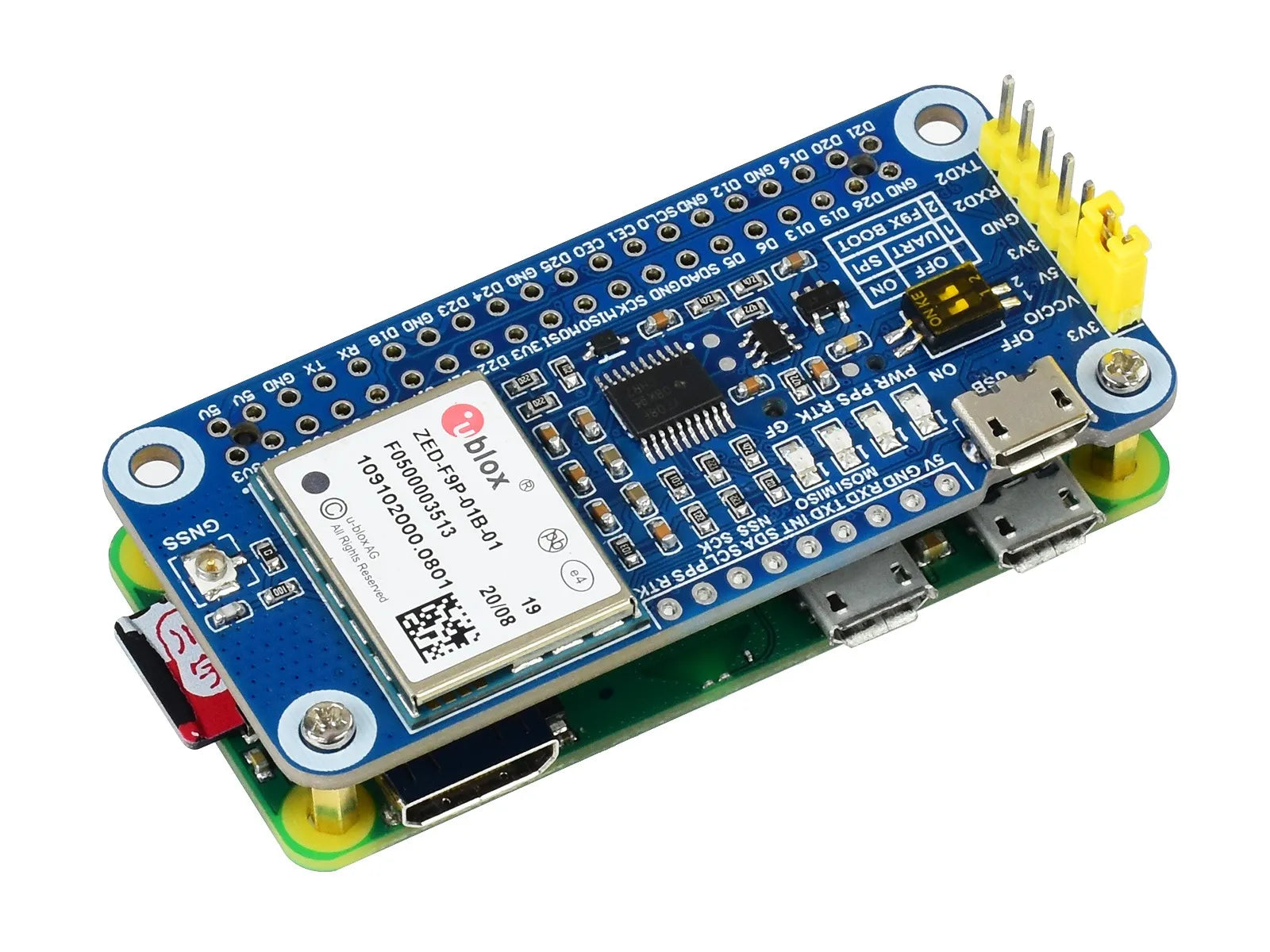

Standard Raspberry Pi 40PIN GPIO

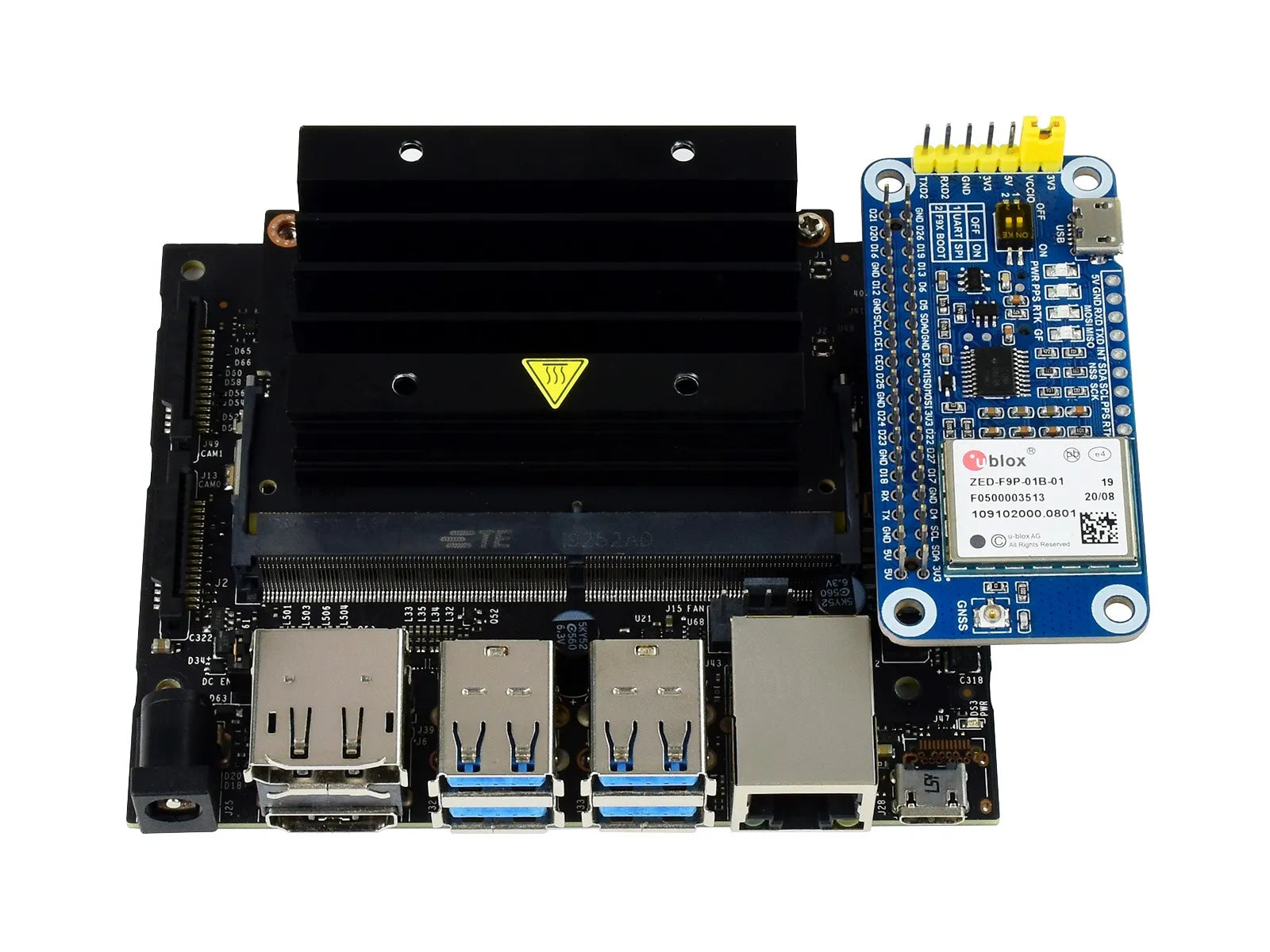

Ensures broad compatibility with Raspberry Pi series boards and Jetson Nano for seamless integration.

RTK Centimeter-Level Positioning & High Update Rate

Can be utilized as either a reference station, or a positioning terminal.

By establishing continuously operating reference stations with known fixed coordinates using the ZED-F9P module, or through paid RTK base station enhanced services, GNSS observed values are transmitted to ZED-F9P terminals which uploading rough positioning data, the terminals, with errors like multipath refraction, is able to calculate observed value in real time, for centimeter level positioning in seconds.

Moving Base RTK Mode Support

Moving Base RTK (MB RTK) allows for the concurrent use of two or three ZED-F9P modules to output precise deflection angles, altitudes, centimeter-level positioning coordinates, or attitude angles. This mode is perfect for applications such as vessel heading determination, heavy machinery control, and agricultural vehicle heading guidance.

Concurrent Reception of 4 GNSS Systems

Supports GPS, Beidou, Galileo, GLONASS and still retains low power consumption.

Augment Systems Support

Augment system is aimed at improving the accuracy, completeness, reliability, and availability of positioning and navigation.

Supports augment systems including SBAS, QZSS, IMES, and D-GPS.

Geo-Fencing Support

Features -167dBm navigating sensitivity, outstanding ability for anti-spoofing & anti-jamming.

Software U-Center Support

An intuitive and easy way to config the module for optimal performance.

Applications

Perfect for intelligent driving systems, precise agriculture, fleet management, asset tracking, and various GIS applications.

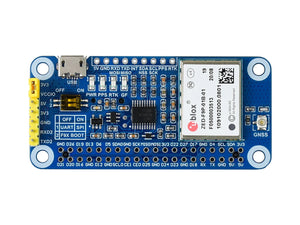

What's On Board

ZED-F9P module
TXS0108EPWR voltage translator
Status indicators
PWR: power indicator
PPS: GPS status indicator
RTK: RTK status indicator
GF: geo fencing status indicator
DIP switch
1: UART/SPI selection
2: firmware upgrade
RT9193-33 power chip
NDC7002N voltage translator

Battery holder
supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
Raspberry Pi GPIO header
for connecting with Raspberry Pi
USB port
UART, I2C interface
for connecting with other MCUs
GNSS antenna connector
UART peripheral and IO voltage level selection jumper

Pinout Definition

Outline Dimensions
