Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi 4G/3G/2G GNSS Positioning

Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi 4G/3G/2G GNSS Positioning

69,95 €

Waveshare SIM7600G‑H 4G HAT (B) is a global‑band communication expansion board designed for Raspberry Pi Zero/Zero W, Raspberry Pi 4, Jetson Nano, Arduino, and STM32. Based on the SIM7600G‑H LTE Cat‑4 module, it supports 4G LTE, 3G, and 2G networks with integrated GNSS positioning (GPS, BeiDou, GLONASS, Galileo, QZSS, LBS). Offering high‑speed data transmission (up to 150 Mbps downlink, 50 Mbps uplink), SMS, voice calls, and cloud communication, this HAT provides reliable mobile broadband for IoT and embedded projects. With pogo pin and MicroUSB connectors, onboard USB HUB, SIM card slot, audio jack, and LED indicators, it delivers versatile connectivity in a compact design.



Features

  • Global 4G/3G/2G multi‑band support

  • GNSS positioning: GPS, BeiDou, GLONASS, Galileo, QZSS, LBS

  • Supports SMS, voice call, TCP/UDP, HTTP, FTP, MQTT, HTTPS

  • Pogo pin connector for Raspberry Pi Zero/Zero W, MicroUSB for other boards/PC

  • Onboard USB HUB with extra USB‑A ports for expansion

  • SIM card slot (1.8V/3V) and audio jack + decoder for calls

  • LED indicators for power and network status

  • Control via AT commands (3GPP TS 27.007, 27.005, V.25TER)

  • Wide compatibility with Raspberry Pi, Jetson Nano, Arduino, STM32



Specifications

Frequency band
LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite systems GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS and Audio
SMS Supported types: MT, MO, CB, Text, PDU
Audio feature Supports echo cancellation
Supports noise reduction
Other
Power supply 5V
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 65.00 × 32.00mm



Application

  • IoT & Smart Industry: Remote monitoring, smart agriculture, energy management

  • Fleet Management & Tracking: Vehicle tracking, logistics, asset management with GNSS

  • Smart Payment & Healthcare: Secure LTE connectivity for POS terminals and telemedicine devices

  • Environmental Monitoring: Sensors transmitting data via LTE Cat‑4 networks

  • Embedded Communication: SMS, voice call, and cloud platform integration for Raspberry Pi projects



Part List

  • SIM7600G-H 4G HAT (B) x1
  • LTE Antenna x1
  • GPS Antenna x1
  • USB-A to micro-B cable x1
  • Screws pack x1



Suitable for Raspberry Pi / PC

Dedicated pogo pin for connecting with Raspberry Pi Zero/Zero W without extra USB cable
General purpose MicroUSB connector for other Raspberry Pi boards or PC



Global band 4G / 3G / 2G support

Up to 50Mbps uplink and 150Mbps downlink for 4G network

Note: stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.



USB HUB feature

Onboard USB HUB chip with USB2.0/1.1 compliant,
Providing 2x USB-A connector and 1x USB solder pad



GNSS positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning



Telephone call & SMS Support

Making telephone call or sending SMS by AT commands, with onboard audio jack

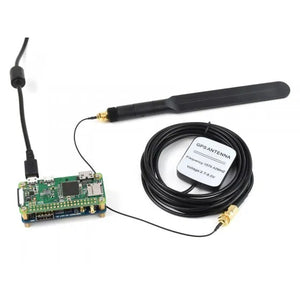

Application example

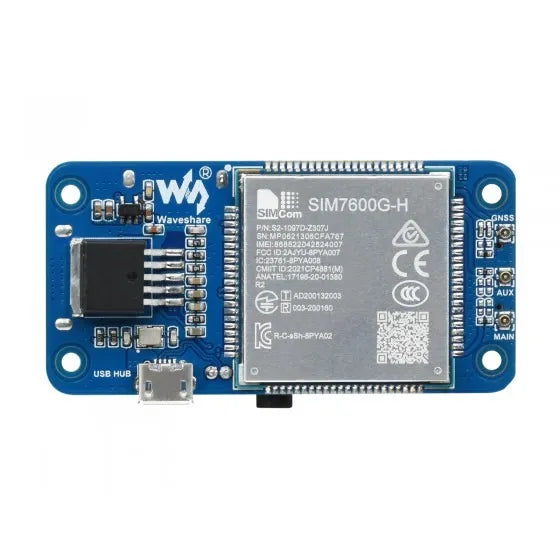

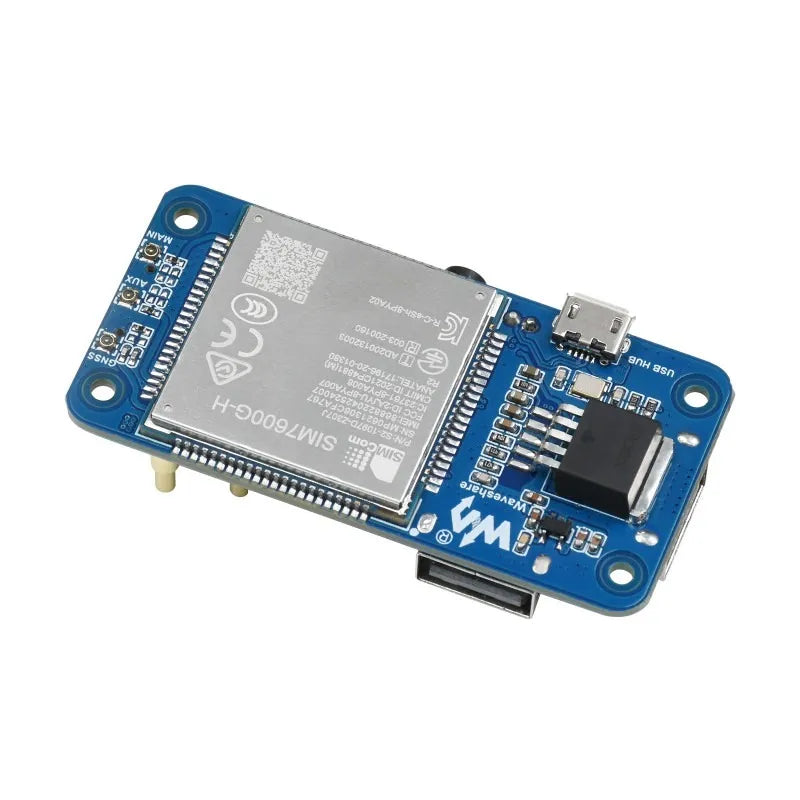

What's on board

  1. SIM7600G-H
  2. FE1.1S USB HUB chip
  3. NAU8810 audio decoder
  4. SPX29302 power chip
  5. RT9193-33 voltage translator
  6. USB HUB input
    D+/D- pogo pin: for Raspberry Pi Zero/Zero W
    MicroUSB connector: for other Raspberry Pi boards or PC
  7. Pogo pin power supply
    5V: connects to 5V pin of Zero/Zero W, up to 2A current
    GND: connects to GND pin of Zero/Zero W

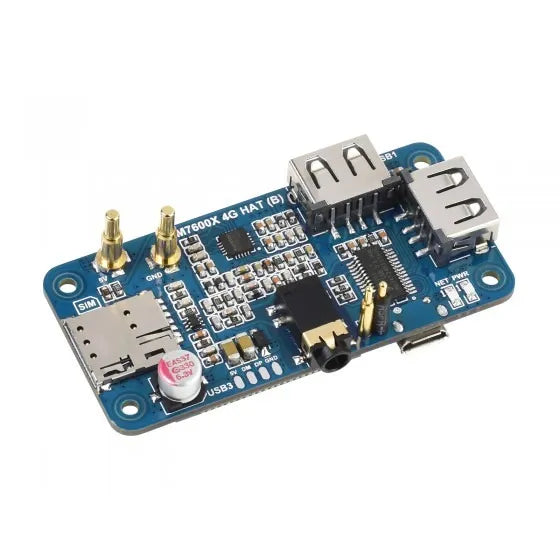

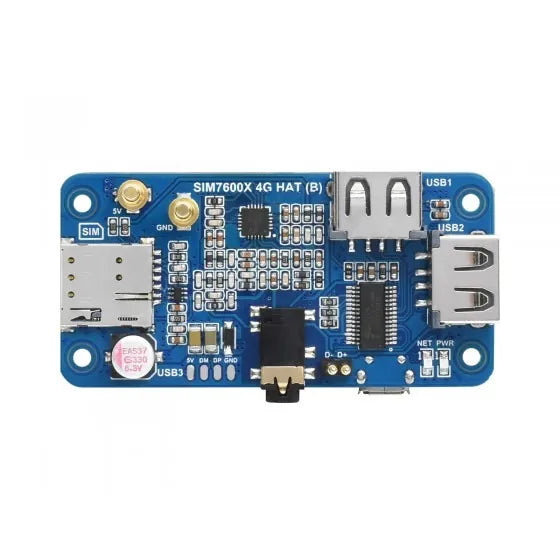

  1. USB extended ports
    USB1~USB2: USB-A connectors
    USB3: solder pad
  2. SIM card slot
    supports 1.8V/3V SIM card
  3. 3.5mm earphone/mic jack
  4. MAIN antenna connector
  5. AUX auxiliary antenna connector
  6. GNSS antenna connector
  7. Power indicator
  8. Network status indicator



Outline Dimensions
