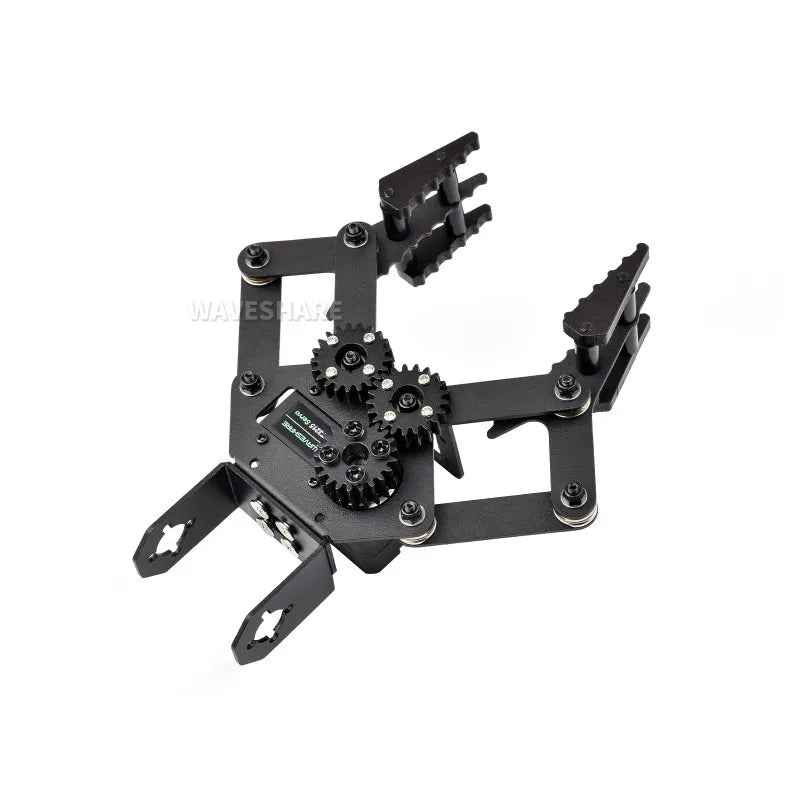

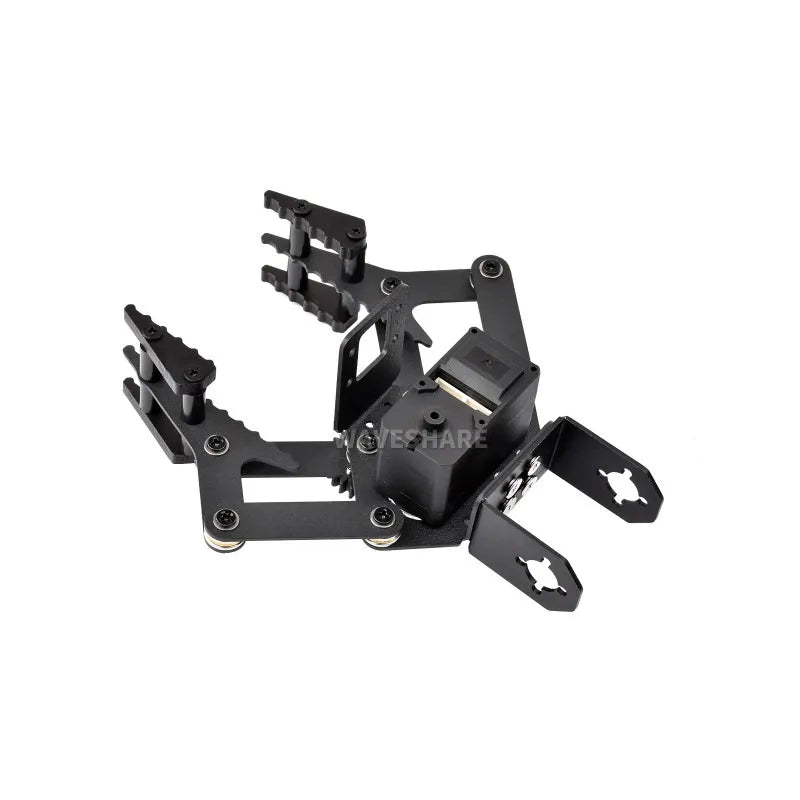

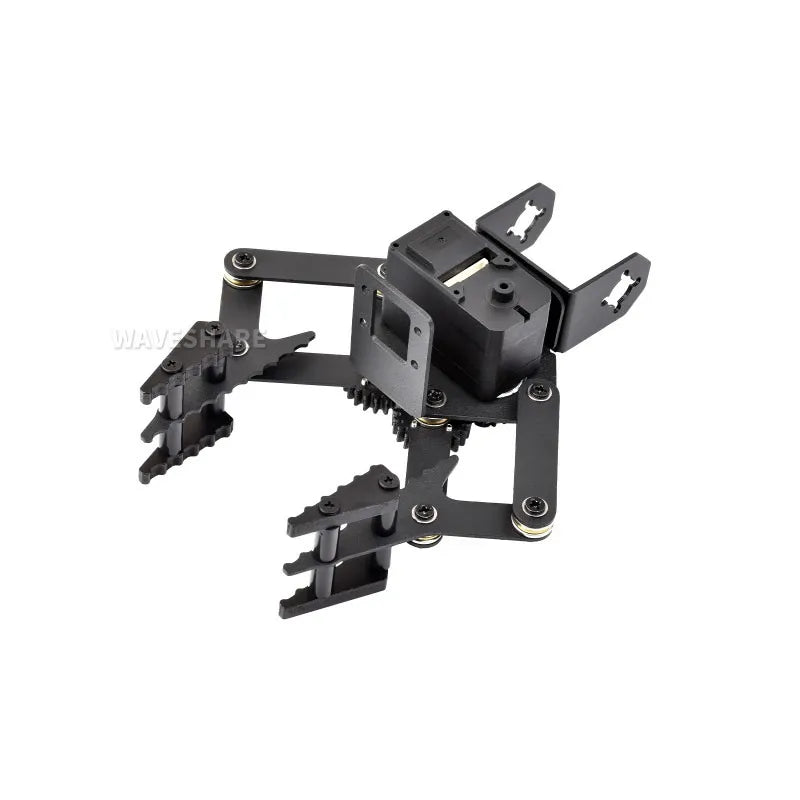

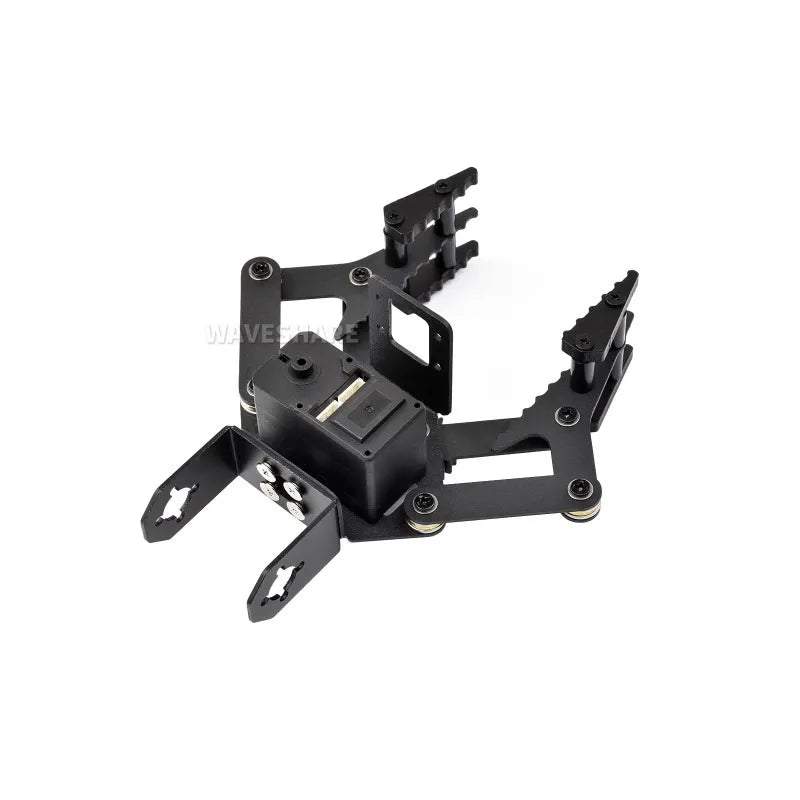

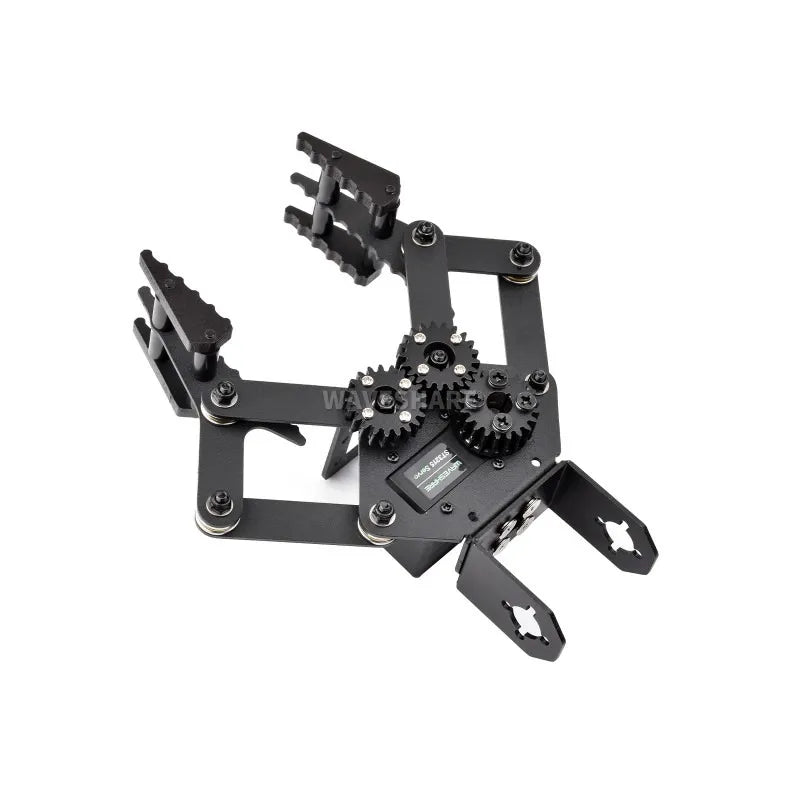

Waveshare High-performance Robotic Arm Gripper

Waveshare High-performance Robotic Arm Gripper

Waveshare High-performance Robotic Arm Gripper is a versatile end-of-arm tool designed for the RoArm-M3-Pro Robotic Arm and other Waveshare robotic arm series. Built with serial bus servos and advanced closed-loop control, the Gripper ensures precise, stable, and safe grasping. With options for ST3215 or CF35-12 servos, it offers flexibility for different applications, from cost-effective setups to constant-force gripping of delicate objects. Its lightweight yet durable metal body, adjustable stand-offs, and camera expansion capability make it a powerful accessory for robotics research, education, and automation.


Features

  • High-performance design with options for ST3215 (cost-effective) or CF35-12 (constant force control) serial bus servos.

  • Closed-loop feedback with real-time protection: provides position, load, speed, voltage, current, and temperature data.

  • Constant force control (Gripper-B version) ensures safe gripping of fragile or hard objects without damage.

  • Adjustable stand-offs for stable gripping of objects with different sizes.

  • Camera expansion support for vision-based applications.

  • Lightweight and sturdy body made of stainless steel and aluminum alloy.

  • Open-source control demos and resources available for secondary development.


Specifications

Specification Gripper-A Gripper-B
Servo Type ST3215 Serial Bus Servo CF35-12 Serial Bus Servo
Torque 30 kg·cm 35 kg·cm
Servo Case Nylon + Fiberglass Aluminum Alloy
Weight 232.4 ± 15 g 246 ± 15 g
Operating Voltage 9V ~ 12.6V (typ. 12V) Same
Close & Open Range 0 mm ~ 80 mm Same
Dimensions 130 × 160 × 62 mm Same
Feedback Position, load, speed, voltage, current, temperature Same
Protection Real-time overload & overheat protection Same
Special Feature Cost-effective Constant force gripping



Application Scenarios

  • Robotics Education & Training – Ideal for teaching robotic arm control and safe gripping techniques.

  • Research & Development – Supports integration with RoArm-M3-Pro and other Waveshare robotic arms for AI, automation, and vision-based projects.

  • Industrial Prototyping – Lightweight yet durable design makes it suitable for automation experiments.

  • AI & Vision Applications – Camera expansion enables object recognition, tracking, and intelligent manipulation.

  • Delicate Object Handling – Constant force control ensures safe gripping of fragile items without damage.



Version Options Part List

Gripper-A

Comes with ST3215 serial bus servo, more cost-effective

  • Gripper-A x1
  • Screws pack x1

Gripper-A

Gripper-B

Comes with CF35-12 serial bus servo, supports constant force control for flexible grasping

  • Gripper-B x1
  • Screws pack x1

Gripper-B



Outline dimensions

High-performance Robotic Arm Gripper, outline dimensions



More Detail

Closed-loop feedback with real-time protection

The Waveshare Robotic Arm Gripper provides comprehensive closed-loop feedback, including position, load, speed, input voltage, current, and temperature in real time. It automatically enables overheat and overload protection, ensuring safe and stable operation for the RoArm-M3-Pro Robotic Arm.

Waveshare High-performance Robotic Arm Gripper with closed-loop feedback and protection for RoArm-M3-Pro

Supports Constant Force Control for Precise Grasping

The Gripper-B version adopts a constant force CF35-12 servo for advanced force-position control. It maintains a preset torque value to grip objects securely. Whether the object is hard or fragile, the Waveshare Robotic Arm Gripper ensures precise grasping without damaging surfaces, making it ideal for RoArm-M3-Pro applications.

Waveshare Robotic Arm Gripper-B with constant force servo for RoArm-M3-Pro

* This function is only available on the Gripper-B version.
The picture is for reference only, please refer to the Package Content for the detailed part list.

Adjustable Gripper Stand-off, Easily Adaptable

The stand-offs of the Waveshare Robotic Arm Gripper are height-adjustable and removable, ensuring stable gripping of objects with different sizes. This flexibility makes the RoArm-M3-Pro Robotic Arm suitable for diverse tasks in education, research, and automation.

Waveshare Robotic Arm Gripper adjustable stand-off for RoArm-M3-Pro

Supports Installing a Camera for Visual Applications

Reserved space on the Gripper allows direct installation of a camera, enabling vision-based applicationsWaveshare Robotic Arm RoArm-M3-Pro.

Waveshare Robotic Arm Gripper with camera expansion for RoArm-M3-Pro

Lightweight and Sturdy Metal Body

The Waveshare Robotic Arm Gripper body is made of stainless steel and aluminum alloy, combining lightness with durability. This ensures a more stable gripping experience when integrated with the RoArm-M3-Pro Robotic Arm.

Waveshare Robotic Arm Gripper stainless steel and aluminum alloy body for RoArm-M3-Pro

Open Source Control Demos

The Waveshare Robotic Arm Gripper provides open-source control demosRoArm-M3-Pro and other Waveshare robotic arms for secondary development.

Waveshare Robotic Arm Gripper open-source control demos for RoArm-M3-Pro
