Waveshare Luckfox Lyra Pi A W 4G Kit Linux RK3506 Dev Board is a Linux development platform built around the Core3506 with the RK3506B triple-core Cortex-A7 processor and an integrated Cortex-M0 MCU. This specific kit combines the Luckfox Lyra Pi A W base board with a SIM7600G-H-M.2 4G module, matching antenna accessories, and mounting hardware, making it suitable for embedded Linux networking, industrial control, smart gateways, 4G-connected IoT systems, and custom DSI display projects. It also includes 2.4GHz Wi-Fi 6, Bluetooth 5.2/BLE, dual 100M Ethernet, optional PoE support, a 40PIN GPIO header, and a MIPI DSI display interface.

Features

  • Core3506 platform with RK3506B triple-core Cortex-A7 and Cortex-M0 heterogeneous architecture.
  • Luckfox Lyra Pi A W base board with onboard Wi-Fi 6 and Bluetooth 5.2/BLE support.
  • SIM7600G-H-M.2 4G module included for cellular networking in mobile and remote deployments.
  • Dual 10/100M Ethernet ports, including one port with PoE capability when used with the optional PoE module.
  • MIPI DSI 2-lane interface supporting compatible Raspberry Pi DSI LCD screens up to 1280×800 @ 60Hz.
  • 40PIN GPIO header compatible with some Raspberry Pi HAT ecosystems.
  • Rockchip Matrix IO with multiplexed PWM, UART, I2C, SPI, CAN, ADC, and GPIO functions.
  • USB host and OTG connectivity plus onboard audio jack for multimedia and interface expansion.

Specifications

Specification Details
Kit Name Luckfox Lyra Pi A W 4G Kit
Core Module Core3506
Main Processor RK3506B triple-core ARM Cortex-A7 up to 1.2GHz
MCU Cortex-M0
Memory 128MB DDR3L
Wireless 2.4GHz Wi-Fi 6, Bluetooth 5.2, BLE
4G Module SIM7600G-H-M.2
Ethernet Dual 10/100M Ethernet ports, one with PoE support
Display Interface MIPI DSI 2-lane, up to 1280×800 @ 60Hz
USB USB Type-C OTG0 plus expanded USB-A host ports via HUB
Audio 3.5mm headphone / microphone jack
GPIO 40PIN GPIO header, compatible with some Raspberry Pi HATs
Expansion Rockchip Matrix IO for PWM, UART, I2C, SPI, CAN, ADC, GPIO
Storage eMMC on selected core/module configuration, no TF slot on A-series board

Applications

  • 4G-enabled IoT gateways for remote or mobile Linux deployments.
  • Industrial control and monitoring using Ethernet, CAN, UART, and Linux userspace tooling.
  • Smart display terminals using the MIPI DSI interface and Linux GUI stacks.
  • Networked edge devices that need both local Ethernet and cellular fallback.
  • Linux prototyping and education on a compact RK3506-based platform.

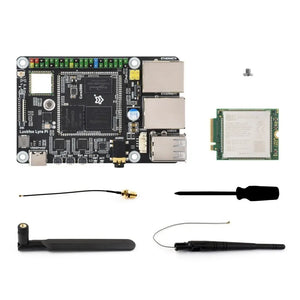

Product List

  • Luckfox Lyra Pi A W (8GB eMMC) x1
  • SIM7600G-H-M.2 x1
  • 4G antenna x1
  • IPX 2.4G 2DB antenna x1
  • IPEX4 to SMA cable x1
  • Screwdriver x1
  • 4G module mounting screw x1

Other Content

Waveshare Luckfox Lyra Pi A W onboard hardware overview

The official onboard diagram is important here because this kit includes more than just the base board. It highlights the Core3506 module, 4G reset and network indicators, USB host expansion, dual Ethernet, PoE header, DSI connector, M.2 slot, GPIO header, and SIM card slot.

Waveshare Luckfox Lyra Pi A W pin definition

The pin definition image is useful when adapting the board to Raspberry Pi HAT style add-ons or when wiring custom peripherals through the 40PIN header and Matrix IO functions.

Waveshare Luckfox Lyra Pi A W dimensions

Waveshare Luckfox Lyra Pi A W 4G module

Resources

FAQ

What makes this kit different from the plain Lyra Pi A W board?
This SKU is the 4G Kit, so it includes the SIM7600G-H-M.2 cellular module, antenna hardware, and mounting accessories instead of just the base board.

Does this board have a TF card slot?
The Lyra Pi A series does not include the TF card slot used on some B-series versions. That is why this kit emphasizes eMMC and module-based configurations instead.

What kinds of projects fit this kit best?
It is a strong fit for Linux IoT gateways, 4G-connected control terminals, remote monitoring nodes, and networked DSI display systems.
