Waveshare ESP32-P4-NANO High-performance Dev Board Wi-Fi 6 BLE 5

Waveshare ESP32-P4-NANO High-performance Dev Board Wi-Fi 6 BLE 5

Waveshare ESP32-P4-NANO High-performance Dev Board Wi-Fi 6 BLE 5 is a compact yet powerful development platform built around the ESP32-P4-NANO microcontroller. Designed for next-generation IoT and edge computing, this Waveshare Dev Board integrates Wi-Fi 6 and Bluetooth 5 for high-speed, low-latency wireless communication. With its high-performance architecture, rich interfaces, and small footprint, the ESP32-P4-NANO Dev Board is ideal for prototyping, embedded applications, and smart device development.


Features

  • Waveshare ESP32-P4-NANO Dev Board: High-performance ESP32-P4-NANO microcontroller with advanced computing capability.

  • Wi-Fi 6 and BLE 5 support: Provides fast, reliable wireless connectivity for IoT and smart devices.

  • Compact design: Small form factor makes the Dev Board easy to integrate into embedded systems.

  • Rich interfaces: GPIO, I²C, SPI, UART, and other pins available for sensors, actuators, and modules.

  • Flexible development ecosystem: Supports ESP-IDF and Arduino, enabling rapid prototyping and deployment.

  • Low-power operation: Optimized for energy-efficient IoT applications and portable devices.

ESP32-P4-NANO development board, features



Specifications

Item Details
Brand Waveshare
Board type ESP32-P4-NANO High-performance Dev Board
MCU ESP32-P4-NANO microcontroller
Wireless Wi-Fi 6, Bluetooth 5
Interfaces GPIO, I²C, SPI, UART
Form factor Compact development board



Application

  • IoT connectivity: Use the Waveshare ESP32-P4-NANO Dev Board Wi-Fi 6 BLE 5 for smart sensors, gateways, and connected devices.

  • Smart devices: Build wireless consumer products with Wi-Fi 6 and Bluetooth 5 using the ESP32-P4-NANO Dev Board.

  • Remote monitoring: Deploy the Waveshare ESP32-P4-NANO in industrial monitoring and telemetry applications.

  • Educational and prototyping: Ideal for learning ESP32-P4-NANO development and experimenting with high-performance IoT solutions.

  • Edge computing: Integrate the Dev Board into projects requiring fast processing and reliable wireless communication.



Part List

Basic Kit

  1. ESP32-P4-NANO x1
  2. 8Ω 2W speaker x1

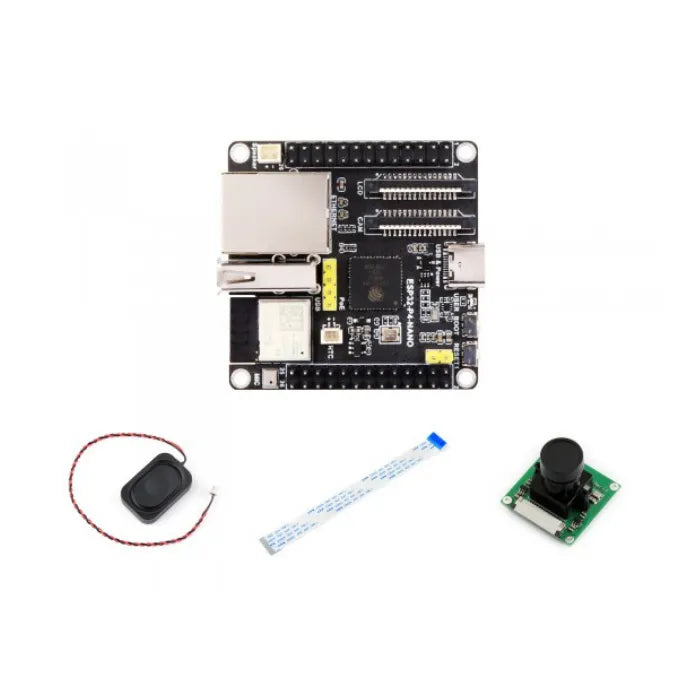

Kit A

  1. ESP32-P4-NANO x1
  2. RPi Camera (B) x1
  3. 8Ω 2W speaker x1
  4. FFC 15PIN cable x1

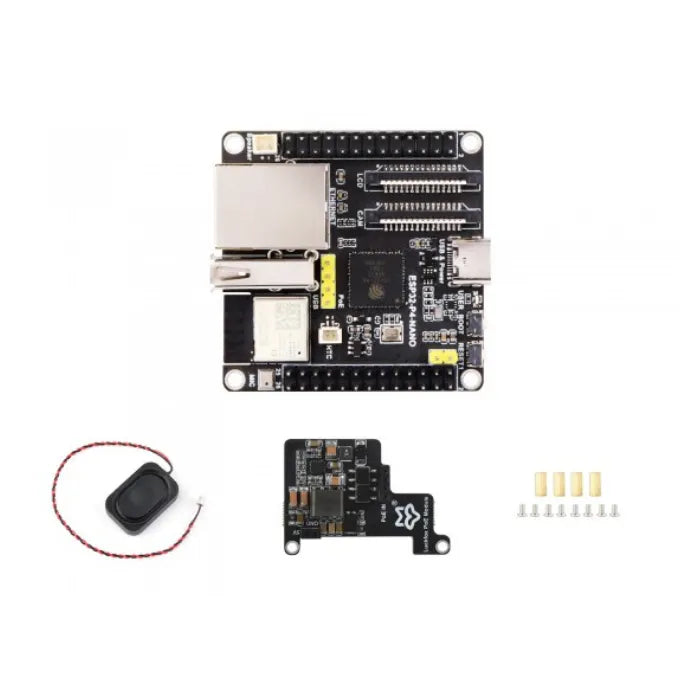

Kit B

  1. ESP32-P4-NANO x1
  2. PoE module x1
  3. 8Ω 2W speaker x1
  4. Screws pack x1

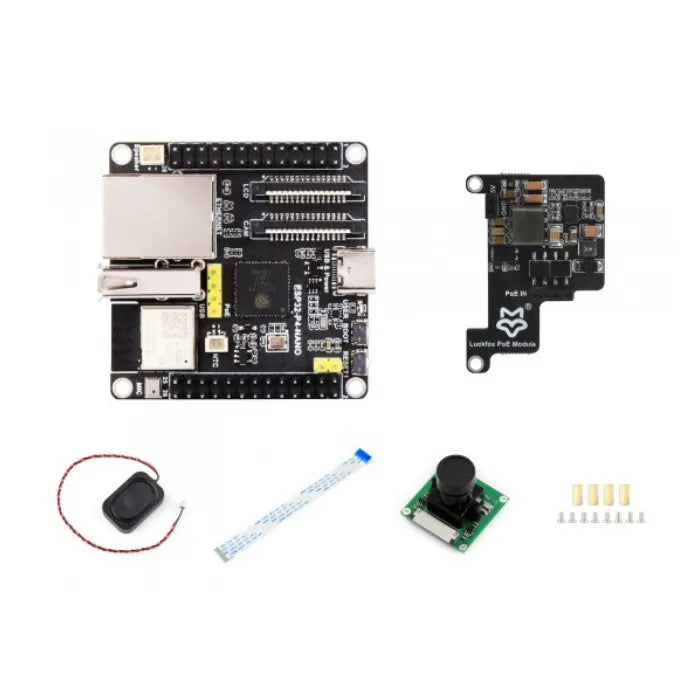

Kit C

  1. ESP32-P4-NANO x1
  2. PoE module x1
  3. 8Ω 2W speaker x1
  4. FFC 15PIN cable x1
  5. RPi Camera (B) x1
  6. Screws pack x1

ESP32-P4-NANO-KIT-C

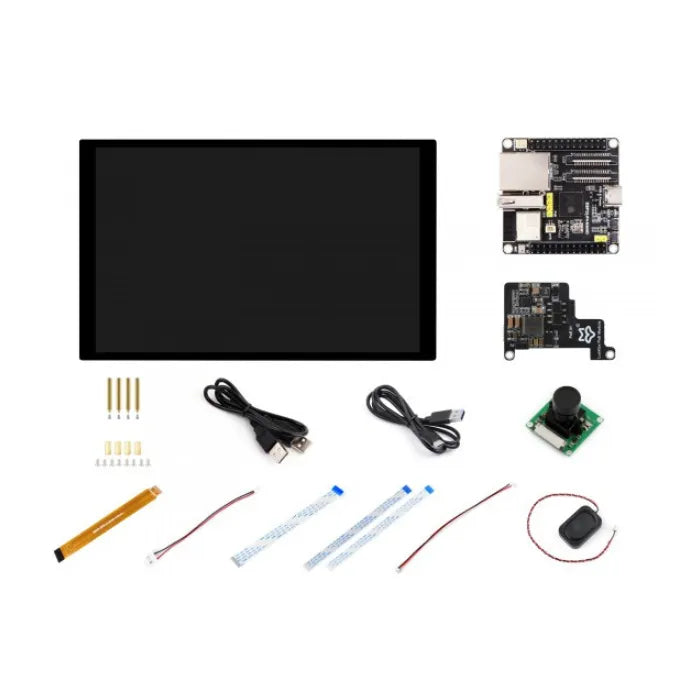

Kit D

  1. 10.1inch DSI LCD x1
  2. ESP32-P4-NANO x1
  3. PoE module x1
  4. Standoffs x1
  5. Screws pack x1
  6. USB Type-A dual-plug cable x1
  7. USB Type-A to Type-C cable ~1m x1
  8. RPi Camera (B) x1
  9. MIPI-DSI-Cable x1
  10. MX1.25 2PIN to MX1.25 4PIN cable x1
  11. FFC 15PIN cable x1
  12. FFC 22PIN cable x2
  13. MX 1.25 2PIN to 2.54 3PIN cable x1
  14. 8Ω 2W speaker x1

ESP32-P4-NANO-KIT-D



Kit Connection Examples

ESP32-P4-NANO development board, kit connection examples ESP32-P4-NANO development board, kit connection examples

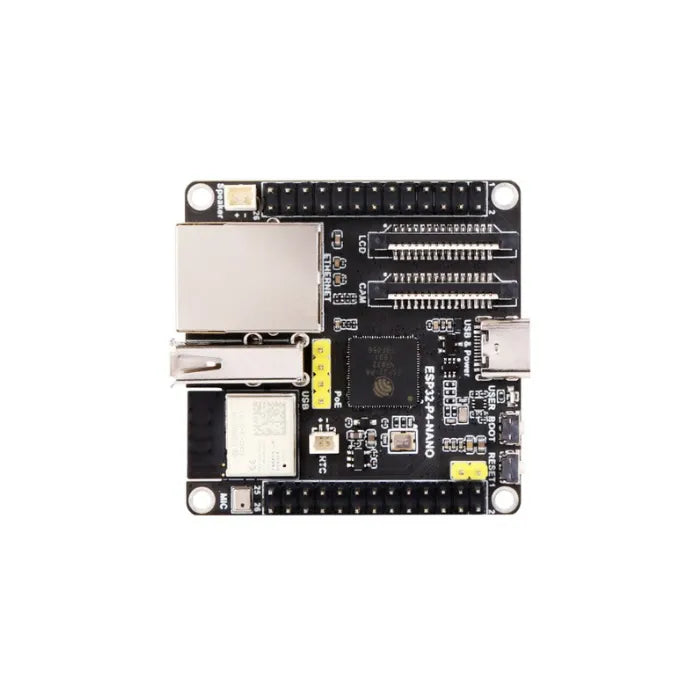

What's On Board

ESP32-P4-NANO development board, onboard components

  1. ESP32-P4NRW32
    ESP32-P4 chip with 32MB PSRAM
  2. ESP32-C6-MINI-1
    SDIO interface protocol, extending Wi-Fi 6 and Bluetooth 5 for ESP32-P4-NANO
  3. Display interface
    MIPI 2-lane
  4. Camera interface
    MIPI 2-lane
  5. USB Type-C connector
    for power supply, program burning and debugging
  6. USER-LED
    Power supply indicator
  7. BOOT button
    Press it when powering on or resetting to enter download mode
  8. RESET button
  1. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply
  2. RTC battery header
    for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
  3. Onboard microphone
  4. PoE module header
  5. Type-A Port
    USB OTG 2.0 High Speed port
  6. RJ45 100M Ethernet port
  7. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
  8. GPIO header
  9. TF card slot
    SDIO 3.0 interface protocol



Pin Definition

ESP32-P4-NANO development board, pin definition



Outline Dimensions

ESP32-P4-NANO development board, outline dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-P4-NANO



More Detail

10.1″ DSI Capacitive Touch Display for ESP32-P4-NANO Dev Board

The Waveshare ESP32-P4-NANO High-performance Dev Board supports a 10.1″ IPS capacitive touch display, with optical bonding toughened glass panel, 800×1280 resolution, and 178° wide viewing angle. It enables 10-point touch, providing clear images and excellent visual experience for ESP32-P4-NANO Dev Board projects.

Waveshare ESP32-P4-NANO Dev Board with 10.1″ DSI touch display

Raspberry Pi Camera (B) Compatible with ESP32-P4-NANO

The ESP32-P4-NANO Dev Board supports Raspberry Pi Camera (B) with OV5647 sensor, providing 5MP resolution, F2.0 aperture, and manual focus for image capture and vision applications.

ESP32-P4-NANO Dev Board with Raspberry Pi Camera

Highly Integrated and Powerful Performance

The Waveshare ESP32-P4-NANO Dev Board adopts the high-performance ESP32-P4 MCU, delivering strong computing capability for IoT, edge computing, and embedded applications.

ESP32-P4-NANO Dev Board high-performance MCU

Wi-Fi 6 and Bluetooth 5 Module

Onboard ESP32-C6-MINI module extends 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for the ESP32-P4-NANO Dev Board, using SDIO interface protocol for stable connection and efficient transmission.

ESP32-P4-NANO Dev Board Wi-Fi 6 BLE 5 support

Reserved PoE Module Header

The Waveshare ESP32-P4-NANO Dev Board includes a reserved PoE module header, providing more flexible power supply options for embedded projects.

ESP32-P4-NANO Dev Board reserved PoE header

Optional PoE Module, Supports PoE Power Supply

With optional PoE module, the ESP32-P4-NANO Dev Board supports both network connection and power supply through a single Ethernet cable, simplifying deployment in IoT environments.

ESP32-P4-NANO Dev Board optional PoE module

ESP32-P4-NANO Dev Board PoE power supply
