Waveshare Edge Breakout for micro:bit I/O Expansion

Waveshare Edge Breakout for micro:bit I/O Expansion

8,24 €

Description

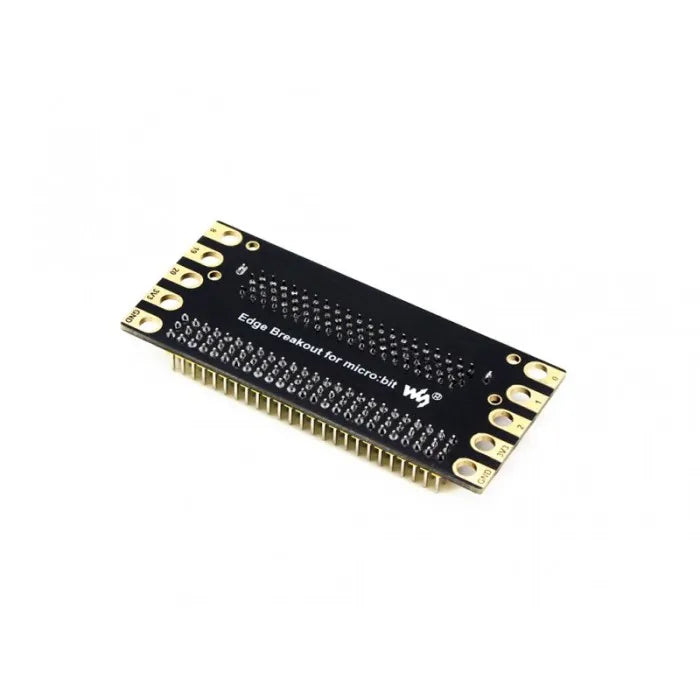

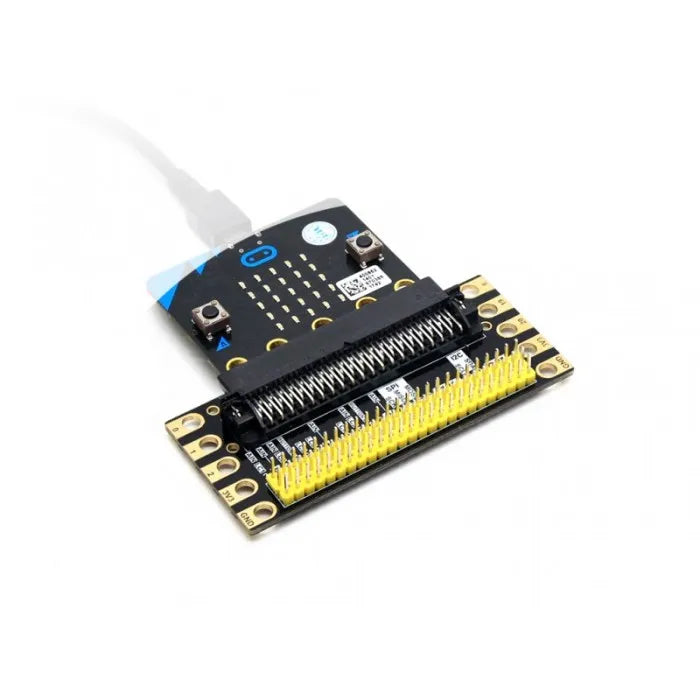

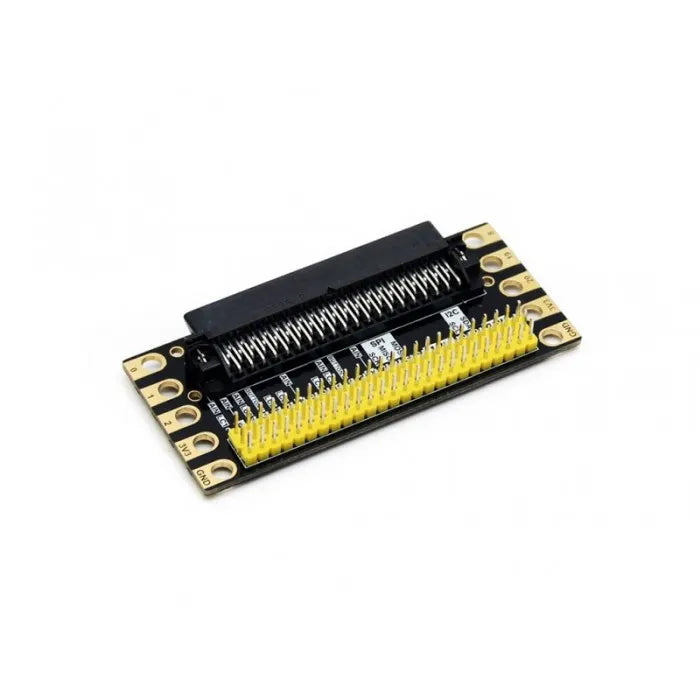

Waveshare Edge Breakout for micro:bit I/O Expansion is an edge connector expansion board for micro:bit designed to make wiring and prototyping much easier. It breaks the micro:bit edge connector out to 2.54mm pitch pin headers, allowing users to connect jumper wires, modules, sensors, and actuators more conveniently than working directly from the edge connector.

This micro:bit breakout board is useful for classroom STEM projects, beginner electronics experiments, simple robotics, and fast hardware prototyping. If you want to use the micro:bit with breadboards, sensors, control modules, or maker accessories, this Waveshare Edge Breakout gives you a more practical and accessible hardware interface.

Features

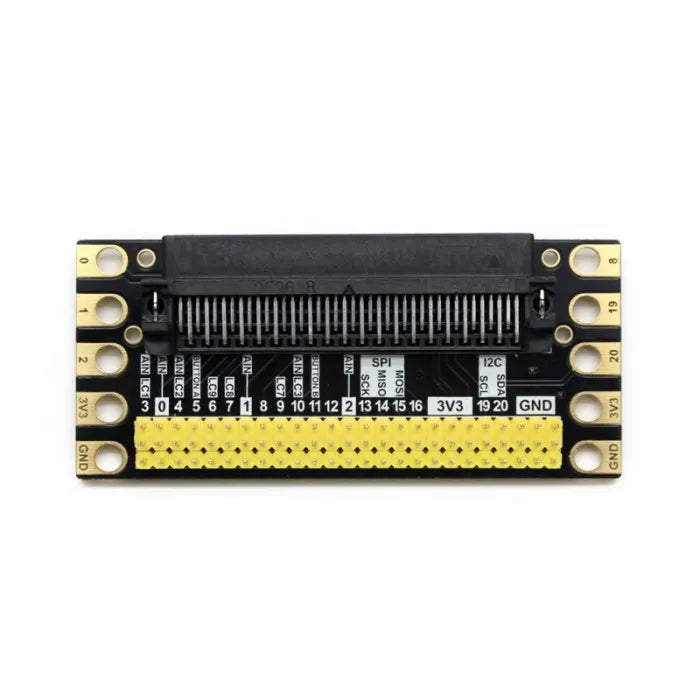

  • Edge breakout board for micro:bit that converts the edge connector to 2.54mm pin header access.
  • Makes micro:bit I/O expansion easier for education, prototyping, and DIY projects.
  • Convenient for connecting sensors, modules, jumper wires, breadboards, and simple robotics hardware.
  • Compact board format that is easy to carry and use in classroom or maker environments.
  • Includes mounting holes for more secure installation in project builds.

Specifications

Item Details
Product Type Edge Breakout for micro:bit
Compatible Board micro:bit
Interface Form Edge connector to pin header breakout
Header Pitch 2.54mm
Board Dimension 82.05mm × 36.10mm
Through Hole Diameter 2mm

Applications

  • micro:bit STEM education and classroom electronics training.
  • Breadboard prototyping with micro:bit and external modules.
  • Sensor and actuator experiments without difficult edge-connector wiring.
  • Simple robotics and maker projects built around the micro:bit ecosystem.
  • Creative interactive projects where fast wiring and quick module swapping are important.

Product List

  1. Edge Breakout for micro:bit x1

Other Content

Dimension reference

Waveshare Edge Breakout for micro:bit dimensions

Use case note
This breakout is designed to make the micro:bit edge connector easier to use with standard 2.54mm jumper wiring, which is especially helpful for education, breadboard projects, and fast testing.

Resources

FAQ

What does this breakout board do for micro:bit?
It breaks the micro:bit edge connector out to 2.54mm pin headers, making it much easier to wire modules and jumper leads.

Is this useful for breadboard projects?
Yes. This is one of the main use cases, because it gives the micro:bit a much more breadboard-friendly connection method.

What kinds of projects is it best for?
It is best for education, quick prototyping, sensor experiments, and simple robotics or maker builds that need easy access to micro:bit I/O.

Does it provide active driving or control circuitry?
No. This board is primarily an I/O expansion breakout, not a motor driver or power driver board.

What related micro:bit expansion products can I compare it with?
If you want to build more specialized projects after basic I/O breakout, you can also look at related micro:bit accessories such as the Servo Driver for micro:bit and the Speaker for micro:bit.
