Unitree G1D U3 Humanoid Robot Developer Platform for AI Robotics Study

The Unitree G1D U3 is a humanoid robot developer platform for AI robotics study, based on Unitree's G1-D Standard end-to-end humanoid robot platform. It is designed for data acquisition, model training, inference, humanoid control research, and secondary development workflows where AI robotics teams need a compact full-body robot platform with arm control, perception, and developer compute.

According to the official Unitree G1-D product page, the G1-D Standard configuration measures 1260 x 500 x 500 mm at minimum column height and 1680 x 500 x 500 mm at maximum column height, weighs about 50 kg including battery, and has 17 total degrees of freedom excluding the end effector. It also includes an 8-core high-performance CPU, NVIDIA Jetson Orin NX 16GB (100 TOPS), a head HD binocular camera, and two wrist HD cameras.

For AI robotics study, G1D U3 provides a practical humanoid base for teleoperation workflows, manipulation research, perception experiments, and end-to-end model development. The platform supports secondary development and can be used with official Unitree resources such as the Unitree SDK2 repository.

Features

• G1-D Standard developer platform - G1D U3 is based on Unitree's G1-D Standard configuration for humanoid data, training, inference, and AI robotics study workflows.
• 17 DOF excluding end effector - The official G1-D Standard parameter table lists 17 total degrees of freedom excluding the end effector.

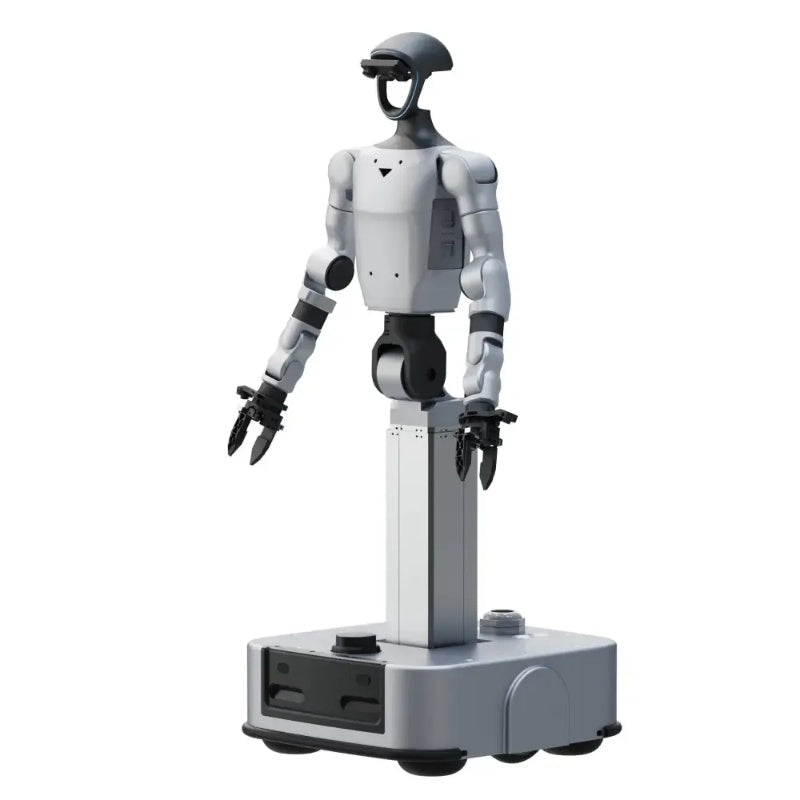

• Dual 7-DOF arms - G1-D Standard lists 7 degrees of freedom per arm, excluding the end effector.

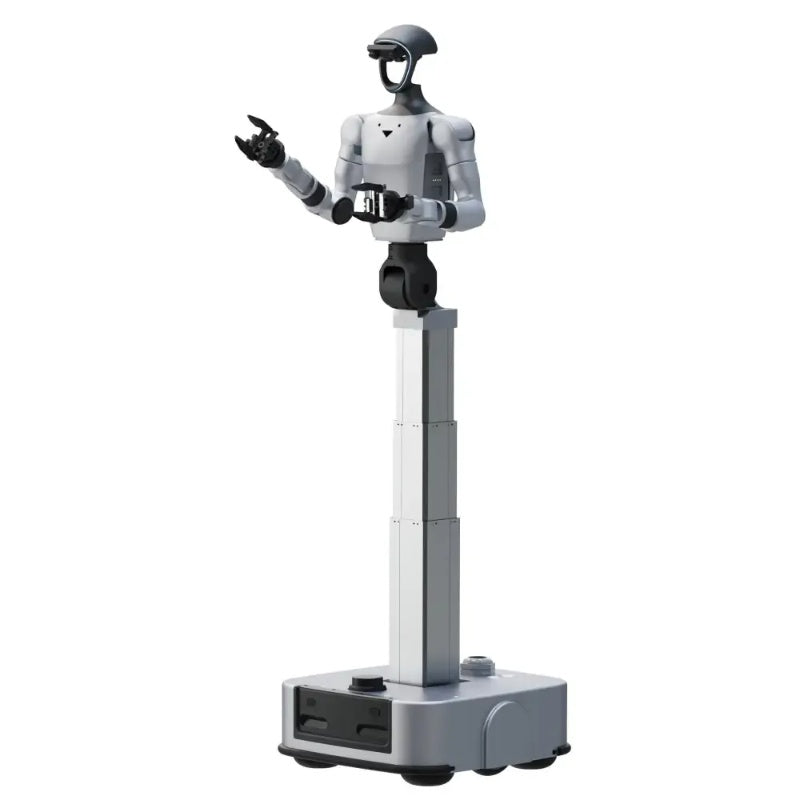

• Adjustable column height - The robot is listed at 1260 mm minimum column height and 1680 mm maximum column height.
• Developer compute included - Official data lists an 8-core high-performance CPU and NVIDIA Jetson Orin NX 16GB (100 TOPS).
• Integrated perception cameras - The platform includes a head HD binocular camera and wrist HD cameras x 2.

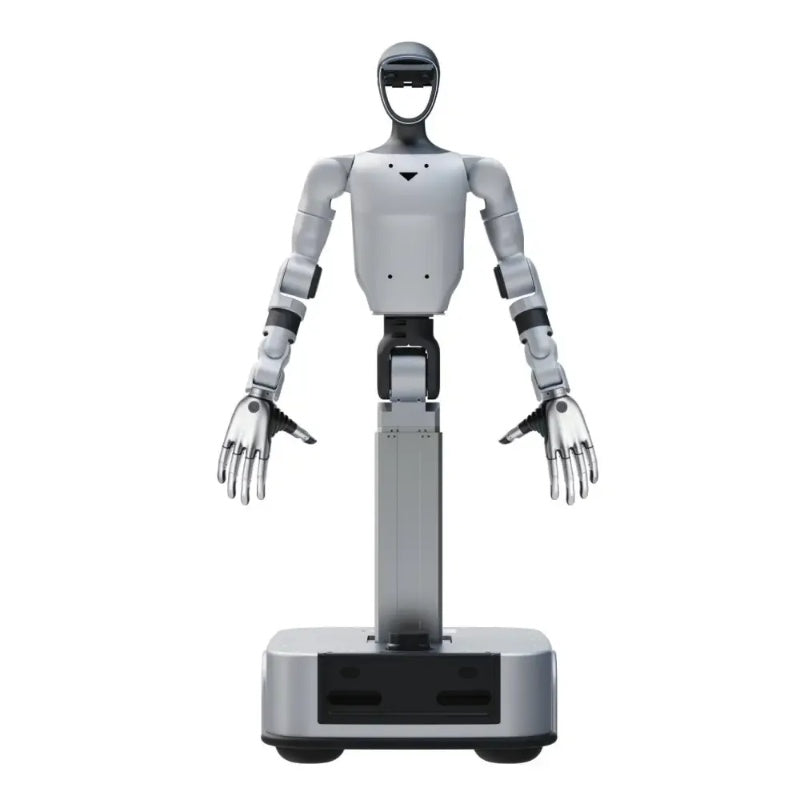

• End-effector flexibility - Unitree lists optional end-effectors including a 2-finger gripper, 3-finger dexterous hand without tactile sensing, 3-finger dexterous hand with tactile sensing, or 5-finger dexterous hand.
• Arm payload capability - The official table lists about 3 kg maximum single-arm payload, with actual load varying by arm extension posture.
• Wireless connectivity - G1-D Standard lists Wi-Fi 6 and Bluetooth 5.2.
• Secondary development support - Unitree lists secondary development as supported for the G1-D platform.

Specifications

Reference Documents

• Unitree G1-D Official Product Page
• Unitree SDK2 Official GitHub Repository

Application

• AI robotics study - Use G1D U3 for humanoid robot control, perception, manipulation, and embodied AI experiments.
• Data acquisition workflows - Build standardized collection workflows for robot demonstrations, teleoperation data, and training data preparation.
• Model training and inference - Develop and validate end-to-end humanoid robotics models using a real hardware platform.

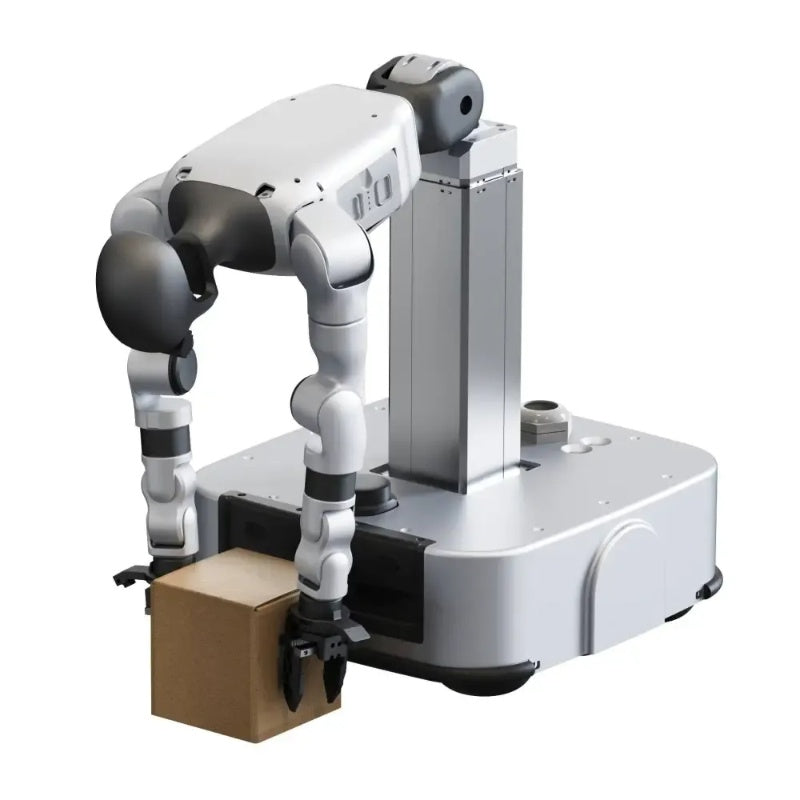

• Manipulation research - Explore arm control and optional end-effector workflows for grasping, interaction, and task execution.
• Developer integration - Use onboard compute and official SDK resources for custom software and system integration.
• University and lab platforms - Support graduate research, AI robotics labs, and advanced humanoid development projects.
• Human-robot interaction - Prototype interaction workflows using humanoid movement and integrated perception cameras.
• Simulation-to-real validation - Test model deployment and migration workflows from simulation or training systems to physical hardware.

Packing List

FAQ

Q1: What is the difference between Unitree G1D U3 and Unitree G1D U2?

Both are OpenELAB-listed G1-D Standard developer variants. Without a separate internal package table, this description uses the shared official G1-D Standard parameter set and avoids unsupported U2/U3 hardware-difference claims.

Q2: What is the difference between G1-D Standard and G1-D Flagship?

The official G1-D table lists G1-D Standard at about 50 kg with 17 DOF excluding end effector. G1-D Flagship is larger and heavier, about 80 kg, with 19 DOF excluding end effector and a mobile base.

Q3: Does G1D U3 include an end effector?

The official G1-D page lists multiple end-effector options. This description does not assume a specific end effector for U3 unless confirmed by the exact purchased configuration.

Q4: What compute is included in G1-D Standard?

Unitree lists an 8-core high-performance CPU and NVIDIA Jetson Orin NX 16GB (100 TOPS).

Q5: What cameras are listed for G1-D Standard?

The official table lists a head HD binocular camera x 1 and wrist HD cameras x 2.

Q6: What is the listed battery life?

Unitree lists about 2 hours for G1-D Standard.

Q7: Does G1D U3 support secondary development?

Yes. Unitree lists secondary development as supported for the G1-D platform.

Q8: Is G1D U3 suitable for AI robotics study?

Yes. Its G1-D Standard platform, onboard compute, integrated cameras, arm DOF, and secondary development support make it suitable for AI robotics study and humanoid developer workflows.
