Home Seeed Studio SenseCAP A1102 - LoRaWAN Vision AI Sensor

Seeed Studio SenseCAP A1102 - LoRaWAN Vision AI Sensor

SKU: Seeed-101991343
Sale price 114,00 €
incl. VAT
excl. VAT
In Stock & Ready to Ship
Seeed Studio SenseCAP A1102 - LoRaWAN Vision AI Sensor

Seeed Studio SenseCAP A1102 - LoRaWAN Vision AI Sensor

114,00 €

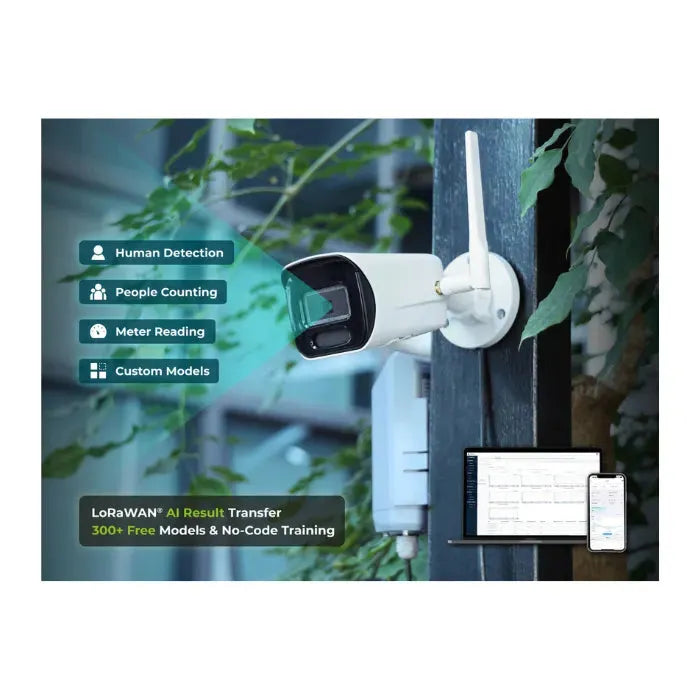

Seeed Studio SenseCAP A1102 is an IP66 rated LoRaWAN® Vision AI Sensor, ideal for low-power, long-range TinyML Edge AI applications. It features 480*480, 10 FPS, 863MHz ~928MHz, battery power supply, sending only the reference results via LoRaWAN®, fully respecting privacy and ensuring security.

The SenseCAP A1102 LoRaWAN® Vision AI Sensor is a smart edge device that runs TinyML AI models locally, transmitting only inference results via LoRaWAN® (863-928MHz) for enhanced privacy and power efficiency. Operating at 480×480 resolution with 10 FPS, it comes with three pre-deployed models for human detection, people counting, and meter reading, while offering no-code access to 300+ pre-trained models or custom model training through the SenseCraft AI platform. It also supports model deployment from TensorFlow Lite and PyTorch frameworks. Users can configure the device and the frequency bands via the SenseCraft App, and deploy the IP66-rated SenseCAP A1102 Vision AI Sensor in harsh indoor or outdoor environments. With a built-in battery, it is ideal for various AI applications requiring long-range communication.

Note:  This product includes only the SenseCAP A1102 Vision AI Sensor. The S2100 data logger shown in the image needs to be purchased separately.



Feature

  • Advanced Edge AI Camera: Equipped with a powerful MCU-based vision camera processor performing local inference at 480×480 resolution at 10 FPS. By transmitting only inference results via LoRaWAN®, the SenseCAP A1102 Vision AI Sensor ensures data privacy and minimizes network bandwidth usage.
  • No-Code AI Model Deployment and Training: Pre-loaded with three on-device AI models (human detection, people counting, and meter reading) for out-of-box vision applications. Natively integrates with SenseCraft AI, a web-based platform offering 300+ pre-trained models for instant deployment and simple 3-step training workflow. This enables rapid model training and deployment without coding expertise. Moreover, the SenseCAP A1102 also supports custom AI models converted from TensorFlow and PyTorch frameworks for edge deployment.
  • LoRaWAN® Connectivity: Supports global frequency bands (863-928 MHz) with transmission range up to 10 km in optimal conditions, enabling reliable long-distance communication for Seeed Studio SenseCAP A1102 Vision AI Sensor.
  • 2 Power Options: Features a 19Ah SOCl2 D-size battery inside. Compatible with external DC power supply via optional junction box.
  • IP66 Rating Environmental Durability: Features IP66-rated protection against dust ingress and strong water jets. Operates reliably in temperatures from 0°C to 70°C, suitable for diverse indoor and outdoor deployments of SenseCAP A1102 Vision AI Sensor.
  • SenseCraft Cloud Integration: Includes SenseCraft Mate mobile app and web portal for easy device configuration, device management and quick data visualization. Features open API support and 3-month FREE trial access, it's compatible with third-party IoT platforms, making Seeed Studio SenseCAP A1102 LoRaWAN® Vision AI Sensor highly versatile.




Specification

Product Model

SenseCAP A1102

Microcontrollers

Vision AI: Himax-6538

LoRaWAN Network: Wio-E5 (STM32WLE5JC)

Camera

Module: OV5647

Lens size: 1/4"

Focal length: 3.4 mm (adjustable)

Resolution: 2592 × 1944 pixels

Pixel size: 1.4 µm × 1.4 µm

Maximum frame rate: 1080p @ 30 fps, 720p @ 60 fps

FOV: 62°

Model Execution and Inference

480 * 480 >10 fps

LoRaWAN® Transmission

Protocol: LoRaWAN v1.0.3 Class A

LoRaWAN® Frequency: IN865/EU868/US915/AU915/ AS923

Communication Distance: 2 to 10km (depending on the environment)

Max Transmitted Power: 19dBm

Power Supply

Built-in Battery or DC 12V/1A (with external junction box wiring)

Power Consumption

102mA

Battery

Capacity: 19Ah (non-rechargeable)

Type: Standard D-size SOCl2 Battery

Local Storage Memory

8GB MicroSD Card (Class 10) for storaging up to 20,000 images with timestamp and supports to export

IP Rating

IP66

Operating Temperature

0-70 °C

Operating Humidity

0-100% RH (non-condensing)

Cable Length

2 meters

Device Weight

719g

Device Dimensions

Camera:180mm*75mm*70mmDTU: 144.5mm*63mm*57mm



Power Supply Options

  • Option 1: The SenseCAP A1102 operates in cyclic mode using a built-in 19Ah D-type Li-SOCl2 battery. The battery is commercially available for easy replacement and enables standalone outdoor deployment without requiring external power.
  • Option 2: The SenseCAP A1102 supports constant operation through a 12V DC power supply connection. An extra matching junction box is needed for straightforward installation and assembly.


Hardware Overview

  • Onboard



Application

  • Person Detection
  • People Counter
  • Face Detection
  • Specific Object Detection


Documents


Certification

HSCODE 9031809090
USHSCODE 9031808085
UPC
EUHSCODE 9013101000
COO CHINA

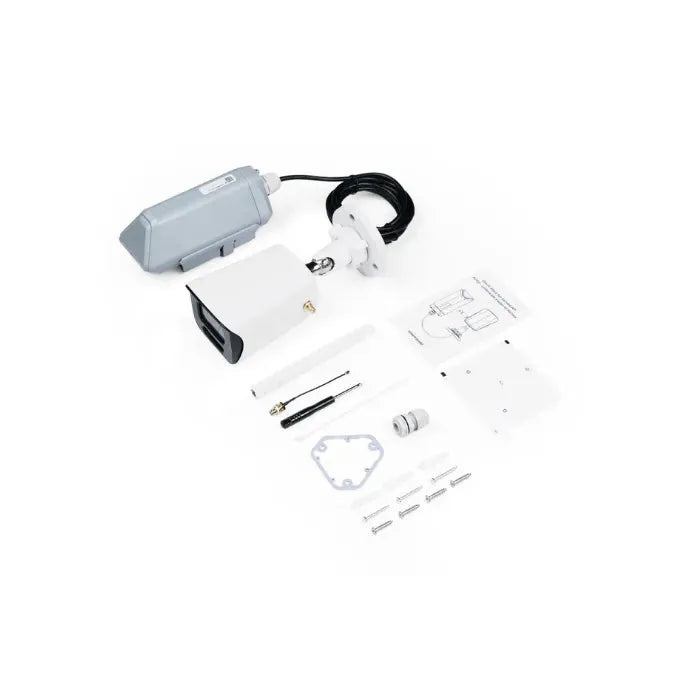

Part List

SenseCAP A1102 - LoRaWAN Vision AI Sensor

x1

2.4GHz Rod Antenna

x1

Waterproof Aviation Plug

x1

Phillips Screwdriver

x1

Instruction Guide

x1

Screws Package

x1

Base Positioning Sticker

x1
