Seeed Studio reServer J2032 - NVIDIA® Jetson Xavier™ NX 16GB AI NVR for Video Analytics

Seeed Studio reServer J2032 - NVIDIA® Jetson Xavier™ NX 16GB AI NVR for Video Analytics

1.599,00 €

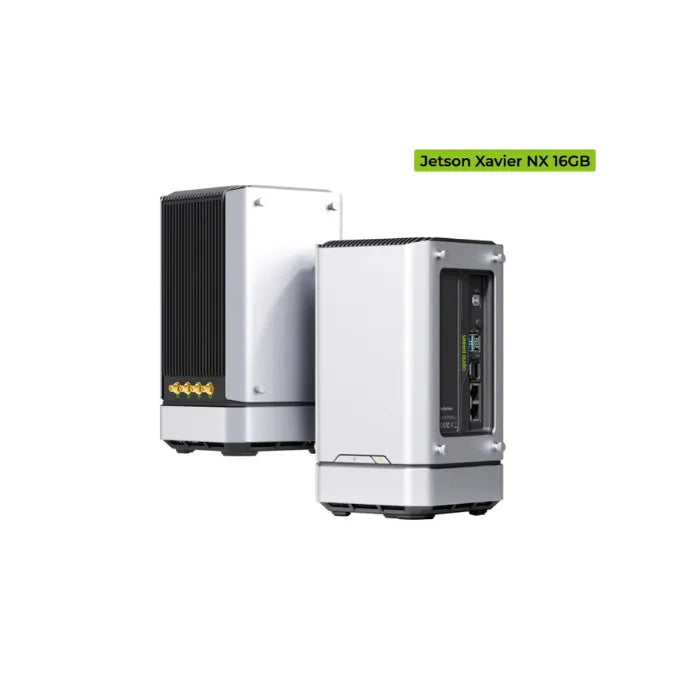

The reServer for Jetson is a high‑performance edge inference server powered by the Jetson Xavier NX 16GB, delivering up to 21 TOPS of AI computing performance. It features a 2.5‑Gigabit Ethernet port for high‑speed data transmission and supports hybrid connectivity options, including 4G/5G and LoRa/Long Range communication. Pre‑installed with JetPack and equipped with a 256GB SSD, the reServer also accommodates two 3.5" SATA or two 2.5" SATA internal hard drives, enabling flexible and expandable storage for demanding edge AI applications.

Features

  • Compact design:  Edge AI server with an overall dimension of 132mm*124mm*233mm
  • Powerful AI module:
    • NVIDIA® Jetson Xavier™ NX 16GB
    • Delivers 21 TOPS AI performance
    • 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
    • 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
  • Rapid network access: 2.5GbE port x1 (RX: 2.35 Gbits/sec, TX: 1.4 ~ 1.6 Gbits/sec), 1GbE port x1
  • Hybrid connectivity:  Support 5G, 4G, LoRaWAN (modules not included)
  • Rich peripherals: HDMI 2.0 x1，DP1.4 x1，USB3.1 GEN2 (up to 10Gbit) x2
  • Expandable storage:  Dual SATA III data connectors for 3.5”/2.5" SATA hard disk drives
  • Excellent heat dissipation:  Quiet cooling bottom fan + aluminum heatsink cooling fan
  • Ready-to-use:
    • Pre-installed Jetpack system 4.6.1
    • Pre-installed 2.5 inches 256GB SSD x1, up to SATA3
  • Easy to adapt: Easy to install, upgrade and maintain with ease of access to the internal components after opening the enclosure
  • Comprehensive certificates: CE, FCC, UKCA, ROHS, REACH



Description

reServer for Jetson, as a milestone product of reThings Jetson family, is extremely compact and powerful. This smart tiny server is able to work easily and efficiently from the edge to the cloud.

reServer for Jetson is a powerful inference server on the edge powered by the NVIDIA Jetson NX 16GB. It delivers up to 21 TOPS, making it ideal for high-performance computing and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX 16GB the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.


reServer comes pre-installed with Jetpack for rapid development and edge AI integration, supporting the entire Jetson software stack and various developer tools for building fast and robust AI applications provided by Seeed Edge AI partners, helps develop innovative AI solutions for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences, etc

reServer comes with 2 Ethernet ports: 2.5GbE port x1 (RX: 2.35 Gbits/sec, TX: 1.4 ~ 1.6 Gbits/sec), 1GbE port x1

reServer for Jetson supports hybrid connectivity including 5G, 4G, Long Range. The expandability of 5G technology(M.2 B Key) is useful in places where there isn’t always reliable internet connectivity, such as on a farm or in a location with spotty service. LoRa technology makes it possible to connect to a wide range of sensors. It can be applied as an edge computing center for all scenarios that require vast data to collect and process at the edge.

*To get LoRa,4G and 5G connectivity, optional modules are needed.

07

The neat structure of reServer also makes it simple to access the hard drives and memory which allows for easy installation, upgrade and maintenance.

Having dual SATA III 6.0Gbps data connectors, reServer is able to equip up to two 3.5” SATA internal hard disk drives or two 2.5" SATA internal hard disk drives to acquire more storage. (This version with one 2.5 inches 256GB SSD, up to SATA3 already installed)

5

reServer is equipped with a quiet cooling bottom fan as well as an aluminum heatsink cooling fan to ensure silent and stable operations under heavy loads while providing excellent heat dissipation.

With an overall dimension of 132mm*124mm*233mm, reServer Jetson is only around 1/10 of the size of an ordinary computer case which makes it possible to place reServer on a table, on a shelf, on any surface you want it to be.

06

Application

  • AI-enabled NVR(Network Video Recorder)
  • Intelligent Video Analytics
  • AMR
  • Logistics Automation



Specifications



Processor



Module



NVIDIA® Jetson Xavier™ NX 16GB



AI Perf



21 TOPS



GPU



NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores



CPU



6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3



DL Accelerator



2x NVDLA Engines



Vision Accelerator



7-Way VLIW Vision Processor



Memory



8 GB 128-bit LPDDR4x @ 51.2GB/s



Storage



16 GB eMMC 5.1;
Support 2 x 2.5''/3.5" SATA (HDD/SSD),up to SATA3 ( 2.5 inch 256GB SSD x1，up to SATA3 already installed)



Video Encoder



2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)

2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)



Video Decoder



2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)

2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)



Co-processor



Raspberry Pi® RP2040 32-Bit Dual ARM Cortex-M0+ @ 133MHz



External I/O



2.5G Ethernet Port



Converted from PCIe

RX: 2.35 Gbits/sec

TX: 1.4 ~ 1.6 Gbits/sec



1000M Ethernet Port



Native Ethernet interface of Jetson Xavier NX



HDMI Interface



Support up to HDMI2.0



DisplayPort Interface



Support up to DP1.4



USB3.1 GNE2 Interface x2



Support up to 10Gbit



DC Jack Power Interface



DC 12V @5A, 2.5mm center pin



Internal I/O



M.2 KEY B Connector



With USB3.2 GEN2， Support 5G/4G wireless module



MiNi-PCIe Connector



Support LoRa/Series wireless module



SIM Card Slot



Top layer for MiNi-PCIe



Bottom layer for M.2



SATA Power Connector x2



Support 2.5inch or 3.5inch HDD/SSD, up to SATA3



SATA Data Connector x2



Main Fan Connector



For enclosure fan, only supports 12V fans, the bottom fan is already installed



Jetson Xavier NX Fan Connector



Only supports 5V fans, aluminium heatsink cooling fan already installed



RTC Battery Connector



RTC battery already installed (CR2032)



260Pin SODIMM Connector



For Jetson Xavier NX



USB TYPE-C Connector for NX



For NX programming



USB TYPE-C Connector for Coprocessor



For coprocessor firmware upgrade



AutoPower on Header



Short-circuit to enter key-on mode， float into the auto power-on mode



2x5Pin Debug Header



Debug



Power Button



With green LED



Active Buzzer



Network



Giga Ethernet



2.5G Ethernet Port

  • rx: 2.35 Gbits/sec
  • tx: 1.4 ~ 1.6 Gbits/sec



1000M Ethernet Port



Wireless Connection



M.2 KEY B connector， support 5G/4G wireless module



MiNi-PCIe connector， support LoRa/Series wireless module



Display



LED1: SATA0 statusLED



Sleep mode or no SSD/HDD inserted-----LED OFF

SSD/HDD inserted and PHY ready ----- LED ON

Data transfer status ----- LED blinks



LED2: SATA1 statusLED



LED3



M.2 wireless module status LED



Power



DC Jack Power interface



DC 12V @5A, 2.5mm center pin



Power Button



Power on



Restart Button



Restart



Pre-installed



2.5 inch 256GB SSD x1，up to SATA3



Aluminum Heatsink Cooling Fan



RTC battery (CR2032)



Bottom Fan

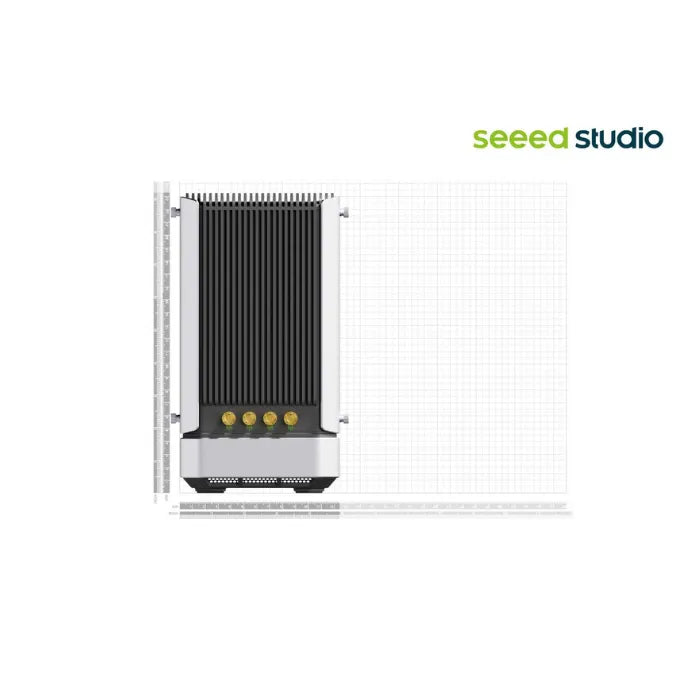

Dimensions



132mm*124mm*233mm

Hardware Overview

Dimensions

dimension

Part List

Item Qty
reServer J2032 1
NVIDIA® Jetson Xavier NX™ 16GB 1
Carrier Board 1
Pre-stalled 2.5 inch 256GB SSD 1
RTC Battery (CR2032) 1
Aluminum Heatsink Cooling Fan 1
Bottom Fan 1
Aluminum Case 1

12V/5A Power Adapter(without AC Power Cord)		 1

User Manual		 1

Screwdriver		 1

Certification

HSCODE 8471419000
USHSCODE 8517180050
UPC
EUHSCODE 8471707000
COO CHINA
