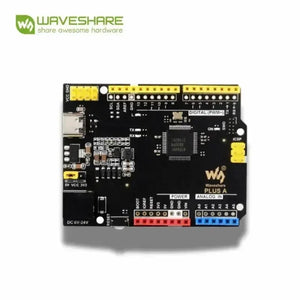

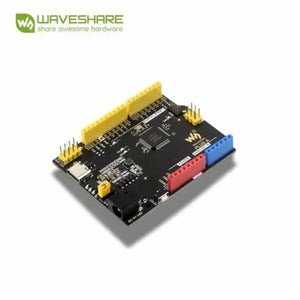

Waveshare R7FA4 PLUS A Development Board is a compact Renesas RA4M1 development board built around the R7FA4M1AB3CFM microcontroller. It delivers the familiar Arduino UNO R4 Minima compatible form factor while adding a more flexible power design, CAN bus, 12-bit DAC, onboard operational amplifiers, and broader shield expansion capability for embedded control, industrial interface experiments, education, and rapid prototyping.
This R7FA4 PLUS A board runs at 48MHz and integrates 256KB Flash plus 32KB RAM, giving developers a practical Renesas platform for learning, testing, and deploying control logic. With 5V / 3.3V selectable output, 6V to 24V DC input, standard Arduino headers, ICSP, SWD indicators, and a side reset button, the board is well suited for sensor expansion, actuator control, shield stacking, and mixed-voltage prototyping.

Features
- Renesas R7FA4M1AB3CFM / RA4M1 MCU with 32-bit Arm Cortex-M4 architecture and 48MHz clock
- Arduino UNO R4 Minima compatible layout for easier code migration and shield expansion
- 256KB Flash and 32KB RAM for embedded control, automation logic, and interface experiments
- Selectable 5V or 3.3V power output for better compatibility with different modules and shields
- 6V to 24V DC input for more flexible external power design
- 12-bit DAC, CAN bus, PWM, ADC, UART, I2C, and SPI on one board
- Low-profile DC jack and side reset button help keep shield stacking more convenient
- Up to 2000mA 5V output capability for stronger peripheral driving in lab and prototype setups
- Experimental solder pad area for DIY interfaces and quick hardware expansion
Specifications
| Brand | Waveshare |
| Model | R7FA4 PLUS A |
| Microcontroller | R7FA4M1AB3CFM, Renesas RA4M1, 32-bit Arm Cortex-M4 |
| Clock Frequency | 48MHz |
| Memory | 256KB Flash, 32KB RAM |
| Wireless | None |
| Operating Voltage | Selectable 5V / 3.3V |
| Power Input | 6V to 24V DC |
| Digital Pins | 14 |
| Analog Pins | 6 |
| DAC | 2 |
| PWM | 6 |
| UART | 1 |
| I2C | 1 |
| SPI | 1 |
| CAN | 1 |
| 5V Power Output | Up to 2000mA Max |
| USB | USB Type-C |
| Weight | 0.047 kg |
Applications
- Embedded control development for logic control, timing, and interface testing
- Industrial communication learning with CAN bus based experiments and controller training
- Sensor and actuator prototyping with Arduino-compatible shields and module stacks
- Education and STEM projects for Renesas RA4M1 programming and Arduino migration
- Mixed-voltage prototyping where 5V and 3.3V peripheral compatibility matters
- DIY hardware validation using the experimental solder pad area for custom interfaces
Packing List
- R7FA4 PLUS A x1
- USB Type-A to Type-C cable x1
Other Content
Board hardware overview

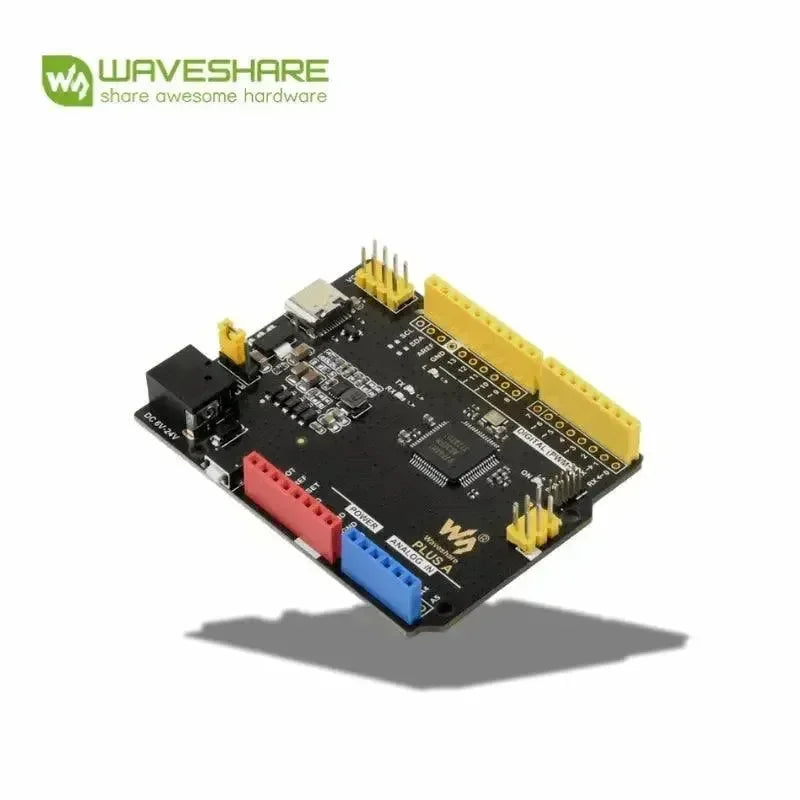

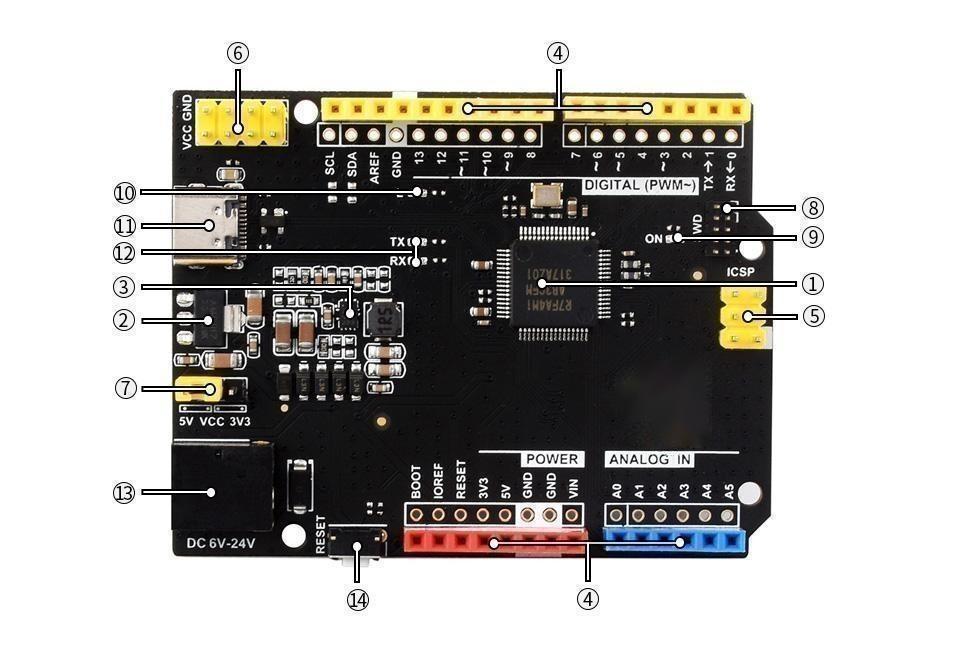

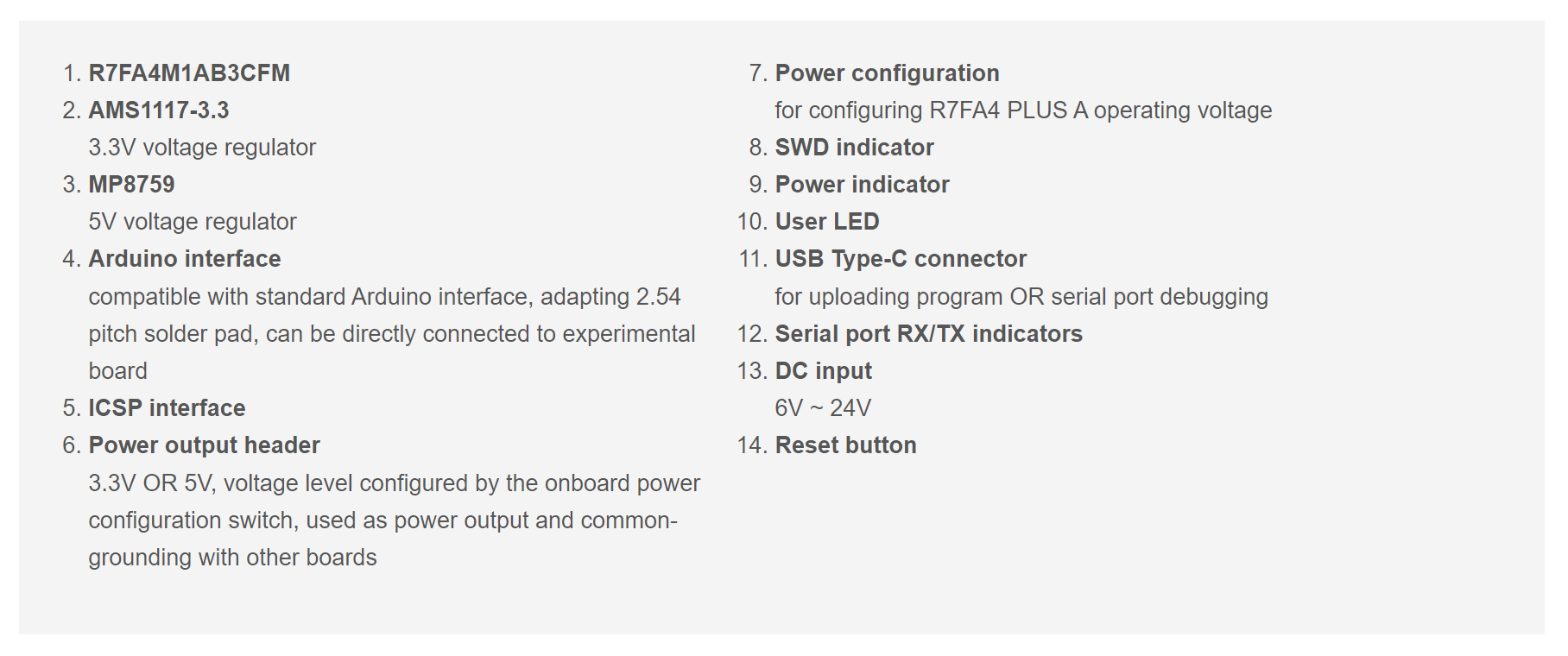

The R7FA4 PLUS A board includes the R7FA4M1AB3CFM MCU, AMS1117-3.3 regulator, MP8759 5V regulator, Arduino interface, ICSP header, configurable 5V / 3.3V power output header, SWD indicator, power indicator, user LED, USB Type-C programming interface, serial RX/TX indicators, DC input, and reset button.

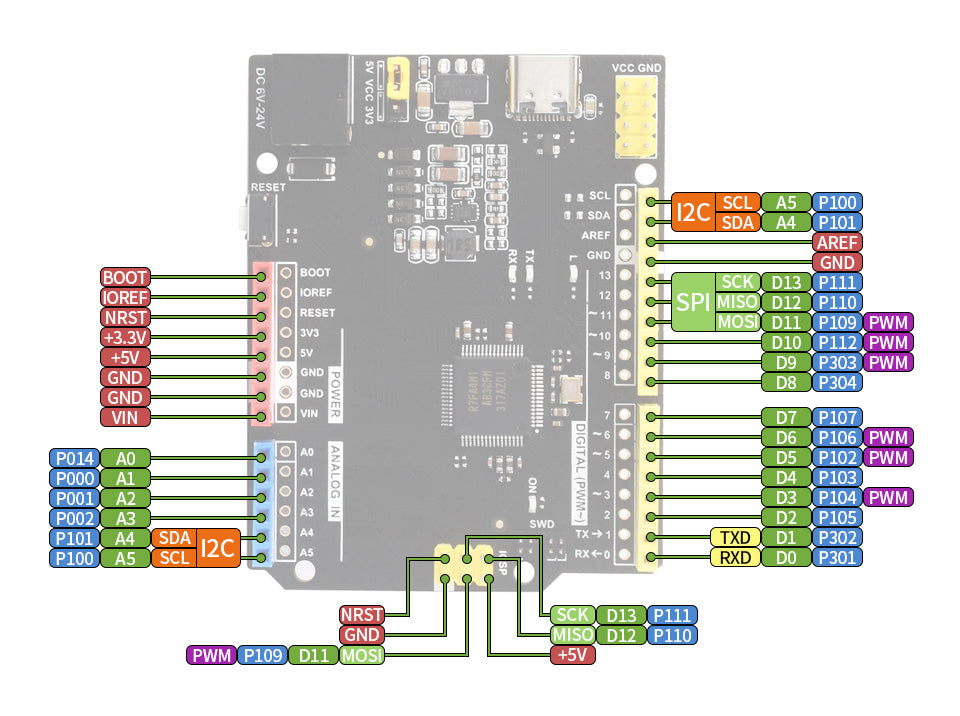

Pinout definition

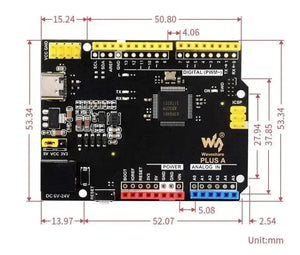

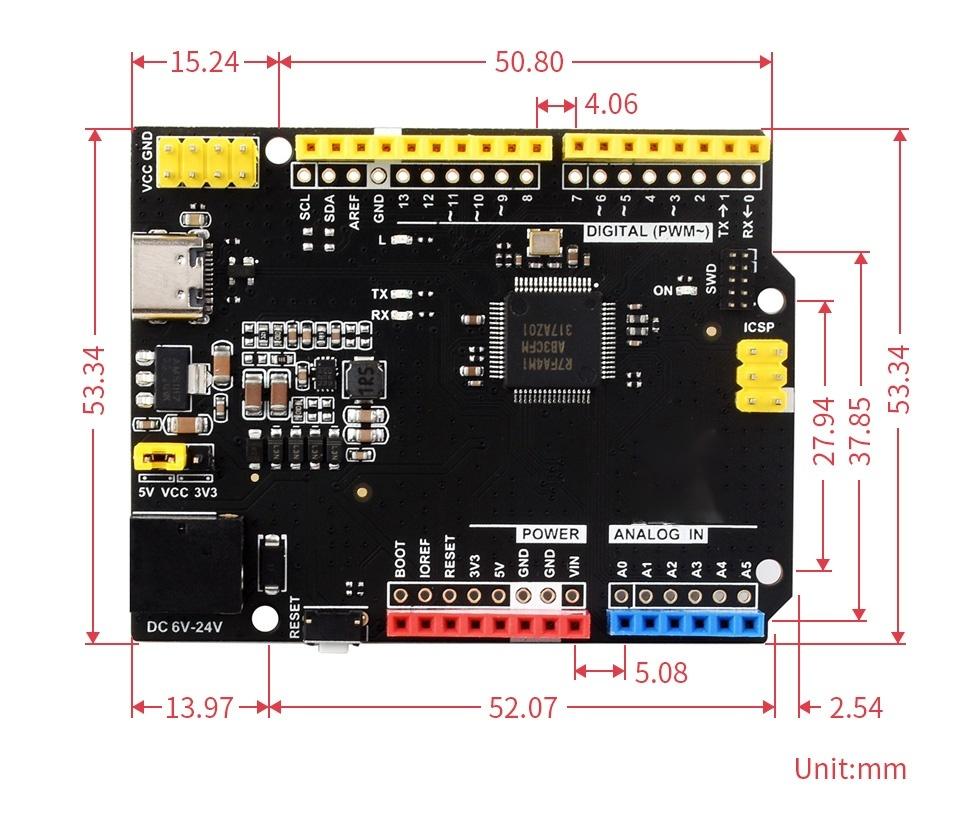

Outline dimensions

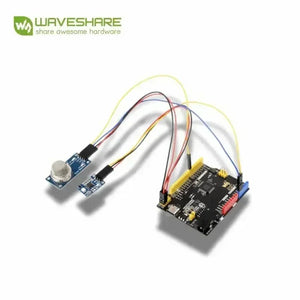

Shield and module expansion is one of the strongest points of this Waveshare development board. The Arduino-compatible interface, low-profile DC jack, side reset key, and configurable voltage output make the R7FA4 PLUS A easier to integrate with sensor modules, display shields, relay shields, and custom experiment boards during development.
Resources
- Wiki
- Schematic
- Renesas RA4M1 Overview
- RA4M1 Hardware Manual
- Arduino UNO R4 Minima Documentation
- Arduino IDE
FAQ
Is R7FA4 PLUS A compatible with Arduino UNO R4 Minima?
Yes. The board is designed around the same R7FA4M1AB3CFM / RA4M1 microcontroller family and uses an Arduino UNO R4 Minima compatible layout, which makes it suitable for Arduino-style development and shield expansion.
Does this board include wireless connectivity?
No. R7FA4 PLUS A focuses on wired embedded development and does not include onboard Wi-Fi or Bluetooth.
What makes R7FA4 PLUS A different from a more basic Arduino-compatible board?
This Waveshare board adds CAN bus, 2-channel DAC, flexible 5V / 3.3V power output, up to 2000mA 5V output, wider 6V to 24V input, and a layout that is easier to use with shields and lab expansion.
