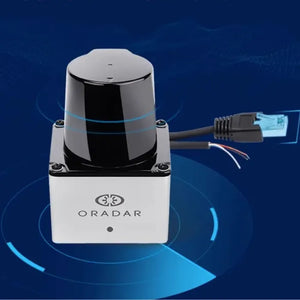

Oradar MS500 2D dToF LiDAR-03
Oradar MS500 2D dToF LiDAR-01
Oradar MS500 2D dToF LiDAR-02
Oradar MS500 2D dToF LiDAR-03

Oradar MS500 2D dToF LiDAR for High-Precision Mapping

Sale price €599,00

📦 Location of the warehouse: China

Add to Wishlist Add to Compare

Free shipping for you

Free Shipping from 30€ in Germany, 50€ in the EU!

Trustpilot rating: 4.4/5.0

Thank you for your support - rate us on Trustpilot!

Visa
PayPal
Mastercard
American Express
Shop Pay
Oradar MS500 2D dToF LiDAR-01

Oradar MS500 2D dToF LiDAR for High-Precision Mapping

€599,00

The MS500 dToF Laser Radar is a high-performance depth sensing solution, leveraging self-developed rotating dToF distance technology. It features high-frequency, accurate measurements capable of performing in complex environments. With precision ranging up to 30 meters and a high scanning frequency, it is ideally suited for applications requiring precise depth measurements and 360-degree scans.

Features

  • Self-Developed Rotating dToF Technology: Provides precise measurements unaffected by environmental light conditions.
  • High Measurement Precision: Precision as small as ±20mm.
  • Scanning Angle: 270° field of view, ensuring comprehensive coverage.
  • Measurement Range: Detects distances from 0.1m to 30m.
  • High Scan Frequency: Capable of scanning at up to 30,000 Hz, ensuring fast data collection.
  • Small Form Factor: Compact dimensions of 60mm x 60mm x 85mm, designed for integration into robots and industrial equipment.
  • Robust Protection: Rated IP65, suitable for various industrial environments.
  • Laser Safety: Class 1 Laser Safety compliant.



Specifications

Feature Specification
Measurement Technology dToF (Direct Time of Flight)
Measurement Range 0.1m to 30m
Measurement Precision ≤20mm (Typical)
Measurement Accuracy ±30mm (Typical)
Scanning Angle 270°
Scanning Frequency 10Hz to 30Hz (Default 15Hz)
Laser Wavelength 903±10nm
Laser Divergence Angle 0° ±1°
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 70°C
Power Supply 12V (9V-28V DC)
Power Consumption <2W (Typical)
Weight ~270g
Interface RJ45 Network
Environmental Rating IP65
Certification RoHS, CE, FCC



Applications

  • Service Robots: Used in navigation and positioning, detecting distances up to 30m.
  • Industrial AGV: Enhances safety with precise obstacle avoidance based on 0.12° angle resolution.
  • 3D Scanning: Quickly scans objects and generates models for digital mapping.
  • Multimedia and Human-Machine Interaction: Provides multi-touch capabilities for interactive displays.
