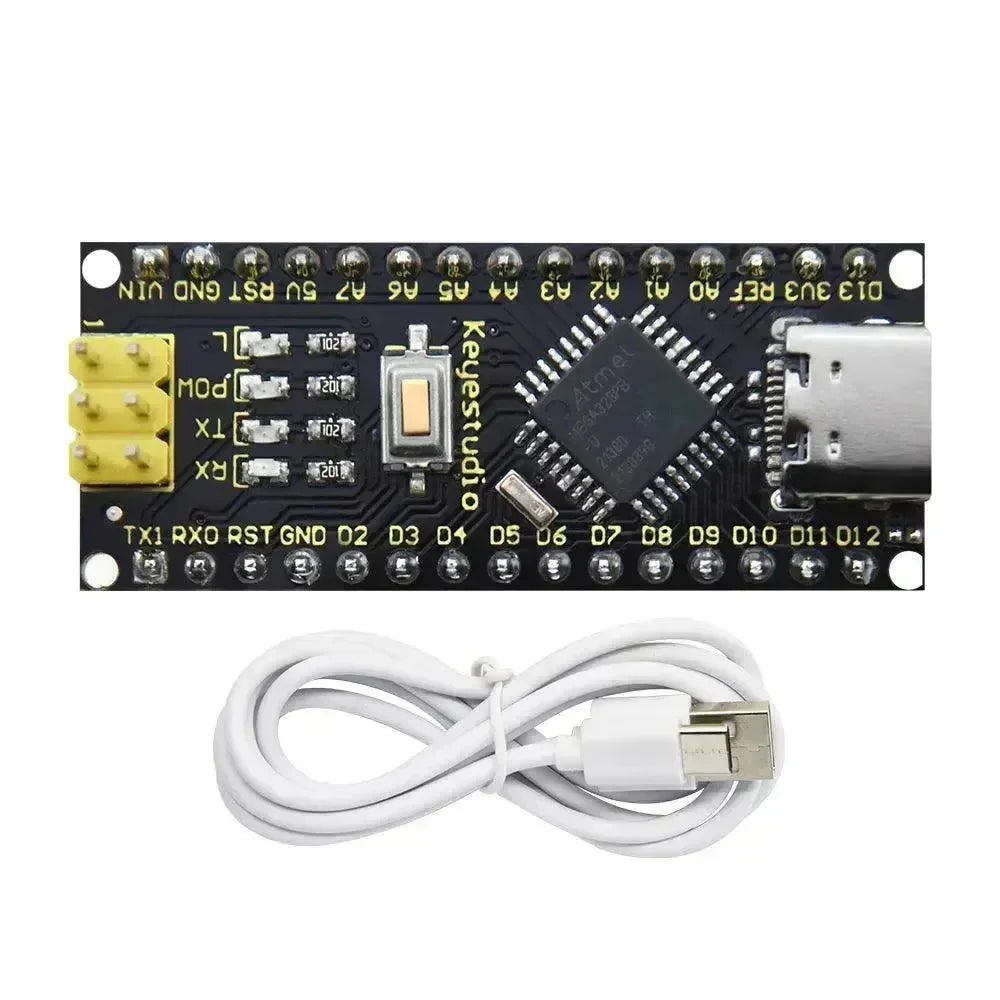

NANO PLUS Dev Board Compatible with Arduino NANO - OpenELAB

The processor core of NANO PLUS is ATMEGA328P-AU. It is as same as the official Arduino Nano in addition to the driver file and USB to serial chip (CH340G).

It also has 14 digital input/output interfaces (6 of which can be used as PWM output), 8 analog input interfaces, 1 16MHz crystal oscillator, 1 mini USB port, 1 ICSP interface, and a reset button.
The ICSP interface is used to program the Atmega328P-Au. We can supply power with a type-CUS cable, the port VIN GND (DC 7-12V) and GND

Features

Microcontroller: ATMEGA328P-AU
Operating Voltage: 5V
Input Voltage (recommended): DC 7-12V
Digital I/O Pins: 14 (D0-D13)
PWM Digital I/O Pins：6 (D3 D5 D6 D9 D10 D11)
Analog Input Pins: 8(A0-A7)
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB of which 2 KB used by the bootloader
SRAM:2 KB
EEPROM: 1 KB
Clock Speed:16 MHz
LED_BUILTIN:D13
