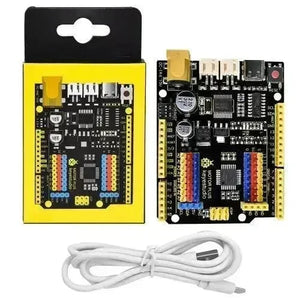

Multi-purpose Shield V1 for Arduino Starter - OpenELAB

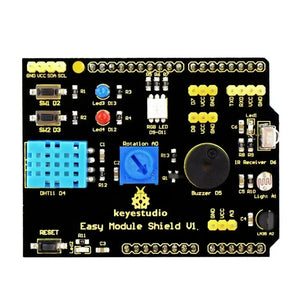

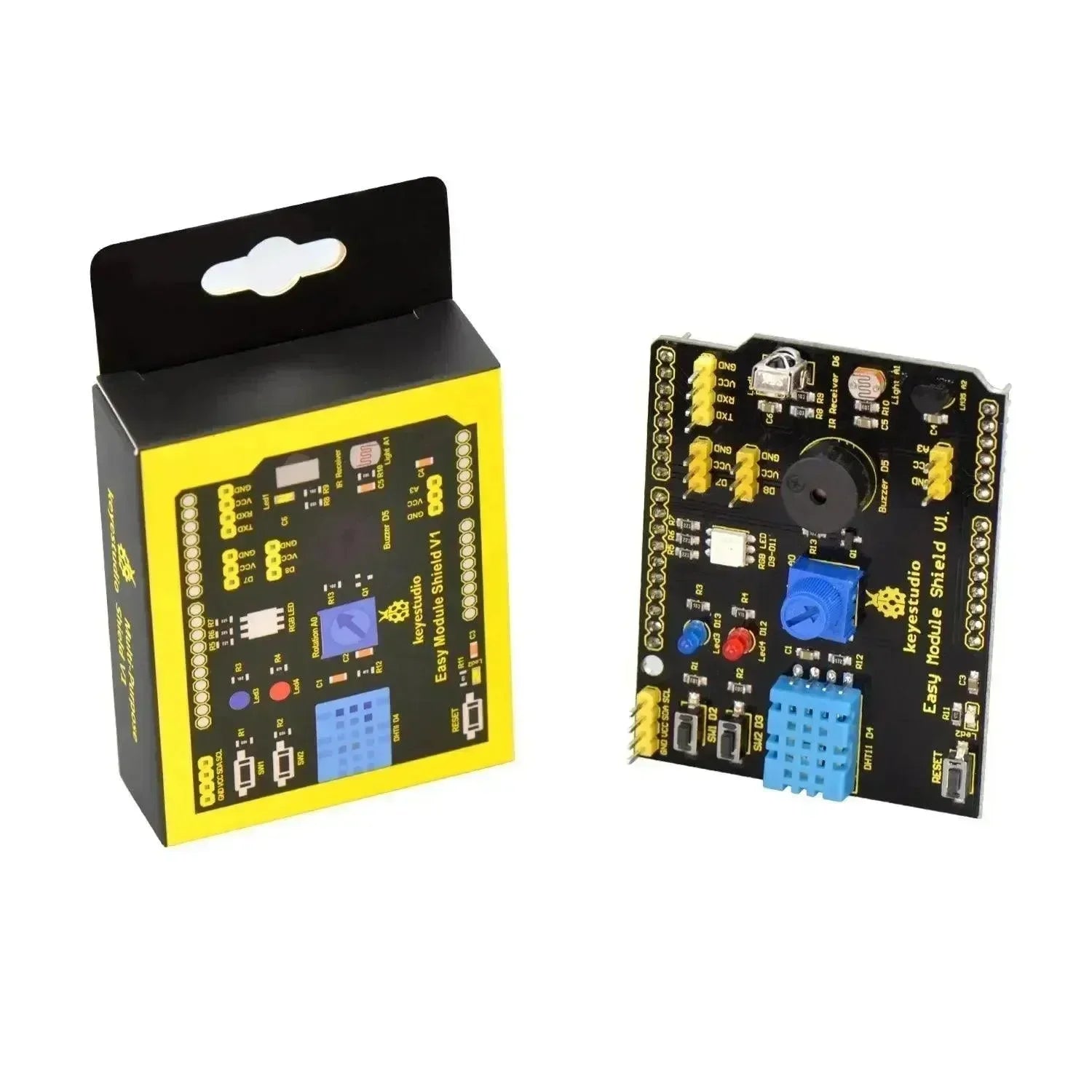

Multi-purpose Shield V1 is a learning board based on Arduino. No need for soldering and connection. Download the program to complete the experiment.
It is multi-purpose and we offer code libraries of all modules that have been tested. You can use them directly.
There are extension ports on the shield to help you to complete other experiments.

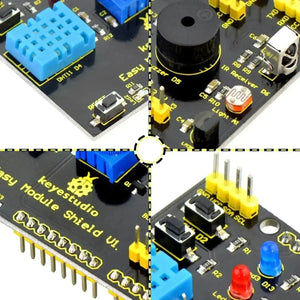

• Compatible with main controllers such as UNO R3 and MEGA2560.

• Comes with 2 LED indicators to show the program status.

• Comes with 2 switches for external interrupt experiments.

• Comes with a reset button

• Comes with DHT11 sensor for measuring temperature and humidity.

• Comes with a potentiometer for analog input

• Comes with a passive buzzer for alarm.

• Comes with a full-color RGB LED

• Comes with a photocell to detect the brightness of light

• Comes with an LM35D temperature sensor

• Comes with an infrared receiver

• 2digital pins（D7 and D8）

• 1 analog pin（A3）

• One IIC interface

• One TTL serial pin
