M5Stack RollerCAN Unit with BLDC Motor (STM32)

M5Stack RollerCAN Unit with BLDC Motor (STM32)

€47,50

M5Stack RollerCAN Unit with BLDC Motor (STM32)

€47,50

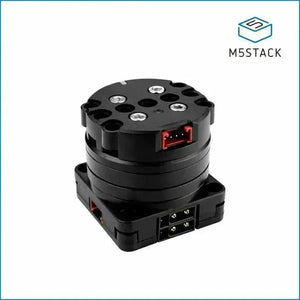

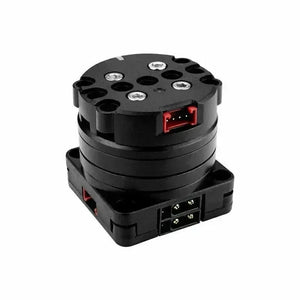

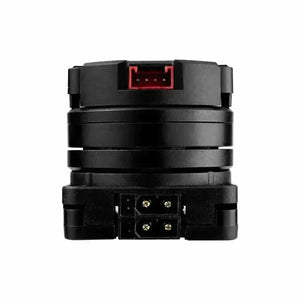

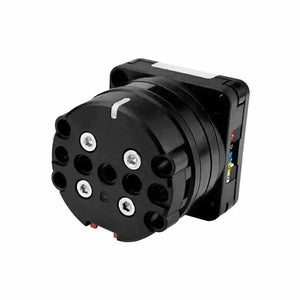

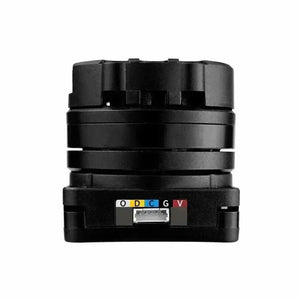

The RollerCAN Unit is a brushless DC motor motion control kit with multiple integrated control functions, designed for efficient motion control. The device is compatible with both 6-16V DC power input (via the XT30 interface) and 5V input (via the Grove interface), and is equipped with an automatic power factor adjustment feature to ensure optimal performance. The product features a built-in FOC closed-loop drive system that utilizes a 3504 200KV brushless motor. The maximum continuous operating phase current is 0.5A without forced cooling, and 1A for short-term operation. The driver employs a magnetic encoder for feedback and offers triple-loop control of current, speed, and position, thereby ensuring precise control. The unit's shaft can be fitted with a slip ring, if required, to enable the Grove interface at the top to remain connected with the bottom, thus supporting 360° rotation while allowing additional modules to be added at the top. This guarantees power and data transmission through the rotating component.

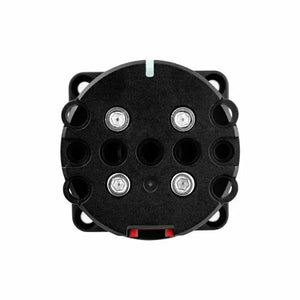

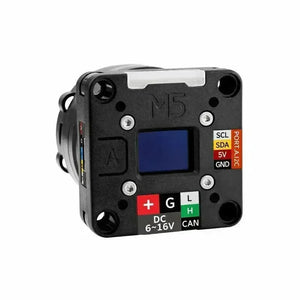

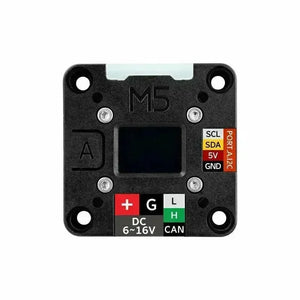

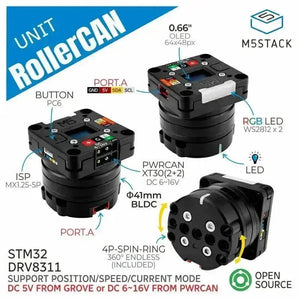

Furthermore, the unit is furnished with a 0.66-inch OLED display on the reverse side, which can display the device status in real time. Furthermore, the unit includes an RGB indicator and function button, facilitating straightforward human-machine interaction. The top and base are designed with LEGO-compatible mounting holes and M3 screw holes, allowing for straightforward assembly and integration. The hardware and software of the RollerCAN Unit are fully open-source, supporting motion control and parameter adjustment via buses. Additionally, it provides SWD and SWO debugging interfaces, offering developers greater flexibility. This product is suitable for use in machine joints, motion control, industrial automation, and visual demonstration projects.



Features

  • Brushless DC motor control
  • CAN communication / I2C communication control
  • Integrated OLED display
  • RGB indicator light
  • FOC closed-loop drive system
  • Slip ring

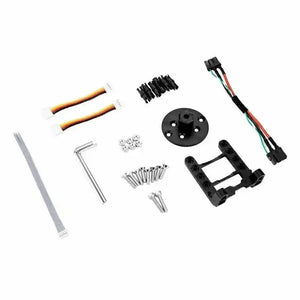

Package Includes

  • 1x RollerCAN Unit
  • 1x PwrCAN Cable (10cm)
  • 2x HY2.0-4P Grove cables (5cm)
  • 6x friction pins
  • 1x flange
  • 1x bracket
  • 1x hex key (2.5mm)
  • 1x hex key (2mm)
  • 6x M3 nuts
  • 2x inner hex socket cap screws M3x14mm
  • 4x inner hex countersunk screws M3x14mm
  • 4x inner hex countersunk screws M3x12mm
  • 1x single-head terminal cable 5P debugging cable 1.25mm pitch, 100mm length


Applications

  • Robotic joint control
  • Intelligent manufacturing equipment
  • Visual demonstrations



Specifications

Specification Parameters
MCU STM32G431CBU6 @ Cortex-M4, 128KB Flash, 32KB SRAM, 170MHz
Motor Type D3504 200KV brushless motor @ diameter: 41mm
Driver Chip DRV8311HRRWR
Angle Sensor TLI5012BE1000
Communication Interface 2x CAN (XT30 interface) @ XT30 (2+2) PW-M
2x I2C (0x64)
Display 0.66-inch OLED display, resolution: 64*48, SPI communication
RGB LEDs 2x WS2812-2020
Motor Power Supply CAN (XT30 interface) @ 6-16V power supply
Grove port DC5V power supply
Slip ring_Grove port DC5V power supply
Load Load: 50g Motor speed: 2100rpm Current: DC16V/225mA
Load: 200g Motor speed: 1400rpm Current: DC16V/601mA
Load: 500g (maximum load) Motor speed: 560rpm Current: DC16V/918mA
No load: DC16V/78mA
Standby Current Grove port DC5V power supply @ 70mA
CAN (XT30 interface) power supply DC16V @ 32mA
Output Torque Grove port DC5V power supply: 0.021N.m / 0.2kgf.cm @ 350mA current
CAN (XT30 interface) DC16V power supply: 0.065N.m / 0.66kgf.cm @ 927mA current
Slip Ring (Grove port) Output Capacity DC5V / 300mA
Noise Level 48dB
Operating Temperature 0-40°C
Product Dimensions 40*40*40mm
Package Dimensions 170*75*52mm
Product Weight 84.4g
Package Weight 157.7g
