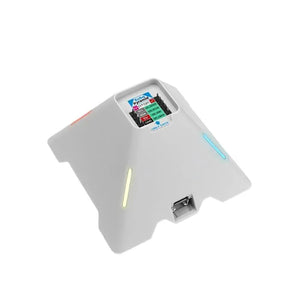

M5Stack Voice Pyramid Smart Speaker Base without M5Atom white background front angle view

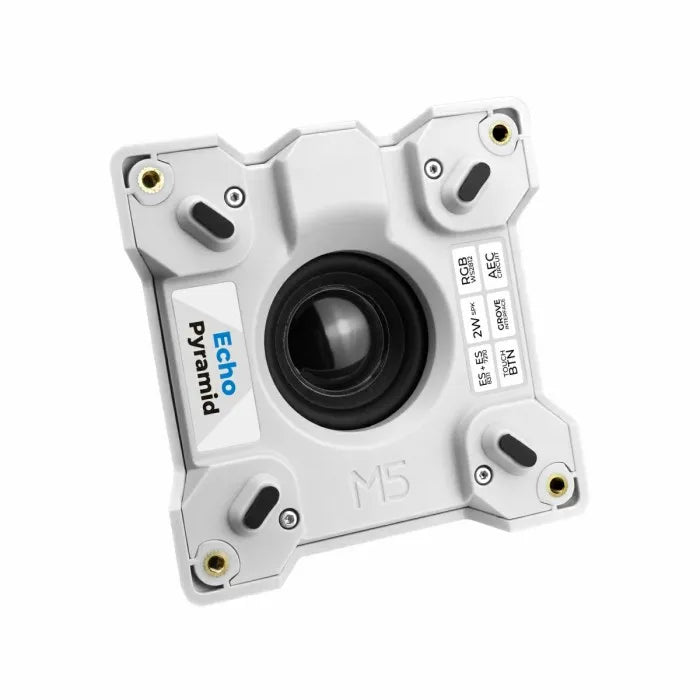

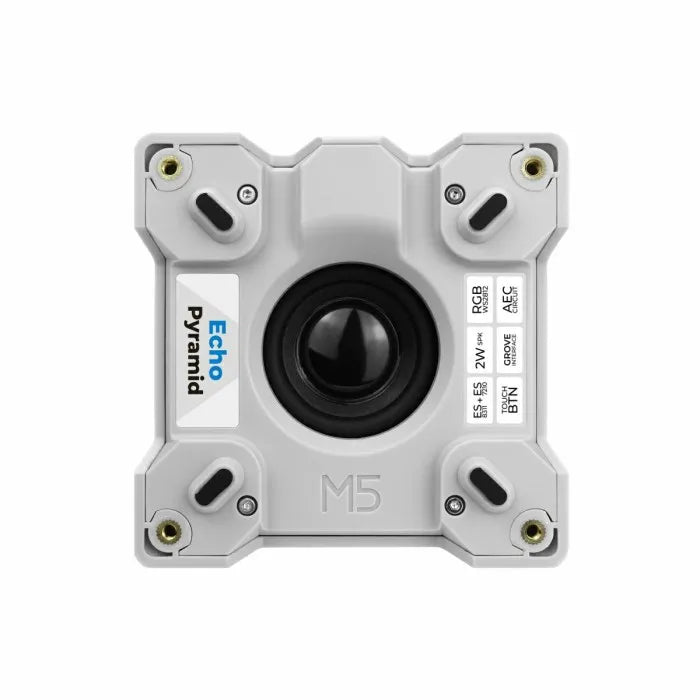

M5Stack Voice Pyramid Smart Speaker Base without M5Atom speaker front close-up

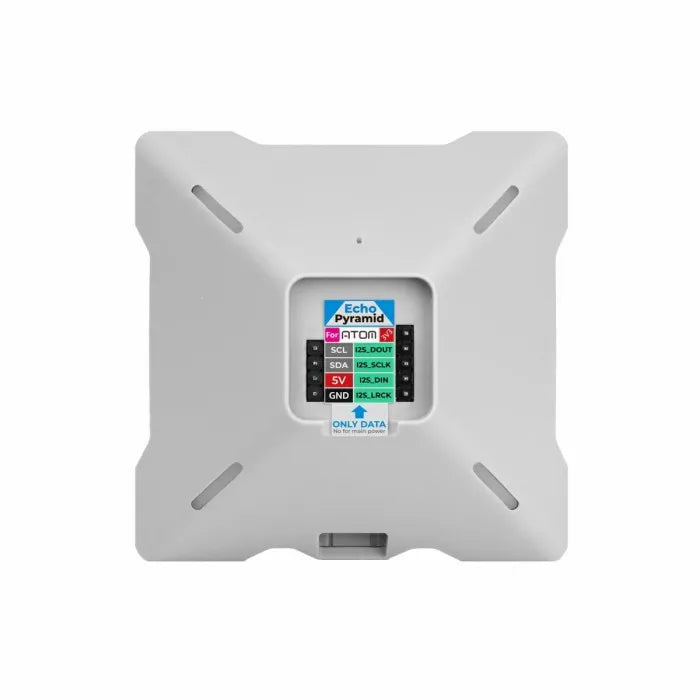

M5Stack Voice Pyramid Smart Speaker Base without M5Atom top view

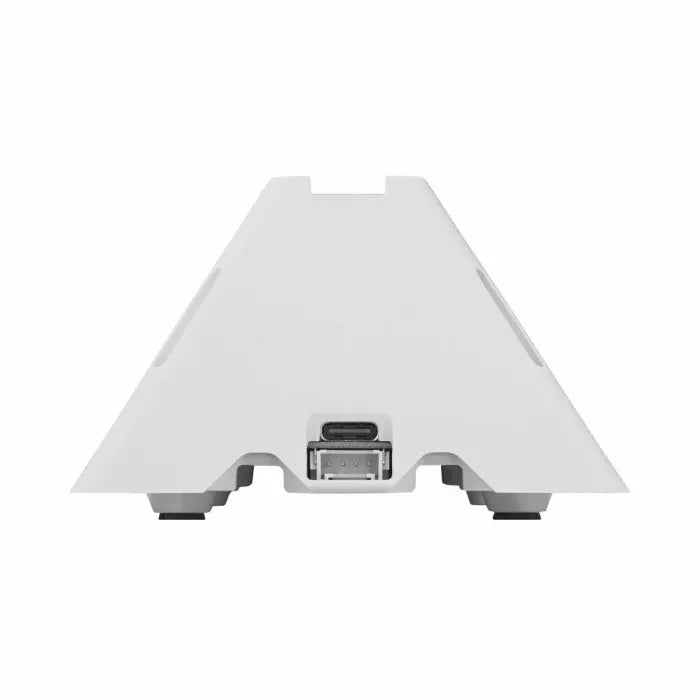

M5Stack Voice Pyramid Smart Speaker Base without M5Atom USB Type-C side view

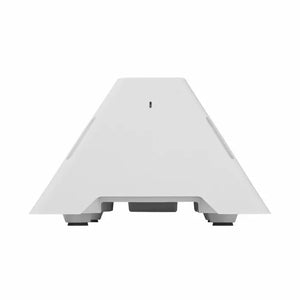

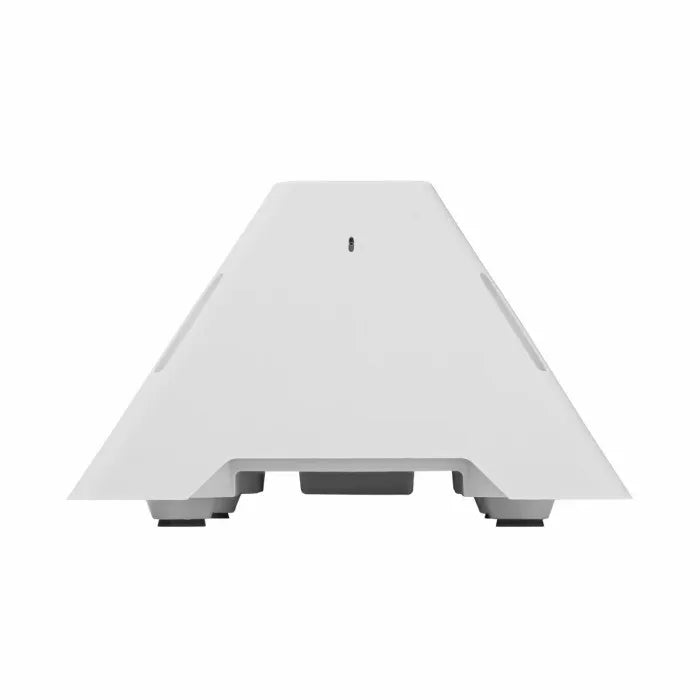

M5Stack Voice Pyramid Smart Speaker Base without M5Atom rear side view
M5Stack Voice Pyramid Smart Speaker Base without M5Atom white background front angle view
M5Stack Voice Pyramid Smart Speaker Base without M5Atom speaker front close-up
M5Stack Voice Pyramid Smart Speaker Base without M5Atom top view
M5Stack Voice Pyramid Smart Speaker Base without M5Atom USB Type-C side view
M5Stack Voice Pyramid Smart Speaker Base without M5Atom rear side view

M5Stack Voice Pyramid Smart Speaker Base without M5Atom

SKU: M5-A167
Regular price 38,80 € Sale price 30,29 €
22% OFF
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
M5Stack Voice Pyramid Smart Speaker Base without M5Atom white background front angle view

M5Stack Voice Pyramid Smart Speaker Base without M5Atom

30,29 €

Description

M5Stack Voice Pyramid is a desktop smart speaker base for M5Stack Atom series controllers, including Atom, AtomS3, and AtomS3R. It is supplied as a base without a controller and adds a larger acoustic structure, audio input and output, capacitive touch interaction, and RGB feedback for voice assistant and smart home projects.

The base combines an STM32G030F6P6 co-processor for touch and RGB control, an ES8311 audio codec, an ES7210 microphone acquisition chip with AEC, an AW87559 Class-D speaker driver, and a Si5351 programmable clock generator. It is intended for compatible M5Stack Atom series controllers; Atom Voice is not compatible with Voice Pyramid.

Notice: Do not use Voice Pyramid together with Atom Voice. M5Stack warns that this may result in device damage. The controller is not included with the Voice Pyramid base.

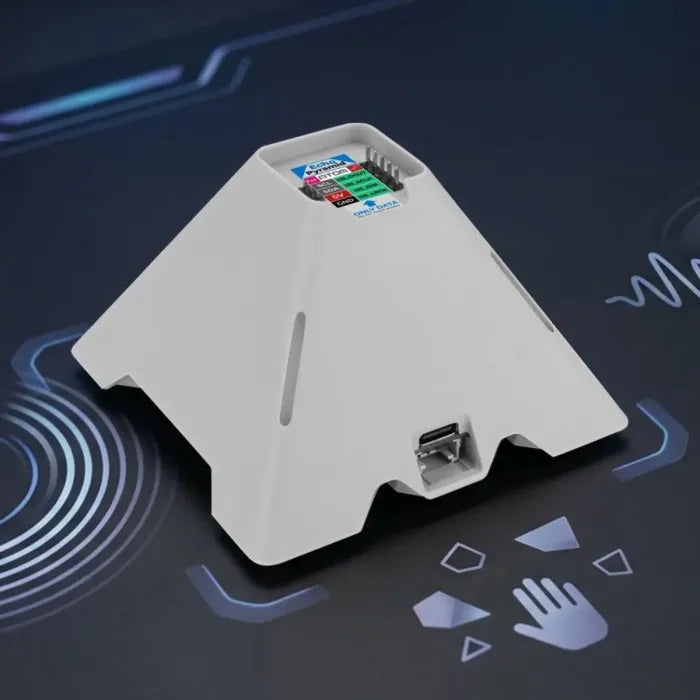

M5Stack Voice Pyramid touch slider and RGB layout

Features

  • Atom series compatibility: designed for compatible M5Stack Atom series controllers, including Atom, AtomS3, and AtomS3R; Atom Voice is excluded.
  • STM32G030F6P6 co-processor for touch sensing and RGB lighting control.
  • ES8311 audio codec for audio playback and signal processing.
  • ES7210 microphone acquisition with AEC for clearer voice input.
  • AW87559 Class-D amplifier for the built-in speaker.
  • Si5351 programmable clock generator for the audio path.
  • Dual-side capacitive touch sliders with four touch detection points.
  • 28 WS2812 RGB LEDs for programmable visual feedback.
  • HY2.0-4P expansion port and bottom USB Type-C power input.

Specifications

Specification Parameter
Compatible Controller Family M5Stack Atom series, including Atom, AtomS3, and AtomS3R; excludes Atom Voice
Controller Included No, Voice Pyramid base only
Co-processor STM32G030F6P6
Audio Codec ES8311
Audio ADC ES7210
Microphone LMA3729T381-0Y3S
Amplifier AW87559
Clock Generator Si5351
Indicator LEDs 28 × WS2812 RGB LEDs
Touch Function Dual-side touch-slider zones with 4 touch points
Input Power DC 5V
Expansion Port 1 × HY2.0-4P
Standby Current 14.92mA
Operating Current 578.47mA maximum volume output with controller connected
Operating Temperature -10°C to 60°C
Product Size 83.6 × 83.6 × 56.7mm
Product Weight 100.7g
Package Size 93.0 × 86.0 × 56.0mm
Gross Weight 145.1g

M5Stack Voice Pyramid model size drawing

Applications

M5Stack Voice Pyramid is suited to smart speakers, desktop voice assistants, voice control hubs, local or cloud voice interaction prototypes, and IoT voice gateways.

  • Home Assistant voice terminals with a compatible Atom series controller.
  • Far-field voice assistant and wake-word interaction projects.
  • Desktop Bluetooth audio and touch-controlled speaker experiments.
  • IoT voice gateways and connected smart control prototypes.
  • M5Stack voice UI development with RGB and touch feedback.

Home Assistant tutorial

Xiaozhi voice assistant tutorial

Bluetooth speaker tutorial

Product List

  • 1 × Voice Pyramid base

The compatible Atom series controller is not included.

Other Content

Installation and compatibility: align a compatible Atom series controller with the reserved pin header and press it vertically into place. Atom Voice must not be used with Voice Pyramid.

  • The RGB light bars are divided into RGB CH1 and RGB CH2.
  • The touch system provides TP1, TP2, TP3, and TP4 points for swipe or single-point interaction.
  • Power the base through the bottom USB Type-C port or the bottom HY2.0-4P DC 5V input.
  • Use the product only with compatible Atom series controllers; the Atom Voice controller is excluded.

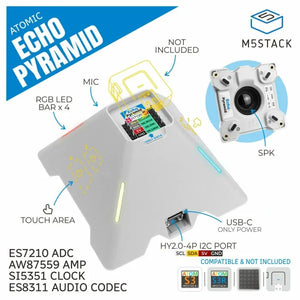

M5Stack Voice Pyramid power and interaction overview

M5Stack Voice Pyramid schematic overview

For an all-in-one compact voice controller, see the M5Stack Atom VoiceS3R Smart Speaker Dev Kit.

Resources

FAQ

Does Voice Pyramid include an Atom controller?

No. Voice Pyramid is the base only, and the compatible Atom series controller must be supplied separately.

Which M5Stack controllers are compatible?

Use a compatible controller from the M5Stack Atom series, including Atom, AtomS3, and AtomS3R. Atom Voice is not compatible with Voice Pyramid.

Can I use Atom Voice with Voice Pyramid?

No. Do not use Voice Pyramid together with Atom Voice because M5Stack warns that this may result in device damage.

What voice projects does the Voice Pyramid support?

The documented use cases include Arduino control, Home Assistant voice assistants, Xiaozhi voice assistants, Bluetooth speakers, and IoT voice gateways.
