M5Stack Camera Module 8MP for LLM630 Kit (SC850SL)

M5Stack Camera Module 8MP for LLM630 Kit (SC850SL)

52,45 €

Description

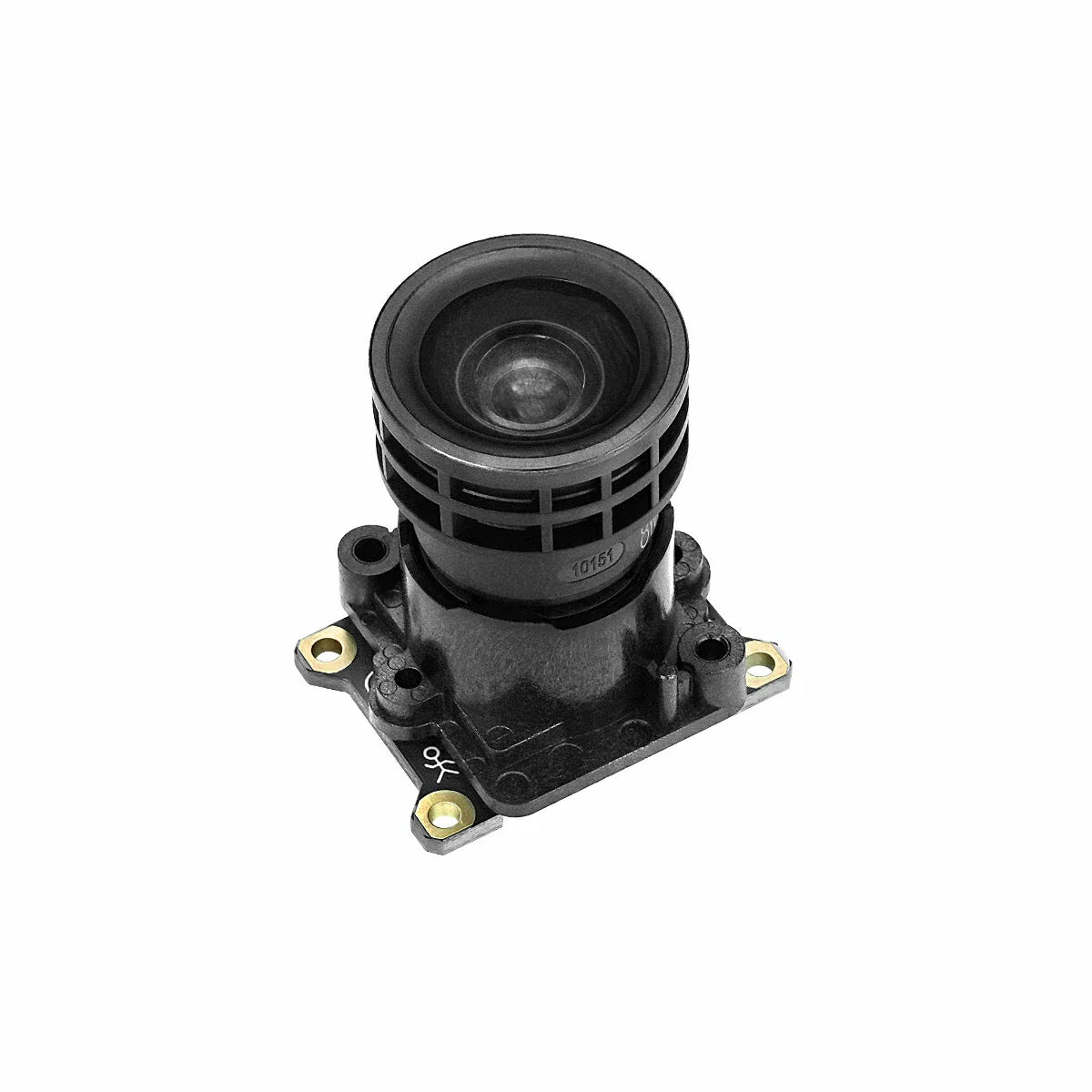

CamModule SC850SL is an 8MP high-performance camera module customized for the LLM630 Compute Kit. It integrates the SmartSens SC850SL CMOS sensor and supports 4K video capture, HDR wide dynamic range, and low-light high sensitivity for stable imaging in complex lighting conditions.

The module uses a 200mm FPC cable and sends image data to the LLM630 through a 4-lane MIPI CSI-2 interface. With low read noise, high signal-to-noise ratio, and low power consumption, the CamModule SC850SL is well suited for real-time AI inference, intelligent analysis, object detection, image classification, and visual navigation.

For intelligent monitoring, robotic vision, drone inspection, and smart city applications, the CamModule SC850SL provides a compact camera path for edge AI systems that need reliable 8MP imaging and flexible installation.

Notes

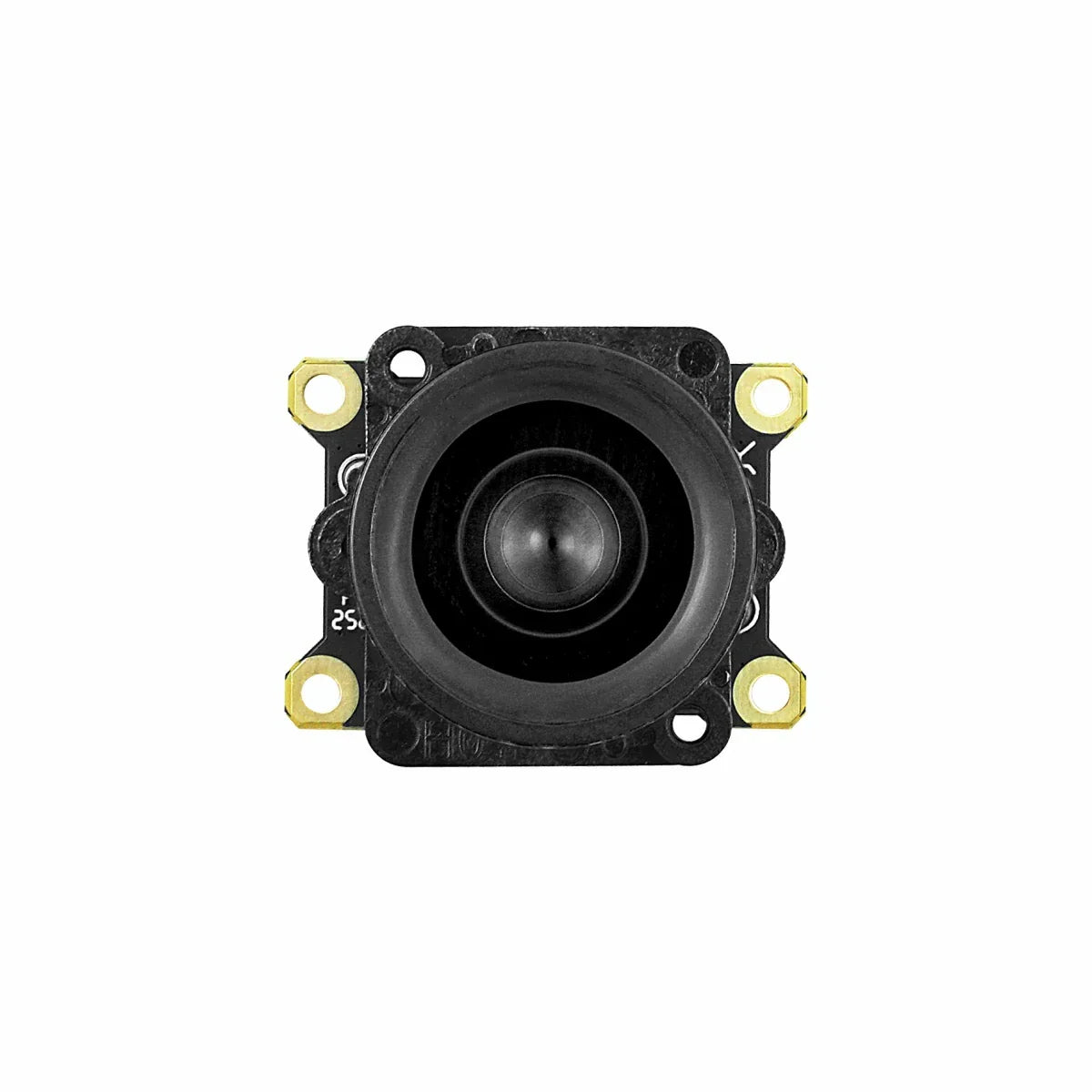

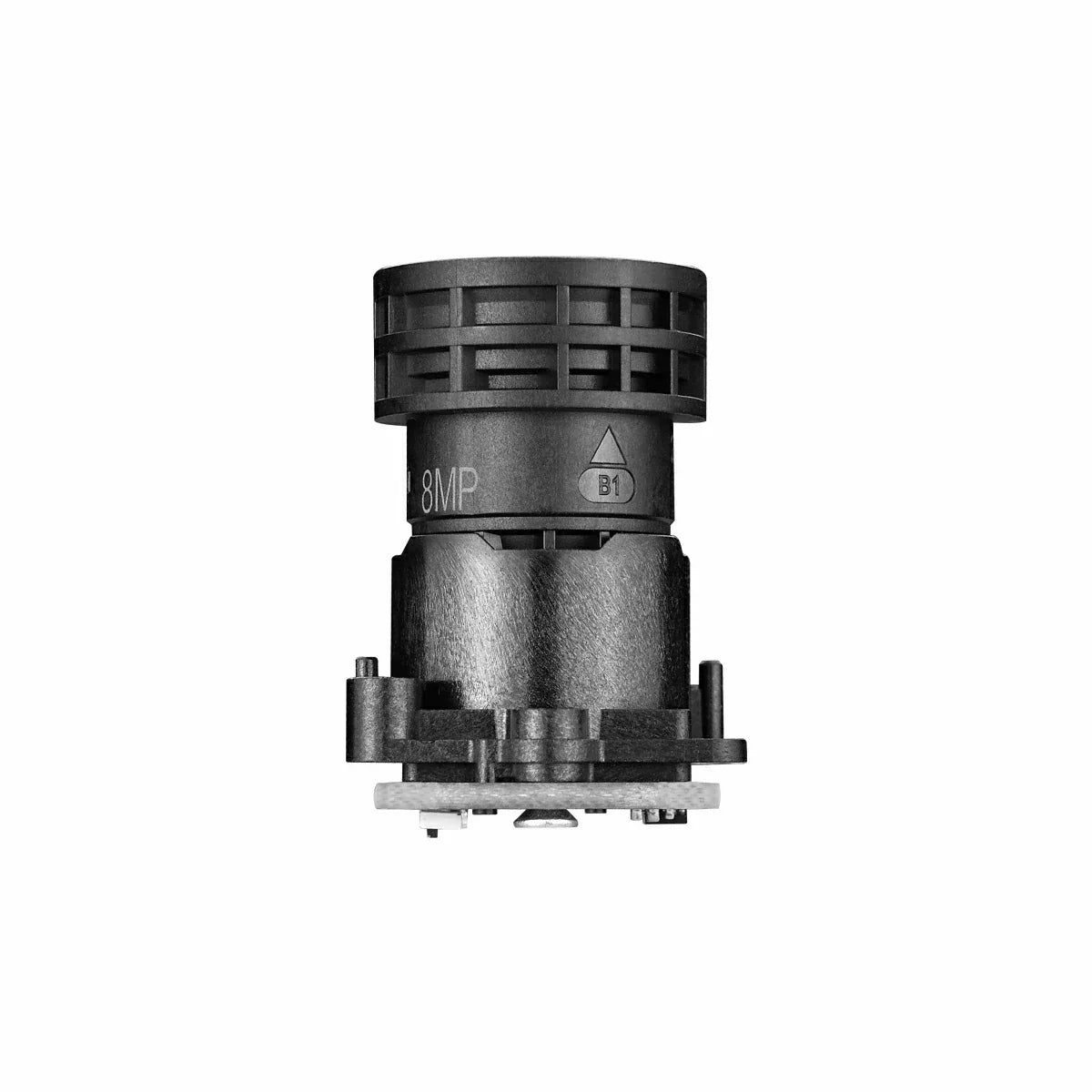

A human figure icon is printed on the camera to indicate the installation direction. Install the camera according to the indicated position.

Features

  • CamModule SC850SL design: customized for the LLM630 Compute Kit and AI vision workflows.
  • 8MP SmartSens sensor: SC850SL CMOS sensor with 3856H x 2176V pixel array.
  • 4K imaging: supports 3840 x 2160 video capture at up to 60 fps.
  • Image quality: supports HDR, high signal-to-noise ratio, high dynamic range, and strong low-light performance.

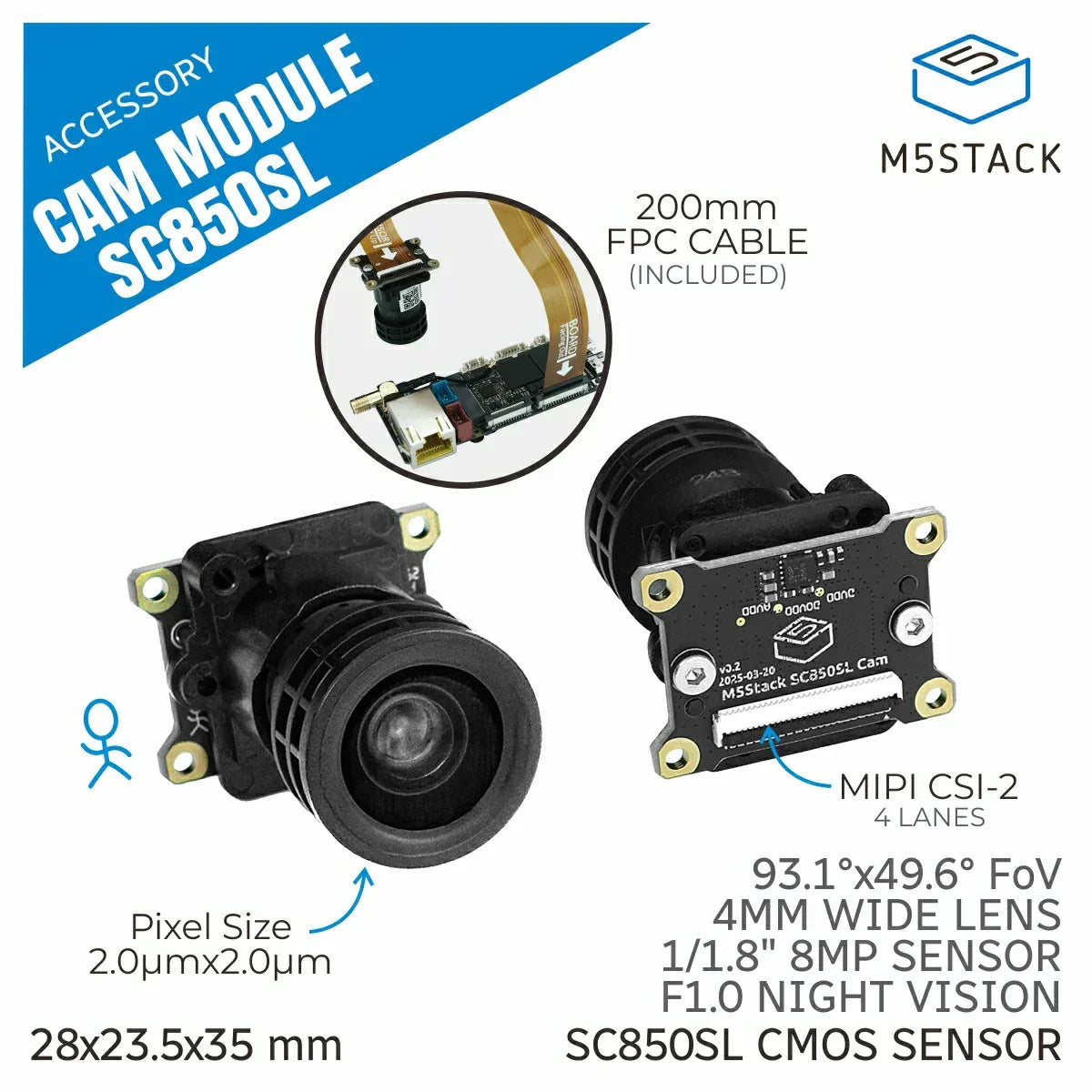

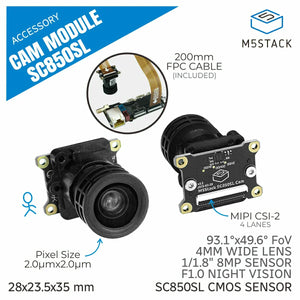

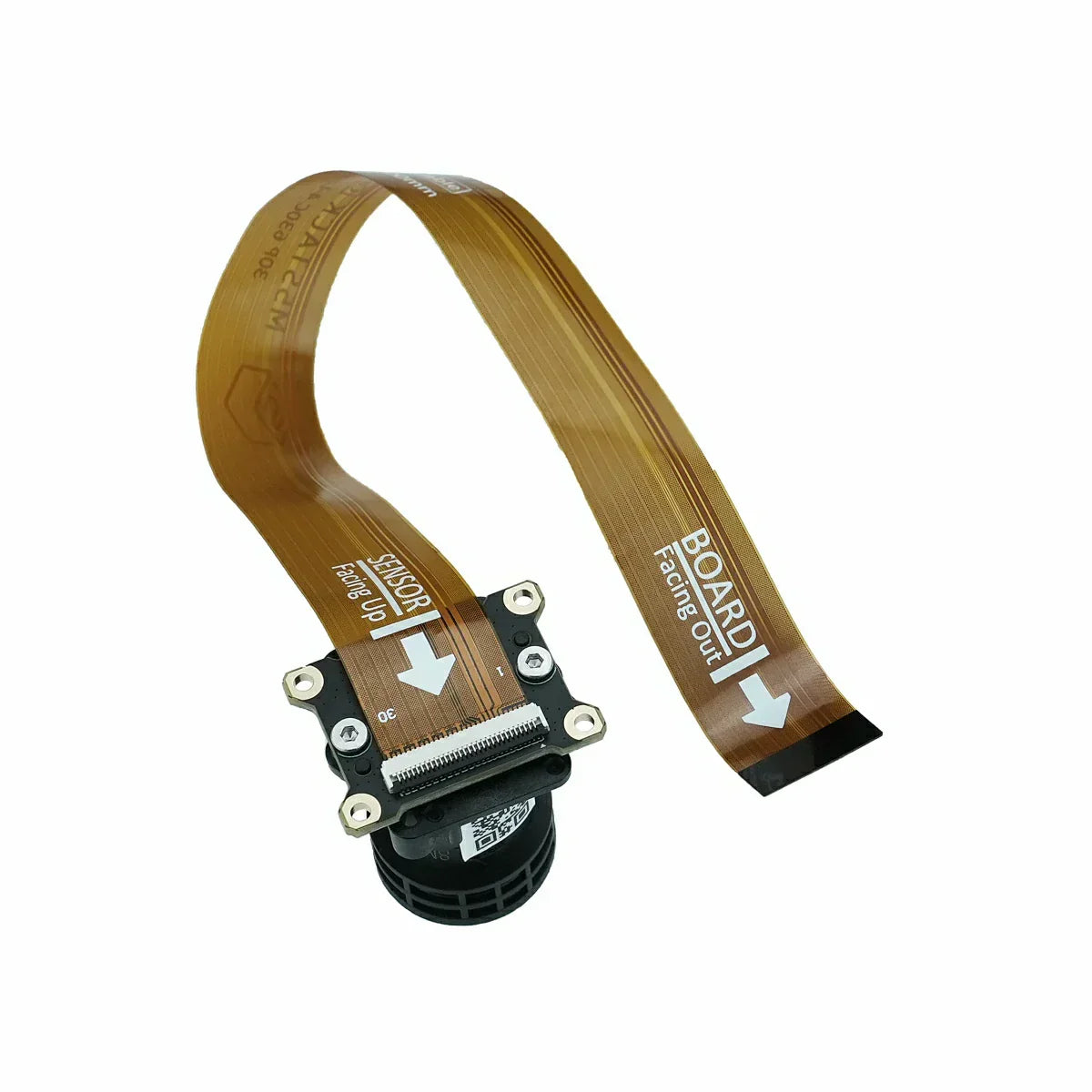

  • Camera interface: 4-lane MIPI CSI-2 image output through a 200mm FPC cable.
  • AI-ready use: supports intelligent monitoring, robotic vision, drone inspection, and smart city vision projects.

Specifications

Image sensor SmartSens SC850SL CMOS
Resolution 8 MP
Pixel array 3856H x 2176V
Pixel size 2.0um x 2.0um
Optical format 1/1.8 inch
Max frame rate 3840 x 2160 @ 60 fps
Output interface MIPI CSI-2, 4 lanes
Image format RAW RGB
Diagonal field of view 110.8 degrees
Photosensitivity 5034 mV/(Lux*s)
Dynamic range Up to 100dB in HDR mode; 75dB in linear mode
Signal-to-noise ratio 39dB
Operating temperature -30 deg C to +85 deg C
Optimal image quality temperature -20 deg C to +60 deg C

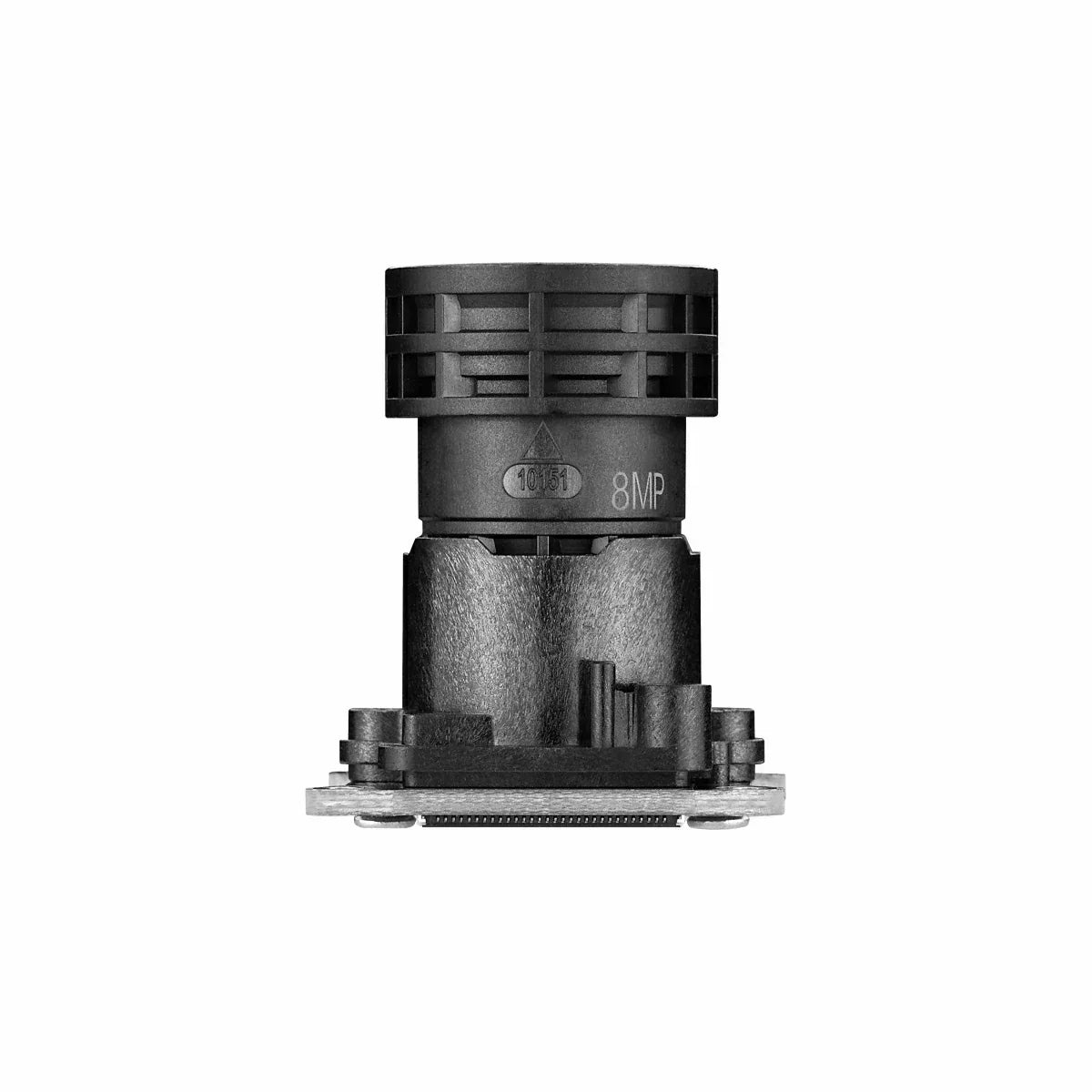

Lens specs M16 interface, YT10151-8MP-4mm lens
Connection method 200mm FPC cable
Module size 28.0 x 23.5 x 33.9mm
Module weight Single camera: 13.0g
Package size 80.0 x 52.0 x 22.0mm
Gross weight 27.3g

Applications

  • CamModule SC850SL camera integration for LLM630 Compute Kit AI vision projects.
  • Intelligent monitoring and edge camera systems.
  • Robotic vision, visual navigation, and image classification workflows.
  • Drone inspection and smart city infrastructure applications.

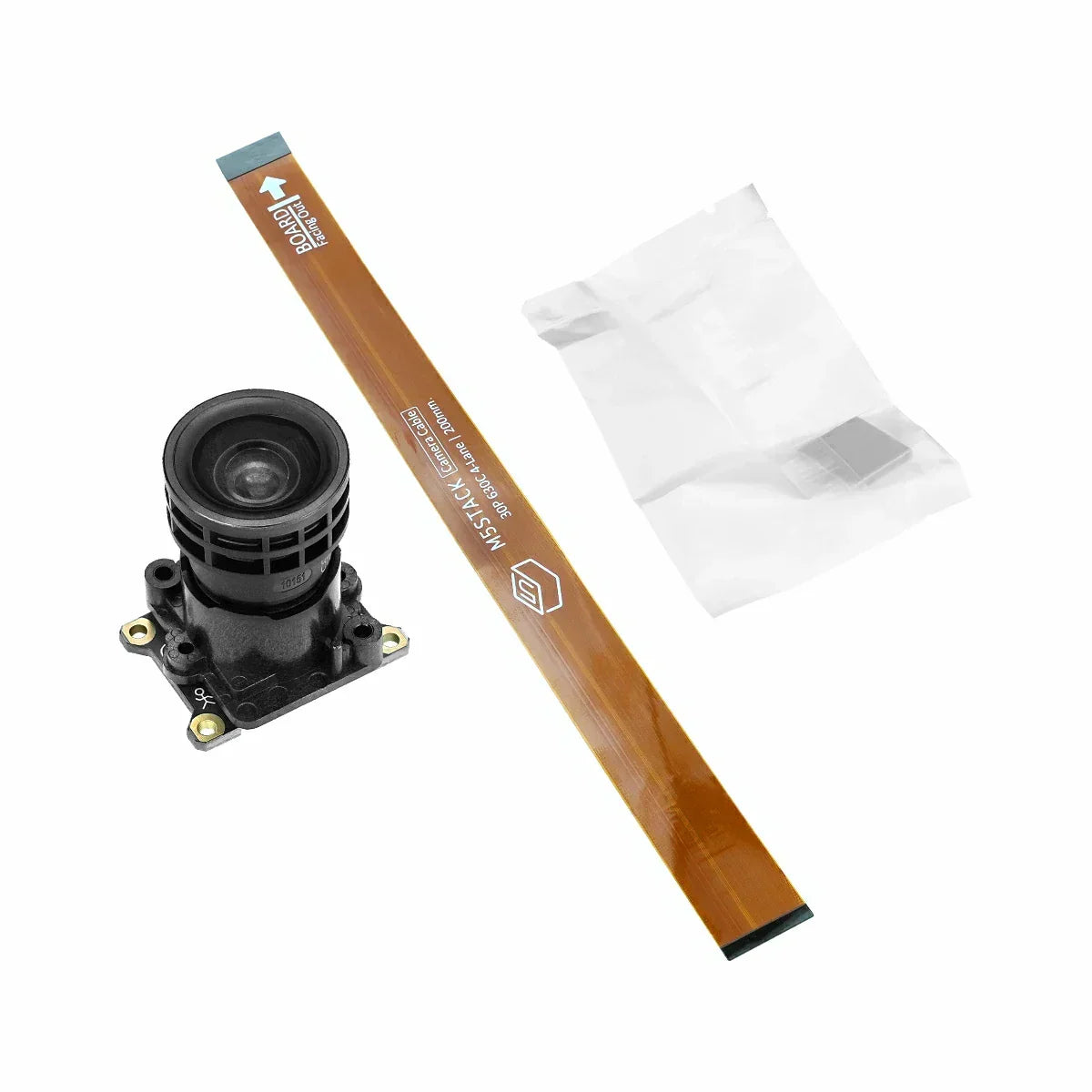

Product List

  • 1 x CamModule SC850SL
  • 1 x 200 mm FPC cable
  • 1 x Thermal pad

Other Content

AI-ISP image processing with the LLM630 Compute Kit can enhance low-light imaging performance. AI-ISP is enabled by default and uses half of the NPU computing power.

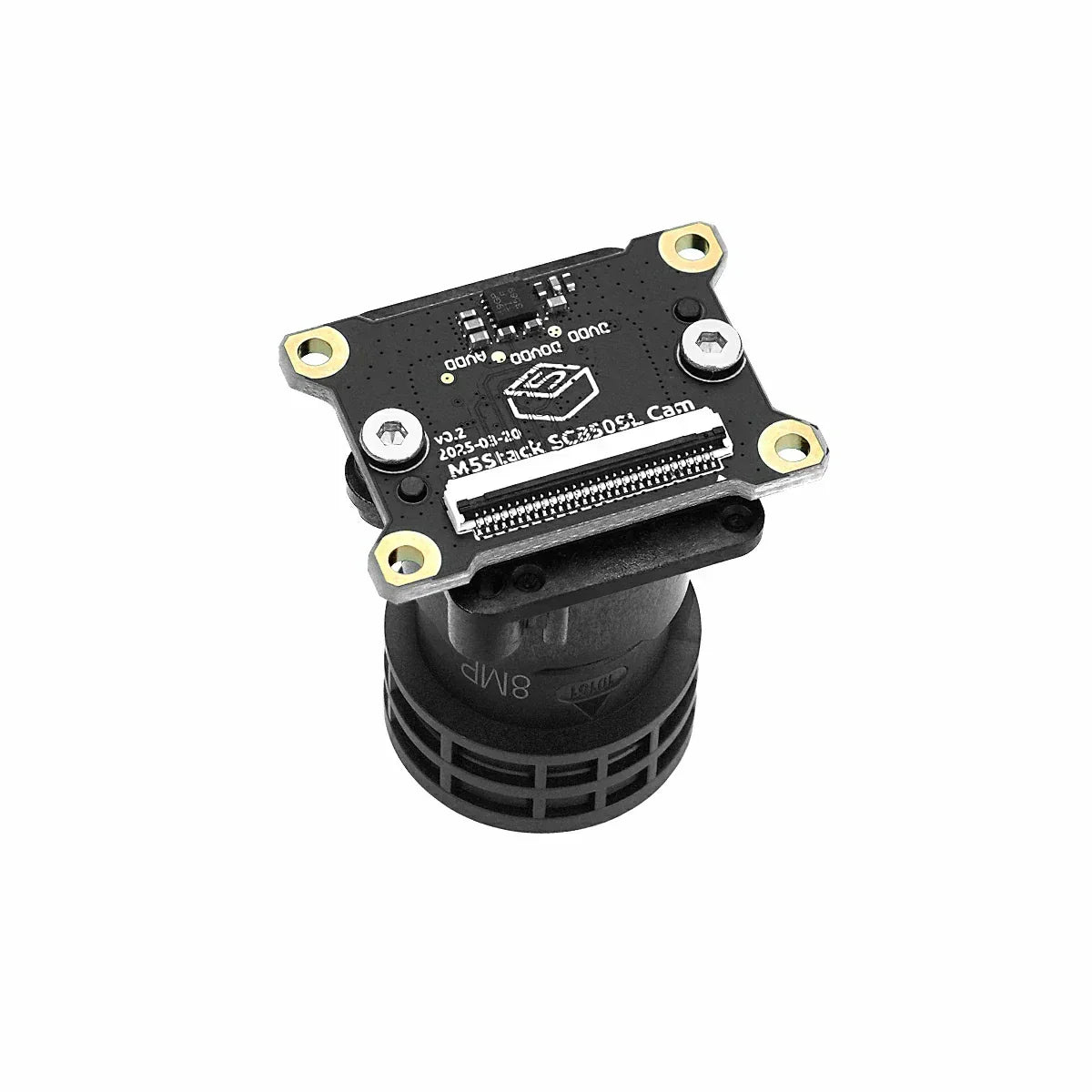

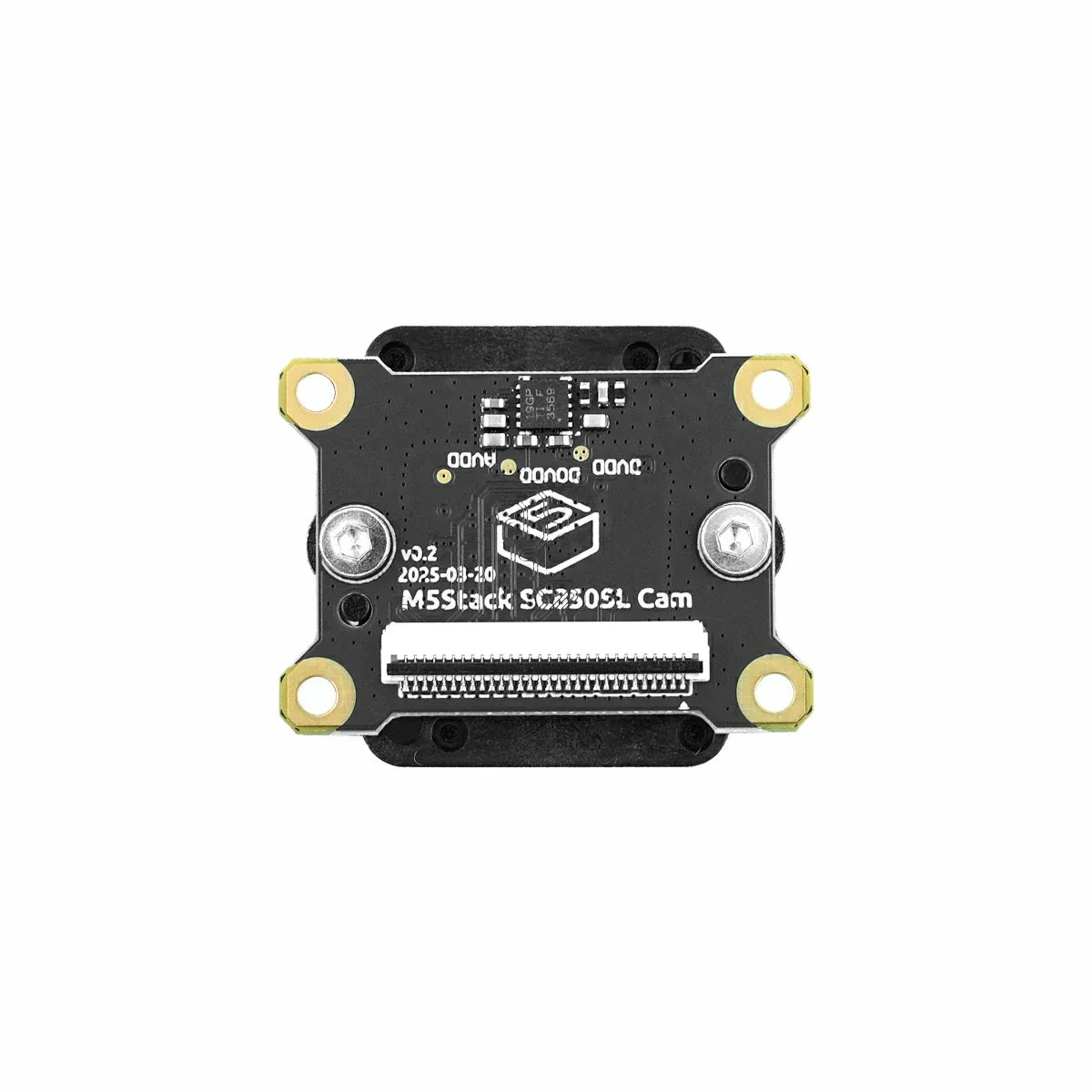

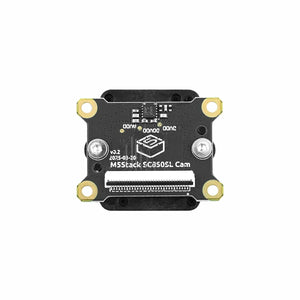

The pin map includes power, I2C control, reset, master clock, and MIPI receive lanes. Check the schematic and model dimensions before fixing the camera inside a mechanical structure.

Resources

CamModule SC850SL product document

CamModule SC850SL schematic PDF

CamModule SC850SL model dimensions PDF

LLM630 Compute Kit IPC network camera guide

LLM630 StackFlow API camera demo

LLM630 StackFlow DepthAnything camera demo

LLM630 StackFlow Yolo11n visual camera demo

FAQ

Which host is this camera designed for?

It is customized for the LLM630 Compute Kit.

What sensor does it use?

It uses the SmartSens SC850SL 8MP CMOS sensor.

What video capability does it support?

It supports 3840 x 2160 video capture at up to 60 fps.

How should the camera direction be installed?

Use the human figure icon printed on the camera as the installation direction indicator.
