USB Type-C LiPo Battery Charger Module: 3.7V Lithium Ion Charging

SKU: DF-DFR0668
Sale price 6,25 €
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
Lipo Charger-Type C-1

USB Type-C LiPo Battery Charger Module: 3.7V Lithium Ion Charging

6,25 €

This Type-C LiPo Charger is a compact, high-efficiency charging module designed for single-cell 3.7V lithium batteries. Powered by the TP4056X charging IC, this USB-C battery charger delivers safe, fast, and adjustable charging, making it ideal for embedded and DIY electronics projects. Every lithium ion charging board supports three selectable charging currents (50mA, 200mA, 500mA) to accommodate different battery capacities. Using a Type-C LiPo Charger ensures modern connectivity for your Li-ion battery charging needs.



Features

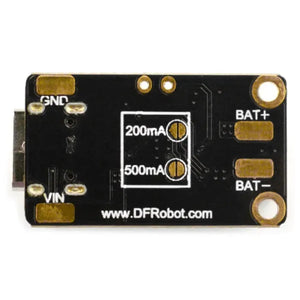

  • Supports 50mA / 200mA / 500mA charging current settings on the Type-C LiPo Charger

  • TP4056X IC with built-in thermal feedback protection for this lithium ion charging board

  • Compact size for easy integration: 16.5 x 28 mm USB-C battery charger

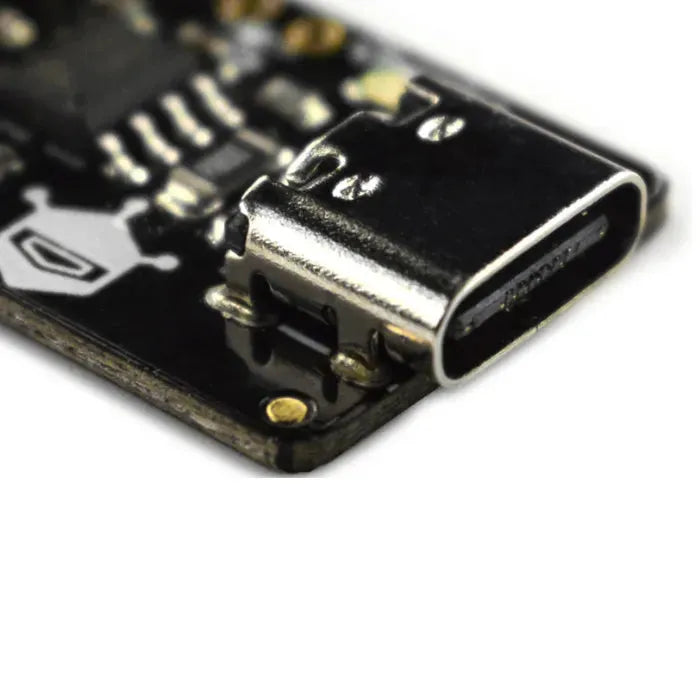

  • Type-C input port for universal compatibility with any Type-C LiPo Charger setup

  • 3-stage charging: trickle, constant current, and constant voltage for the lithium ion charging board

  • Built-in LED status indicator, with external indicator support on the USB-C battery charger

  • Safe for unattended operation, protects the Type-C LiPo Charger against overheating



Recommended Charging Current (Based on Battery Capacity)

Battery Capacity Recommended Charging Gear
100–400mAh 50mA
400–1000mAh 200mA
Above 1000mAh 500mA

Note: Do not use high current settings with small-capacity batteries on your Type-C LiPo Charger. This may damage or overheat the battery during the lithium ion charging board process.



Technical Specifications

  • Input Voltage: 5V (via USB Type-C) for the USB-C battery charger

  • Charging Currents: Selectable 50mA, 200mA, or 500mA on this Type-C LiPo Charger

  • Charging Voltage: 4.2V ±1% for the lithium ion charging board

  • Operating Temperature: -40℃ to 85℃ for safe USB-C battery charger usage

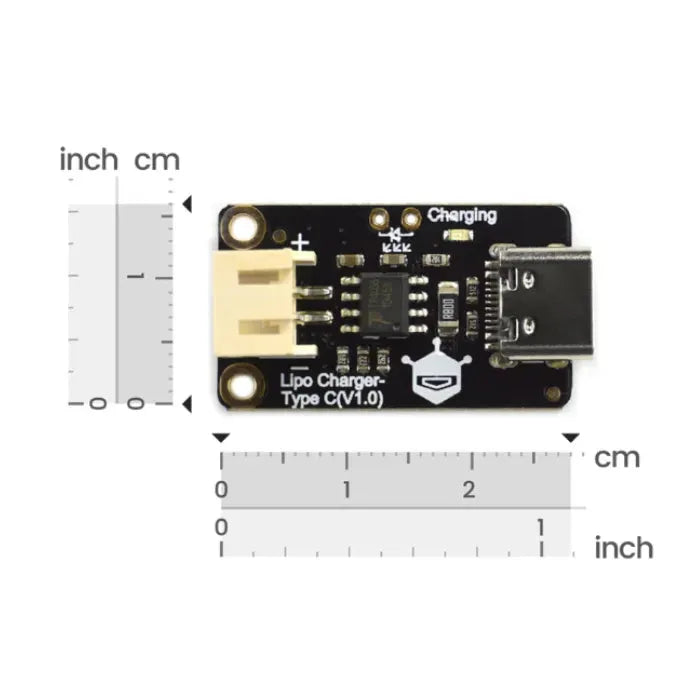

  • Dimensions: 16.5 x 28 mm (0.65 x 1.10 inches) Type-C LiPo Charger profile



LED Charging Indicator

  • Flashing: No battery connected to the lithium ion charging board

  • On (solid): Charging via the USB-C battery charger

  • Off: Fully charged battery on the Type-C LiPo Charger

  • External indicator connection is available for custom lithium ion charging board applications.



Applications

  • DIY electronics and embedded systems using a Type-C LiPo Charger

  • Rechargeable IoT devices powered by a lithium ion charging board

  • Wearable battery packs with an integrated USB-C battery charger

  • Lithium battery-powered sensors and projects with a Type-C LiPo Charger



Package Includes

  • LiPo Charger – Type-C (3.7V TP4056X) x1
