KST A08 V6.0 Coreless Metal Gear HV Micro Servo 3.2Kgf.cm 0.09sec

SKU: KST-A08-V60
Sale price 61,60 €
incl. VAT

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Shipping within 72 hours

*Excluding pre-order items

Add to Wishlist
KST A08 V6.0 Coreless Metal Gear HV Micro Servo 3.2Kgf.cm 0.09sec-1

KST A08 V6.0 Coreless Metal Gear HV Micro Servo 3.2Kgf.cm 0.09sec

61,60 €

The KST A08 V6.0 Coreless Metal Gear HV Micro Servo is a compact high-performance micro servo for DLG, F5K, and other demanding glider applications. The verified specification lists up to 3.2Kgf.cm torque at 8.4V and 0.09sec/60° speed at 8.4V.

The A08 V6.0 uses a coreless DC motor, hardened steel gear set, aluminum alloy case, potentiometer feedback, and 2BB bearing construction in a slim 23.5 x 8 x 19mm package.

For setup flexibility, the A08 V6.0 is listed as programmable and is described for adjustment with KST Tool Card #1 / KST Tool Card #5. Confirm endpoints, direction, horn fit, and power-system limits before installation.


Product Images

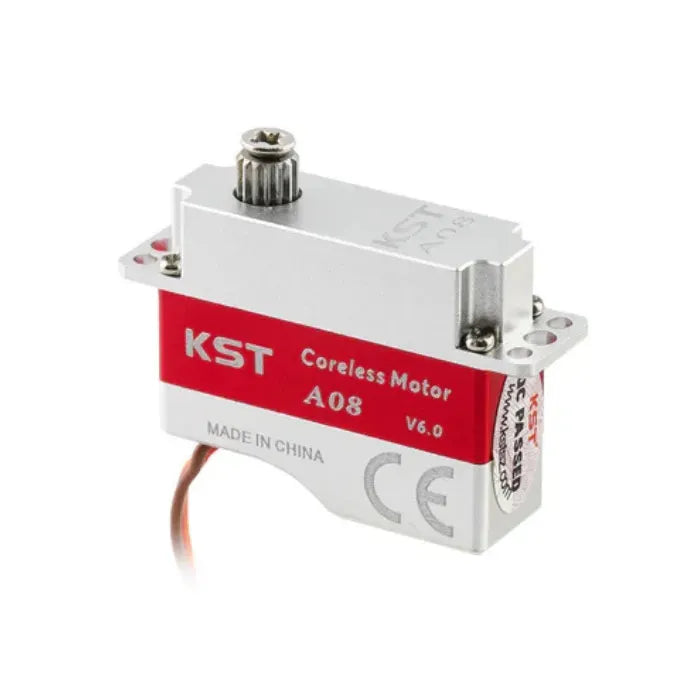

KST A08 V6.0 coreless metal gear HV micro servo

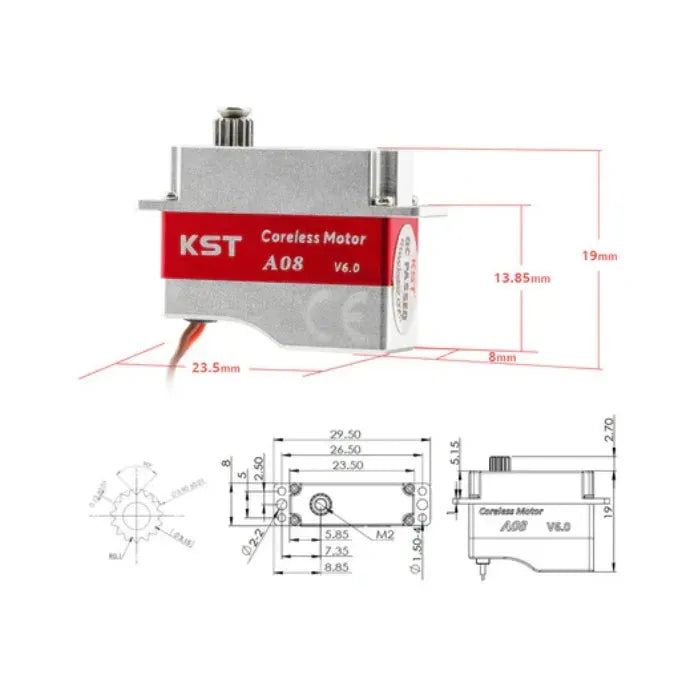

KST A08 V6.0 servo size diagram

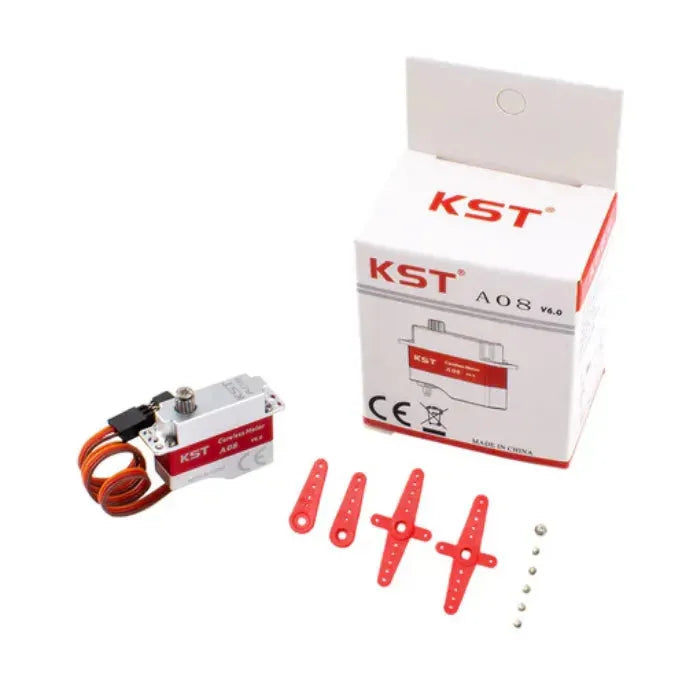

KST A08 V6.0 servo package contents


Features

  • 3.2Kgf.cm peak torque - Listed maximum torque is 3.2Kgf.cm at 8.4V.
  • 0.09sec fast response - Reaches 0.09sec/60° at 8.4V.
  • HV operating range - Supports DC 3.8V-8.4V according to the existing technical data.
  • Coreless DC motor - Provides smooth movement for precision glider control.
  • Hardened steel gears - Helps improve durability in compact control linkages.
  • Aluminum alloy case - Adds rigidity while keeping the servo slim.
  • Dual ball bearings - Uses 2BB support for stable output operation.
  • Programmable setup - Supports endpoint, center, and direction adjustment with compatible KST tool cards.
  • 8mm micro body - Fits narrow servo spaces in DLG and F5K builds.
  • 7g lightweight format - Helps preserve weight balance in small aircraft.

Specifications

Parameter Value
Model KST A08 V6.0
Rated Voltage DC 7.4V
Voltage Range DC 3.8V-8.4V
Torque 1.4Kgf.cm @ 3.8V; 2.2Kgf.cm @ 6.0V; 2.8Kgf.cm @ 7.4V; 3.2Kgf.cm @ 8.4V
Speed 0.20sec/60° @ 3.8V; 0.13sec/60° @ 6.0V; 0.10sec/60° @ 7.4V; 0.09sec/60° @ 8.4V
Working Frequency 1520μs / 333Hz
Default Travel Angle ±60° / 120° total
Temperature Range -10°C to +65°C
Programmable Yes
Case Material Aluminum alloy
Motor Type Coreless DC motor
Gear Set Material Hardened steel
Position Sensor Potentiometer
Ball Bearings 2BB
Case Dimensions 23.5 x 8 x 19mm ±0.2mm
Weight 7g ±10%
Shopify SKU KST-A08-V60

Reference Documents


Application

  • DLG gliders - Useful for compact high-response control-surface setups.
  • F5K gliders - Fits lightweight aircraft where torque and speed still matter.
  • Micro servo upgrades - Replace compatible servos after checking dimensions and signal settings.
  • Wing installations - Works in narrow spaces that require an 8mm-class micro servo.
  • Precision linkages - Supports fast response and compact mechanical control layouts.
  • Programmable RC setups - Can be tuned with compatible KST tool cards when installation requires endpoint or direction adjustment.

Packing List

Description Quantity
KST A08 V6.0 micro servo 1
Plastic servo horn 4
Mounting screw 4
Servo horn screw 1

FAQ

Does this product have multiple Shopify variants?

No. Shopify currently lists one variant, SKU KST-A08-V60.

How is A08 V6.0 different from A08N V6.0?

This A08 V6.0 product uses the standard mounting style. A08N is a separate lugless version, so choose based on the servo-bay mounting method.

What is the maximum listed torque?

The specification lists up to 3.2Kgf.cm at 8.4V.

What is the fastest listed speed?

The fastest listed speed is 0.09sec/60° at 8.4V.

Is it programmable?

Yes. The product copy and technical data list programmable support; setup can be adjusted with compatible KST tool cards.

What comes in the package?

The package includes 1 x A08 V6.0 micro servo, 4 x plastic servo horn, 4 x mounting screw, and 1 x servo horn screw.
