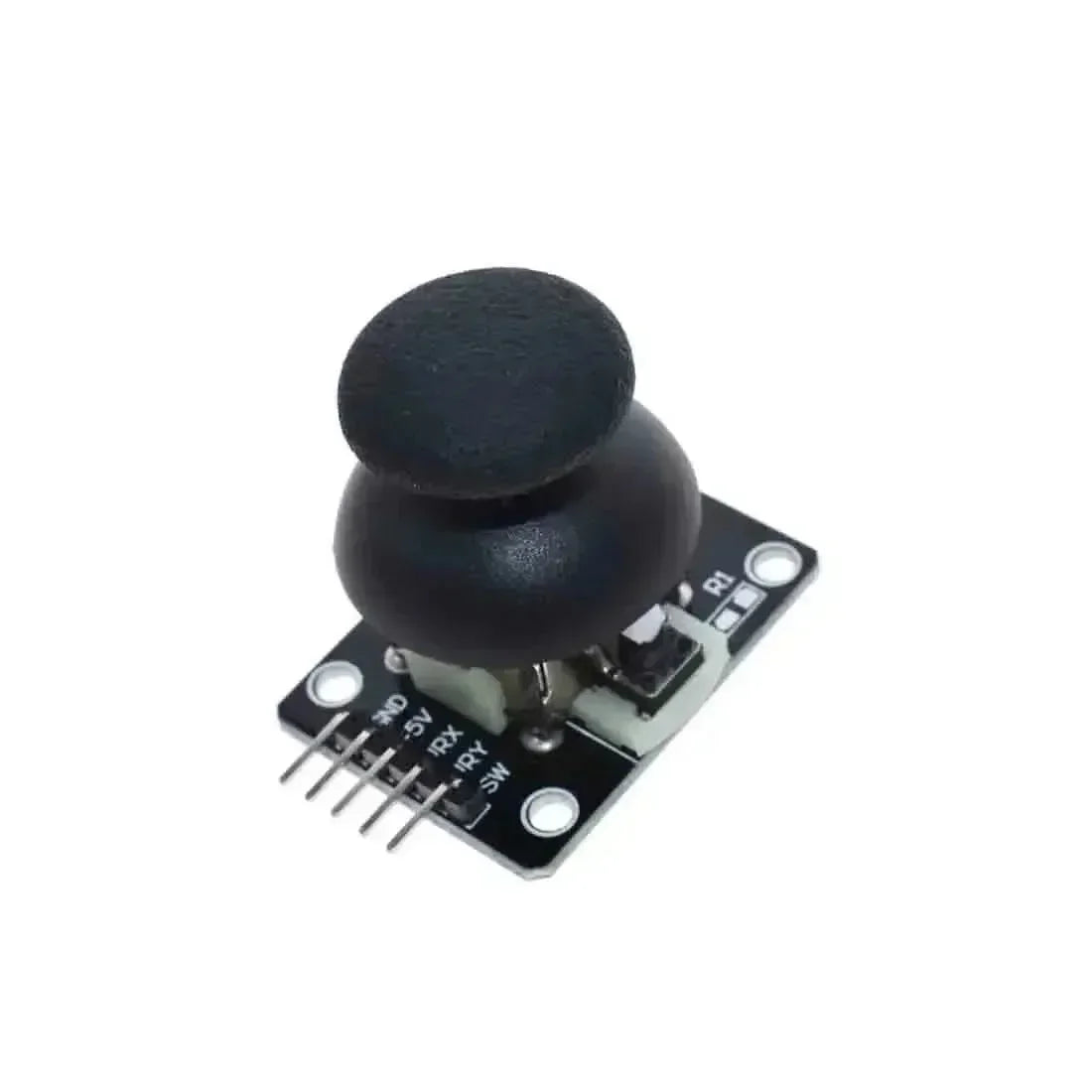

Dual Axis Gaming Joystick Moudle

This is game joystick module for Arduino.

Lots of robot projects need joystick. This module provides an affordable solution to that.

Simply connect to two analog inputs, the robot is at your commands with X, Y control. It also has a switch that is connected to a digital pin.

This joystick module can be easily connect to Arduino by normal IO Expansion Shield with supplied cables.

It is like a game console joystick, you can control the joystick module input x, y, z of joystick game controller module Joystick Values, and to achieve a particular value in a function, it can be considered a combination of buttons and a potentiometer.

Data Type of x, y dimension for the analog input signal is a digital input signal z dimension, therefore x and y are connected to the analog port Pin sensor end, and z port is connected to the digital port.

Dual (X, Y) 2-axis analog output, (Z) 1 digital output channel button.

In the design of the X, Y, Z circuit leads individually, you can use three dedicated lines really pin ARDUINO Plug into the expansion board for use, very convenient.

Brand: KEYES

Model: KY-023

Weight: 10.7g
