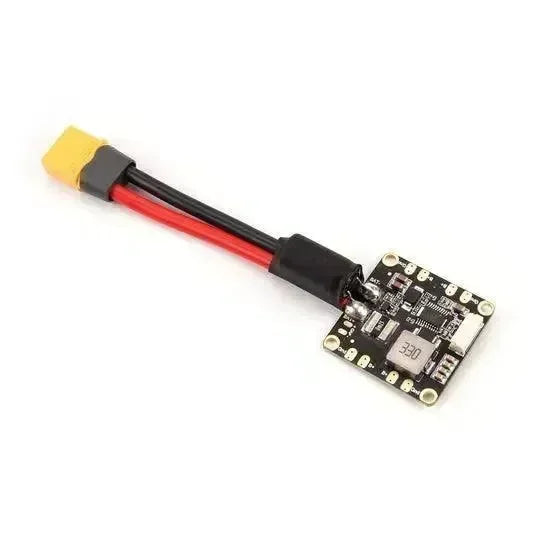

Holybro PM06 V2 Power Module 14S

This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.

Specifications：

• Input voltage (10S version): 2S-10S
• Input voltage (14S version): 2S-14S
• PCB Cont. Current Rating: 70A
• PCB Burst Current Rating: 120A (<60 Sec)
• Output: DC 5.2V & 3A Max
• Ouput Max Power : 18W
• Voltage Divider: 18.182
• Amperes per Volt: 36.364

Please Note:

• The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
• This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

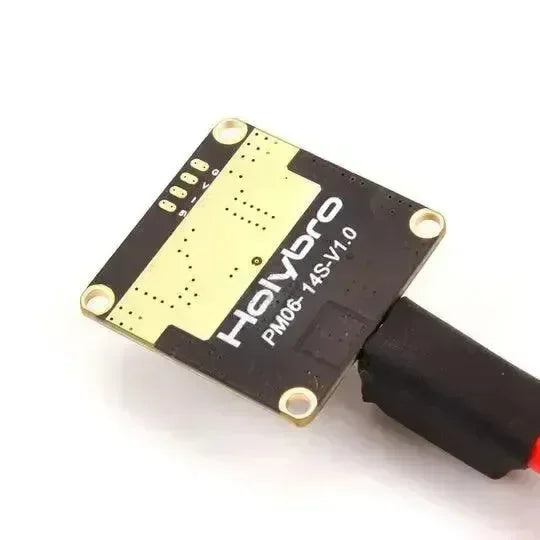

Mechanical Specification:

• Dimensions: 35x35x5mm
• Mounting hole: 30.5mm*30.5mm
• Weight: 24g

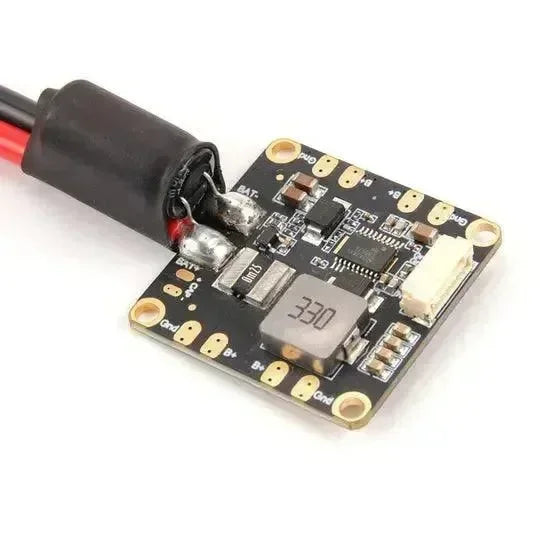

Pin Map:

Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.

Package Includes

• 1x  PM06 board
• 1x  80mm XT60 connector wire (installed)
• 1x  Electrolytic capacito: 220uF 63V(installed)

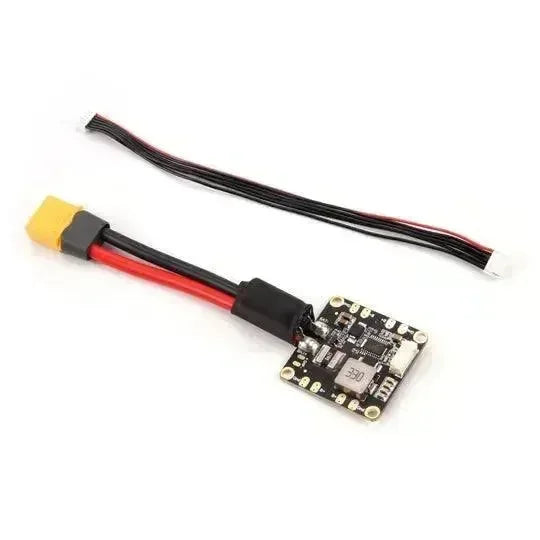

• 1x  JST GH 6pin cable
• 1x  JST SH 6pin cable
