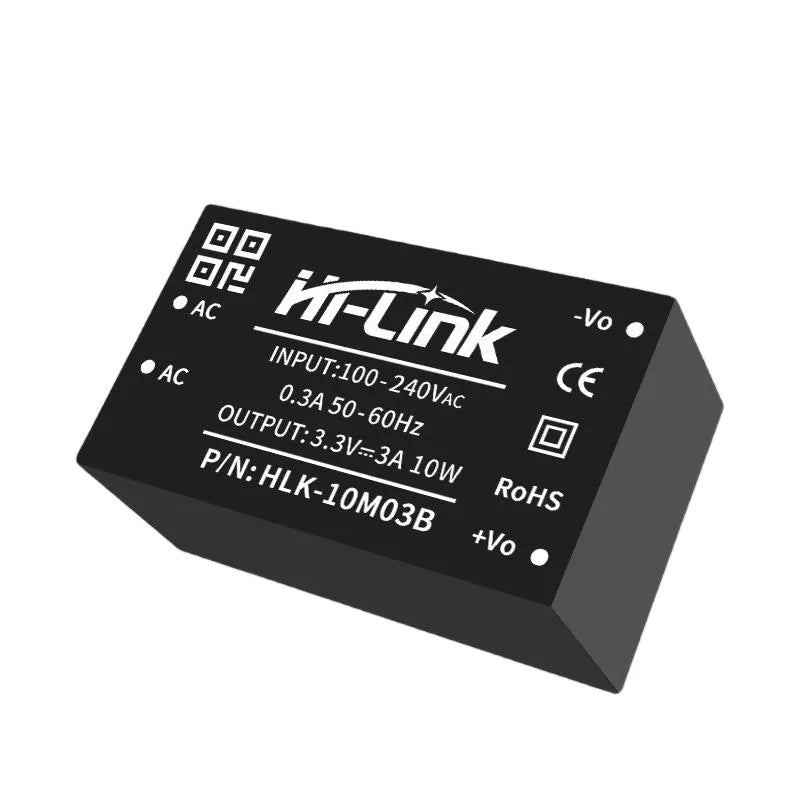

SKU: HLK-10M03B
Type: HLK-10M03B
Sale price 2,35 €
incl. VAT
excl. VAT

Shipping within 72 hours

*Excluding pre-order items

Visa
PayPal
Mastercard
American Express
Shop Pay

Ask a question

Guarantee & Return Policy

Effective Date: December 10, 2025

At OpenELAB, we are committed to providing accurate product descriptions and high-quality electronics. The following policy outlines your rights and obligations, designed to be fair to both our customers and our business operations globally.

1. Warranty Policy

A. Standard Limited Warranty (Global & US)

For customers in the United States, Asia, and other non-EU regions:

  • Warranty Period: OpenELAB provides a 12-month warranty from the date of delivery.

  • Coverage: This warranty covers defects in material and workmanship under normal use.

  • Resolution: We will repair or replace defective units at no charge.

B. Statutory Rights for EU/UK Customers (EU Compliance)

If you are a consumer residing in the European Union or the UK purchasing from our global site:

  • Statutory Guarantee: You are entitled to a 24-month statutory guarantee for conformity defects present at the time of delivery, in accordance with EU consumer protection laws.

  • Relation: The Standard Limited Warranty (Section 1.A) applies in addition to, and does not replace, your statutory rights.

C. Warranty Exclusions (Applies to ALL Regions)

Warranty coverage is VOID if the damage is caused by:

  1. Misuse: Incorrect installation, reverse polarity, or exceeding voltage limits.

  2. Unauthorized Modification: This explicitly includes soldering, cutting pins, modifying the PCB, or flashing unauthorized/beta firmware that "bricks" the device.

  3. Physical Damage: Drops, moisture/water damage, or electrical surges (lightning).

  4. Normal Wear & Tear: Consumable parts (e.g., batteries), unless defective upon arrival.

Note: For non-warranty repairs (e.g., customer-induced damage), we may offer repair services for a fee. Shipping and diagnostic costs will be borne by the customer.

2. Return & Refund Policy

A. Return Window

  • Standard: You may request a return within 31 days of receiving your order.

B. Refund Conditions & Restocking Fees

To protect against policy abuse, the refund amount is strictly determined by the condition of the returned item.

1. Full Refund (100%)

  • The item is Brand New, Unopened, and Unused.

  • The original packaging is intact and sealed.

  • All accessories are present.

2. Partial Refund (Restocking Fee / Value Depreciation)
If the item is returned in a condition that prevents it from being sold as new, OpenELAB reserves the right to deduct a Restocking Fee (for US/Global) or Compensation for Loss of Value (for EU) from the refund amount.
Deductions apply if:

  • Signs of Use: Visible scratches, mounting marks on screw holes, or fingerprints.

  • Damaged Packaging: Original box is torn, written on, or missing.

  • Technical Modification: The device has been soldered, permanently installed, or flashed with unauthorized firmware.

  • Broken Seals: Anti-static bags or security seals have been opened.

Depending on the severity of the usage/damage, the deduction may range from 15% to 50% of the product price. Items damaged beyond repair due to misuse will not be refunded.

C. Shipping Costs

  • Defective / Wrong Item: OpenELAB covers the return shipping cost.

  • Customer Remorse (Changed Mind / Ordered Wrong Item): The customer is responsible for all return shipping costs to our designated return center (located in the US, Germany, or China, depending on your region). Original shipping fees are non-refundable unless required by local law.

3. Return Process (RMA)

To ensure a smooth return process, please follow these steps:

  1. Authorization: Contact us at info@openelab.io before returning any item. Returns without prior authorization will not be accepted.

  2. RMA Number: We will provide you with a Return Merchandise Authorization (RMA) number and the correct return address.

  3. Packing: Ship the item back in its original packaging with the RMA number clearly marked on the shipping label (not on the product box).

  4. Tracking: We strongly recommend using a trackable shipping method. OpenELAB is not responsible for returns lost in transit.
Share

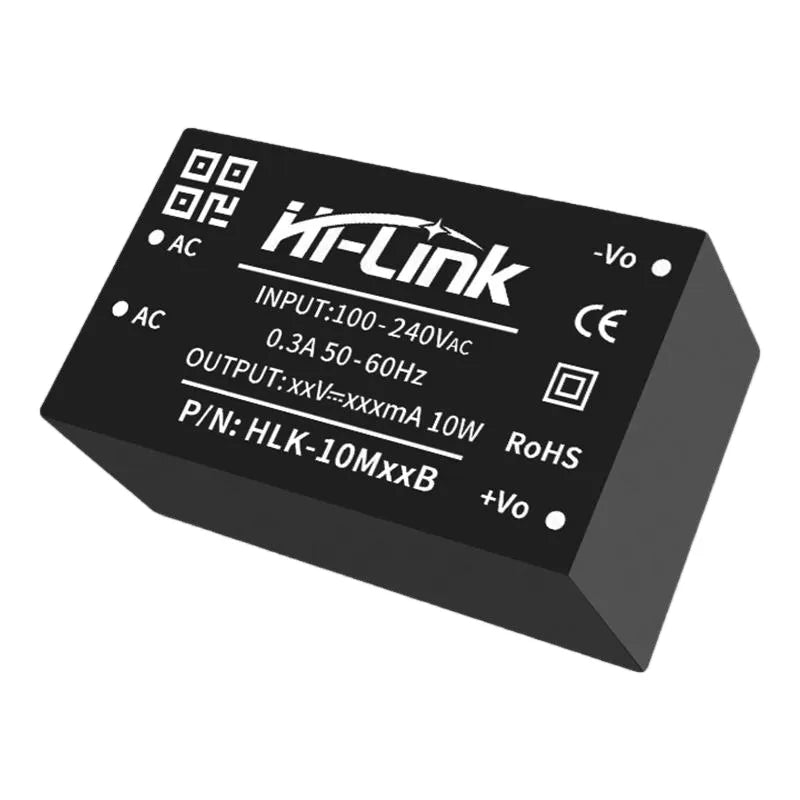

Hi-Link AC-DC 10W Power Module 110-240V to DC

Hi-Link AC-DC 10W Power Module 110-240V to DC

Hi-Link AC-DC Module 10W is a high-power compact AC-DC converter that transforms 110-240V AC mains voltage into stable DC output from 3.3V to 24V. This isolated switching power module delivers 10W rated power with efficiency ≥ 78%, making it the most powerful option in the Hi-Link module family. Ideal for industrial control, IoT gateways, smart home controllers, LED lighting, and power-hungry embedded systems that demand reliable mid-range DC power supply with minimal board space.

Specifications

  • Input Voltage: 110V - 240V AC (50/60Hz), universal mains compatible
  • Output Options: 3.3V / 5V / 9V / 12V / 15V / 24V DC (6 models available)
  • Rated Power: 10W continuous output power
  • Output Current: Up to 3000mA at 3.3V, 2000mA at 5V, 833mA at 12V
  • Efficiency: ≥ 78% typical under full load conditions
  • Isolation Voltage: ≥ 3000V AC input-to-output galvanic isolation
  • Ripple & Noise: Low output ripple for clean DC power delivery
  • Protection: Built-in overload protection, short-circuit protection, and over-temperature shutdown
  • Operating Temperature: -25°C to +70°C (industrial grade)
  • Dimensions: Compact PCB-mount design, slightly larger than 5W for improved heat dissipation

Applications

  • IoT Gateways: Power supply for Raspberry Pi, ESP32-based hubs, and multi-sensor gateways
  • Industrial Control: PLC power, relay driver boards, motor controller logic, and automation systems
  • Smart Home Controllers: Central home automation panels, KNX/Zigbee gateways, and smart thermostats
  • LED Lighting: LED strip drivers, panel backlights, and decorative lighting power supplies
  • Embedded Systems: Custom PCB designs requiring 10W on-board AC-DC conversion
  • Communication Equipment: Ethernet switches, Wi-Fi routers, and industrial modem power
  • Security Systems: NVR/DVR power, multi-camera CCTV systems, and access control mainboards
  • 3D Printers: Controller board power for Marlin-based and Klipper-based 3D printers
  • Instrumentation: Digital panel meters, data acquisition systems, and lab instruments
  • DIY Power Supplies: Bench power projects, repair station power, and hobbyist electronics

Package Includes

  • 1 × Hi-Link HLK-10MxxB AC-DC Power Module (selected voltage variant)
  • 1 × Product specification sheet

Key Features

  • 10W High Power Output: 2× more power than 5W and 5× more than 2W modules in a similar form factor
  • Universal AC Input: Works with 110V-240V AC worldwide, no voltage selector needed
  • 3000V AC Isolation: Safe galvanic isolation between AC mains and DC output
  • Higher Efficiency: ≥ 78% efficiency outperforms typical linear regulators and small wall adapters
  • Six Voltage Options: 3.3V, 5V, 9V, 12V, 15V, and 24V cover most common DC bus requirements
  • Triple Protection: Overload, short-circuit, and over-temperature safeguards built-in
  • Industrial Grade: Rated for -25°C to +70°C continuous operation in demanding environments

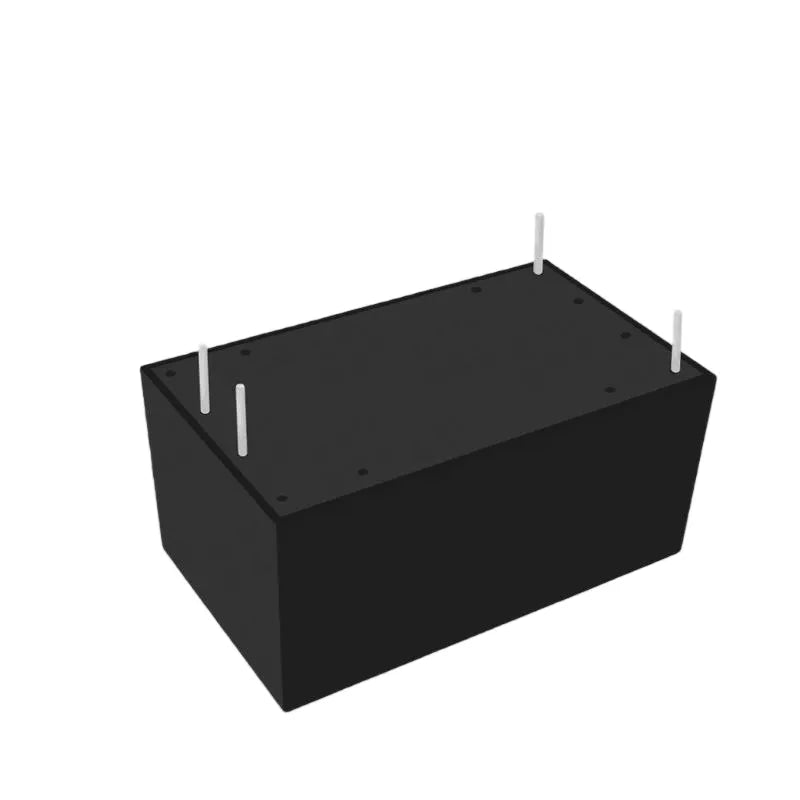

  • Compact PCB Mount: Easy through-hole mounting with minimal external components required
  • Low Ripple Design: Clean DC output suitable for both analog and digital circuitry
  • Family Compatible: Same Hi-Link footprint philosophy for easy power scaling across projects

FAQ

  • Q: How does the 10W module compare to the 5W and 2W versions?
    A: The 10W delivers 2× the power of 5W and 5× the power of 2W. It shares the same input range and isolation specs but is slightly larger for better thermal management.
  • Q: What is the maximum current at 5V output?
    A: The 5V variant (HLK-10M05B) can deliver up to 2000mA (2A), enough to power a Raspberry Pi directly.
  • Q: Can I power a Raspberry Pi 4 with this module?
    A: Yes, the 5V 2A variant provides sufficient power for a Raspberry Pi 4 under normal loads without peripherals.
  • Q: Does it need a heatsink at 10W full load?
    A: Under sustained 10W load, additional cooling (heatsink or forced air) is recommended for optimal reliability and lifespan.
  • Q: Is the input-to-output isolation the same as smaller modules?
    A: Yes, all Hi-Link modules provide ≥ 3000V AC galvanic isolation regardless of power rating.
  • Q: Can I parallel two modules for higher current?
    A: Parallel operation is not recommended due to current sharing issues. Use a single higher-power module or an external DC-DC stage instead.
  • Q: What AC input frequency does it support?
    A: It supports both 50Hz and 60Hz, making it compatible with global power grid standards.
  • Q: How do I wire the AC input connections?
    A: Connect the live (L) and neutral (N) AC wires to the input terminals. Always follow proper electrical safety practices and use insulated connections.
  • Q: Can it operate at 10W load 24/7?
    A: Yes, but ensure adequate ventilation or cooling. The -25°C to +70°C operating range must be maintained for reliable long-term operation.
  • Q: Are the pins compatible with the 5W module footprint?
    A: Pinout may differ — always check the datasheet for exact pin assignments before upgrading from 2W/5W to 10W modules.
