Solar Power Manager 5V - Solar Charge Controller & Regulator | DFRobot

SKU: DF-DFR0559
Sale price 10,95 €
incl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
DFRobot Solar Power Manager 5V for IoT & renewable energy projects-3

Solar Power Manager 5V - Solar Charge Controller & Regulator | DFRobot

10,95 €

The DFRobot Solar Power Manager 5V is a compact and efficient solar power management module designed for 5V solar panels. As a high-performance solar charge controller featuring MPPT (Maximum Power Point Tracking) and dual charging inputs (solar/USB), this power management module provides up to 900mA charging current for 3.7V Li-ion/Li-Po batteries. With a regulated 5V 1A output, this Solar Power Manager 5V is ideal for solar energy harvesting in low-power IoT systems, solar monitoring devices, solar-powered robots, and environmental sensors.

Solar Power Manager 5V Board Overview



Key Features of Solar Power Manager 5V

  • MPPT algorithm maximizes solar panel charging efficiency for solar energy harvesting

  • Reliable Solar Charge Controller supports 5V solar panels up to 10W

  • Dual input charging via solar or USB (900mA max) for flexible power management

  • 5V 1A regulated output with ON/OFF control for IoT devices

  • Advanced Solar Power Manager 5V compatible with 3.7V Li-ion/LiPo batteries

  • Supports batteries with or without built-in protection circuits

  • Comprehensive protection functions integrated into this power management module

  • USB port with ESD protection for secure solar charging

  • Compact Solar Power Manager 5V size: 33.0mm × 63.0mm



Solar Energy Harvesting Applications

  • Efficient Solar power banks and chargers

  • Smart solar-powered environmental monitors using MPPT controller

  • Solar-powered robots and street lights with Solar Power Manager 5V

  • Low-power embedded systems and IoT devices requiring power management



Solar Power Manager 5V Specifications

  • Power Management IC: CN3165 Solar Charge Controller

  • Input Voltage (SOLAR IN): 4.4V ~ 6V

  • Battery Type: 3.7V Li-ion/LiPo for Solar Power Manager 5V

  • Charging Current: Up to 900mA solar charging

  • Charging Method: Trickle, Constant Current, Constant Voltage

  • Charging Cutoff Voltage: 4.2V ±1%

  • Regulated Output: 5V 1A Power Management Module output

  • Efficiency (Regulated 5V Output): 86% @ 50% Load

  • Efficiency (USB/Solar Charging): 73% @ 3.7V 900mA

  • Quiescent Current: <1mA for low-power IoT

  • Operating Temperature: -40°C ~ 85°C

  • Dimensions: 33.0mm × 63.0mm

DFRobot Solar Power Manager 5V for IoT & renewable energy projects-4



Advanced Protection Features

  • Battery Input (BAT IN) protection for Solar Power Manager 5V:

    • Overcharge protection

    • Overdischarge protection

    • Overcurrent protection

    • Reverse connection protection

  • 5V Output & USB Output security:

    • Short circuit protection

    • Overcurrent protection

    • Overheat protection

  • Solar Input: Reverse connection protection for Solar Charge Controller

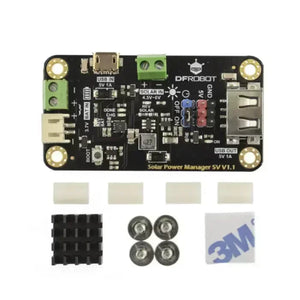

Package Includes

  • 1 × Solar Power Manager 5V

  • 1 × 2.54mm Black Jumper

  • 4 × M3×10mm Nylon Pillars

  • 4 × M3×5mm Stainless Steel Screws

  • 1 × 14×14×7mm Black Aluminum Cooling Fin

  • 1 × 14×14×0.5mm Thermal Conductive Silicone Pad

DFRobot Solar Power Manager 5V for IoT & renewable energy projects-2
