DFRobot Night Camera Module for Raspberry Pi

DFRobot Night Camera Module for Raspberry Pi

94,45 €

Raspberry Pi Compatible Camera Module – Day & Night Performance

Compatible with all Raspberry Pi boards, this camera module delivers excellent imaging performance in both day and night. Thanks to the Sony STARVIS IMX327 sensor, it works well in low‑light environments without infrared fill light.

For animal lovers, it’s ideal for recording nocturnal animal activities such as owls, lemurs, and cats. For developers, it’s a versatile solution for machine vision, intelligent analysis, industrial control, face recognition, ADAS, and more.

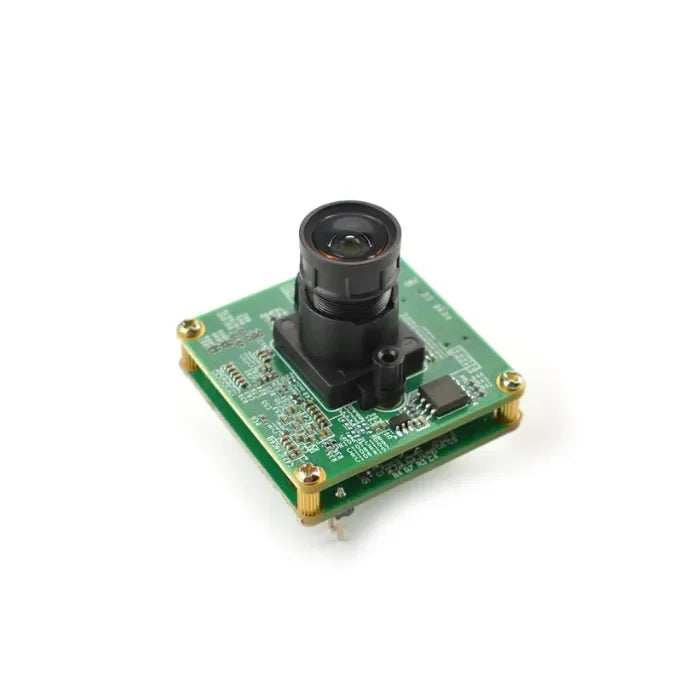

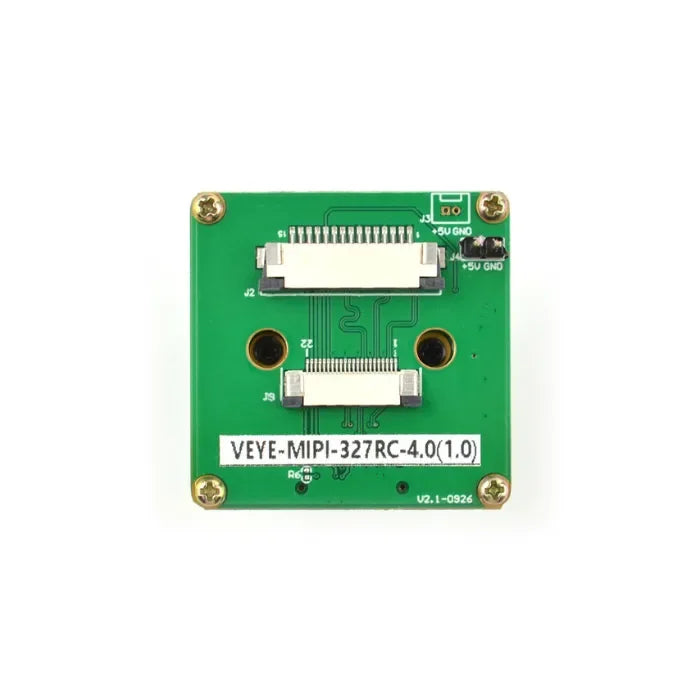

Night Camera Module for Raspberry Pi front Night Camera Module for Raspberry Pi back side

Features

  • Low‑Light Excellence – Works without IR fill light, perfect for night recording.

  • Animal Activity Recording – Capture nocturnal animals clearly and naturally.

  • High‑Quality Video – 1080p @ 30fps with Sony 1/2.8” 2MP STARVIS IMX327 sensor.

  • Built‑in ISP – Supports uncompressed UYVY, YUV 422‑8 bit output for superior fidelity.

  • Noise Reduction & Anti‑Fog – Ensures clear, accurate color reproduction.

  • Universal CSI Interface – Easy connection to Raspberry Pi via cable.

  • Adjustable Settings – Brightness, contrast, sharpness, and saturation for optimal clarity.

  • Wide Applications – Machine vision, industrial control, face recognition, ADAS, and more.

Night Camera Module with Raspberry Pi Night Camera Module with Raspberry Pi



Specification

Item Details
Sensor Sony IMX327LQR‑C STARVIS
Pixels 2.07M pixels
Resolution 1920 × 1080
Image Size Diagonal 6.46mm (Type 1/2.8)
Unit Cell Size 2.9µm(H) × 2.9µm(V)
SNR1s Value 0.23lx / 0.18lx
Frame Rate 1080p@25 / 1080p@30 fps
Exposure Auto or Manual
White Balance Auto or Manual
Shutter 1/25(1/30)s to 1/50,000s
Slow Shutter Supported
Denoising 2D / 3D noise reduction
Image Settings Brightness, Contrast, Sharpness, Saturation, Flip, Mirror
Image Enhancement BLC, DOL‑WDR, Defog
Day/Night Switch Manual or IR‑CUT filter with external trigger
Lens Supports M120.5 or M160.5 depending on mount
Lens Mount MTV12 or MTV16
Mounting Holes 2 screw holes, Ø2.2mm, center distance 20mm
PCB Connector BTB050040‑F1D
Communication Interface I²C, 3.3VDC
Video Data Interface MIPI 2Lane, CSI2 YUV 422‑8bit, Bandwidth 1.188Gbps
IR‑CUT Control IR‑CUT motor control, 3.3VDC
Day/Night External Trigger Compatible with 3.3VDC to 12VDC
Operating Conditions ‑10℃ ~ 50℃, Humidity ≤95%, non‑condensing
Power Supply 3.3VDC
Power Consumption 3.3VDC, 1.2W

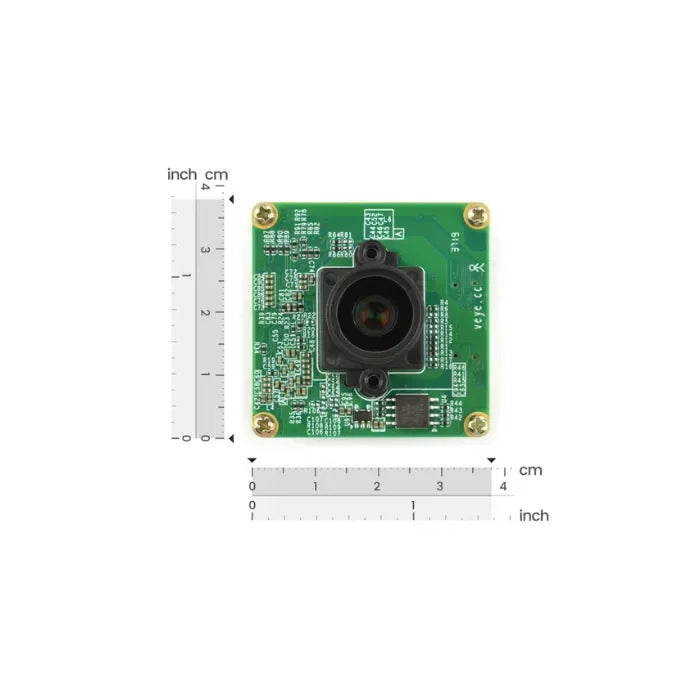

Dimensions 38 × 38 × 8mm / 1.50 × 1.50 × 0.31” (excluding lens and IR‑CUT)


Documents

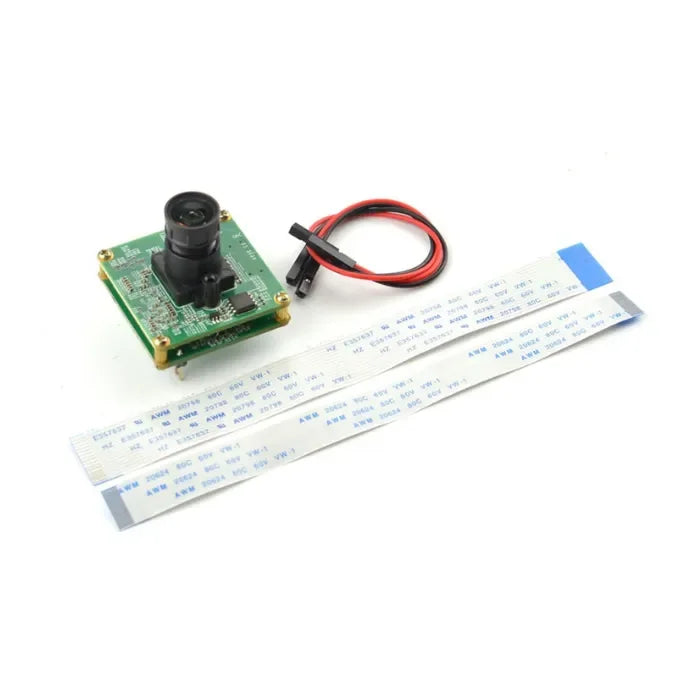

Shipping List

  • Night Camera Module for Raspberry Pi ×1
