DFRobot LattePanda 5MP UVC Camera — USB Plug-and-Play Camera for LattePanda Raspberry Pi

DFRobot LattePanda 5MP UVC Camera — USB Plug-and-Play Camera for LattePanda Raspberry Pi

26,83 €

The DFRobot LattePanda 5MP UVC Camera is a plug-and-play USB camera engineered for seamless use with DFRobot's LattePanda single-board computers, while also being fully compatible with Raspberry Pi, NVIDIA Jetson, Windows, and Linux systems. Delivering 5MP resolution over a standard UVC interface, it requires no driver installation and works immediately with OpenCV, SimpleCV, and any standard video library. A straightforward, reliable camera solution for SBC-based vision projects.

Specifications

  • Resolution: 5 Megapixels (2592×1944)
  • Interface: USB 2.0 (UVC Class-compliant)
  • Frame Rate: Up to 30fps at 1080p
  • Focus: Fixed focus
  • Compatibility: LattePanda Alpha/Delta/3 Delta, Raspberry Pi, Windows, Linux
  • Driver: Plug-and-play UVC (no custom driver needed)
  • Connector: USB-A
  • Housing: Compact plastic housing with mounting flange

Key Features

  • 5MP resolution delivers crisp, detailed images for machine vision applications
  • UVC plug-and-play — works on Windows, Linux, macOS without drivers
  • Designed and optimized for DFRobot LattePanda SBCs
  • Compatible with Raspberry Pi, Jetson Nano, and any USB-capable host
  • Compact housing with mounting hole for enclosures and robots
  • Works with OpenCV, SimpleCV, Python, and all standard video libraries
  • Suitable for face detection, QR scanning, and object recognition
  • USB-powered — no external power required

Applications

  • LattePanda-based AI and vision projects
  • Object detection and recognition with OpenCV
  • Face recognition and biometric systems
  • QR code and barcode scanning
  • Robotics and autonomous vehicle vision
  • Video conferencing and streaming on SBCs
  • Remote monitoring and surveillance
  • Edge AI vision inference with TensorFlow Lite

Package Includes

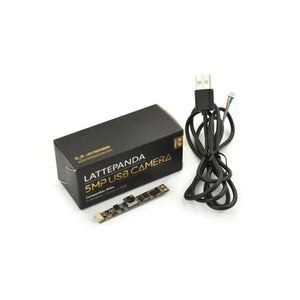

  • 1x DFRobot LattePanda 5MP UVC Camera
  • Note: LattePanda board sold separately

FAQ

  • Q: Does it work with Windows? A: Yes — recognized as a standard webcam. Works with any DirectShow or Media Foundation application.
  • Q: Can I use this on Raspberry Pi? A: Yes — appears as /dev/video0 on Raspberry Pi OS. Use libcamera or OpenCV.
  • Q: What is the maximum video resolution? A: Up to 2592×1944 for stills; video typically 1080p at 30fps.
  • Q: Is this compatible with OBS Studio? A: Yes — works as a standard UVC webcam in OBS, Zoom, Teams, and other video software.
  • Q: Does it have autofocus? A: This model has fixed focus. Check product specs for adjustable focus ring option.
