DFRobot 3D ToF Depth Sensor Camera with 1.14 Inch LCD Screen — USB-C Depth Camera

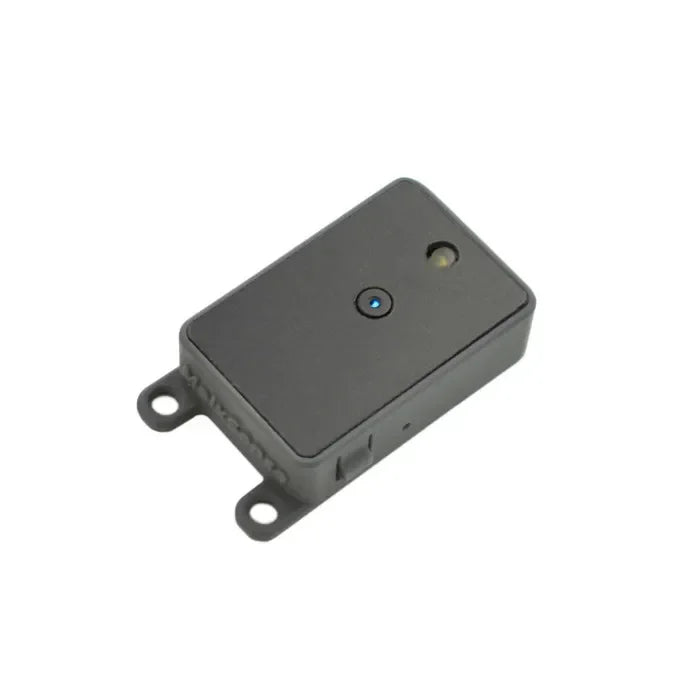

The DFRobot 3D ToF Depth Sensor Camera combines a Time-of-Flight depth sensor with a built-in 1.14-inch color LCD, allowing real-time depth visualization without connecting to a host screen. Via USB-C, it simultaneously streams raw depth data to a PC, Raspberry Pi, or Jetson for processing with the included Python SDK. With a minimum detection range of just 10cm, it excels at close-range proximity sensing, gesture detection, and short-range obstacle awareness where standard ToF sensors cannot perform.
Specifications

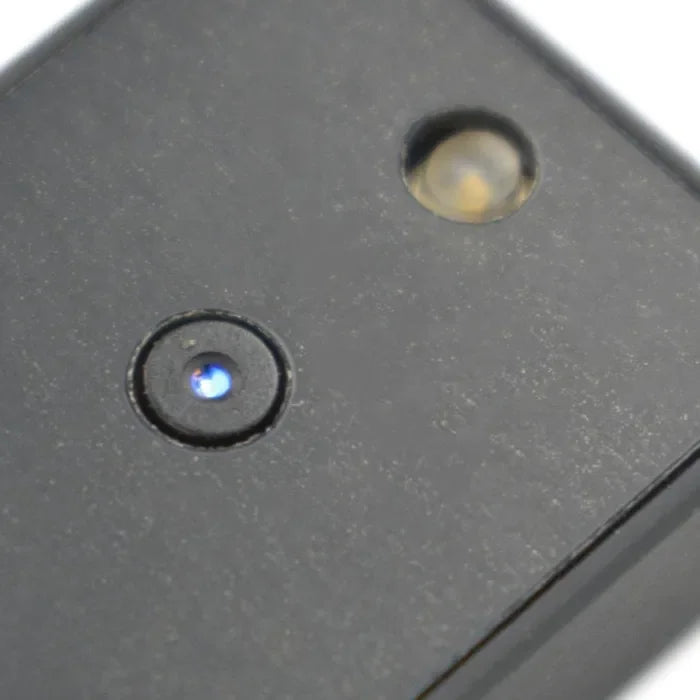

- Depth Sensor: Time-of-Flight (ToF)
- Depth Range: 0.1m to 5m (typical)
- Depth Resolution: 320×240 QVGA depth pixels

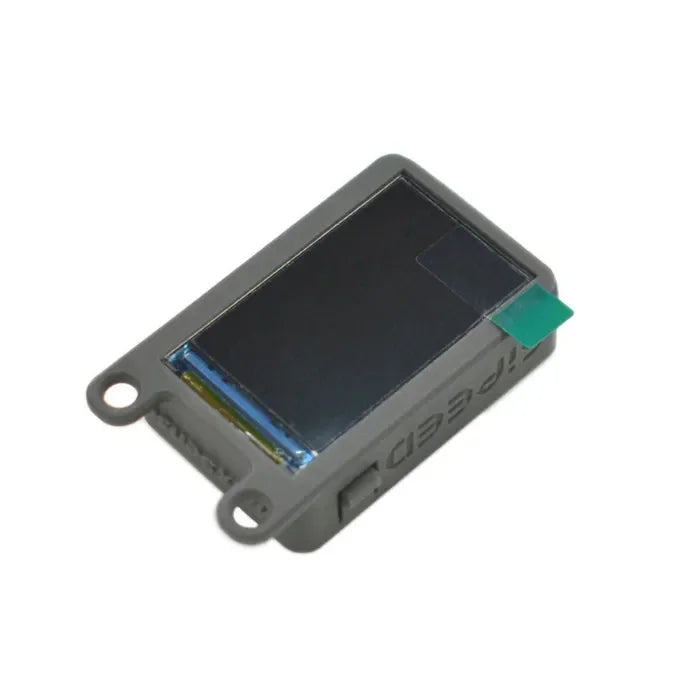

- Display: 1.14-inch color LCD (real-time depth visualization)
- Interface: USB Type-C
- Frame Rate: Up to 30fps
- Output: Depth map, distance data, pseudo-color visualization
- Compatibility: Windows, Linux, Raspberry Pi, Jetson
- SDK: Python SDK + open-source library
- Power: USB-C powered (5V)
Key Features
- Built-in 1.14-inch LCD shows depth visualization in real time — no host screen required
- Compact standalone operation for field testing
- Short-range depth detection from 10cm — ideal for close-up obstacle sensing
- USB-C interface for modern plug-and-play connectivity
- Python SDK for easy integration with custom applications
- Pseudo-color depth output maps distance to color for visual interpretation
- Works with Raspberry Pi, NVIDIA Jetson, and any USB-C host
- Ideal for gesture detection, proximity sensing, and indoor navigation
Applications
- Indoor robot obstacle detection and avoidance
- Gesture recognition and touchless interface control
- Short-range proximity measurement for automation
- 3D depth visualization and educational demonstrations
- People counting and occupancy detection
- Shelf and inventory monitoring systems
- Drone altitude hold and ground sensing
- STEM depth sensing experiments

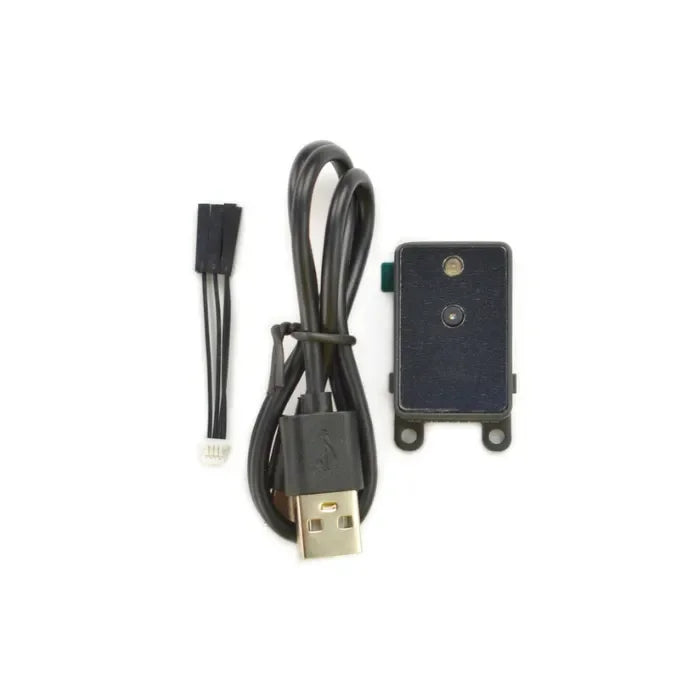

Package Includes
- 1x DFRobot 3D ToF Depth Sensor Camera with 1.14-inch LCD
- 1x USB-C cable
- Note: Python SDK and sample code available on DFRobot Wiki
FAQ
- Q: Do I need a monitor to use this camera? A: No — the 1.14-inch LCD displays the depth map in real time. Connect via USB-C for data output to a host computer.
- Q: What is the minimum detection range? A: Approximately 10cm — much shorter than typical ToF cameras, useful for close-range sensing.
- Q: Can I get raw depth values in Python? A: Yes — the Python SDK provides frame-by-frame depth arrays in millimeters.
- Q: Does it work outdoors? A: Performance degrades in direct sunlight due to IR interference. Use indoors or in shaded environments.
- Q: Is the LCD real-time? A: Yes — the LCD shows a real-time pseudo-color depth map while USB simultaneously streams raw depth data.
