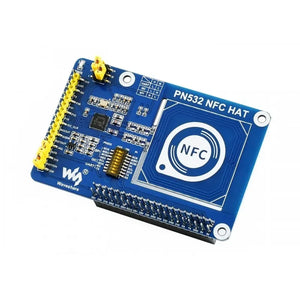

Waveshare PN532 NFC HAT white background front perspective image

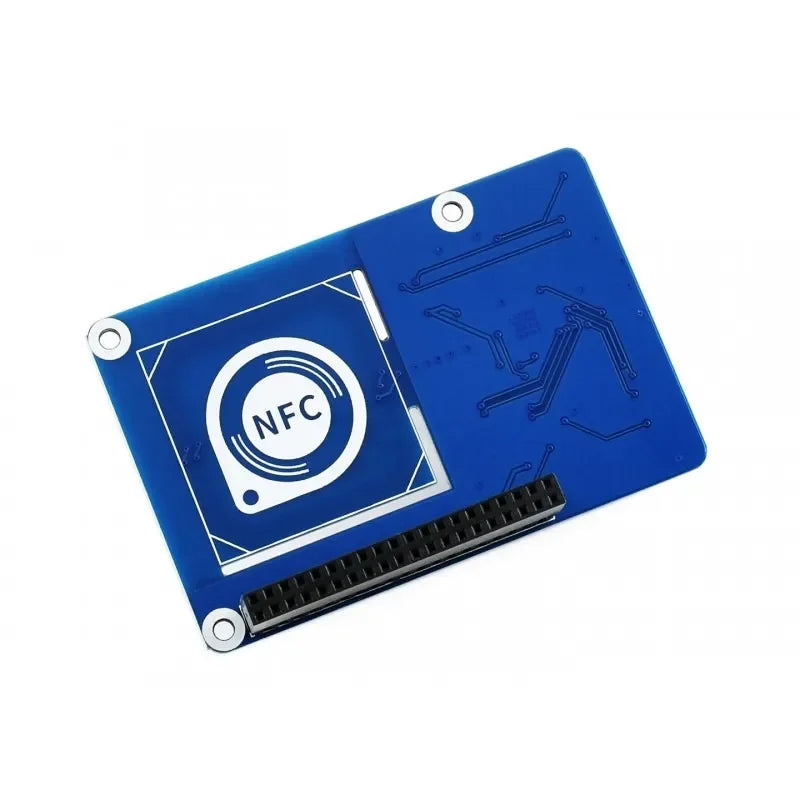

Waveshare PN532 NFC HAT white background rear perspective image

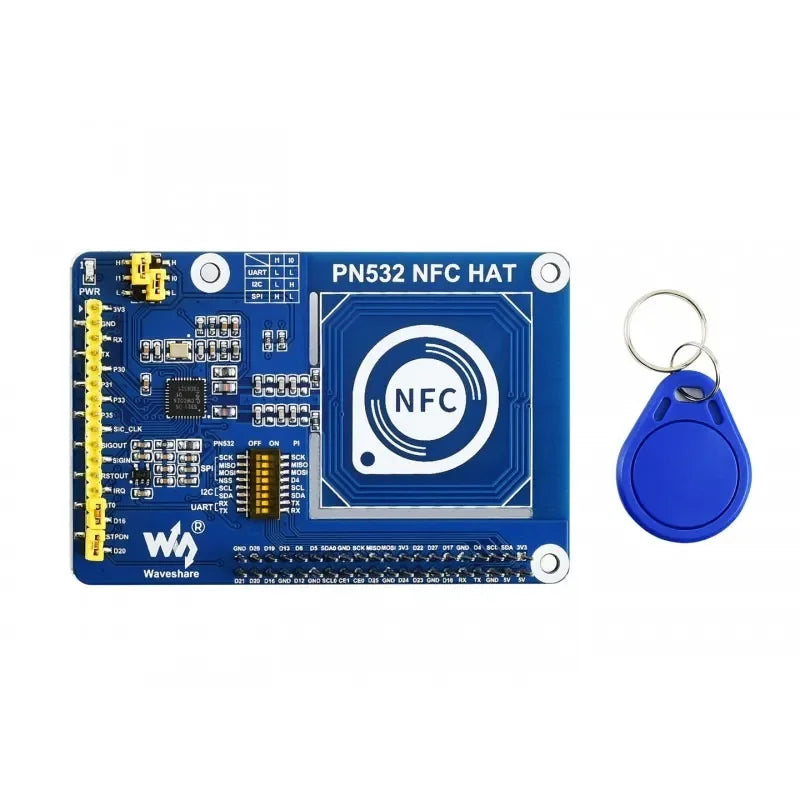

Waveshare PN532 NFC HAT with MIFARE card white background image

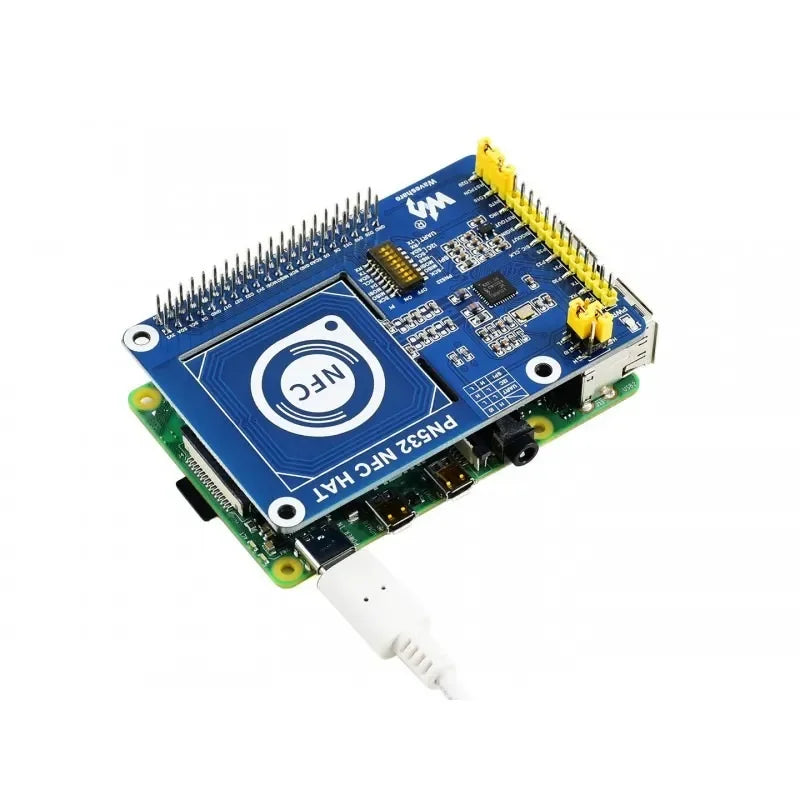

Waveshare PN532 NFC HAT mounted on Raspberry Pi white background image
Waveshare PN532 NFC HAT front and rear white background combo image
Waveshare PN532 NFC HAT card kit and mounted board white background combo image
Waveshare PN532 NFC HAT front and card white background combo image
Waveshare PN532 NFC HAT rear and mounted board white background combo image
Waveshare PN532 NFC HAT white background front perspective image
Waveshare PN532 NFC HAT white background rear perspective image
Waveshare PN532 NFC HAT with MIFARE card white background image
Waveshare PN532 NFC HAT mounted on Raspberry Pi white background image
Waveshare PN532 NFC HAT front and rear white background combo image
Waveshare PN532 NFC HAT card kit and mounted board white background combo image
Waveshare PN532 NFC HAT front and card white background combo image
Waveshare PN532 NFC HAT rear and mounted board white background combo image

Waveshare PN532 NFC HAT for Raspberry Pi I2C/SPI/UART

SKU: Waveshare-16958
Sale price 19,79 €
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
Waveshare PN532 NFC HAT white background front perspective image

Waveshare PN532 NFC HAT for Raspberry Pi I2C/SPI/UART

19,79 €

Description

Waveshare PN532 NFC HAT is a compact Raspberry Pi NFC HAT for NFC reader writer projects, tag interaction, and dependable access control. This Waveshare board brings 13.56MHz NFC to Raspberry Pi through I2C, SPI, and UART, making the PN532 NFC HAT a practical choice for contactless card reading, smart attendance, and embedded identification tasks.

The Waveshare PN532 NFC HAT is especially useful when you need a flexible Raspberry Pi NFC HAT that can work as an NFC reader writer. Because the PN532 NFC HAT supports MIFARE, NTAG2xx, and other compatible cards, this Waveshare design fits access control, pairing workflows, tag testing, controller demos, and lightweight contactless interfaces.

Waveshare PN532 NFC HAT hardware overview

Features

  • Waveshare PN532 NFC HAT based on the PN532 NFC controller.
  • Raspberry Pi NFC HAT with standard Raspberry Pi 40PIN GPIO header.
  • NFC reader writer support for MIFARE, NTAG2xx, and other compatible NFC / RFID cards.
  • Selectable I2C, SPI, and UART interfaces through onboard switches and jumpers.
  • Strong fit for access control, smart ticketing, ID recognition, and embedded NFC development.
  • Breakout control pins support STM32, Arduino, and other host boards.

Specifications

Item Details
Brand Waveshare
Model PN532 NFC HAT
Board Type Raspberry Pi NFC HAT
Main Controller PN532
Operating Frequency 13.56 MHz
Operating Voltage 3.3V / 5V
Interfaces I2C / SPI / UART
Baud Rate 115200 bps default
Typical Role NFC reader writer

Applications

  • Access control panels and contactless identification systems.
  • Raspberry Pi NFC HAT projects for card and tag reading.
  • NFC reader writer workflows for MIFARE and NTAG testing.
  • Waveshare PN532 projects for pairing, sharing, attendance, and embedded NFC logic.
  • Educational use of I2C, SPI, and UART with a Raspberry Pi NFC HAT.

Product List

  • PN532 NFC HAT x1
  • MIFARE Classic 1K Card x1

Other Content

Waveshare PN532 NFC HAT dimensions

Waveshare PN532 NFC HAT dimensions for compact Raspberry Pi NFC HAT integration.

Waveshare PN532 NFC HAT included MIFARE Classic 1K card

Included card for NFC reader writer testing and access control demos.

Resources

FAQ

What is this Waveshare board for?
The Waveshare PN532 NFC HAT is for NFC reader writer tasks, contactless card reading, and access control.

Which interfaces does the PN532 NFC HAT support?
The PN532 NFC HAT supports I2C, SPI, and UART.

Can this Raspberry Pi NFC HAT be used for access control?
Yes. A common use of the Raspberry Pi NFC HAT is access control and identification.

Which cards work with the Waveshare PN532 NFC HAT?
The Waveshare PN532 NFC HAT supports MIFARE, NTAG2xx, and other compatible NFC / RFID cards.
