Anvis OV9281 1MP 120fps Global Shutter Camera

SKU: TB-OV9281-3.6
Type: 3.6mm Lens- 100°
Sale price 80,26 €
incl. VAT
excl. VAT

Shipping from China within 5–10 working days

- During check out, you can choose direct shipping from China, or let us import the order to our EU/US office first and ship it to you locally.

- Import customs clearance and VAT are fully handled by us.

Add to Wishlist

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Anvis OV9281 1MP 120fps Global Shutter Camera-1

Anvis OV9281 1MP 120fps Global Shutter Camera

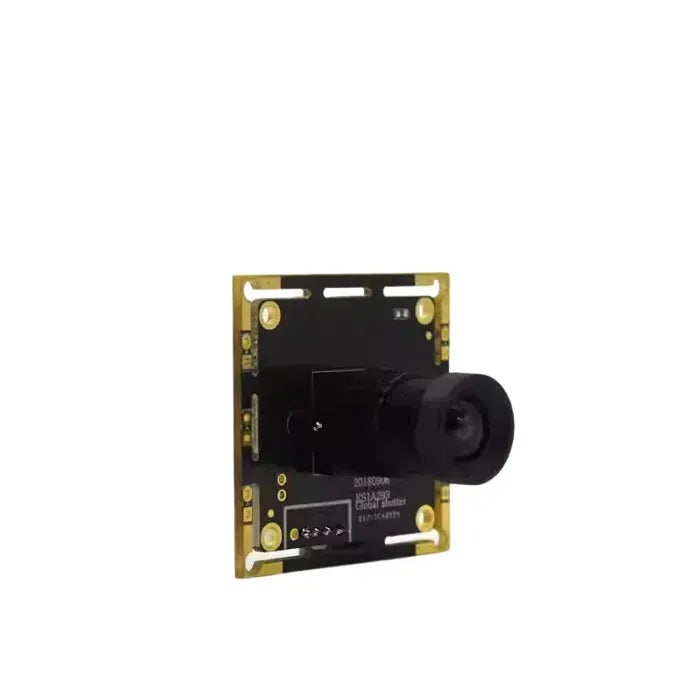

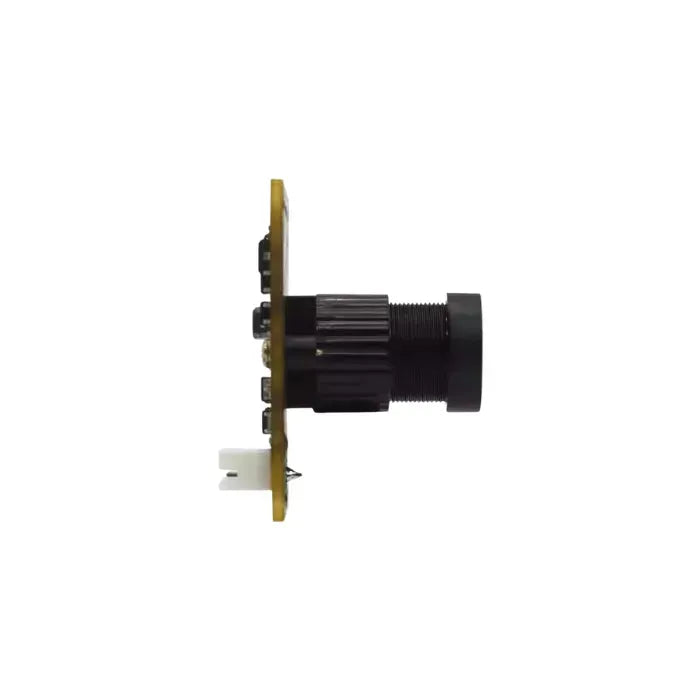

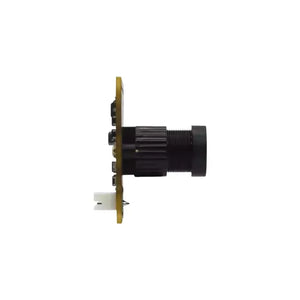

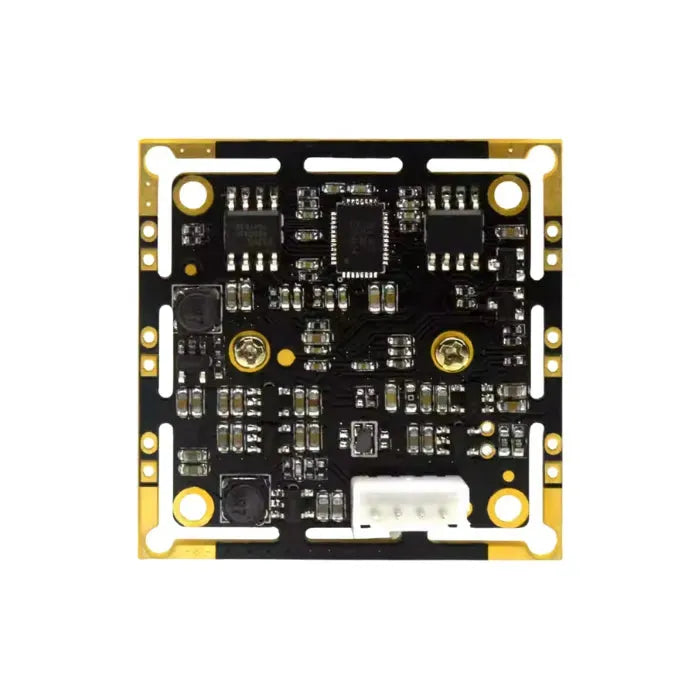

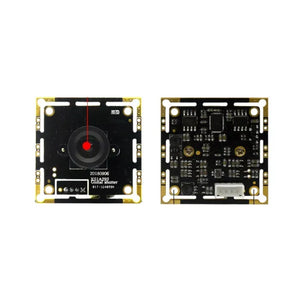

The Anvis OV9281 1MP Global Shutter Camera is a high-performance imaging solution equipped with the OV9281 sensor, designed for precise and rapid image capture. This camera supports global shutter technology, ensuring artifact-free image acquisition, making it perfect for industrial automation, robotics, and vision systems.



Key Features

  • Sensor: OV9281 (1MP, 3μm x 3μm pixel size)

  • Frame Rate: Up to 120fps at 640x400 resolution

  • Shutter Mode: Global shutter for precise image capture

  • Interface: USB2.0 High-Speed (4-pin, 2.0mm terminal)

  • Dynamic Range: 68dB for high-quality image detail

  • Operating Temperature: -20°C to 70°C for robust performance

  • Power: USB bus-powered with 160mA (VGA)

  • Compatibility: Supports Windows XP/7/8/10, Linux, Android, macOS



Specifications

Category Details
Sensor OV9281
Resolution 1MP
Module Size 38x38mm / 32x32mm (customizable)
Pixel Size 3μm x 3μm
Lens Size 1/4"
Shutter Mode Global Shutter
Interface USB2.0 High-Speed
Operating Voltage USB-DC5V
Power Requirements 160mA (VGA mode)
Signal-to-Noise Ratio 38dB
Dynamic Range 68dB
AEC (Auto Exposure) Supported (Default: Auto)
AWB (Auto White Balance) Supported (Default: Auto)
Image Compression MJPG/YUY2 (Default: MJPG)
Resolution and FPS 640x400@240fps, 640x480@120fps, 1280x800@120fps, 320x240@120fps
Temperature (Operation) -20°C to 70°C
Temperature (Storage) -40°C to 125°C, <90%RH



Video Resolution and Frame Rate

Resolution MJPG Frame Rate YUY2 Frame Rate
320x240 120fps 120fps
640x400 240fps 30fps
640x480 120fps 30fps
800x600 120fps 20fps
1280x720 120fps 10fps
1280x800 120fps 10fps


Compatibility

This camera module is compatible with multiple operating systems:

  • Windows: XP/7/8/10

  • Linux: Including UVC protocols

  • Android

  • MacOS

  • Raspberry Pi: For versatile development environments



Applications

  • Industrial Automation: Ideal for conveyor monitoring and quality control.

  • Robotics: Accurate motion analysis and machine vision.

  • Smart Terminals: Supports interactive kiosks and devices.

  • Healthcare Imaging: Perfect for diagnostic and analytical tools.

  • Security Systems: Clear and fast capture for surveillance solutions.

  • Vision Systems: Reliable for object detection and recognition tasks.
