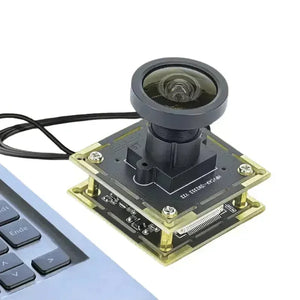

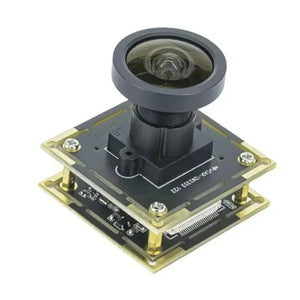

8.29MP 4K 120FPS Non-distortion Camera Module

Key Specifications

• Module No: HBVCAM-4K2425 V11

• Module Size: 38mm × 38mm × 35.90mm±0.5MM

• Temperature (Operation): -30°C to 70°C

• Temperature (Stable Image): 0°C to 50°C

• Assembly Technique: SMT (ROSH)

• Focus: Fixed

• Object Distance: 30CM-Infinity

• Resolution: 600LW/PH (Center)

• PCB Printing Ink: Black

• Interface: USB 2.0

• Power Supply: USB bus power

• Supply Voltage: DC 5V±5%

• Maximum Power Consumption: 890 mW

• Operating System Required: Win XP/Win 7, 8 / Vista / Android 4.0 / Mac / Linux with UVC

• Sensor: IMX274 (1/2.5”)

• Sensor Package: CSP, Bare Die

• Maximum Resolution: 3840×2160

• Sensitivity: 760mV/lux-sec

• Pixel Size: 1.62μm × 1.62μm

• Maximum Image Transfer Rate:

  • MJPEG 1280×720 120FPS / YUY2 1280×720 10FPS;

  • MJPEG 1920×1080 120FPS / YUY2 1920×1080 5FPS;

  • MJPEG 2048×1536 30FPS / YUY2 2048×1536 1FPS;

  • MJPEG 2592×1944 30FPS / YUY2 2592×1944 1FPS;

  • MJPEG 3840×2160 30FPS / YUY2 3840×2160 1FPS

• S/N Ratio: 44dB

• Max Dynamic Range: 82dB

• Shutter Type: Electronic rolling shutter

• AGC/AEC/White Balance: Auto

• Output Formats: YUY2/MJPEG

• Microphone: Support

• Lens Construction: 2G2P

• F/No: 2.4

• EFL: 4.2 mm

• FOV: 80°

• TV Distortion: <5%

• Relative Illumination (Sensor): 70%

• IR Filter: 650±10nm

• Module Package: Anti-electrostatic tray

• Certifications: FCC/CE/ROSH

Features

• Audio Capability: Integrated dual digital microphones for clear and accurate audio capture.

• Flexible Focusing Options: Supports both Auto Focus (AF) and Manual Focus (MF), providing adaptability for different use cases.

• Wide System Compatibility: Works seamlessly with Windows XP/7/8/Vista, Android 4.0 and above, macOS, and Linux systems.

• Driver-Free USB 2.0: Plug-and-play functionality with USB 2.0, no additional drivers required.

Classification

• 100 Degree Non-distortion/manual focus/2.9mm Focal Length

• 80 Degree Non-distortion/Manual Focus/4.2mm Focal Length

• 80 Degree Non-distortion/Auto Focus/4.2mm Focal Length/Large Motor

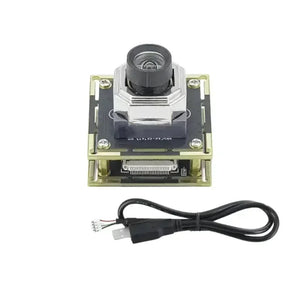

Package Includes

• Camera Module X1

• Standard 0.5-meter USB Cable X1

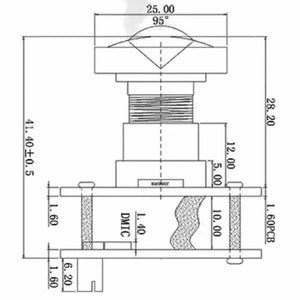

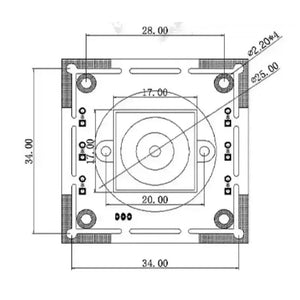

Module Mechanical Dimension
