Waveshare 7 inch IPS Integrated Display Without Touch 1024×600

SKU: Waveshare-22671
Sale price 52,34 €
incl. VAT
excl. VAT

Shipping from China within 5–10 working days

- During check out, you can choose direct shipping from China, or let us import the order to our EU/US office first and ship it to you locally.

- Import customs clearance and VAT are fully handled by us.

Add to Wishlist

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Waveshare 7 inch IPS Integrated Display, With Touch Function,1024 × 600 - OpenELAB

Waveshare 7 inch IPS Integrated Display Without Touch 1024×600

52,34 €

Description

Waveshare 70H-1024600 is a 7 inch IPS integrated display without touch designed for compact embedded display integration. It features a 1024 × 600 resolution panel, HDMI video input, and an integrated structure that helps reduce space usage in custom devices, Raspberry Pi projects, Jetson applications, and industrial display terminals.

Unlike a conventional HDMI monitor with a separate driver board, this display uses an integrated structure design intended for easier product integration and thinner installations. It is a practical choice for embedded dashboards, portable systems, industrial display terminals, and projects that need a clean display solution without touch input.

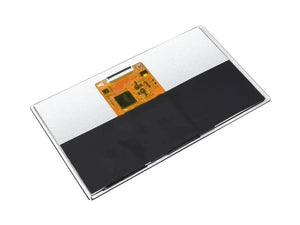

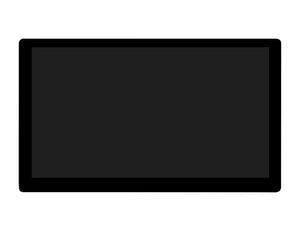

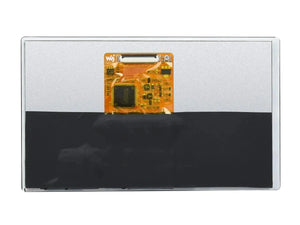

Waveshare 70H-1024600 integrated display overview

Features

  • 7 inch IPS integrated display with 1024 × 600 resolution.
  • Without touch, ideal for applications that only require visual output.
  • HDMI video input for Raspberry Pi, Jetson, PC, and other supported hosts.
  • Integrated structure design for easier embedding into custom devices.
  • Thinner installation profile than conventional separated display assemblies.
  • 170° wide viewing angle IPS panel for stable color and readability.
  • Low power consumption for continuous or portable operation.
  • Driver-free display support on supported systems.

Specifications

Item Specification
Model 70H-1024600
Display size 7 inch
Resolution 1024 × 600
Panel type IPS integrated display
Touch None
Video input HDMI
Viewing angle 170°
Power consumption Low power
Supported systems Raspberry Pi OS, Ubuntu, Kali, Windows 11 / 10 / 8 / 7
Compatibility Raspberry Pi 4B / 3B+ / Zero W / CM4, Jetson Nano, mini PC, Windows / Linux / Android main boards with HDMI signal

Waveshare 70H-1024600 dimensions

Applications

  • Raspberry Pi projects that need a compact integrated display without touch.
  • Embedded development for dashboards, control interfaces, and device status panels.
  • Jetson and SBC integration where thin display structure matters.
  • Portable devices and battery-powered systems with space constraints.
  • Industrial and educational projects that need clear display output and simple HDMI connection.

Product List

  • IPS Display x1
  • FPC cable (~15cm) x1

Other Content

Integrated structure design
This display is intended for projects where thickness and wiring complexity need to be reduced. The integrated driver structure helps simplify secondary development and can make enclosure integration cleaner than a conventional loose monitor-style arrangement.

QLED note
Waveshare also mentions optional QLED-related information in the broader series materials, but this product page is centered on the standard IPS integrated display without touch version.

Waveshare 70H-1024600 compatible devices

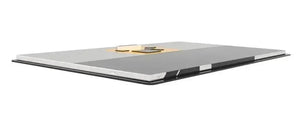

Waveshare 70H-1024600 slim structure

Waveshare 70H-1024600 wide viewing angle

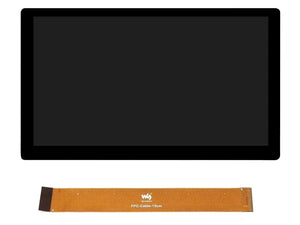

Waveshare 70H-1024600 package contents

Resources

FAQ

Does this display support touch?
No. This version is a display without touch, intended for projects that only need video output.

What systems can it work with?
It can work with Raspberry Pi, Jetson Nano, Windows PCs, and other supported HDMI-capable main boards.

Why choose this integrated display structure?
It helps reduce overall thickness, simplifies wiring, and is more convenient for embedded integration into custom devices and enclosures.

Is it suitable for portable or low-power devices?
Yes. Its compact structure and low power profile make it suitable for portable systems, industrial terminals, and embedded products where space matters.
