Waveshare 7 inch Capacitive Touch Screen LCD with Case 800*480 HDMI

SKU: Waveshare-11283
Sale price 68,09 €
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
Waveshare 7 inch Capacitive Touch Screen with Case 800*480 HDMI - OpenELAB

Waveshare 7 inch Capacitive Touch Screen LCD with Case 800*480 HDMI

68,09 €

Description

Waveshare 7inch HDMI LCD (B) with Bicolor Case is a 7 inch capacitive touch screen display with 800 × 480 resolution, designed for Raspberry Pi, PC, and other HDMI-capable systems. It combines HDMI video input, USB touch interface, and a protective bicolor case into a compact solution that is convenient for both development and portable installation.

This display is a practical fit for Raspberry Pi projects, embedded control panels, portable touch terminals, PC secondary displays, and educational or maker systems that benefit from a compact touch display with a ready-to-use enclosure.

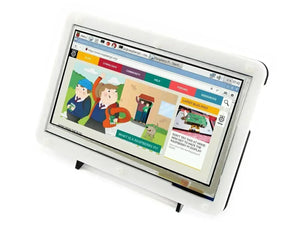

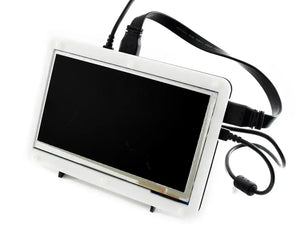

Waveshare 7inch HDMI LCD B with case overview

Features

  • 7 inch LCD with 800 × 480 resolution.
  • Capacitive touch screen supporting up to 5-point touch.
  • HDMI video input and USB touch interface for simple connection.

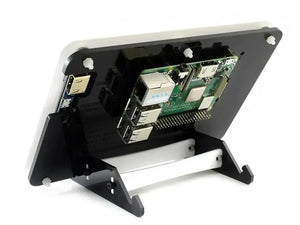

  • Bicolor protective case included for better durability and portability.
  • Low power consumption suitable for portable and embedded use.
  • Driver-free support on supported Raspberry Pi, Ubuntu, Kali, and Windows systems.

Specifications

Item Specification
Model 7inch HDMI LCD (B)
Display size 7 inch
Resolution 800 × 480
Panel type TFT LCD
Touch type Capacitive, up to 5-point touch
Video input HDMI
Touch interface USB
Power consumption Low power
Case Protective bicolor case included
Supported systems Raspberry Pi OS, Ubuntu, Kali, Windows 11 / 10 / 8 / 7
Compatibility Raspberry Pi 4B / 3B+ / Zero W / CM4, mini PC

Applications

  • Raspberry Pi projects that need touch interaction in a compact enclosure.
  • PC secondary display with touch support.
  • Embedded development for IoT dashboards, smart home panels, and device interfaces.
  • Education and research involving electronics, programming, and robotics.
  • Portable devices and maker projects that benefit from a protected display module.

Product List

  • 7inch HDMI LCD (B) x1
  • HDMI cable x1
  • HDMI to Micro HDMI Adapter x1
  • USB Type-A plug to Micro-B plug cable x1
  • RPi screws pack (4pcs) x1
  • Bicolor Case for 7inch LCD x1

Other Content

Device and system support

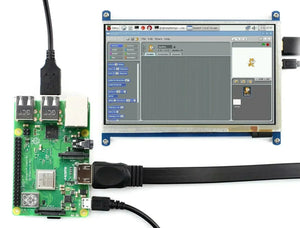

This display supports Raspberry Pi and Windows PCs through HDMI plus USB touch connection. The included case helps make the display more practical for desktop use, portable builds, and enclosure-based embedded projects.

Waveshare 7inch HDMI LCD B supported devices

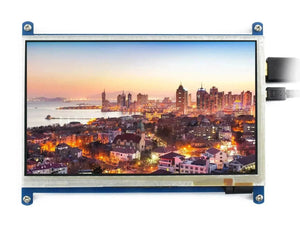

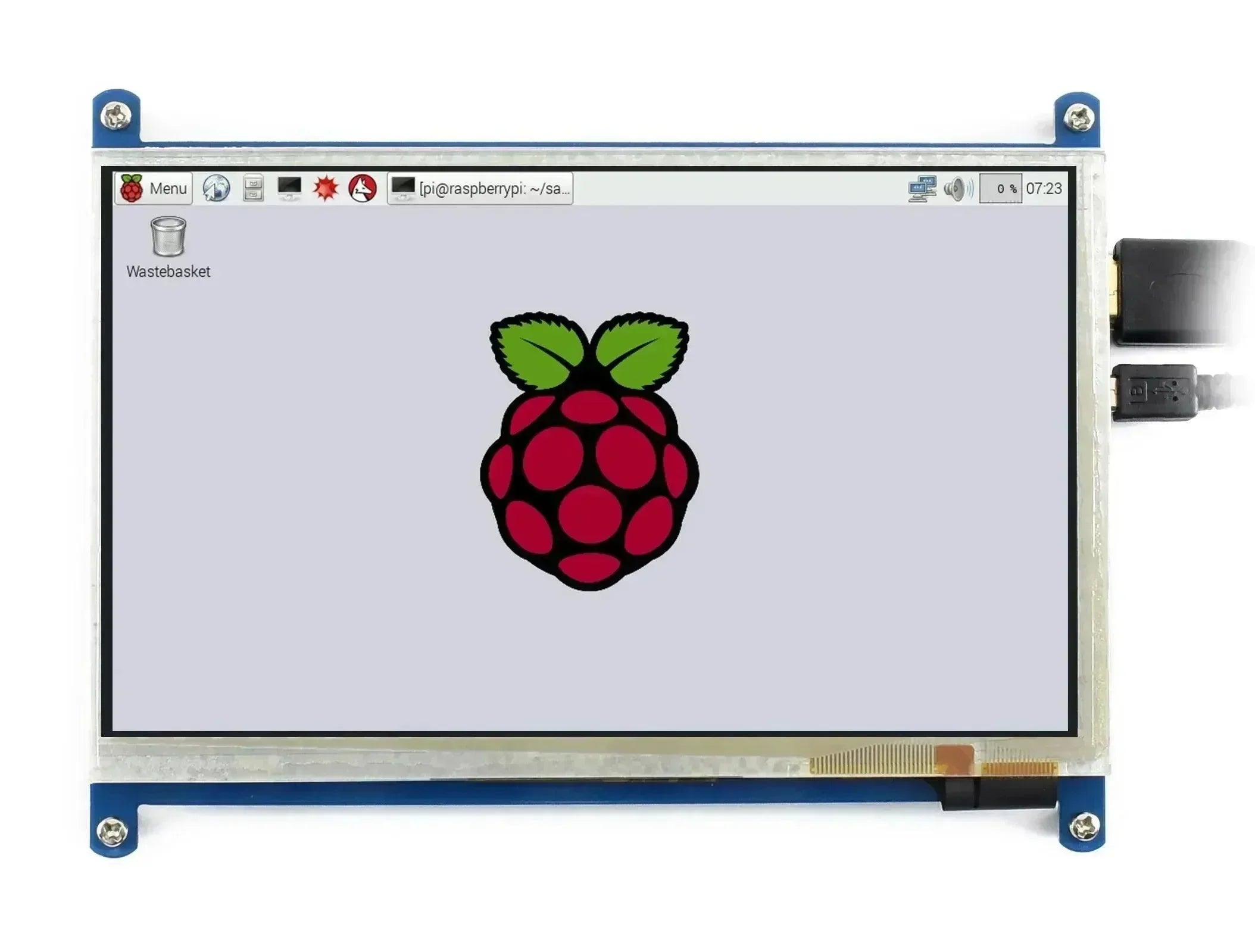

Waveshare 7inch HDMI LCD B touch screen

Waveshare 7inch HDMI LCD B package contents

Resources

FAQ

Does this screen support touch input?
Yes. It uses a capacitive touch panel and supports up to 5-point touch on supported systems.

Does it come with a case?
Yes. This version includes a bicolor protective case, which improves portability and protects the display during use.

Can it work with Raspberry Pi and PC?
Yes. It supports Raspberry Pi and Windows PC use through HDMI video plus USB touch connection.

Is it suitable for portable or embedded projects?
Yes. Its compact size, touch support, and included case make it suitable for portable devices, embedded control panels, and maker projects.
