Meshtastic Hardware
Meshtastic
Meshtastic is an open-source, decentralized communication system that uses LoRa (Long Range) radio technology to enable off-grid messaging without relying on cellular networks or the internet. It is designed for outdoor enthusiasts, emergency responders, and anyone needing reliable communication in remote areas.
Feature | Description |
---|---|
Long-Range Communication | Supports distances up to 331 km in optimal conditions. |
Mesh Networking | Devices relay messages to extend coverage, ensuring connectivity even in difficult terrain. |
Low Power Consumption | LoRa technology allows devices to operate for extended periods on battery power. |
Encrypted Messaging | Secure communication using AES-256 encryption. |
GPS Integration | Supports location sharing for navigation and tracking. |
No Dedicated Router Needed | Works without centralized infrastructure, making it ideal for disaster scenarios. |
Bluetooth Connectivity | Allows easy pairing with smartphones for configuration and messaging. |
Multi-Channel Support | Users can create multiple encrypted channels for different groups. |
Open-Source & Community-Driven | Constantly evolving with contributions from developers worldwide. |

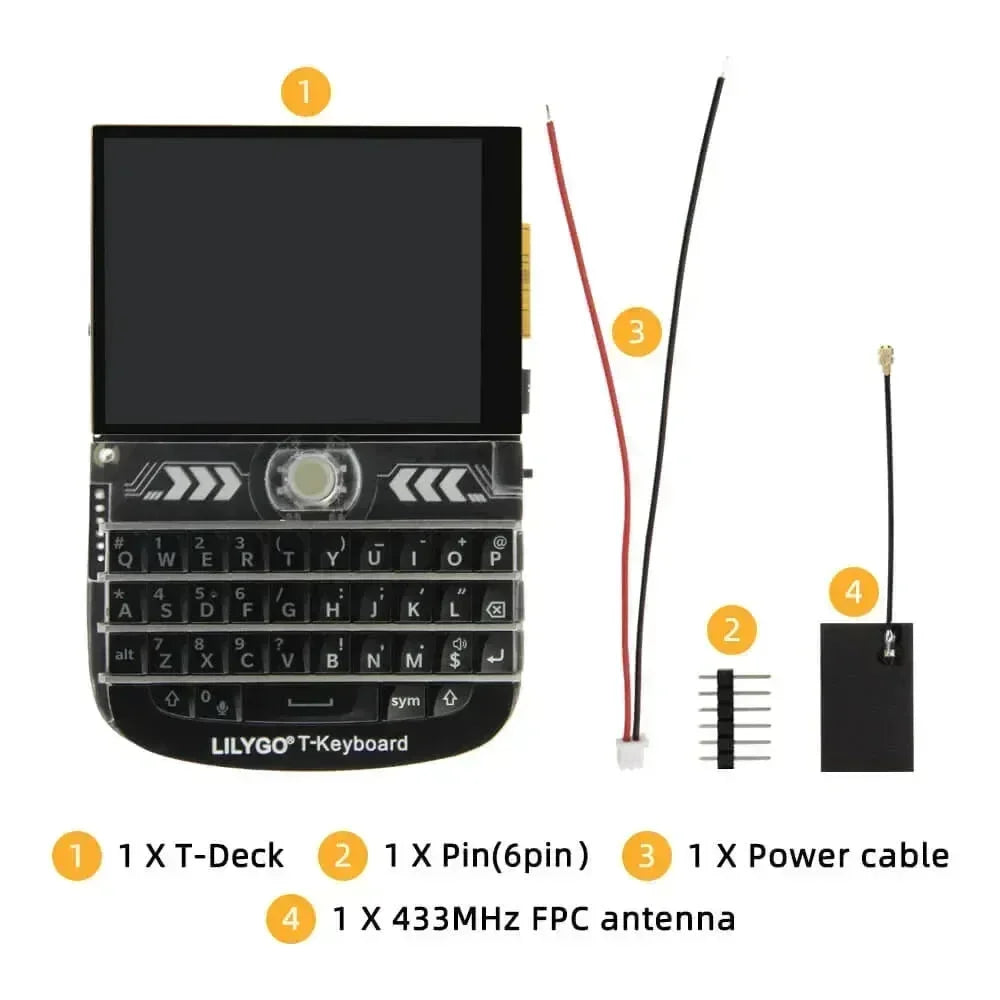

LILYGO T-Deck Plus är en mångsidig utvecklingskort designad för IoT och inbäddade projekt. Med en kraftfull ESP32-chip erbjuder den robusta anslutningsmöjligheter, inklusive Wi-Fi och Bluetooth. Med en integrerad touchskärmsdisplay ger den ett intuitivt gränssnitt för användarinteraktion. T-Deck Plus är utrustad med olika in-/utgångsstift, vilket gör det enkelt att ansluta sensorer och moduler. Idealisk för både hobbyister och proffs stöder detta kort flera programmeringsmiljöer, vilket möjliggör snabb utveckling och prototypframställning av smarta applikationer. Oavsett om det gäller hemautomation, robotik eller bärbar teknik är LILYGO T-Deck Plus ett pålitligt val för innovativa projekt.

Det är en högpresterande spårare designad för Meshtastic, lika liten som ett kreditkort, som enkelt får plats i din ficka eller kan fästas på dina tillgångar. Den innehåller Semtechs LR1110 (stöder 863-928 MHz området), Nordics nRF52840 och Mediateks AG3335 GPS-modul, vilket ger Meshtastic-användare en högprecisions, lågenergi-positionering och kommunikationslösning.

Vision Master T190 (HT-VMT190) är ett utvecklingskit med ESP32-S3 och LoRa-modul (valfritt). Den inbyggda 1,9-tums TFT-LCD-skärmen har 170 (RGB) x 320 punkter och kan visa upp till 262k färger. Genom att arbeta med de exempelprogram och utvecklingsverktyg vi tillhandahåller kan användare styra skärmen via Bluetooth, Wi-Fi och LoRa. Den stödjer även daglig nybörjarprogrammering och kör öppna källkodsprojekt som Meshtastic.
Meshtastic FAQ
Vad används Meshtastic till?
Är Meshtastic lagligt?
Är Meshtastic gratis?
Vad är skillnaden mellan walkie talkies och Meshtastic?
Meshtastic Region Codes
Region Code | Description | Frequency Range (MHz) | Duty Cycle (%) | Power Limit (dBm) |
---|---|---|---|---|
UNSET | Unset | N/A | N/A | N/A |
US | United States | 902.0 - 928.0 | 100 | 30 |
EU_433 | European Union 433MHz | 433.0 - 434.0 | 10 | 12 |
EU_868 | European Union 868MHz | 869.4 - 869.65 | 10 | 27 |
CN | China | 470.0 - 510.0 | 100 | 19 |
JP | Japan | 920.8 - 927.8 | 100 | 16 |
ANZ | Australia & New Zealand | 915.0 - 928.0 | 100 | 30 |
KR | Korea | 920.0 - 923.0 | N/A | N/A |
TW | Taiwan | 920.0 - 925.0 | 100 | 27 |
RU | Russia | 868.7 - 869.2 | 100 | 20 |
IN | India | 865.0 - 867.0 | 100 | 30 |
NZ_865 | New Zealand 865MHz | 864.0 - 868.0 | 100 | 36 |
TH | Thailand | 920.0 - 925.0 | 100 | 16 |
UA_433 | Ukraine 433MHz | 433.0 - 434.7 | 10 | 10 |
UA_868 | Ukraine 868MHz | 868.0 - 868.6 | 1 | 14 |
MY_433 | Malaysia 433MHz | 433.0 - 435.0 | 100 | 20 |
MY_919 | Malaysia 919MHz | 919.0 - 924.0 | 100 | 27 |
SG_923 | Singapore 923MHz | 917.0 - 925.0 | 100 | 20 |
LORA_24 | 2.4 GHz band worldwide | 2400.0 - 2483.5 | 100 | 10 |
Meshtastic Radio Configuration
Name | Description |
---|---|
Bluetooth | The bluetooth config options are: Enabled, Pairing Mode and Fixed PIN. |
Channels | The channels config options are: Index, Role and Settings. |
Device | The device config options are: Device Role, Serial Output, Debug Log and Factory Reset. |
Display | The display config options are: Screen On Duration, Auto Carousel Interval, Always Point North, and GPS Format. |
LoRa | The LoRa config options are: Region, Modem Preset, Max Hops, Transmit Power, Bandwidth, Spread Factor, Coding Rate, Frequency Offset, Transmit Disabled and Ignore Incoming Array. |
Network | The network config options are: WiFi Enabled, WiFi SSID, WiFi PSK, WiFi Mode and NTP Server. |
Position | The position config options are: GPS Enabled, GPS Update Interval, GPS Attempt Time, Fixed Position, Smart Broadcast, Broadcast Interval and Position Packet Flags. |
Power | The power config options are: Charge Current, Power Saving, Shutdown after losing power, ADC Multiplier Override, Wait Bluetooth Interval, Light Sleep Interval and Minimum Wake Interval. |
Security | The security config options are: Public Key, Private Key, Admin Key, Is Managed, Serial Console, Debug Logs, and Admin Channel. |
User | The user config options are: Long Name, Short Name, and Is Licensed. |
