Meshtastic Hardware
Meshtastic
Meshtastic is an open-source, decentralized communication system that uses LoRa (Long Range) radio technology to enable off-grid messaging without relying on cellular networks or the internet. It is designed for outdoor enthusiasts, emergency responders, and anyone needing reliable communication in remote areas.
Feature | Description |
---|---|
Long-Range Communication | Supports distances up to 331 km in optimal conditions. |
Mesh Networking | Devices relay messages to extend coverage, ensuring connectivity even in difficult terrain. |
Low Power Consumption | LoRa technology allows devices to operate for extended periods on battery power. |
Encrypted Messaging | Secure communication using AES-256 encryption. |
GPS Integration | Supports location sharing for navigation and tracking. |
No Dedicated Router Needed | Works without centralized infrastructure, making it ideal for disaster scenarios. |
Bluetooth Connectivity | Allows easy pairing with smartphones for configuration and messaging. |
Multi-Channel Support | Users can create multiple encrypted channels for different groups. |
Open-Source & Community-Driven | Constantly evolving with contributions from developers worldwide. |

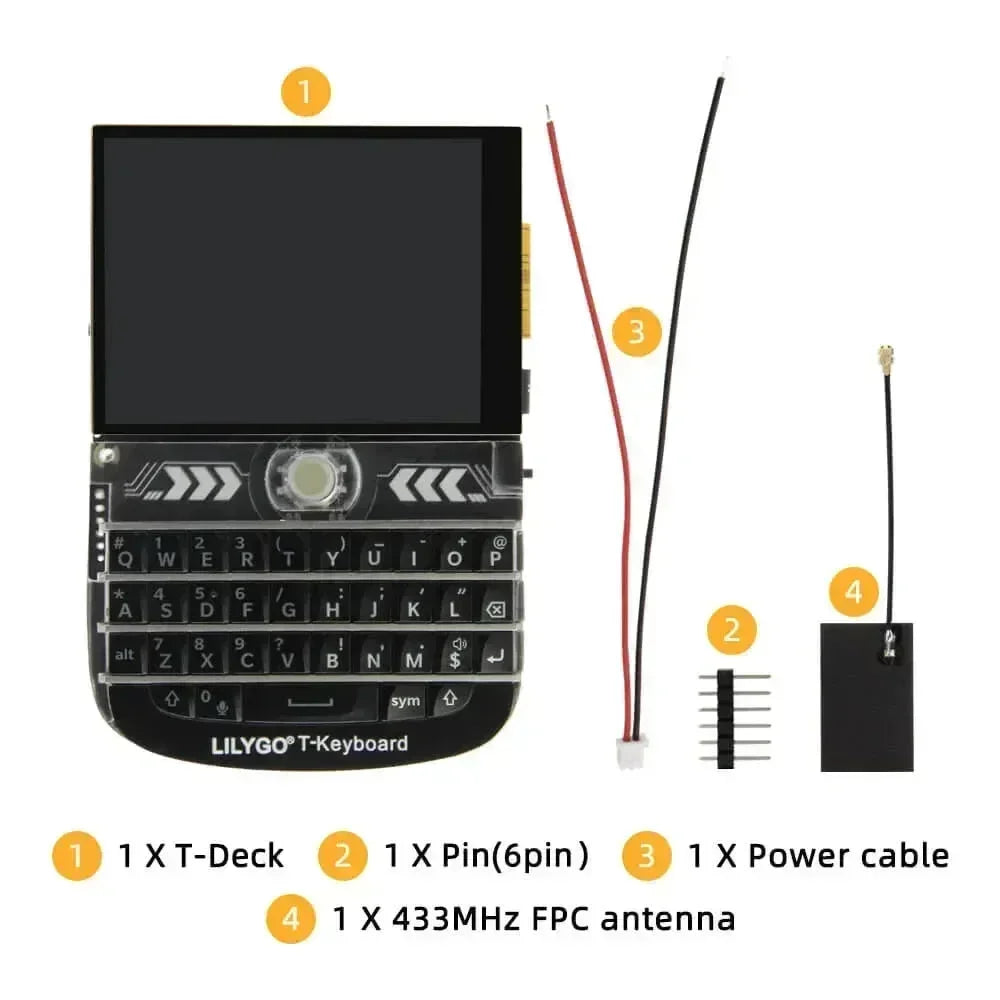

Le LILYGO T-Deck Plus est une carte de développement polyvalente conçue pour les projets IoT et embarqué. Dotée d'une puissante puce ESP32, elle offre des options de connectivité robustes, incluant le Wi-Fi et le Bluetooth. Avec un écran tactile intégré, elle fournit une interface intuitive pour l'interaction utilisateur. Le T-Deck Plus est équipé de plusieurs broches d'entrée/sortie, facilitant la connexion de capteurs et de modules. Idéale pour les amateurs comme pour les professionnels, cette carte supporte plusieurs environnements de programmation, permettant un développement rapide et un prototypage de applications intelligentes. Que ce soit pour la domotique, la robotique ou la technologie portable, le LILYGO T-Deck Plus est un choix fiable pour des projets innovants.

C'est un traceur haute performance conçu pour Meshtastic, aussi petit qu'une carte de crédit, se glissant facilement dans votre poche ou s'attachant à vos biens. Il intègre le LR1110 de Semtech (compatible avec la plage 863-928 MHz), le nRF52840 de Nordic et le module GPS AG3335 de Mediatek, offrant aux utilisateurs de Meshtastic une solution de positionnement et de communication précise et à faible consommation d'énergie.

Vision Master T190 (HT-VMT190) est un kit de développement avec ESP32-S3 et module LoRa (optionnel). L'écran TFT-LCD de 1,9 pouce embarqué contient 170 (RGB) x 320 points et peut afficher jusqu'à 262k couleurs. En travaillant avec les programmes d'exemple et les outils de développement que nous fournissons, les utilisateurs peuvent piloter l'affichage via Bluetooth, Wi-Fi et LoRa. Il prend également en charge la programmation quotidienne de niveau débutant et exécute des projets open source comme Meshtastic.
FAQ Meshtastic
À quoi sert Meshtastic ?
Meshtastic est-il légal ?
Meshtastic est-il gratuit ?
Quelle est la différence entre les talkies-walkies et Meshtastic ?
Meshtastic Region Codes
Region Code | Description | Frequency Range (MHz) | Duty Cycle (%) | Power Limit (dBm) |
---|---|---|---|---|
UNSET | Unset | N/A | N/A | N/A |
US | United States | 902.0 - 928.0 | 100 | 30 |
EU_433 | European Union 433MHz | 433.0 - 434.0 | 10 | 12 |
EU_868 | European Union 868MHz | 869.4 - 869.65 | 10 | 27 |
CN | China | 470.0 - 510.0 | 100 | 19 |
JP | Japan | 920.8 - 927.8 | 100 | 16 |
ANZ | Australia & New Zealand | 915.0 - 928.0 | 100 | 30 |
KR | Korea | 920.0 - 923.0 | N/A | N/A |
TW | Taiwan | 920.0 - 925.0 | 100 | 27 |
RU | Russia | 868.7 - 869.2 | 100 | 20 |
IN | India | 865.0 - 867.0 | 100 | 30 |
NZ_865 | New Zealand 865MHz | 864.0 - 868.0 | 100 | 36 |
TH | Thailand | 920.0 - 925.0 | 100 | 16 |
UA_433 | Ukraine 433MHz | 433.0 - 434.7 | 10 | 10 |
UA_868 | Ukraine 868MHz | 868.0 - 868.6 | 1 | 14 |
MY_433 | Malaysia 433MHz | 433.0 - 435.0 | 100 | 20 |
MY_919 | Malaysia 919MHz | 919.0 - 924.0 | 100 | 27 |
SG_923 | Singapore 923MHz | 917.0 - 925.0 | 100 | 20 |
LORA_24 | 2.4 GHz band worldwide | 2400.0 - 2483.5 | 100 | 10 |
Meshtastic Radio Configuration
Name | Description |
---|---|
Bluetooth | The bluetooth config options are: Enabled, Pairing Mode and Fixed PIN. |
Channels | The channels config options are: Index, Role and Settings. |
Device | The device config options are: Device Role, Serial Output, Debug Log and Factory Reset. |
Display | The display config options are: Screen On Duration, Auto Carousel Interval, Always Point North, and GPS Format. |
LoRa | The LoRa config options are: Region, Modem Preset, Max Hops, Transmit Power, Bandwidth, Spread Factor, Coding Rate, Frequency Offset, Transmit Disabled and Ignore Incoming Array. |
Network | The network config options are: WiFi Enabled, WiFi SSID, WiFi PSK, WiFi Mode and NTP Server. |
Position | The position config options are: GPS Enabled, GPS Update Interval, GPS Attempt Time, Fixed Position, Smart Broadcast, Broadcast Interval and Position Packet Flags. |
Power | The power config options are: Charge Current, Power Saving, Shutdown after losing power, ADC Multiplier Override, Wait Bluetooth Interval, Light Sleep Interval and Minimum Wake Interval. |
Security | The security config options are: Public Key, Private Key, Admin Key, Is Managed, Serial Console, Debug Logs, and Admin Channel. |
User | The user config options are: Long Name, Short Name, and Is Licensed. |
